ASUS ROG Maximus X Hero, Socket-1151

Varenummer: 956669 / Produktnr.: ROG MAXIMUS X HERO

Flere bilder av

performance oc3d testlogo bit-tech exceptional, testlogo Recommended Hexus recommended testlogo LANOC Recommended testlogo

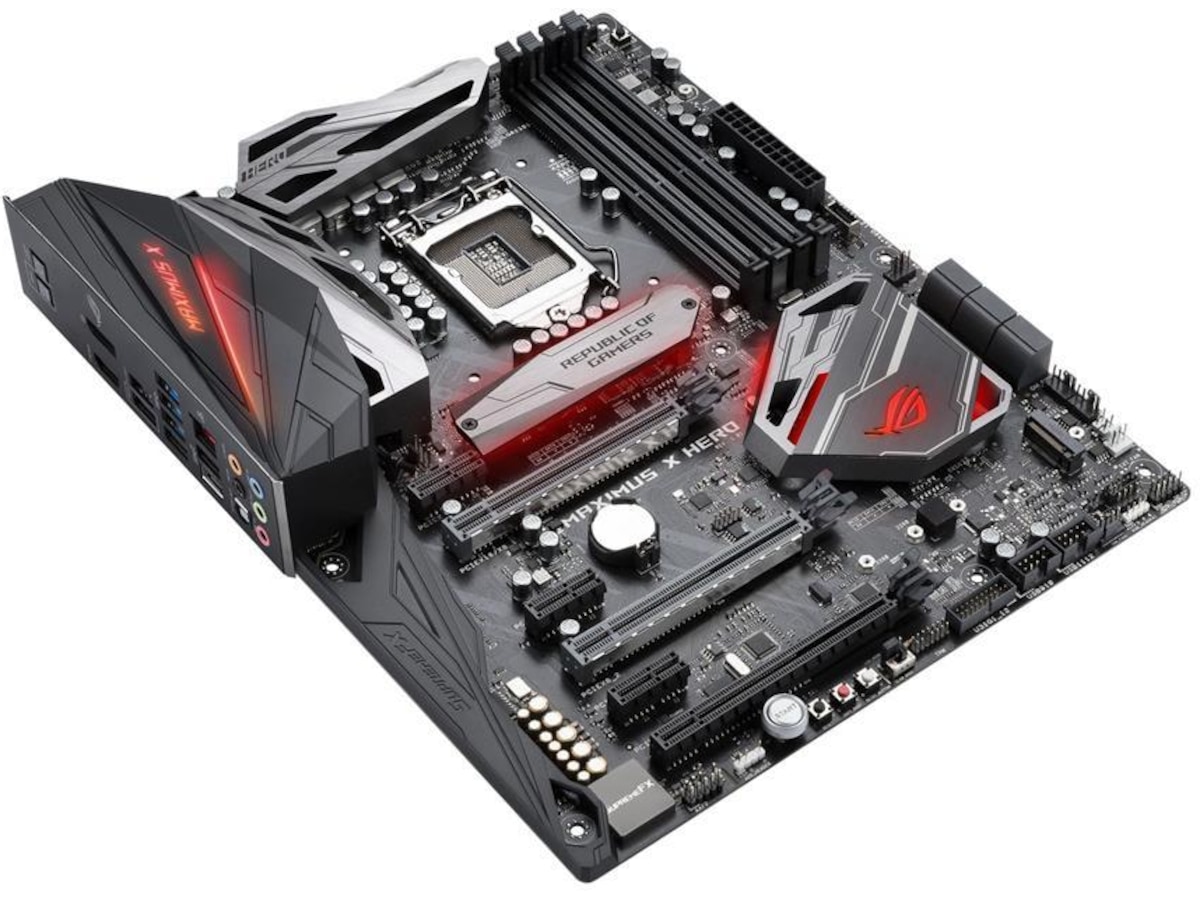

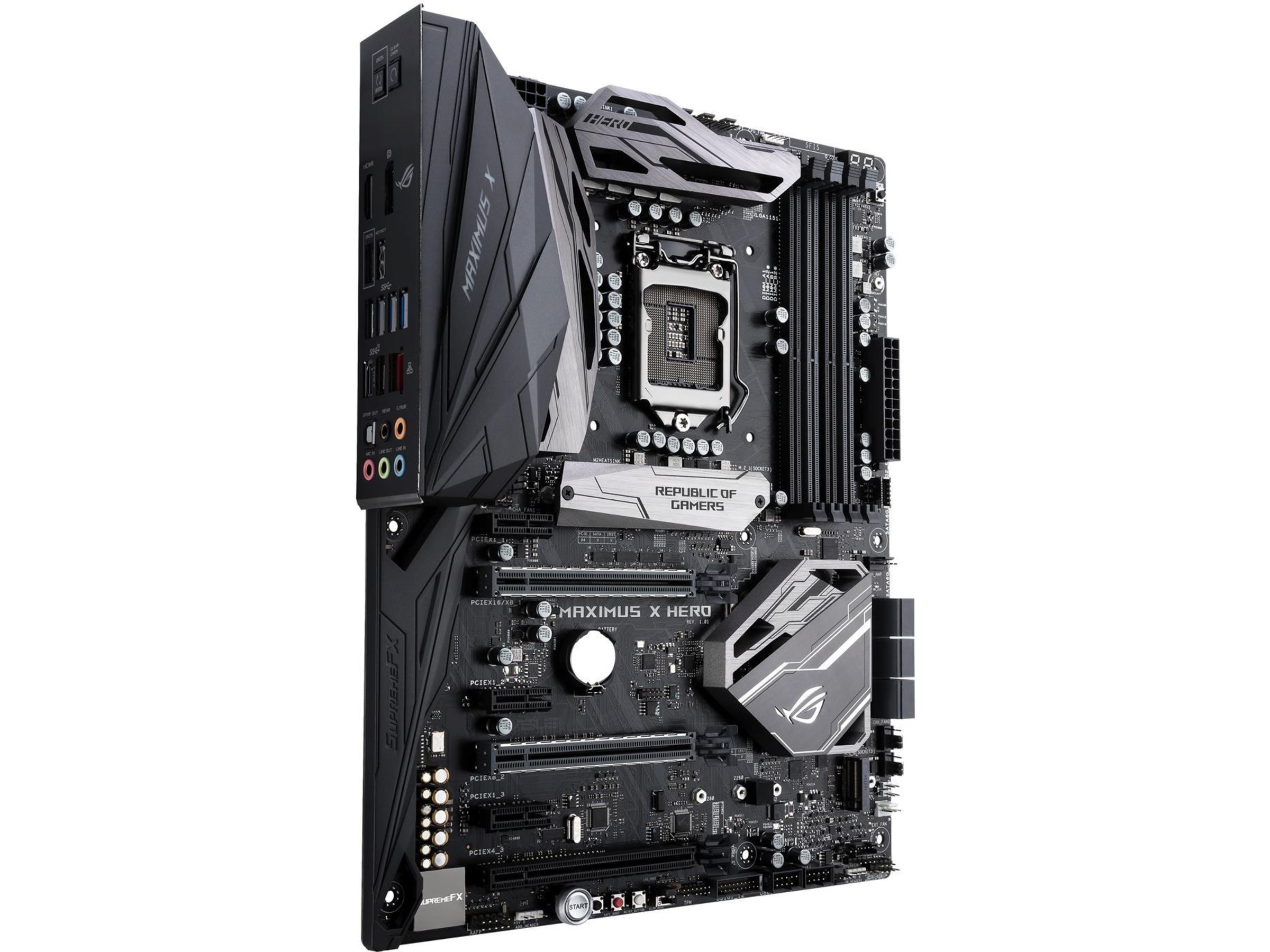

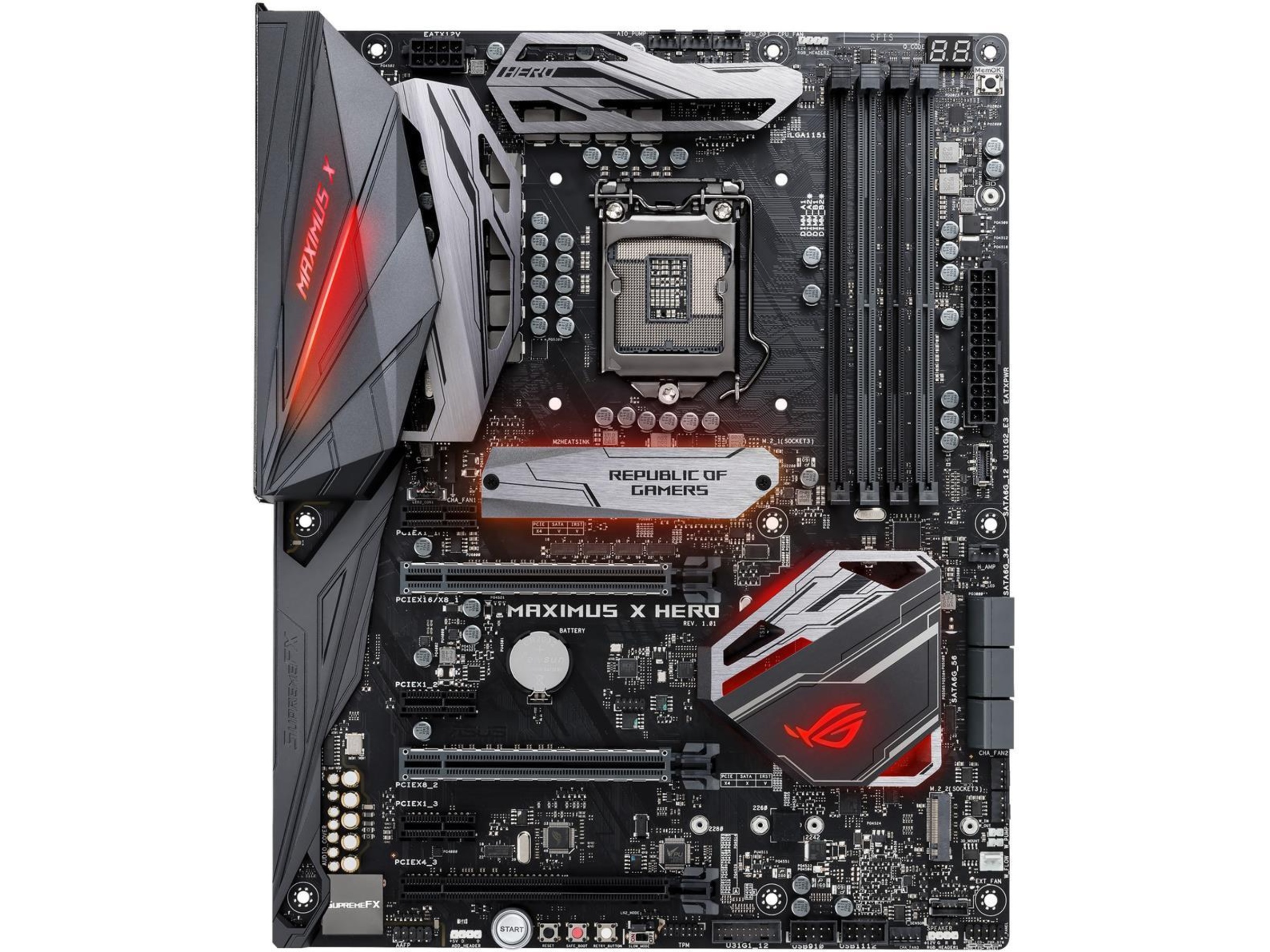

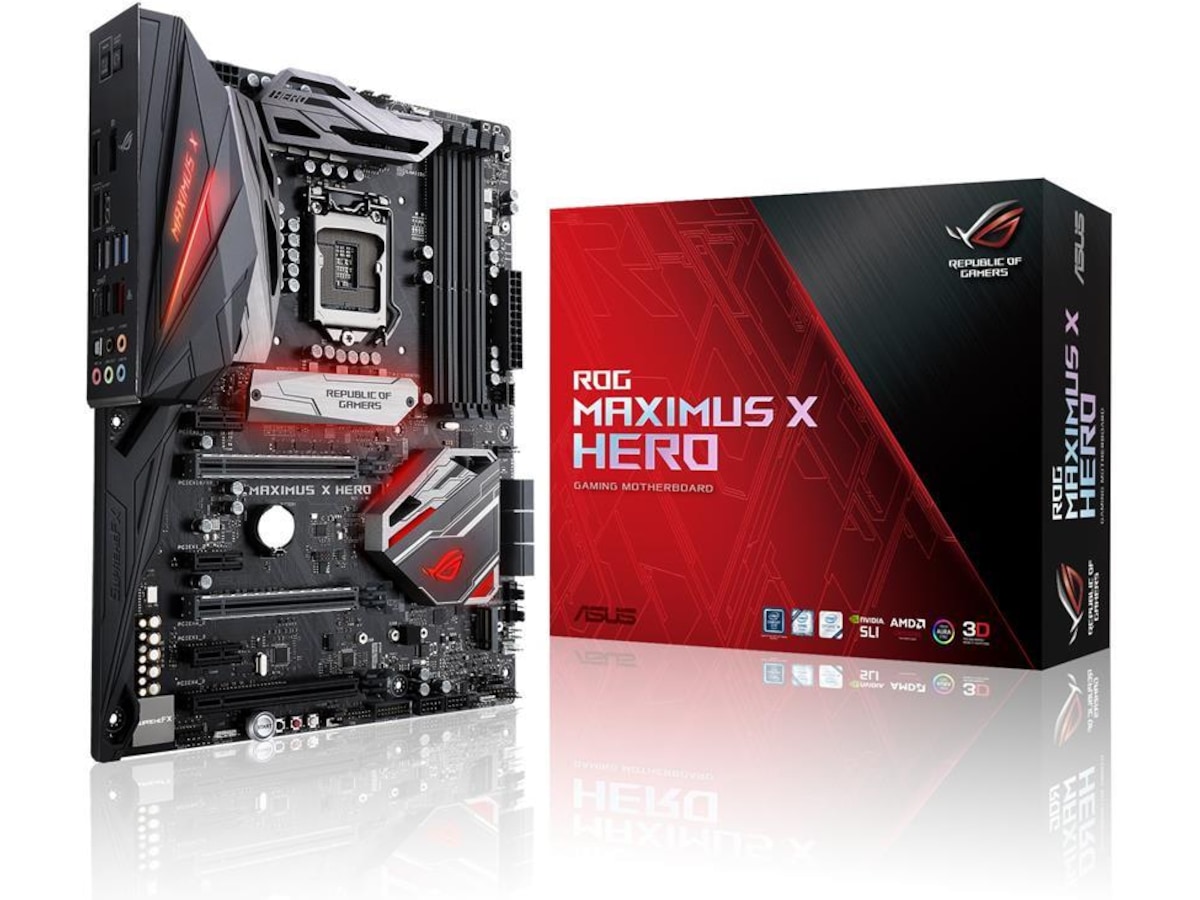

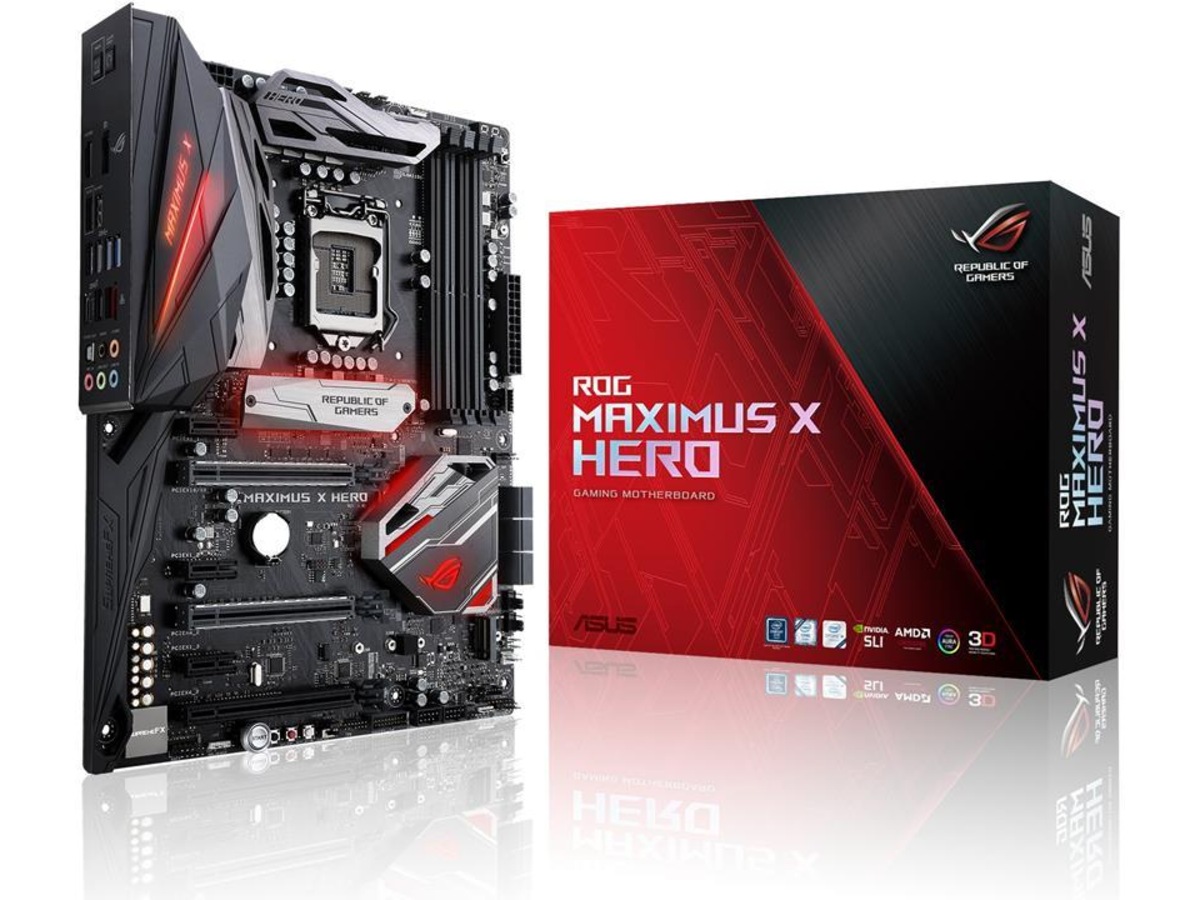

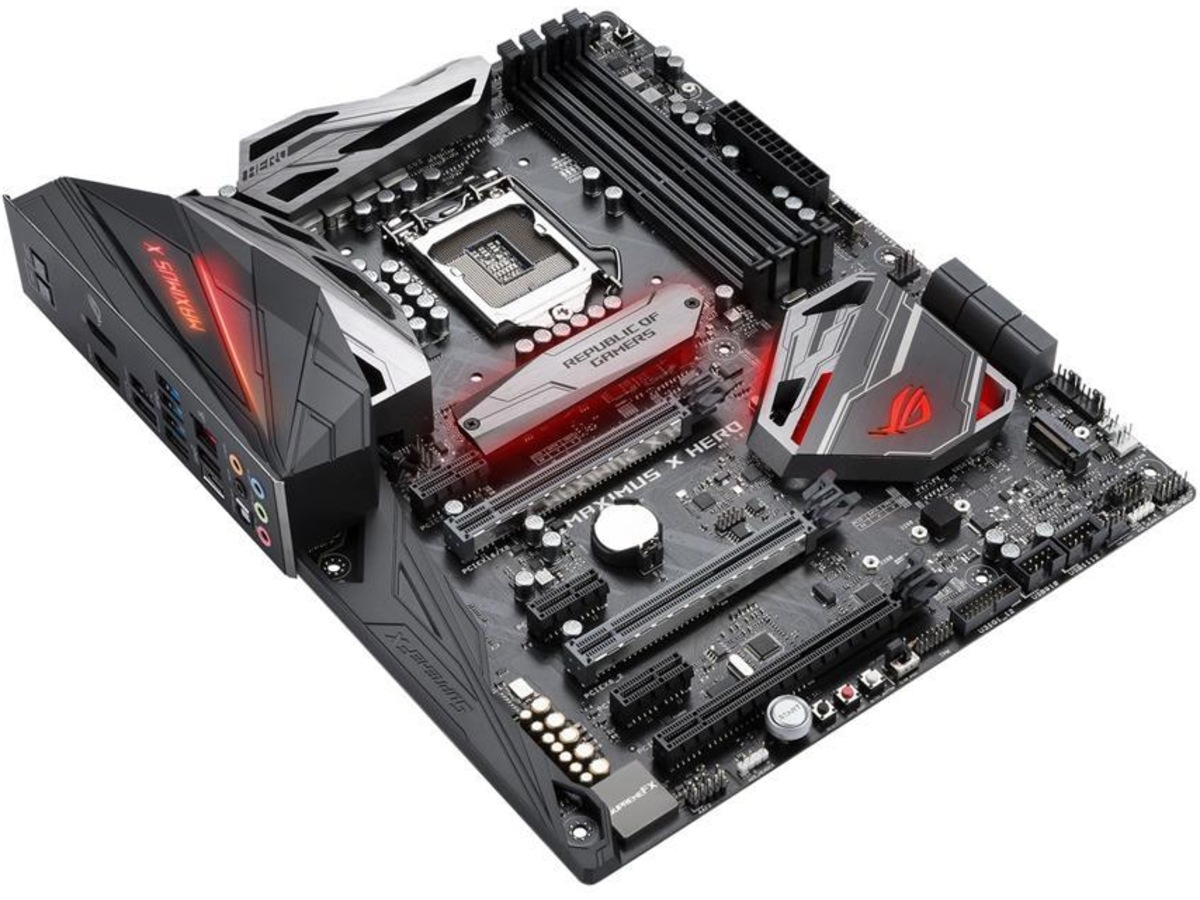

ASUS ROG Maximus X Hero, Socket-1151 motherboard

  • Aura Sync RGB LEDs,
  • DDR4 4133MHz
  • Dual M.2
  • USB 3.1 Gen 2

THE HERO EVERYONE WANTS

Drawing from a heritage that spans more than a decade, the latest incarnation of the Maximus series augments Intel's Z370 chipset with all the enhancements that enthusiasts crave.

Each model sports a unique blend of features to cater to a distinct audience, yet the core ROG DNA ripples through the entire lineup. From overclocking and cooling options to satiate die-hard fanatics, to clean, refined aesthetics that are tastefully accented by RGB lighting, Maximus X-series motherboards bring the octane to your build.

  • LGA1151 socket for 8th -gen Intel® Core™ desktop processors
  • Synchronize RGB lighting with a vast portfolio of Aura Sync capable PC gear – now with support for addressable light strips
  • Onboard M.2 Heatsink: Cools your M.2 drive, delivering consistent storage performance and enhanced reliability
  • Gaming Audio: SupremeFX and Sonic Studio III – High fidelity audio that draws you deeper into the action
  • Gaming connectivity: Intel Gigabit Ethernet, LANGuard, Dual M.2, USB 3.1 Gen 2 Type-A and Type-C™ connectors
  • 5-Way Optimization: Automated system-wide tuning, providing overclocking and cooling profiles that are tailor made for your rig
  • Gaming durability: ASUS SafeSlot and premium components for maximum durability

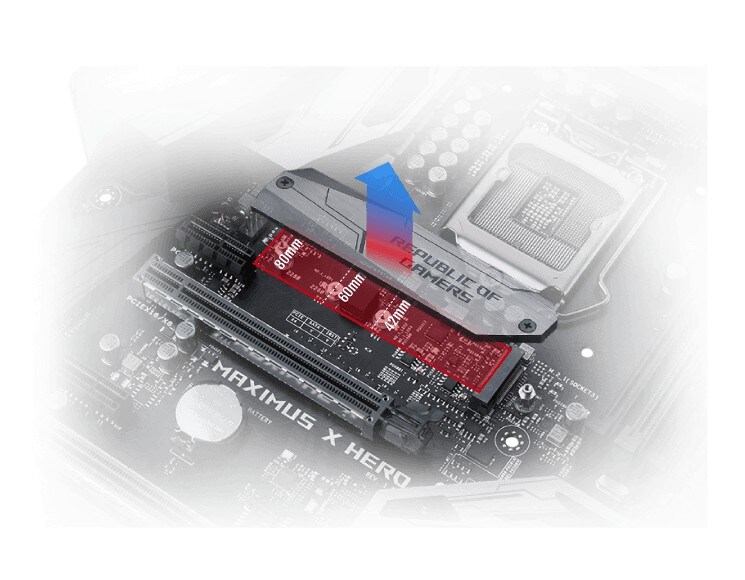

M.2 HEATSINK

ROG Maximus X Hero is equipped with a stylish, angular M.2 heatsink that keeps your SSD cool. By efficiently dissipating heat away from the M.2 area, ROG Maximus X Hero minimizes the possibility of the performance-sapping throttling that can happen when drives become too warm

INTEL ETHERNET

Featuring the latest Intel® Ethernet (I219-V) for faster, smoother gaming. Intel Ethernet controllers have a natural synergy with their CPUs and chipsets, reducing processor overhead and offering exceptionally high TCP and UDP throughput, so there's more power for games and other tasks.

Intel® Z370 chipset

The Intel® Z370 chipset supports 8th Generation Intel® Core™ processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, the Z370 provides a maximum of 10 USB 3.1 Gen 1 ports, six SATA 6Gbps ports, and 32Gbps M.2 and PCIe 3.0 lane speed support, for faster data retrieval. Intel Z370 also supports integrated-graphics, so you'll enjoy the very latest in graphics performance.

Generelt
Garanti (måneder) 36
Produkttype Hovedkort - ATX
Brikkesett type Intel Z370
Prosessorsokkel LGA1151 Socket
Maks antall prosessorer 1
Kompatible prosessorer Core i5, Core i3, Core i7 (støtter 8. generasjon Intel Core i3 / i5 / i7)
Støttet RAM
Maks størrelse 64 GB
Teknologi DDR4
Bussklokke 2400 MHz, 2133 MHz, 2666 MHz, 2800 MHz (O.C.), 3000 MHz (O.C.), 3200 MHz (O.C.), 3300 MHz (O.C.), 3400 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.)
Støttet RAM-integritetskontroll Ikke-ECC
Registrert eller bufret Ikke-bufret
Egenskaper Dobbeltkanalsminnearkitektur, Intel Extreme Memory Profiles (XMP)
Grafikk
Maks allokert RAM-størrelse 1 GB
Lyd
Type HD-lyd (8-kanalers)
Audio Codec SupremeFX (S1220)
Tilpassede standarder High Definition Audio
LAN
Nettverkskontroller Intel I219V
Nettverksgrensesnitt Gigabit Ethernet
Ekspansjon / Tilkoplinger
Utvidelsesspor 1 x CPU
4 x 288-pins DIMM
2 x PCIe 3.0 x16 (dobbelt x8-modus; enkeltkort: x16-modus)
1 x PCIe 3.0 x16 (x4-modus)
3 x PCIe 3.0 x1
Lagergrensesnitt SATA-600 -kontakter: 6 x 7-pin seriell ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
SATA-600 / PCIe 3.0 -kontakter: 1 x M.2
PCIe 3.0 -kontakter: 1 x M.2

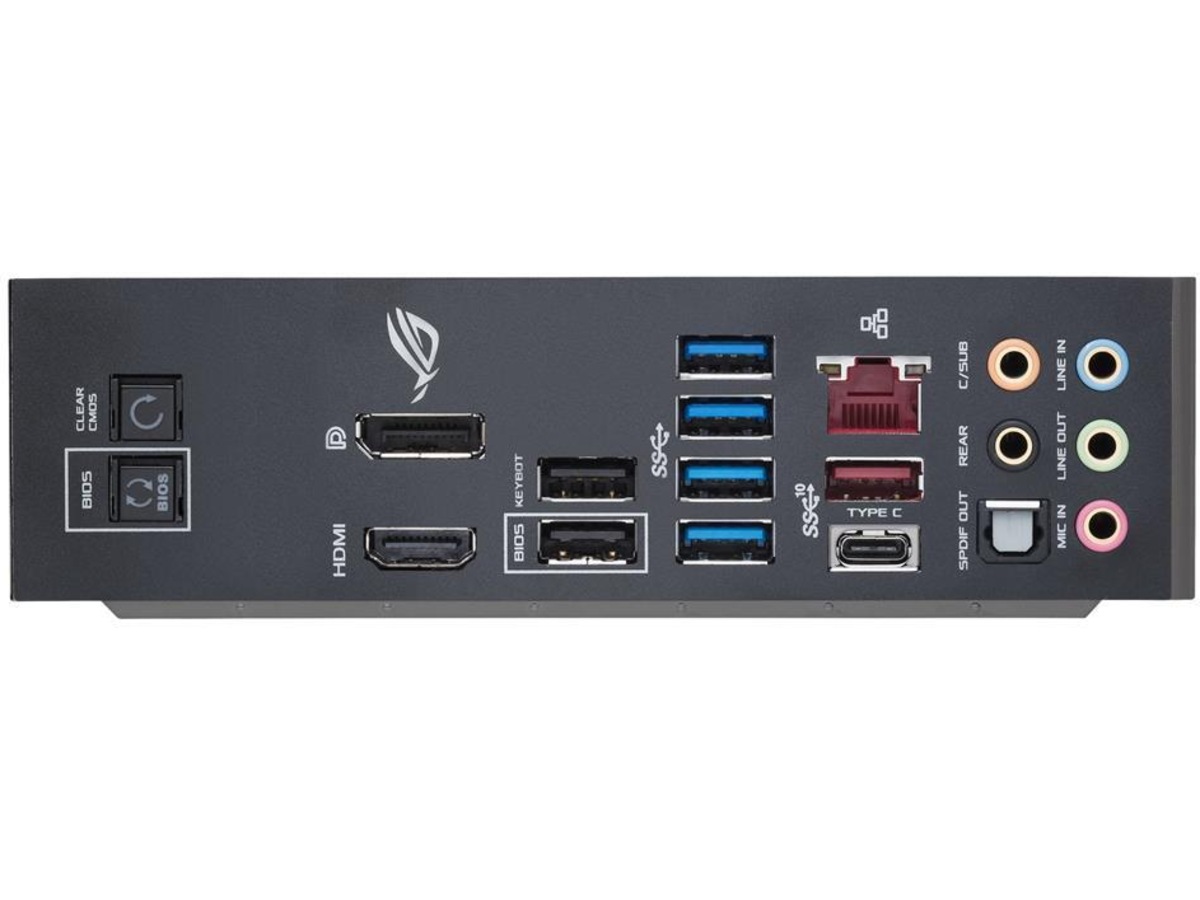

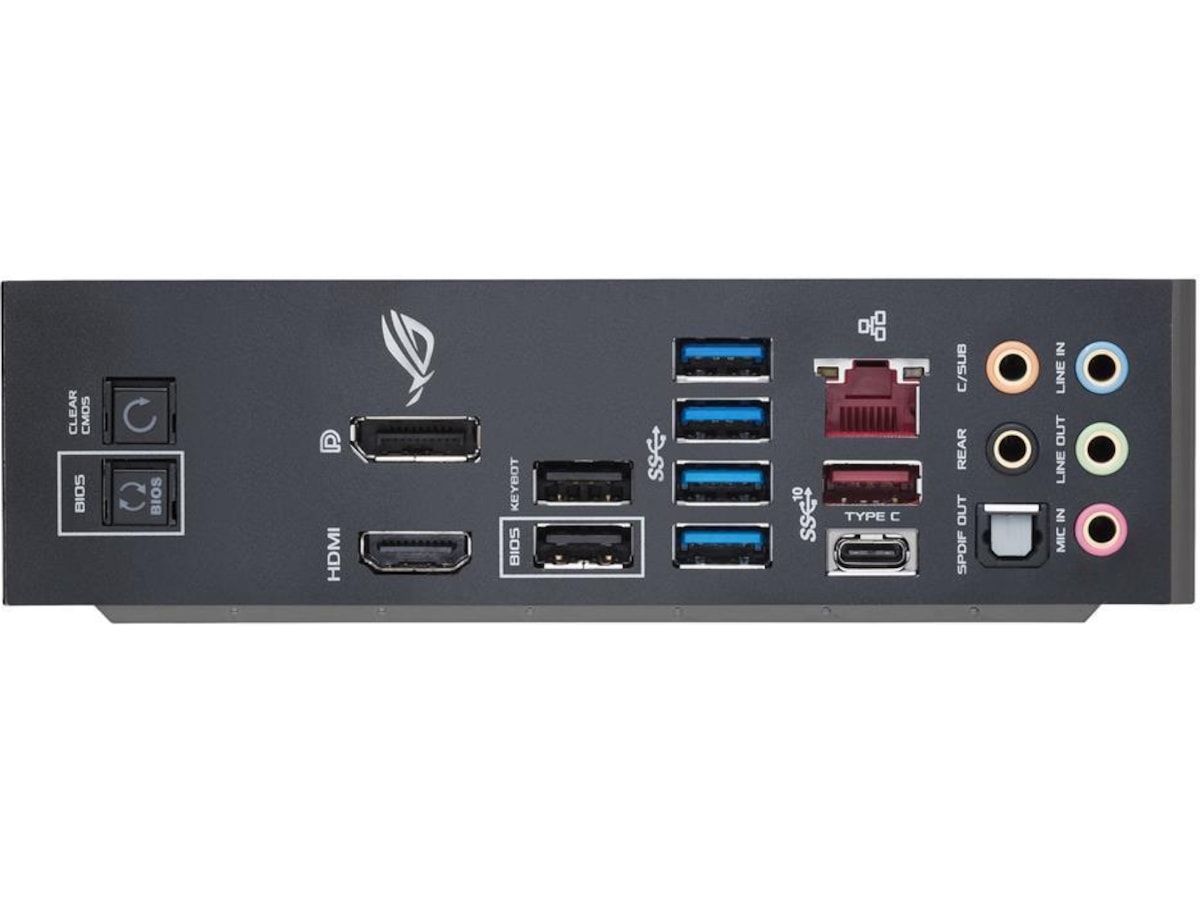

Grensesnitt 1 x HDMI
1 x DisplayPort
4 x USB 3.1 Gen 1
1 x LAN (Gigabit Ethernet)
1 x lydinnlinje - minijakk
1 x lydutlinje - minijakk
1 x mikrofon - minijakk
1 x lydutlinje (senter/subbasshøyttaler) - minijakk
1 x lydutlinje (bakre) - minijakk
1 x TOSLINK
1 x USB 3.1 Gen 2
1 x USB-C Gen2
2 x USB 2.0
Interne overflater 4 x USB 2.0 - header
2 x USB 3.1 Gen 1 - header
1 x lyd - header
1 x USB 3.1 Gen 2 - header
Strømkontakter 24-pin hovedstrømforsyningskontakt, 8-pin ATX12V-kontakt
Egenskaper
BIOS Type AMI
BIOS-egenskaper WfM 2.0 støttet, flerispråklig BIOS, ASUS O.C. Profile, USB BIOS Flashback, UEFI BIOS, ASUS EZ Flash 3, DMI 3,0 støttet, SMBIOS 3,0 støtte, ACPI 6,0 støtte
Maskinvarefunksjoner C.P.R. (CPU-parameterminne), jakk-retasking, MemOK!, ASUS Q-Design, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, ASUS Extreme Engine Digi+, CrashFree BIOS 3, ASUS Q-Connector, lydjakkpåvisningsteknologi, ASUS EPU (Energy Processing Unit), ASUS Extreme Tweaker, Intel Extreme Memory Profile (XMP)-støtte, NVIDIA 2-way SLI Technology Support, Intel Turbo Boost Technology 2.0, ASUS TPU (TurboV Processing Unit), ASUS DIGI+ VRM, ASUS ROG Extreme OC, Q-Code, SupremeFX Shielding-teknologi, AMD 3-veis CrossFireX-teknologistøtte, Disk Unlocker, dobble hodetelefonsforsterkere, Dual Intelligent Processors 5, LANGuard, KeyBot II, GameFirst IV, ROG SSD Secure Erase, AURA RGB Lighting Control, ASUS Fan Xpert 4, ASUS SafeSlot, 3D-skrivervennlig, Intel Optane Memory Ready, Sonic Radar III, Sonic Studio III, Mem TweakIt, ASUS PRO Clock II Technology, M.2-kjølelegeme
Diverse

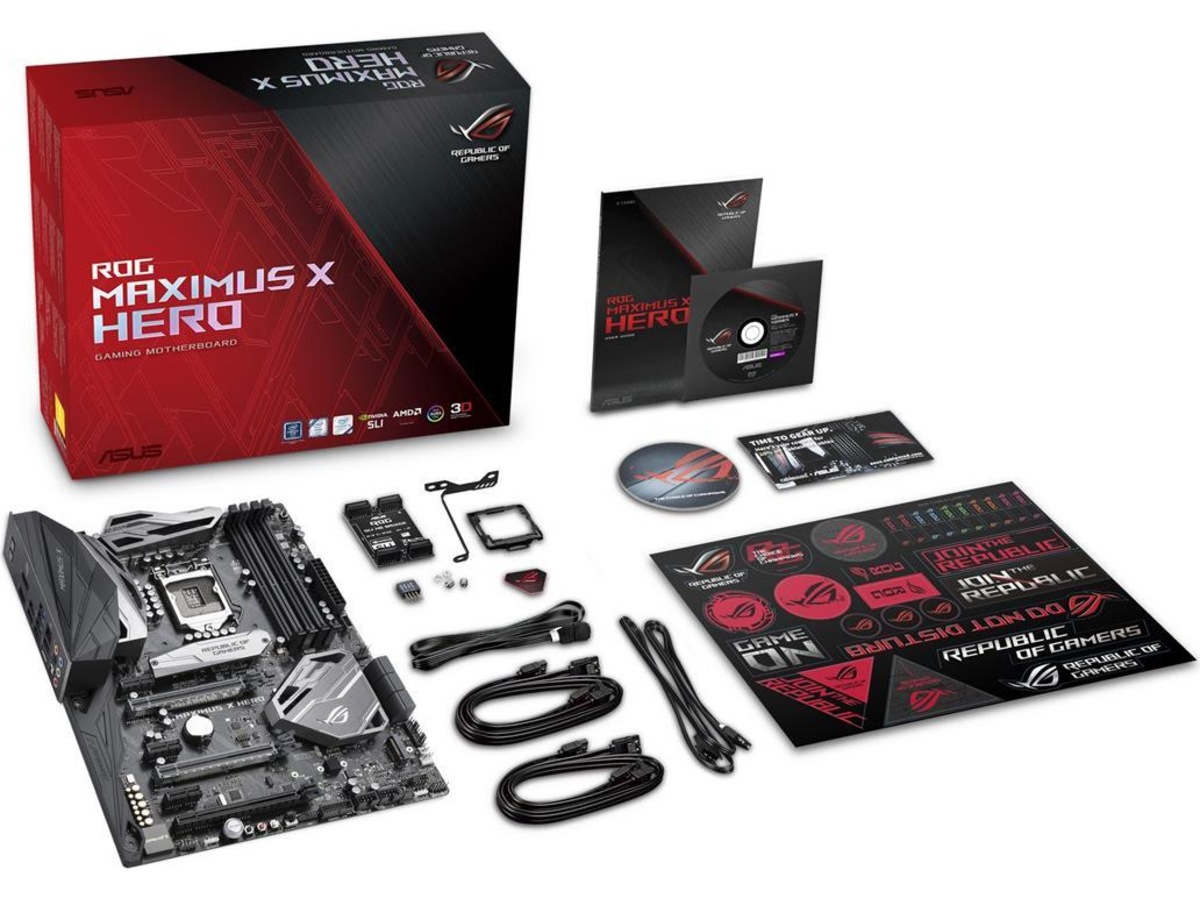

Tilleggsutstyr inkludert 1 x M.2 skrue, ROG-brikker, monteringspakke for 3D-utskrift, CPU-installasjonsverktøy, 2 RGB (RGBW) LED-stripeskjøteledninger, MOS-kjølingssett, ROG-storetikett
Medfølgende kabler 4 x Seriell ATA-kabel
1 x SLI-bro
Inkludert programvare Drivers & Utilities, ROG CPU-Z, ASUS AI Suite III, ROG RAMDisk, ASUS Turbo App, Overwolf, ASUS EZ Flash 3, ROG Aura, ROG GameFirst IV, ASUS ROG RAMCache II, ROG CloneDrive
Tilpassede standarder Plug and Play
Bredde 30.5 cm
Dybde 24.4 cm
