Lenovo ThinkPad USB-C Dock

Varenummer: 919146 / Produktnr.: 40A90090EU

Flere bilder av

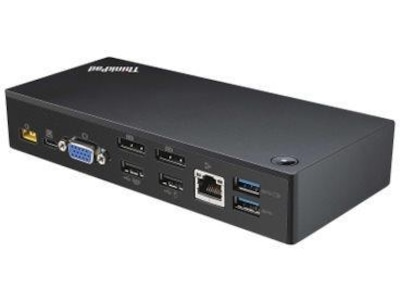

ThinkPad® USB-C Dock

USB - C Designed, Productivity Inspired

The Complete USB-C Docking Experience

The ThinkPad USB-C Dock is the ideal hub, as part of an emerging industry-standard, for transmitting data, video and power to your USB-C compatible notebooks. With unprecedented USB-C productivity, you can enjoy vivid displays across multiple screens, charge your system, connect legacy USB peripherals, wired network, and rapidly charge your mobile devices. Perfect for a hoteling environment, shared workspace, or enterprises with high security requirements, the ThinkPad USB-C Dock is a benchmark to your workstation.

Generelt
Garanti (måneder) 12
Produkttype Dokkingstasjon
Bredde 17.1 cm
Dybde 8 cm
Høyde 3.25 cm
Vekt 290 g
Video
Maks. oppløsningsdetaljer 3840 x 2160 - 30 Hz (kun DisplayPort)
1920 x 1200 - 60 Hz (kun VGA)
1920 x 1080 - 60 Hz (DisplayPort og VGA samtidig)
1920 x 1080 - 60 Hz (DisplayPort og DisplayPort samtidig)
Nettverkstilknytning
Datakjedeprotokoll Gigabit Ethernet
Ekspansjon / Tilkoplinger
Grensesnitt 2 x SuperSpeed USB 3.0
1 x SuperSpeed USB 3.0 with Always-On Mobile Device Charging
2 x USB 2.0
1 x USB-C
1 x video - VGA
2 x audio / video - DisplayPort
1 x nettverk - RJ-45
1 x lyd - hodetelefoner/mikrofon - 4-pols 3,5 mm-minijakk
Diverse
Medfølgende kabler 1 x USB-C-kabel
Egenskaper Sikkerhetslåsspor (kabellås solgt separat), wake on LAN, på/av-bryter, støtte for Preboot Execution Environment (PXE)
Tilpassede standarder TUV, VCCI, BSMI, NOM, CB, FCC, SII, KCC, ICES, cULus, Kvalitet, EAC, RCM, Ukraine EMC DoC, LoA
Strømforsyning
Strømenhet Strømadapter
Strømtilførsel 90 watt
Systemkrav
OS påkrevd Microsoft Windows 7, Windows 10
Miljøparametere
Min. driftstemperatur -5 °C
Maks. Driftstemperatur 40 °C
Informasjon om kompatibilitet
Designet for Lenovo 730S-13IWL 81JB
Lenovo Miix 510-12IKB 80XE
Lenovo Miix 510-12ISK 80U1
Lenovo Miix 520-12IKB 81CG
Lenovo Miix 720-12IKB 80VV
Lenovo Tablet 10 20L3, 20L4
Lenovo ThinkPad 11e (5th Gen) 20LQ, 20LR
Lenovo Thinkpad 13 (1st Gen) 20GJ, 20GK
Lenovo Thinkpad 13 (2nd Gen) 20J1, 20J2
Lenovo ThinkPad A275 20KC, 20KD
Lenovo ThinkPad A285 20MW, 20MX
Lenovo ThinkPad A475 20KL, 20KM
Lenovo ThinkPad A485 20MU, 20MV
Lenovo ThinkPad E490 20N8, 20N9
Lenovo ThinkPad E490s 20NG
Lenovo ThinkPad E590 20NB, 20NC
Lenovo ThinkPad L380 20M5, 20M6
Lenovo ThinkPad L380 Yoga 20M7, 20M8
Lenovo ThinkPad L390 20NR, 20NS
Lenovo ThinkPad L390 Yoga 20NT, 20NU
Lenovo ThinkPad L480 20LS, 20LT
Lenovo ThinkPad L580
Lenovo ThinkPad P51s 20HB, 20HC, 20JY, 20K0
Lenovo ThinkPad P52s 20LB, 20LC
Lenovo ThinkPad T25 20K7
Lenovo ThinkPad T470 20HD, 20HE, 20JM, 20JN
Lenovo ThinkPad T470s 20HF, 20HG, 20JS, 20JT
Lenovo ThinkPad T480 20L5, 20L6
Lenovo ThinkPad T480s 20L7, 20L8
Lenovo ThinkPad T490s 20NX
Lenovo ThinkPad T570 20H9, 20HA, 20JW, 20JX
Lenovo ThinkPad T580 20L9, 20LA
Lenovo ThinkPad X1 Carbon (5th Gen) 20HQ, 20HR, 20K3, 20K4
Lenovo ThinkPad X1 Carbon (6th Gen) 20KG, 20KH
Lenovo ThinkPad X1 Tablet (1st Gen) 20GG, 20GH
Lenovo ThinkPad X1 Tablet (2nd Gen) 20JB, 20JC
Lenovo ThinkPad X1 Tablet (3rd Gen) 20KJ, 20KK
Lenovo ThinkPad X1 Yoga (2nd Gen) 20JD, 20JE, 20JF, 20JG
Lenovo ThinkPad X1 Yoga (3rd Gen) 20LD, 20LE, 20LF, 20LG
Lenovo ThinkPad X270 20HM, 20HN, 20K5, 20K6
Lenovo ThinkPad X280 20KE, 20KF
Lenovo ThinkPad X380 Yoga 20LH, 20LJ
Lenovo ThinkPad Yoga 11e (5th Gen) 20LM, 20LN
Lenovo ThinkPad Yoga 370 20JH, 20JJ
Lenovo V330-14IKB 81AY, 81B0
Lenovo V330-14ISK 81AY
Lenovo V330-15IKB 81AX
Lenovo V330-15ISK 81AW
Lenovo Yoga S730-13IWL 81J0
