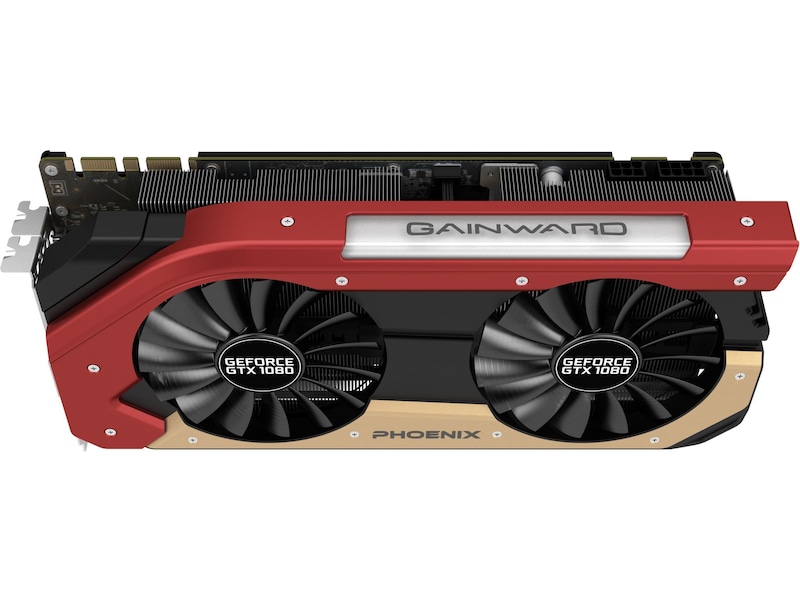

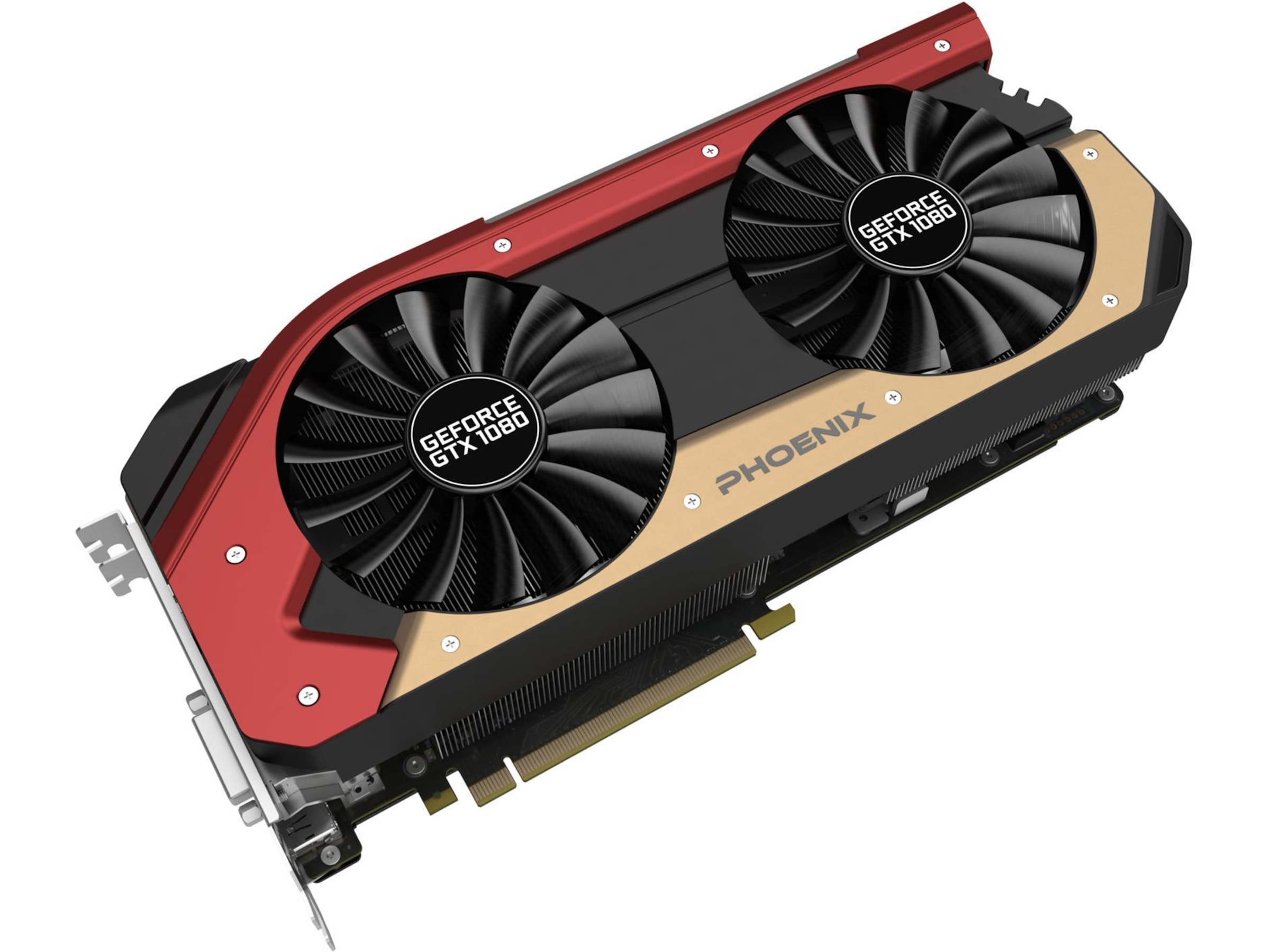

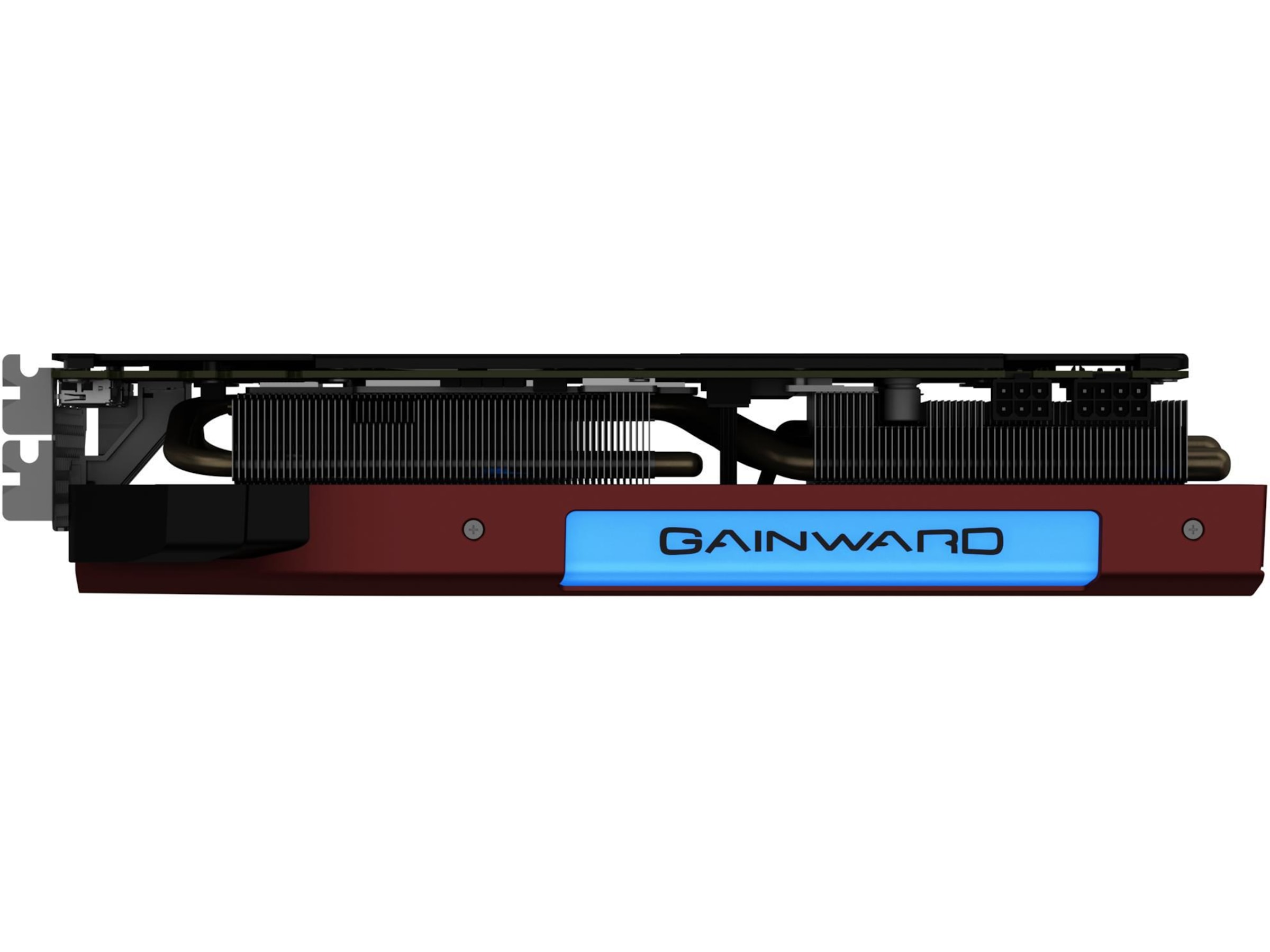

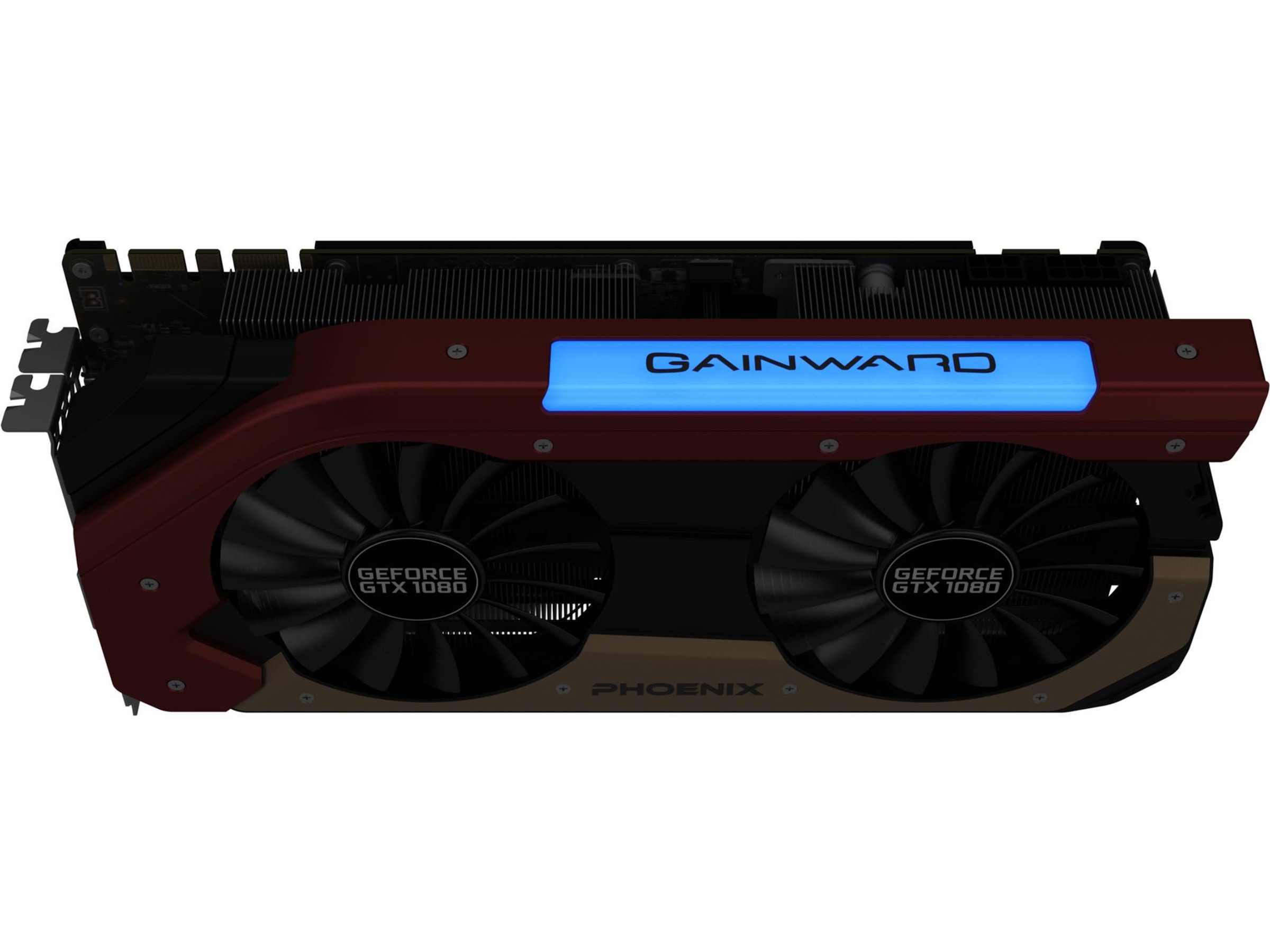

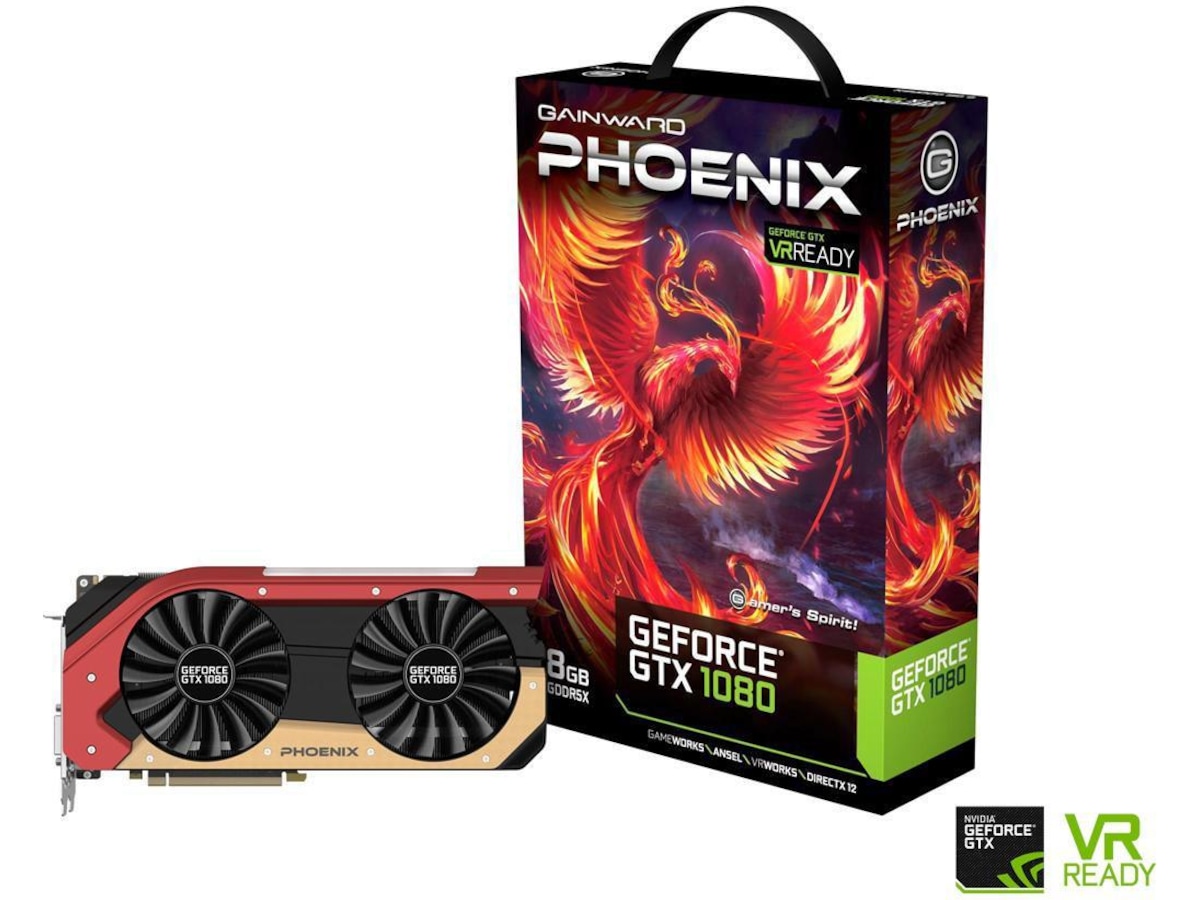

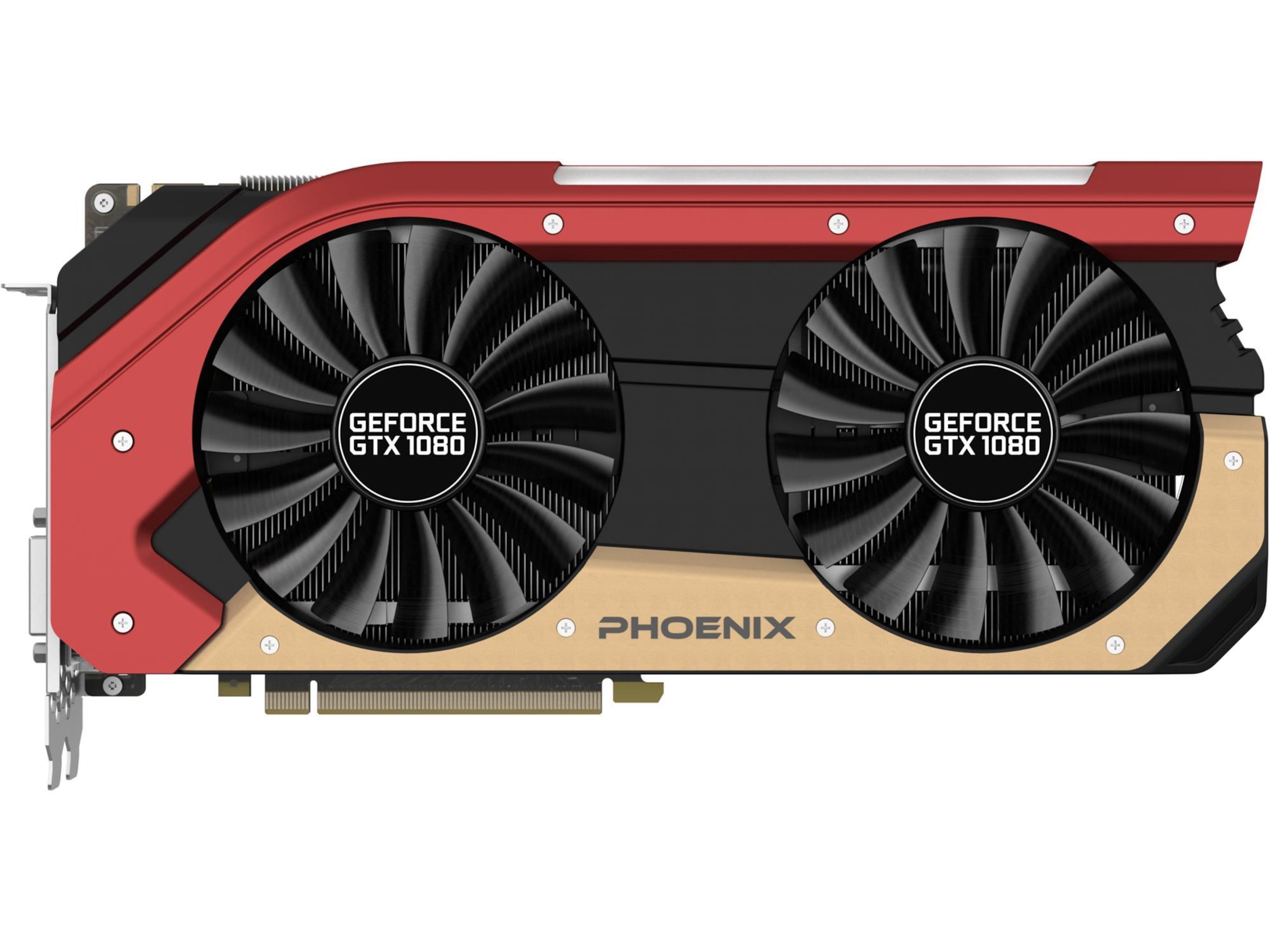

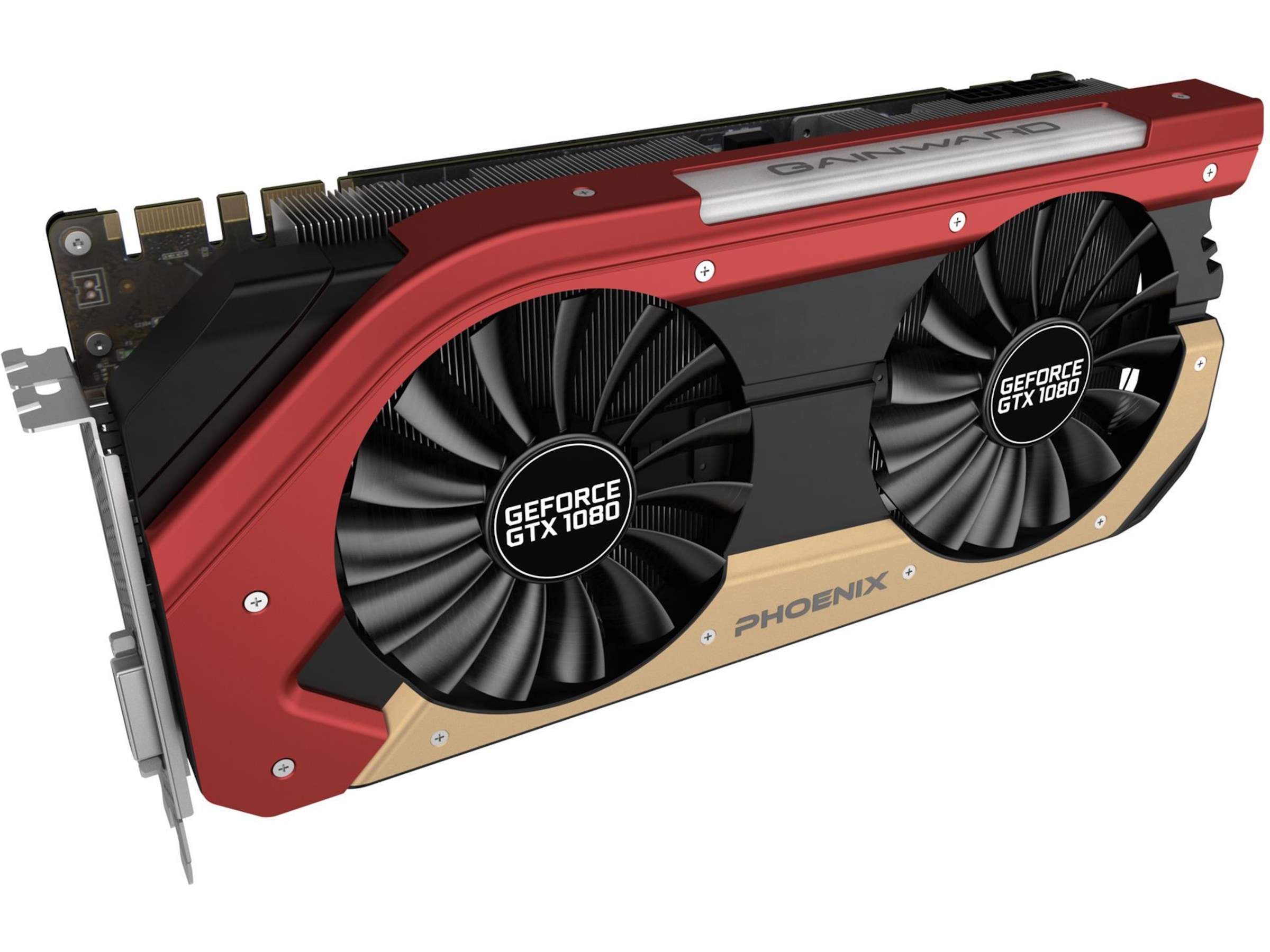

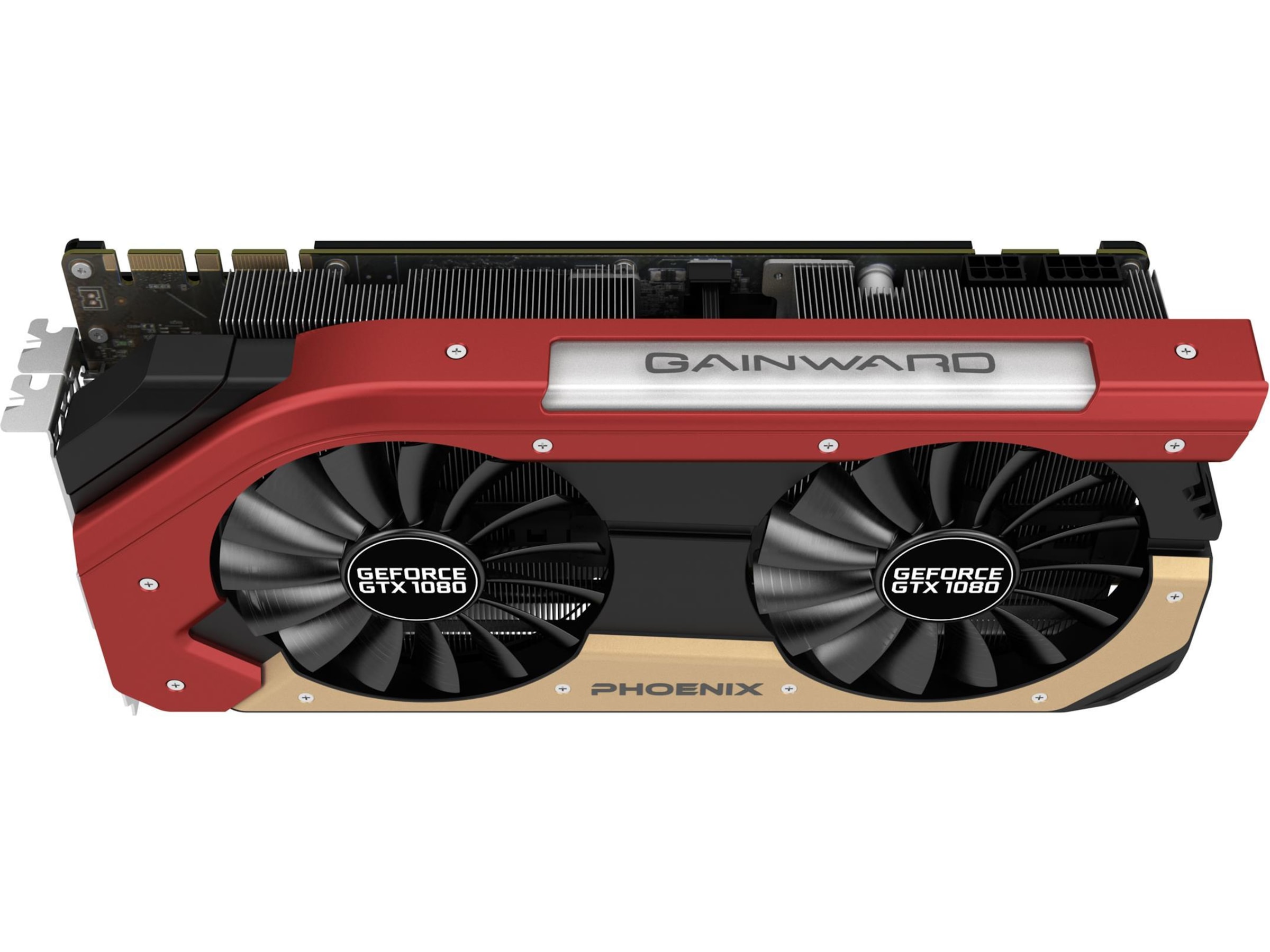

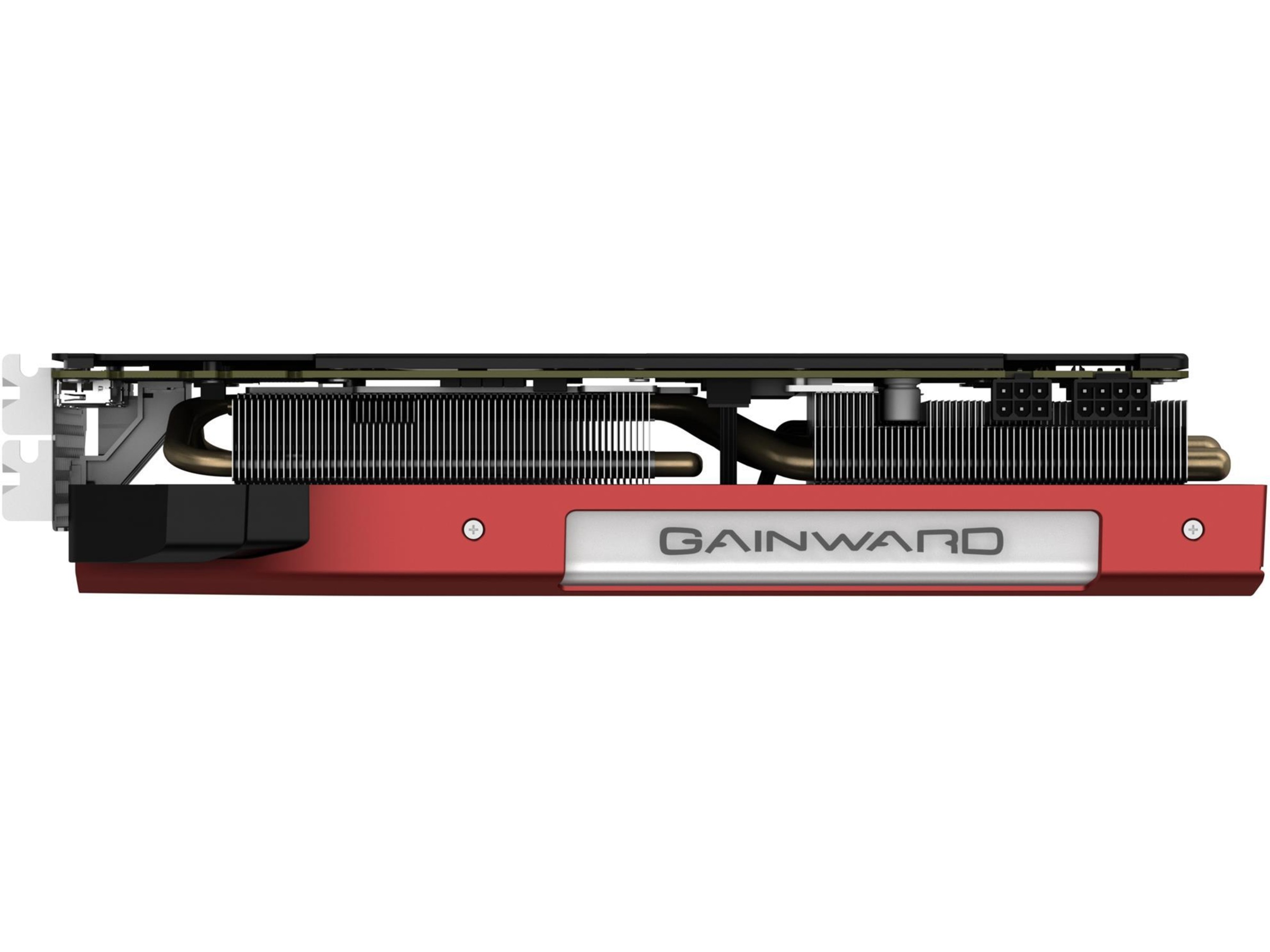

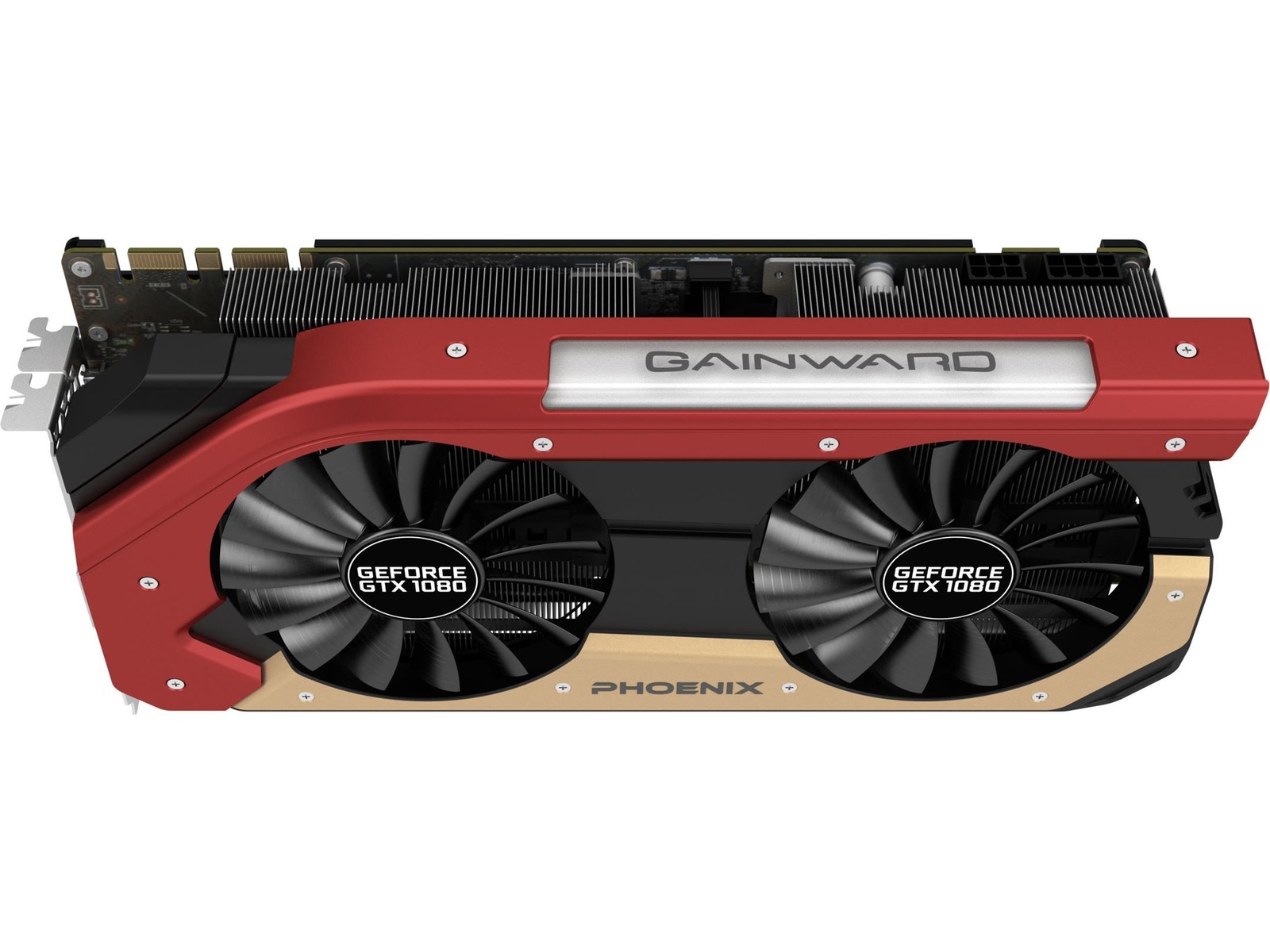

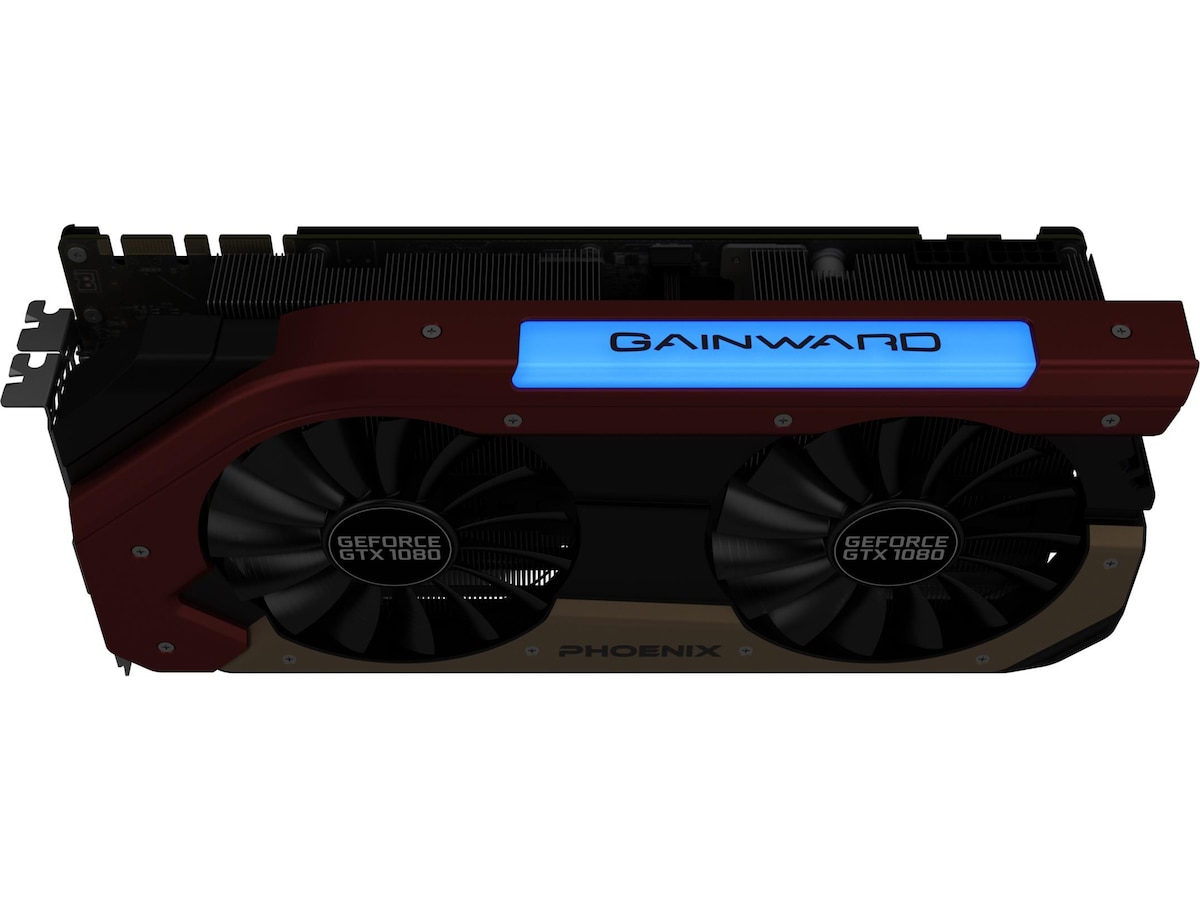

Gainward GeForce GTX 1080 8GB Phoenix

Varenummer: 890649 / Produktnr.: 426018336-3651

Flere bilder av

NVIDIAs GeForce GTX 1080 er et av av de mest avanserte skjermkortene som noensinne er laget. Det tilbyr høy ytelse, meget god strømeffektivitet og utrolige spillopplevelser – drevet av den nye NVIDIA Pascal™-arkitekturen. #GameReady


Product test container description Product test container description

GAINWARD GeForce GTX 1080 PHOENIX

Fullwidth banner container description

Key Features

  • NVIDIA Pascal architecture, 8GB GDDR5X memory
  • NVIDIA GPU Boost 3.0
  • 16nm FinFET process
  • NVIDIA Ansel technology
  • Simultaneous Multi-Projection
  • NVIDIA GameWorks technology
  • NVIDIA VRWorks technology
  • NVIDIA Adaptive Vertical Sync
  • NVIDIA G-SYNC ready
  • Microsoft DirectX 12 support
  • NVIDIA PhysX technology
  • Vulkan API support
  • NVIDIA SLI ready with HB Bridge support
  • PCI Express 3.0 support
  • OpenGL 4.5 and OpenCL support

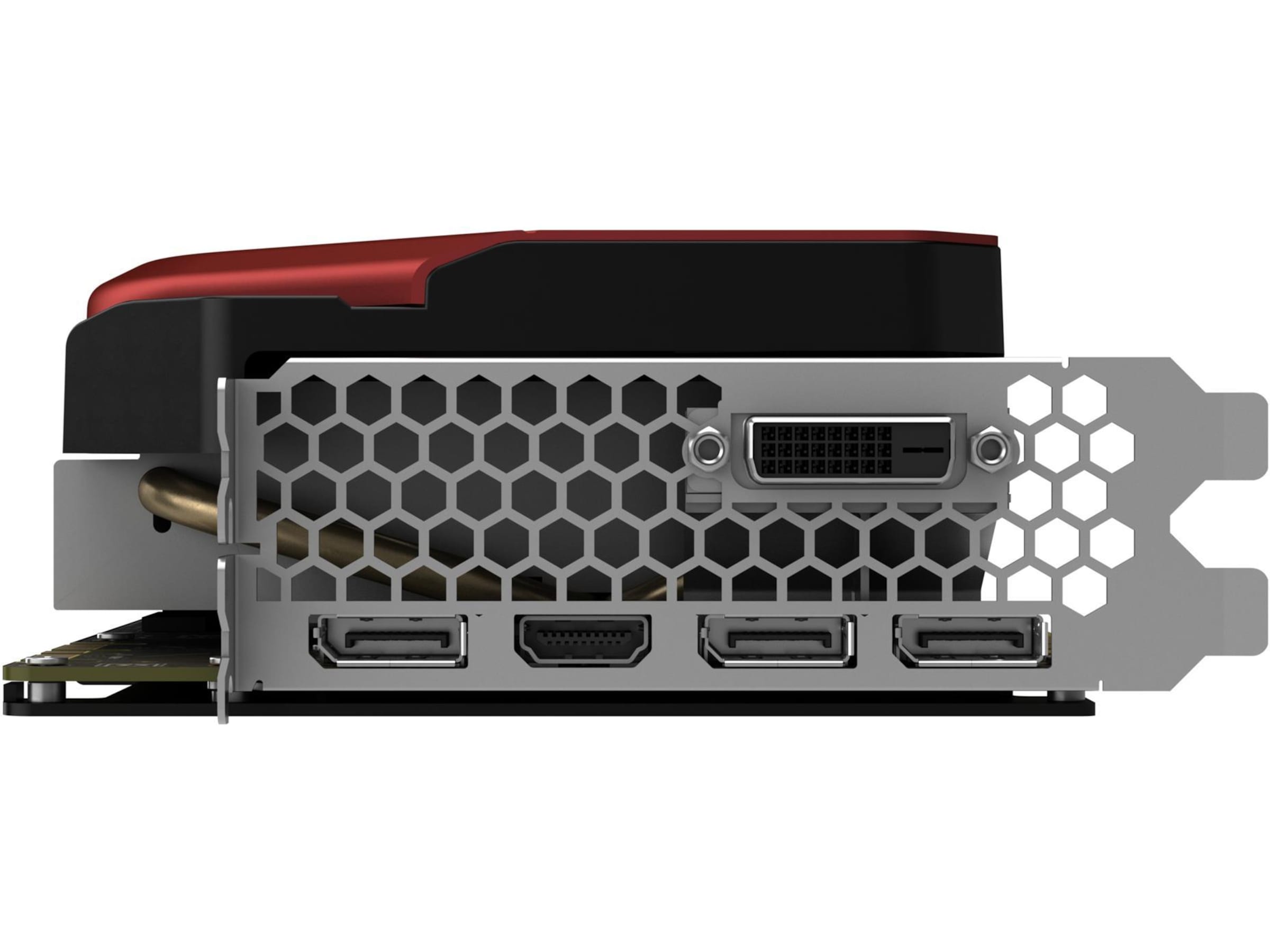

  • 1* Dual-link DVI, 1* HDMI (v2.0), 3* DisplayPort (v1.3/1.4 ready)
Fullwidth banner container description

Gainward superior hardware design

Gainward re-designs the entire hardware, that brings higher stability under high current operation (heavy loading operation).

8 + 2 PWM Power

Gainward uses 8 phases for GPU core and 2 phases for memory chips that helps to supply enough fuel to the 3D graphics engine and GDDR5X chips. This design minimizes current loading and heat generation for each phase to stabilize the voltage level , the overall efficiency can be improved, the choke noise and EMI noise also be reduced.

DrMOS

DrMOS is designed to handle high current with low noise operation and less heat generating.

Dual BIOS (1: default, 2: backup)

Gainward provides two VBIOS for GeForce GTX 1080 Phoenix board. Factory default VBIOS is set on position 1 of the “dual BIOS switch” . Users can overclocking the Phoenix board with confidence thanks to the “backup BIOS” in the second VBIOS with position 2 of the “dual BIOS switch” whenever you need.

Extreme silent acoustics in heavy loading mode

Gainward GeForce GTX 1080 Phoenix gets much quieter than founders edition board under full load operation.

Extreme cool temperature in heavy loading mode

Gainward GeForce GTX 1080 Phoenix performs extremely lower GPU temperature than founders edition board under full load operation.

Expertool II

Gainward’s Expertool II – the brand-new utility adds flexible fan curve control and BIOS saving feature for powerful GeForce GTX 1080 card.

Secondary image description
Generelt
Garanti (måneder) 36
Enhetstype Grafikkort
Busstype PCI Express 3.0 x16
Grafikkprogram NVIDIA GeForce GTX 1080
Kjerneklokke 1607 MHz
Boost Clock 1733 MHz
CUDA-kjerner 2560
Prosessteknologi 16 nm
VR-klar Ja
Maks. oppløsning 4096 x 2160 ved 60 Hz
Maks oppløsningsdetaljer DVI: 2560 x 1600 / DisplayPort: 4096 x 2160 / HDMI: 4096 x 2160
Grensesnitt DVI-D (dobbeltlenke)
3 x DisplayPort
HDMI
Støttede API OpenCL, DirectX 12, OpenGL 4.5, Vulkan
Egenskaper Dual Bios, Nvidia PhysX-Ready, Nvidia 3D Vision Surround Ready, 2.5-slot Fan Cooler, Nvidia SLI-klar, Adaptive V-Sync, UEFI BIOS, klar for NVIDIA G-Sync, NVIDIA GameWorks, DrMOS, 8+2 Phase PWM Design, Nvidia GeForce GTX VR Ready, NVIDIA GPU Boost 3.0, HDCP
Minne
Størrelse 8 GB
Teknologi GDDR5X SDRAM
Faktisk klokkehastighet 10 GHz
Bussbredde 256-bit
Båndbredde 320 GBps
Systemkrav
OS påkrevd Microsoft Windows 7 / 8 / 10
Påkrevd strømforsyning 500 W
Ekstrakrav 6-pins + 8-pins PCI Express-strømkontakter
Diverse
Inkludert programvare Displaydrivere, Gainward Expertool II
Dybde 28.5 cm
Høyde 13.3 cm
