Samsung 10" LED Public Display DB10D

Varenummer: 838099 / Produktnr.: LH10DBDPLBC/EN

Flere bilder av

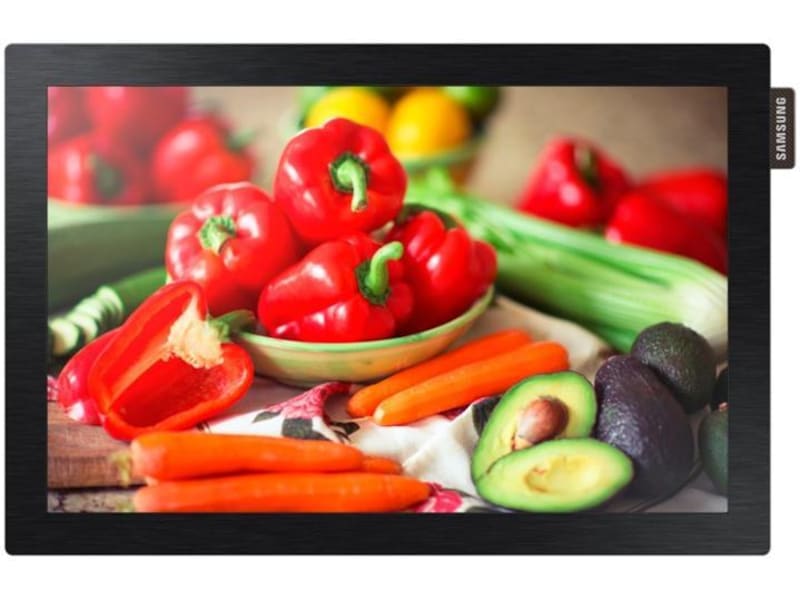

Samsung DB10D - DB-D Series 10" Edge-Lit LED Display

AT A GLANCE

Samsung's DB10D provides a fully embedded solution to manage digital signage content without connecting external devices, thanks to the Samsung SMART Signage Platform (SSP). The 10" form factor fits small placements, while high resolution delivers sharp, stunning images.
  • All-in-One Solution Thanks to SSP with a Quad Core Processor and MagicInfo Software
  • Sleek Industrial Design with a 10" Form Factor for Small Placements
  • Slim 0.98" Chassis Depth with Edge-Lit LED Backlight Technology
  • Reliable Operation with 2 Year Onsite Warranty
Secondary image description

Enhanced SSP with Quad Core Processor

Experience enhanced System-on-Chip (SoC) performance with a quad core processor. SMART Signage Platform (SSP) is an integrated, open platform providing a powerful streamlined solution to reduce TCO in digital signage deployments through savings in hardware installation and operating costs.
Secondary image description

All-in-One Solution

The DB10D features SSP enabled with media player functionality via SoC, built-in processing, built-in power control and MagicInfo content management software for an all-in-one digital signage solution that allows users to effectively and efficiently coordinate their signage.
Secondary image description

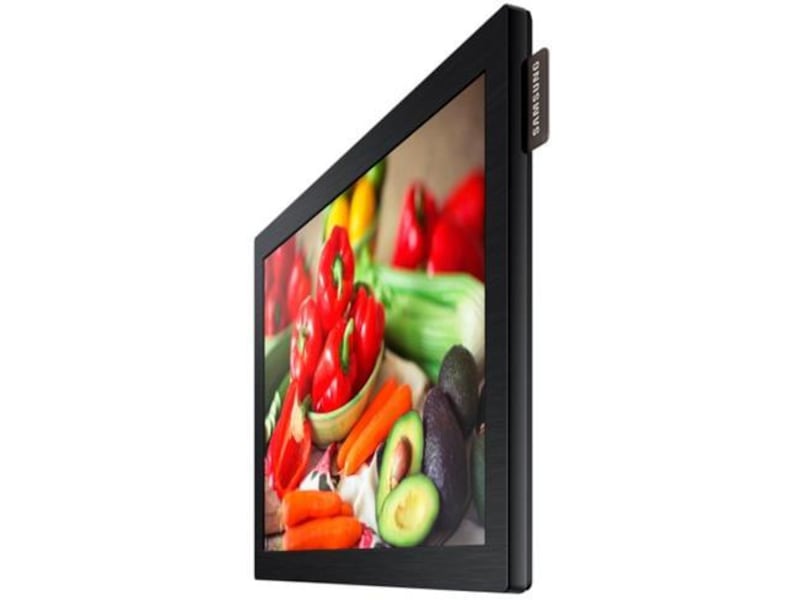

Sleek Industrial Design

Edge-Lit LED technology delivers a sleek industrial design with a 0.98" chassis depth that is combined with a 10" form factor for an elegant look in small placements. LED can also also slim your TCO thanks to energy-efficiency.
Secondary image description

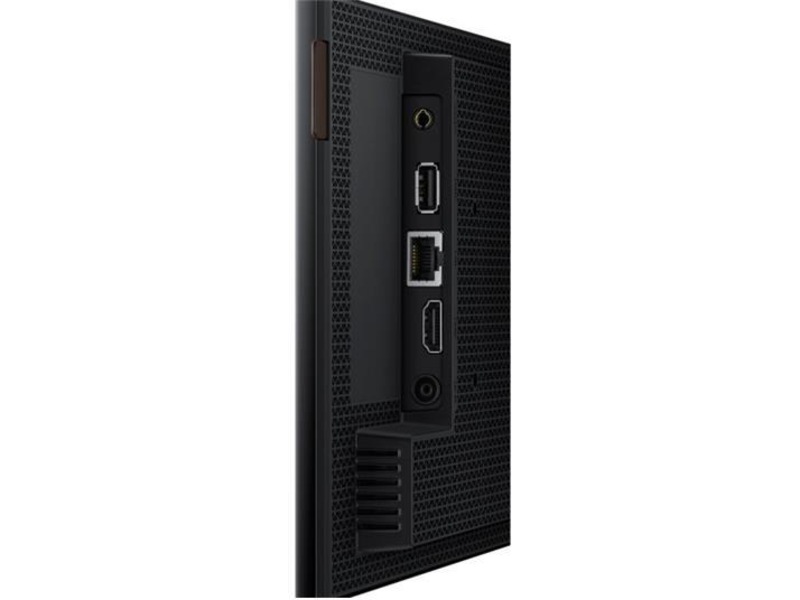

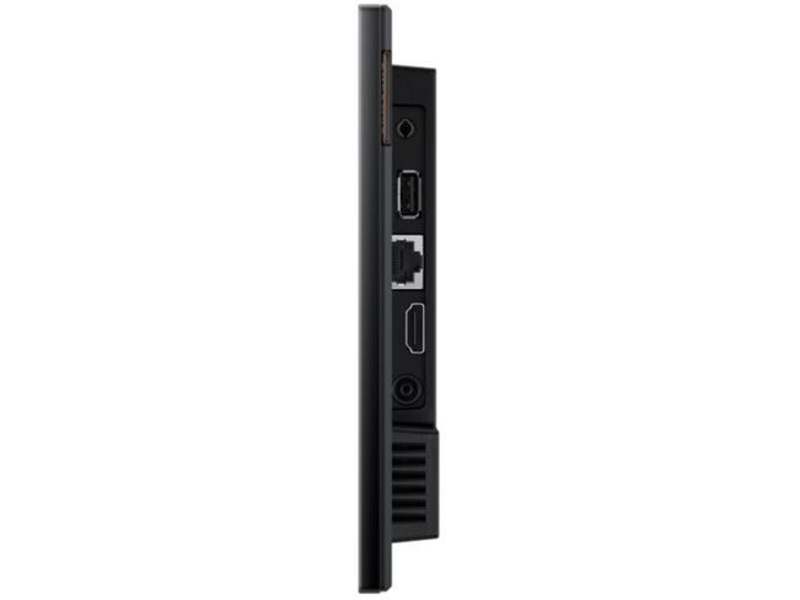

Connectivity and Control

Discover versatile connectivity options to display a range of exceptional content that speaks to your audience. Connections include USB, HDMI and WiFi embedded and external control capability via RS232C or RJ45 LAN. Built-in WiFi allows you to eliminate LAN cables for simpler installation.
Secondary image description

Adapts to Your Business

Small shops, shopping malls and large chain stores can utilize the DB10D as a shelf-level or endcap solution. Enterprises can share agenda or meeting room information outside of conference rooms. In public spaces, advertising or floor level information can be displayed on the inside of an elevator.
Generelt
Garanti (måneder) 36
Produkttype Flat skjerm med LED-bakgrunnsbelysning
Energiklasse Klasse C
Strømforbruk ved drift 18.7 watt
Strømforbruk (på-modus) 18 W
Årlig energiforbruk 26 kWh
Diagonalklasse 10"
Diagonalstørrelse 10.1 in
Kommersiell bruk Ja - digital signering
Serier DB-D Series
TV-kanalvelger Ingen kanalvelger
TV-kanalvelgerforekomst Nei
Sensorer Temperatursensor
Videogrensesnitt HDMI
HDMI-portantall 1 porter
Moduser Portrettmodus
Antall videoveggkomponenter 225
Fysiske mål Uten stativ
Bredde 24.68 cm
Dybde 2.49 cm
Høyde 16.52 cm
Vekt 600 g
Skjerm
Oppløsning 1280 x 800
Skjermformat 720p
Motion Enhancement-teknologi 60 Hz Refresh Rate
LCD-bakgrunnsbelysningsteknologi LED-bakgrunnsbelysning - kantbelyst
Fargedybde 16,7 millioner farger
Kontrastforhold 900:1
Dynamisk kontrastforhold 50000:1
Lysstyrke 450 cd/m²
Synsvinkel 178 grader
Synsvinkel (loddrett) 178 grader
Pikselavstand 0.1695 x 0.1695mm
Svartid 30 ms
Kommersielle funksjoner Knapplås, Image Rotation, Magic Clone, Auto Source Switching & Recovery, SMART Signage Platform 2nd Generation
Egenskaper Multiple Display Control (MDC), Smart Scheduling, Quad-Core-prosessor, e-LED BLU, Certified for 16/7 Continuous Operation, MagicInfo Player-S2
Stativer og monteringer

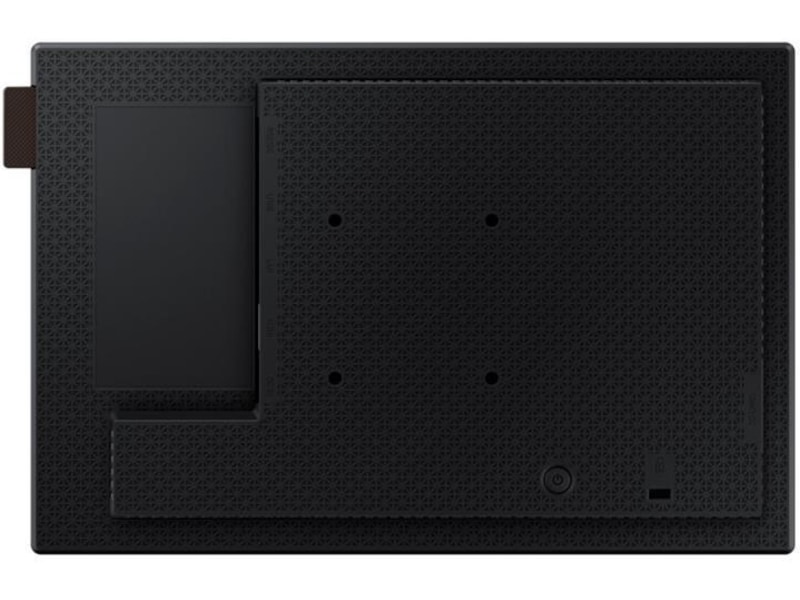

VESA-monteringsgrensesnitt 50 x 50 mm
DVR
DVR Flash - 4 GB
Mediespiller
Støttede videoformater MPEG-1, MPEG-2, AVC, H.264, VC-1
Støttede lydformater AC3, DTS
Støttede bildeformater JPG, PNG
Støttede minnekort SD Memory Card
USB-port Ja
USB-portantall 1
PC-konfigurasjon ARM Cortex-A9 / 1 GHz / 1 GB DDR3
Lagerstasjonskapasitet 4 GB
Operativsystem Linux
Fjernkontroll
Type Standard fjernkontroll
Lydsystem
Høyttalersystem 1 høyttaler
Utgangseffekt 1 watt
Høyttalere 1 x hovedkanalshøyttaler - innebygget - 1 watt
Nettverk & internettmultimediaer
Konnektivitet Wi-Fi
Tilkoblinger
Kontakttype HDMI-inngang
Serieinngang
Multiple Display Control
USB 2.0
Diverse
Tilleggsutstyr inkludert Batterier
Medfølgende kabler Seriell kabel
Tilpassede standarder Plug and Play, CSA, UL, TUV, VCCI, C-Tick, GOST, cUL, DDC-2B, NEMKO, NOM, SASO, CB, AS/NZS 60950-1, CCC, EMC, PSB, EK, IRAM, EN 60950-1, KCC, BSMI CNS 13438, FCC Part 15 B Class A, KC, GB 9254-2008, NOM-019-SCFI-1998, KN22, KN24, K60950-1, cUL No.60950-1, EAC, GB4943.1-2011, RCM, EN55024:1998 + A1:2001 + A2:2003, IS13252, VCCI V-3/2010.04 Class A, CNS 14972, AS/NZS CISPR22:2009, GOST-R 51317-serien, GOST 22505-97, EN55022:2006 + A1:2007, CNS 13439 AV EMI, CNS 14409 AV EMS, GB 17625.1-2012, NOM-001-SCFI-1993, BIS, INMETRO, IEC60950-1
Strømforsyning
Strømenhet Strømforsyning
Nominell spenning AC 120/230 V (50/60 Hz)
Strømforbruk i standby 0.5 watt
Strømforbruk i sparemodus 0.5 watt
Størrelser og vekt (forsendelse)
Bredde (forsendelse) 30 cm
Dybde (forsendelse) 7.9 cm
Høyde (forsendelse) 20.5 cm
Vekt (forsendelse) 1.2 kg
Miljøparametere
Min. driftstemperatur 0 °C
Maks. Driftstemperatur 40 °C
Driftsfuktighet 10 - 80 % (ikke-kondenserende)
