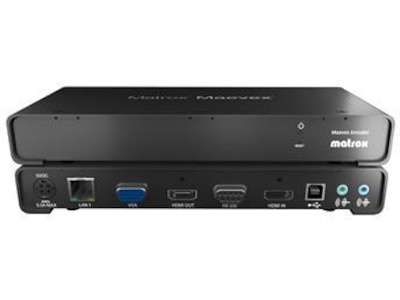

The Matrox Maevex video distribution over IP solution consists of the Maevex 5100 Series encoder/decoder pair that extends 1080p60 video and audio over a standard IP network. Matrox PowerStream software is used to remotely discover and manage the Maevex network, allowing administrators to adjust multiple stream parameters. Based on a dedicated H.264 encode/decode platform, Maevex Series enables excellent-quality, cost-effective video extension and playback over standard LAN connectivity at user-defined low bit rates for minimal network bandwidth consumption.
Video and audio over IP
- Operates on standard 10/100/1000Mb Ethernet networks
- Excellent image quality with very low network bandwidth consumption
- Cost-effective extension over standard COTS network equipment
- Unicast, multicast, and multi-unicast operation
- Auto-detection and discovery on network subnet
Integrated, solid-state encoding/decoding hardware architecture
- Supports Full HD video and audio
- Powerful, intelligent performance with dedicated hardware video decoding component
- Open encoding platform also allows for third-party software decode*
- Supports many resolutions and aspect ratios
- Enables administrator fine-tuning of encoding and decoding parameters
- Allows scaling of input resolutions before encoding and scaling of output resolutions after decoding
Network redundancy support
- Hot plug/unplug support for power, video, and audio
- Local real-time audio and video pass-through and confidence preview on Maevex Encoder
- Integrated network switch on Maevex Decoder enables daisy-chaining, network extension, and redundant network topology
- Failure resilience through power, network, and device auto-recovery features
PowerStream software suite
- Powerful software application bundled with the Matrox Maevex Series
- Remotely manage and monitor the entire Maevex network
- Auto-populate Maevex network devices
- Multiple-instance installation supported
- Password-controlled user access
- Access to device IDs, IP addresses, streaming state, bit rate, and other vitals
Optimized design for unbeatable performance
- No driver components required on the host PC
- No moving parts design for high MTBF
- Low power consumption
- Dust-resistant enclosure
- High-density rack mountable
- Small form factor
