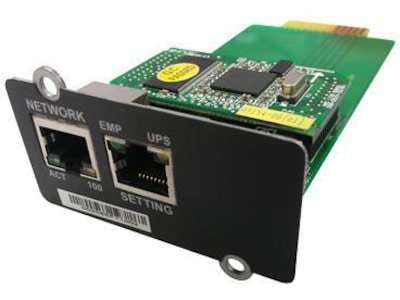

BlueWalker PW SNMP NMC Card

SNMP Card offer IP Adress and WebInterface for most convinient monitoring

Flere bilder av BlueWalker PW SNMP NMC Card

2 003,-
Bestillingsvare. Bestilles ved ordre. Leveringstid 2-3 uker.

BlueWalker PW SNMP modul NMC Card

PowerWalker NMC Card is a communication solution for UPS monitoring and control. This SNMP module allows remote monitor and manage multiple UPSs from anywhere with internet access. Integrated web access will leverage internet capability of NMC Card to remotely program or shut down UPSs. Equipped with NMC Card, power conditions of all UPSs can be monitored anytime/anywhere even though the UPS units are located in different floors. Besides, this card also come equipped with easy-to-update firmware feature. Whenever the updated firmware is released, system manager can download it and simply upgrade all with one click.

  • Allows to control and monitoring of multiple UPSs through RJ45 network connection
  • Real-time dynamic graphs of UPS data (voltage, frequency, load level, battery level)
  • Warning notifications via audible alarm, e-mail and SNMP traps
  • Historic data log
  • Simple firmware upgrade with one click
  • Password security protection and remote access management
  • Supports following models: VI 1000RT, 1000RT, 1500RT, 2000RT, 3000RT LCD VFI 1000RT, 1500RT, 2000RT, 3000RT, 6000P/RT, 10000P/RT LCD VFI 1000T, 2000T, 3000T, 6000T, 10000T LCD VFI 10000TCP 3/1, VFI 10000 TP 3/1, VFI 20000 TP 3/1
Generelt
Produktserie PowerWalker
Modell NMC Card
Garanti (måneder) 12
EAN 4260074974461
Prosessor
Produsent ARM
Klokkehastighet 36 MHz
Installert antall 1
RAM
Montert størrelse 16 MB
Flash-minne
Montert størrelse 4 MB
Nettverkstilknytning
Dataoverføringshastighet 100 Mbps
Overføringsteknologi Kablet
Type Adapter for fjernstyrt administrasjon
Produktformfaktor Plugginnmodul
Kabelføringstype Ethernet 100Base-TX, Ethernet 10Base-T
Protokoll for fjernstyrt administrasjon HTTP, SNMP 3, SNMP 2
Datakjedeprotokoll Ethernet, Fast Ethernet
Egenskaper Hendelseslogg, SNMP-felle, Hørbar alarmvarsel, E-postvarsel, Oppgraderbar fastvare
Porter
Type 10/100
Grensesnitt medfølger
Grensesnitt 1 x 100Base-TX x nettverk - Ethernet 10Base-T/100Base-TX - RJ-45
Spor påkrevd
Kompatible spor 1 x Utvidelsesspor
Diverse
Farge Svart
Fargekategori Svart
Størrelser og vekt
Dybde 6.7 cm
Høyde 3.3 cm
Bredde 13.3 cm
Vekt 77 g
Miljøparametere
Min. driftstemperatur 0 °C
Driftsfuktighet 5 - 90 % (ikke-kondenserende)
Maks. Driftstemperatur 40 °C
Kompatibilitet
Spesifikasjoner PowerWalker VFI 10000P/RT LCD, VFI 1000RT LCD, VFI 1000T LCD, VFI 1500RT LCD, VFI 2000RT LCD, VFI 2000T LCD, VFI 3000RT LCD, VFI 3000T LCD, VFI 6000P/RT LCD, VI 1000RT LCD, VI 1500RT LCD, VI 2000RT LCD, VI 3000RT LCD
Beskrivelse PowerWalker VFI 1000, VFI 10000, VFI 1500, VFI 2000, VFI 3000, VFI 6000, VI 1500, VI 2000
