Prismatch*Prismatch*
Varenummer: 606344 / Produktnr.: SMX1500RMI2U

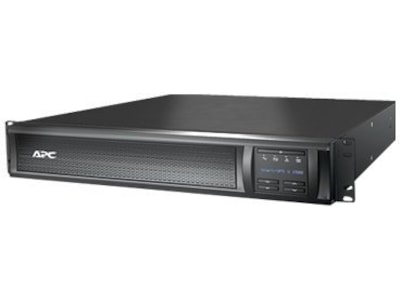

APC Smart-UPS X 1500VA Rack/Tower

LCD 230V, 2U, Extended runtime model

Flere bilder av APC Smart-UPS X 1500VA Rack/Tower

24 399,-
Bestillingsvare. Bestilles ved ordre. Leveringstid 1-2 uker.

APC Smart-UPS X 1500VA Rack/Tower

SMX1500RMI2U Features

EPO

Attach the device to an Emergency Power Off (EPO) system so that power can be turned off in an emergency situation.

High online efficiency

Reduces utlility costs, generates less heat.

Green mode

Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.

High frequency design

Reduces or eliminates bulky transformers resulting in lighter units for ease of handling.

Energy meter

Provides actual kilowatt hours of usage for energy conscious users.

Predictive replace battery date

Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.

Intuitive LCD interface

Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.

Auto recognition of external batteries

UPS recognizes when external battery packs are attached and automatically adjusts runtime.

Multiple switched outlet groups

Multiple outlet groups that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.

Pure sine wave output on battery

Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.

Scalable runtime

Allows additional run time to be quickly added as needed.

Cold-start capable

Provides temporary battery power when the utility power is out.

Plug-and-Play external batteries

Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS.

Rack/Tower convertible

Protects the initial investment in the UPS when migrating from tower to rack-mount environment.

SmartSlot

Customize UPS capabilities with management cards

Temperature-compensated battery charging

Prolongs battery life by regulating the charge voltage according to battery temperature.

Generelt
Modell 1500 Rack/Tower LCD
Produktserie APC Smart-UPS X
Produkttype UPS
Underkategori UPS
Garanti (måneder) 36
EAN 731304268598
Utvidelsesspor
Utvidelsesspor 1 (total) / 1 (ledig) x SmartSlot
Programvare
Type APC PowerChute Business Edition
Strømenhet
Type utgangskontakt Power IEC 60320 C13
Formfaktor Kan monteres i rack
Frekvens medfølger 47 - 63 Hz
Effekt 1200 watt
Inngangsspenningsverdiområde AC 160 - 285 V
Frekvens nødvendig 50/60 Hz
Spenningstilførsel AC 230 V
UPS utgangssvingningsform (UPS:u-avbrytbar strømtilførsel) Sinusbølge
Inngangsspenningsverdiområde (justerbart) AC 151 - 302 V
Effektkapasitet (VA) 1500 VA
Påkrevd nettspenning AC 230 V
UPS Teknologi Interaktivlinje
Transientundertrykking Ja
Antall utgangskontakter 8
Inngangkontakttype Strøm IEC 60320 C14
Støtenergiklasse 645 joule
Strømforsyningsenhetfunksjoner LCD display, Nødavslåing, Hørbar alarm
Detaljer om strømutgangskoblinger
Detaljer om strømutgangskoblinger 8 x power IEC 60320 C13
Batteri
Type last Ved full belastning
Oppladingstid 3 timer
Levetid (inntil) 5.8 min
UPS
Antall batterier 1
Batteriteknologi Blysyre
Diverse
Rack-monteringssett Inkludert
Fargekategori Svart
Høyde (Stativenheter) 2
Farge Svart
Tilpassede standarder UL 1449, RoHS Exemption 7b, EN 50091-2, EN 50091-1, VDE, C-Tick
Størrelser og vekt
Høyde 43.2 cm
Bredde 8.9 cm
Vekt 24.8 kg
Dybde 49 cm
Størrelser og vekt (forsendelse)
Frakthøyde 58.9 cm
Fraktvekt 30 kg
Fraktdybde 62 cm
Fraktbredde 24.6 cm
Miljøparametere
Lydutslipp 40 dBA
Min. driftstemperatur 0 °C
Driftsfuktighet 0 - 95%
Maks. Driftstemperatur 45 °C
Kompatibilitet
Beskrivelse P/N: AR4018SPX432, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, NBWL0356A
Spesifikasjoner P/N: ACCS1000, ACCS1001, ACCS1002, ACCS1003, ACCS1004, ACCS1005, ACCS1006, ACCS1007, ACDC1015, ACDC1016, ACDC1017, ACDC1019, ACDC1020, ACDC1021, ACDC2513, ACF001, ACF002, ACF003, ACF101BLK, ACF102BLK, ACF201BLK, ACF400, ACF600, AP5017, AP5602, AP5606, AP5607, AP5616, AP92200, AP9290, AR100, AR100HD, AR202, AR203A, AR204A, AR2101, AR2102BLK, AR2144BLK, AR2145BLK, AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR2900, AR2901, AR3000, AR3100, AR3100G, AR3100SP, AR3100SP1, AR3100SP2, AR3100TAA, AR3100W, AR3100X609, AR3100X610, AR3100X617, AR3101, AR3104, AR3104SP1, AR3105, AR3105SP, AR3105W, AR3107, AR3107G, AR3107SP, AR3107X609, AR3107X610, AR3107X617, AR3130, AR3140, AR3140G, AR3140W, AR3150, AR3150SP, AR3150SP1, AR3150SP2, AR3150W, AR3150X609, AR3150X610, AR3150X617, AR3155, AR3155SP, AR3155W, AR3157, AR3157SP, AR3157X609, AR3157X610, AR3157X617, AR3200, AR3300, AR3300G, AR3300SP, AR3300W, AR3300X609, AR3300X610, AR3300X617, AR3305, AR3305SP, AR3305W, AR3307, AR3307SP, AR3307W, AR3307X609, AR3307X610, AR3307X617, AR3340, AR3340G, AR3340W, AR3347, AR3350, AR3350SP, AR3350W, AR3350X609, AR3350X610, AR3350X617, AR3355, AR3355SP, AR3355W, AR3357, AR3357SP, AR3357X609, AR3357X610, AR3357X617, AR4018, AR4018A, AR4018I, AR4018IA, AR4018IX429, AR4018IX431, AR4018IX432, AR4018SP, AR4018SPX429, AR4018SPX431, AR4018SPX432, AR4018X429, AR4018X431, AR4018X432, AR4024, AR4024A, AR4024I, AR4024IA, AR4024IX429, AR4024IX431, AR4024IX432, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, AR4024X429, AR4024X431, AR4024X432, AR4038, AR4038A, AR4038I, AR4038IA, AR4038IX429, AR4038IX431, AR4038IX432, AR4038X429, AR4038X431, AR4038X432, AR7007, AR7050, AR7057, AR8135BLK, NBWL0356A
Nettverkstilknytning
Fjernstyringsgrensesnitt USB, RS-232
Grensesnitt medfølger
Grensesnitt 1 x forvaltning (RS-232), 1 x EPO (emergency power off), 1 x forvaltning (USB)
Kabeldetaljer
Medfølgende kabler USB-kabel - ekstern, Strømkabel - integrert - 1.8 m, Seriell kabel - ekstern
Kjøretidsdetaljer
Kjøretid (inntil) 5.8 minutter ved full last, 17.2 minutter ved halvlast
