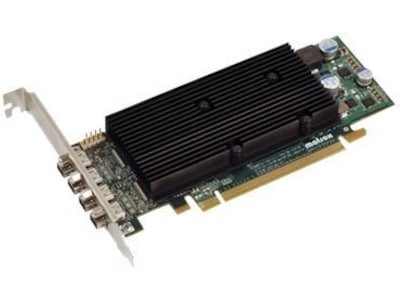

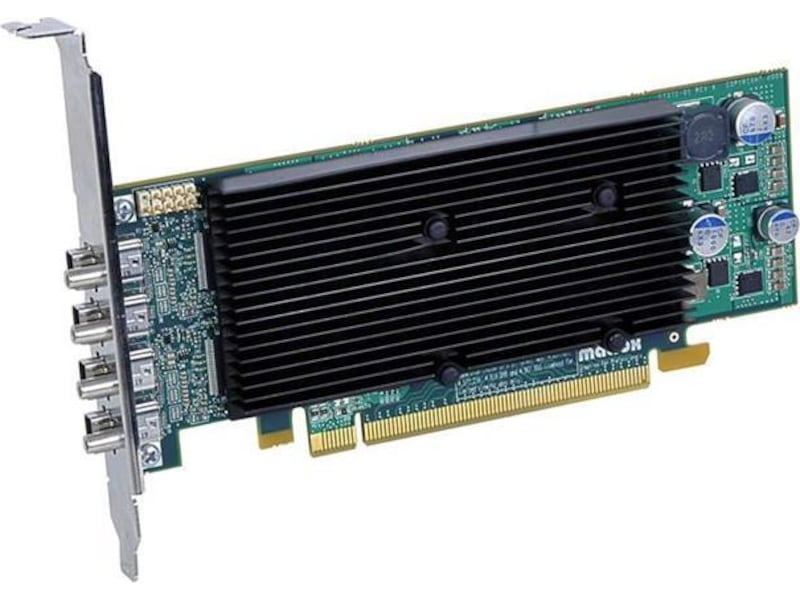

Matrox M9148 1GB, 4x mini-DisplayPort

PCI-Express 16x, Low-profile, Passive cooling, 2560x1600

Varenummer: 484499 / Produktnr.: M9148-E1024LAF

Flere bilder av Matrox M9148 1GB, 4x mini-DisplayPort

6 134,-
Fri frakt
eller
med ditt lagrede kort
med gebyrfri faktura Se fakturavilkår
Bestillingsvare. Bestilles ved ordre.
60 dagers åpent kjøp og gratis retur
Fri frakt over 1 000,-
Retningslinjer for produktanmeldelser

Matrox M9148 LP PCIe x16

The Matrox M9148 LP PCIe x16 quad graphics card renders pristine image quality on up to four DisplayPort™ monitors at resolutions up to 2560 x 1600 per output for an exceptional multi-monitor user experience. With 1 GB of memory and advanced desktop management features, the M9148 LP PCIe x16 card supports both independent or stretched desktop modes and drives business, industrial, and government applications with extraordinary performance. Its low-profile form factor makes it easy to integrate into a wide variety of systems. It offers multiple operating system support, and can be paired with another M9148 graphics card to support up to eight DisplayPort monitors from a single system.

Features

  • High-resolution four DisplayPort monitor support Support resolutions up to 2560 x 1600 per output
  • Native PCI express x16 performance Maximum bandwidth to ensure best performance
  • 1GB of memory For enhanced performance in demanding multi-monitor applications
  • Low-profile form factor To fit in a wide variety of systems; includes bracket for full-height ATX form factor
  • Passive cooling and low power consumption Fanless design eliminates noise and increases product reliability
  • Stretched and independent desktop modes Expand your desktop across multiple monitors or set each monitor independent of each other
  • Edge Overlap New for Windows 7 Easily and intuitively adjust the number of overlapping pixels to create a seamless, unified image on up to eight edge blending projectors.
  • M-Series multi-card support Add an additional M-Series card into the same system to drive up to 12 displays from two cards
  • Joined graphics card mode Insert two M-Series cards into the same system to drive even more monitors across a stretched desktop
  • Matrox Clone View a copy of one display on the other displays
  • Wide enterprise flexibility Unified driver package compatible with other Matrox products
  • Matrox PowerDesk software Easily configure and manage program windows on multiple monitors
  • Multiple operating system support Display drivers for Windows® 7 (32/64 bit), Windows Vista (32/64 bit), Windows XP (32/64 bit), Windows Server 2003/2008 (32/64 bit), and Linux

Hardware Included

  • Matrox M9148 LP PCIe x16 graphics card with factory-installed ATX bracket (low-profile bracket in the box)
  • Four miniDP to DP adapters
  • Four DP to DVI connector adapters

Software Included

Generelt
Garanti (måneder) 36
Enhetstype Grafikkort - lav profil
Busstype PCI Express x16
Grafikkprogram Matrox M9148
Maks. oppløsning 2560 x 1600
Maks oppløsningsdetaljer DVI: 1920 x 1200 / DisplayPort: 2560 x 1600
Maks. antall skjermer som støttes 4
Grensesnitt 4 x Mini DisplayPort
4 x DisplayPort - med adapter
4 x DVI-D (dobbeltlenke) - med adapter
Støttede API OpenGL 2.0
Egenskaper Kjøleribber
Minne
Størrelse 1 GB
Systemkrav
OS påkrevd Linux, Microsoft Windows Server 2003, Microsoft Windows Vista (32/64 bits), Microsoft Windows Embedded Standard 7, Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Microsoft Windows Server 2008 (32/64-bits), Windows 8 (32/64 bits), Microsoft Windows Server 2008 R2 (32/64-bits), Microsoft Windows Server 2012 (32/64-bits)
Diverse
Tilleggsutstyr inkludert Lavprofilsbrakett
Inkludert programvare Matrox PowerDesk
Kompatibel med Windows 8 Dette produktet har blitt testet og tilfredsstiller alle krav til å være kompatibelt med Windows 8.
Tilpassede standarder RoHS, WEEE
Bredde 16.8 cm
Høyde 6.9 cm
