Flere bilder av BlueWalker PowerWalker VFI 10000 ICT IoT
1 / 1

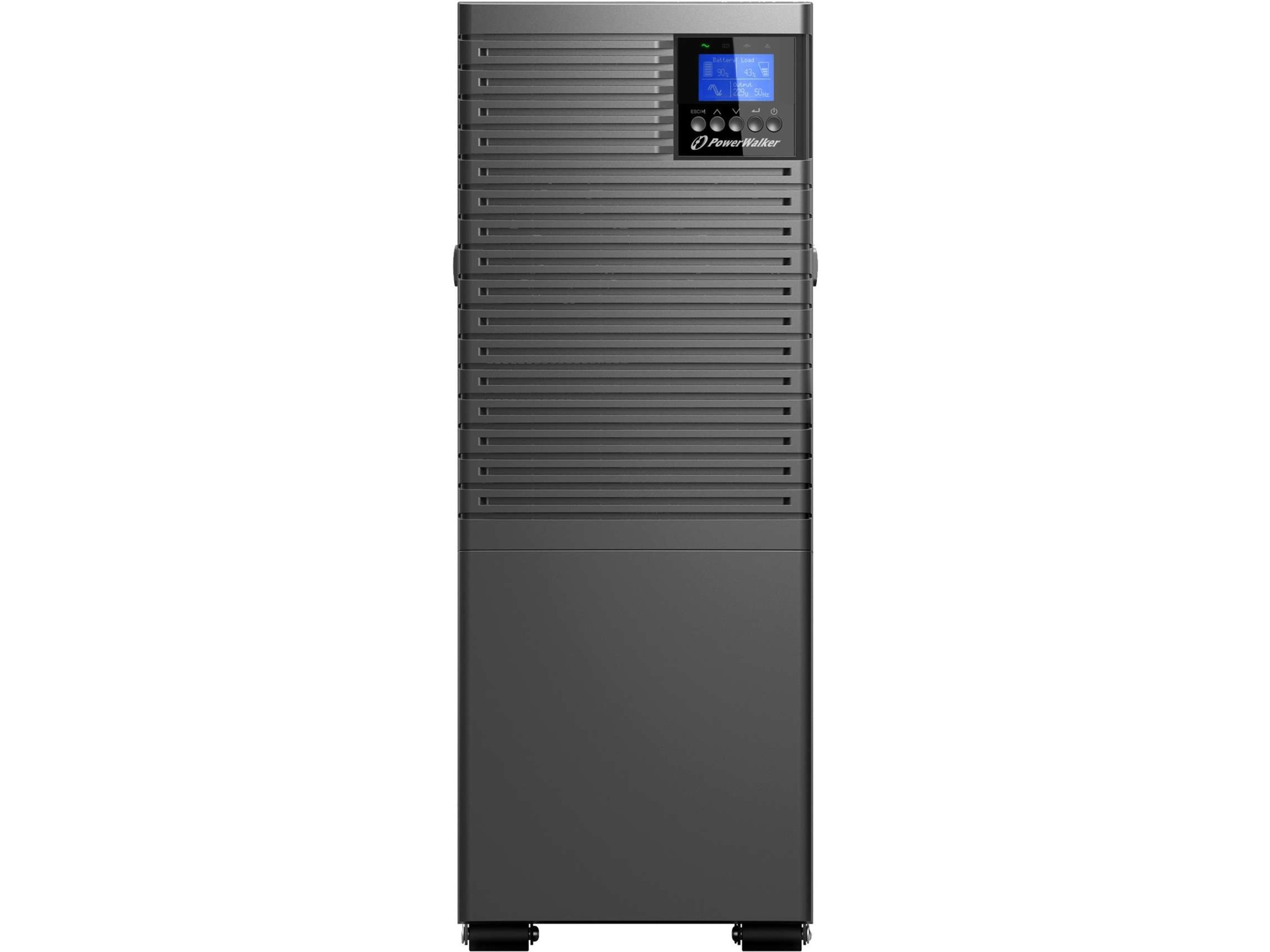

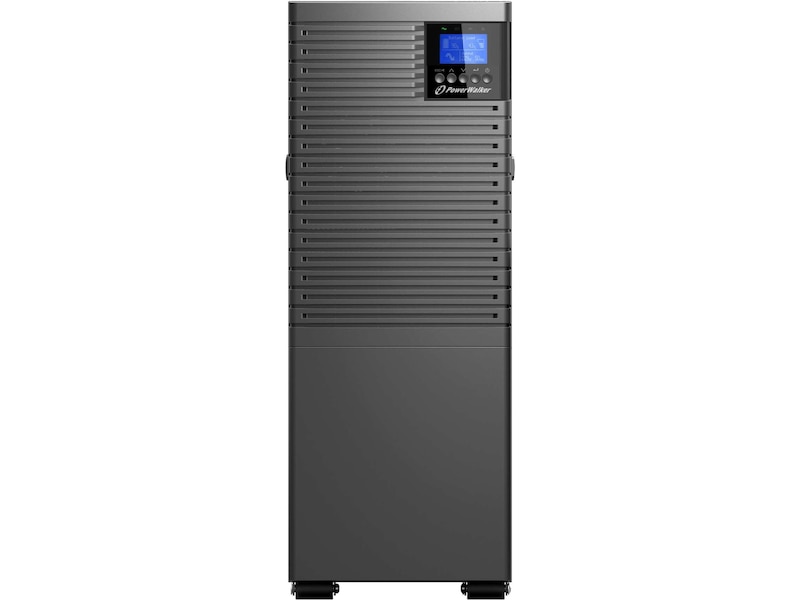

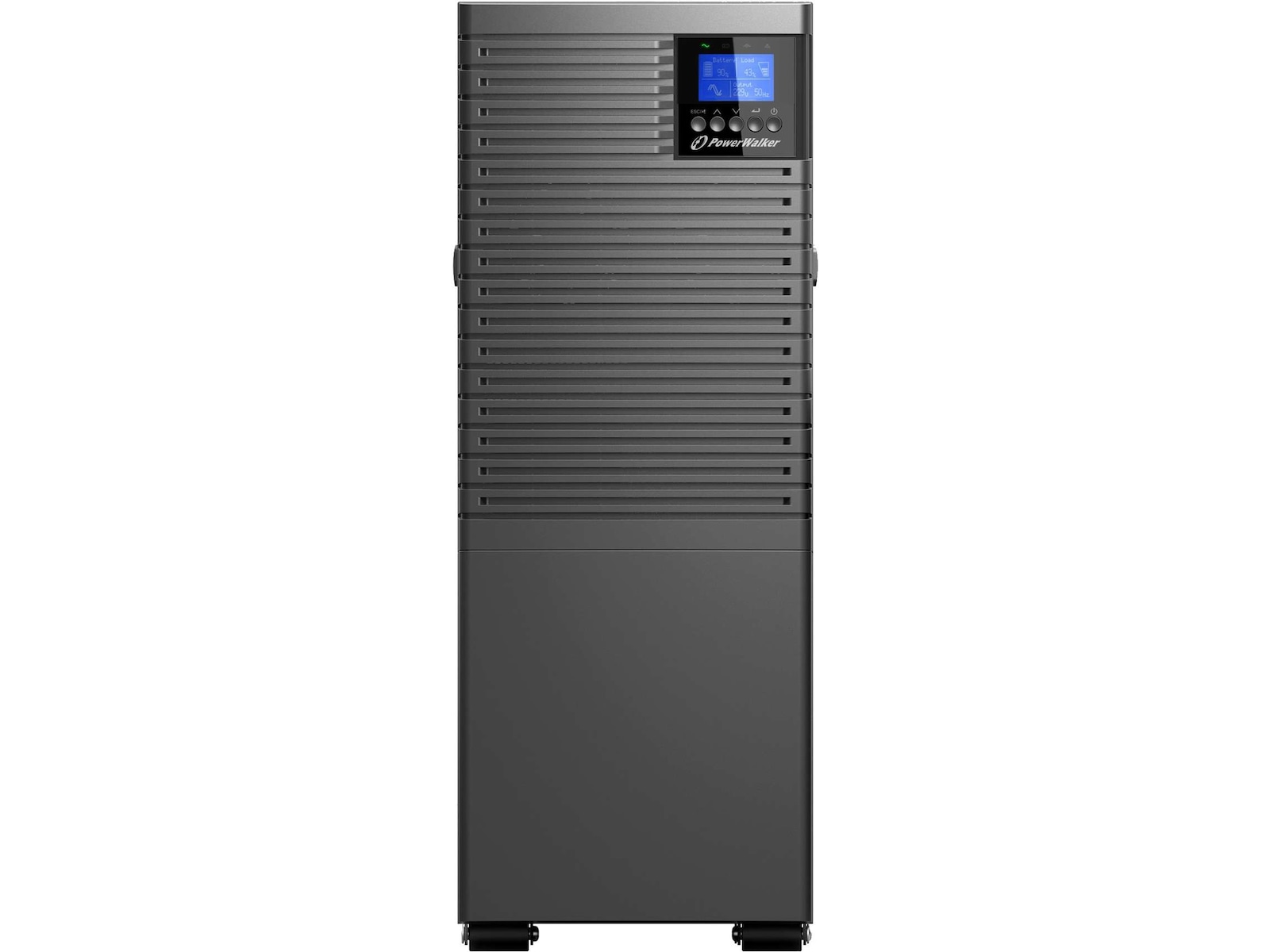

BlueWalker PowerWalker VFI 10000 ICT IoT
1328443
1328443
4260074983029
10122201
BlueWalker PowerWalker VFI 10000 ICT IoT
PowerWalker Flagship Solution / Bestseller!
IoT Solution with the Smartphone App: WinPower View [Apple Store | Android]
Output Power Factor 1.0
Optimized Battery Management (OBM) – for longer Battery Life
EBM Auto-Detection for easy setup of External Baterry Packs
Parallel Operation, up to 3 units
Built-in ethernet port offers Modbus TCP/ IP
Internet Options: LAN Cable or WLAN Dongle
The PowerWalker VFI 6000-10000 ICT IoT Series is the next generation of UPS, offering an intuitive App for remote monitoring via cloud. The UPS is quickly setup and easy to maintain, and it provides the ability to review the workflow and troubleshoot instantly regardless of time and place. This cloud based monitoring increases the availability and quality of traditional monitoring, while at the same time allowing room for cost reduction, scalability, and trend analysis.
This UPS series utilizes double conversion (Online) technology and features unity power factor, ensuring the availability of your mission critical equipment and providing clean output power to your sensitive loads. Multiple optional accessories such as external battery packs, communication cards and a WLAN adapter enhance the functionality of the UPS.
Enhanced Battery Management (EBM), Støtte for Human Interface Device (HID), LCD display, Generatorkompatibel, LED-indikatorer, Optimized Battery Management (OBM), Parallell mulighet, Nødavslåing
Detaljer om strømutgangskoblinger
Detaljer om strømutgangskoblinger
Tilkoblingsklemme
Batteri
Spenningstilførsel
12 V
Levetid (inntil)
3.4 min
UPS
Batterikapasitet
9 Ah
Antall batterier
20
Diverse
Tilpassede standarder
VFI-SS-311
Fargekategori
Grå
Egenskaper
2 innbygde kjølevifter
Størrelser og vekt
Bredde
22.5 cm
Dybde
41.6 cm
Høyde
58.9 cm
Vekt
68.2 kg
Miljøparametere
Lydutslipp
55 dB
Driftsfuktighet
0 - 95% RH (non-condensing)
Min. driftstemperatur
0 °C
Maks. Driftstemperatur
40 °C
Nettverkstilknytning
Fjernstyringsgrensesnitt
RS-232, USB
Grensesnitt medfølger
Grensesnitt
1 x HDMI - 19 pin HDMI Type A, 1 x tørrkontakt, 1 x forvaltning (RS-232), 1 x forvaltning (USB) - 4-pins USB-type B, EPO (emergency power off), 1 x LAN - RJ-45
Kjøretidsdetaljer
Kjøretid (inntil)
3.4 minutter ved full last, 9.1 minutter ved halvlast
