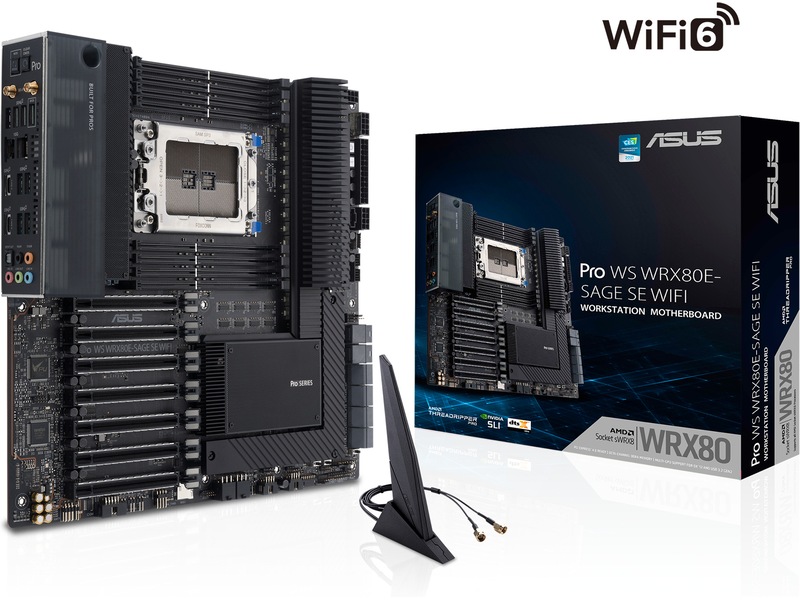

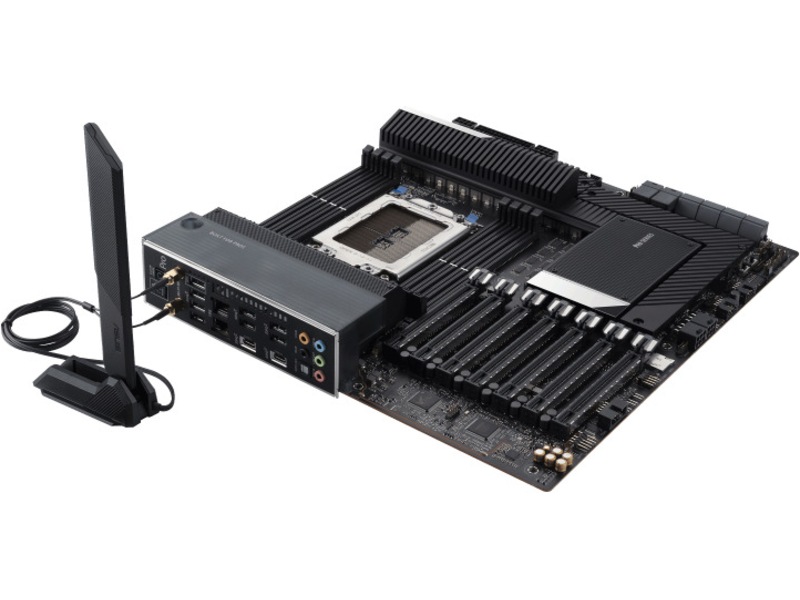

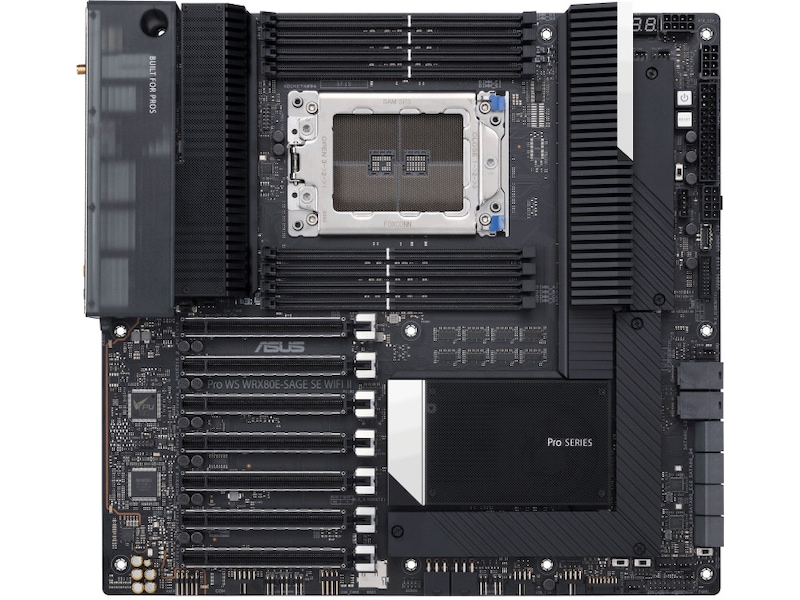

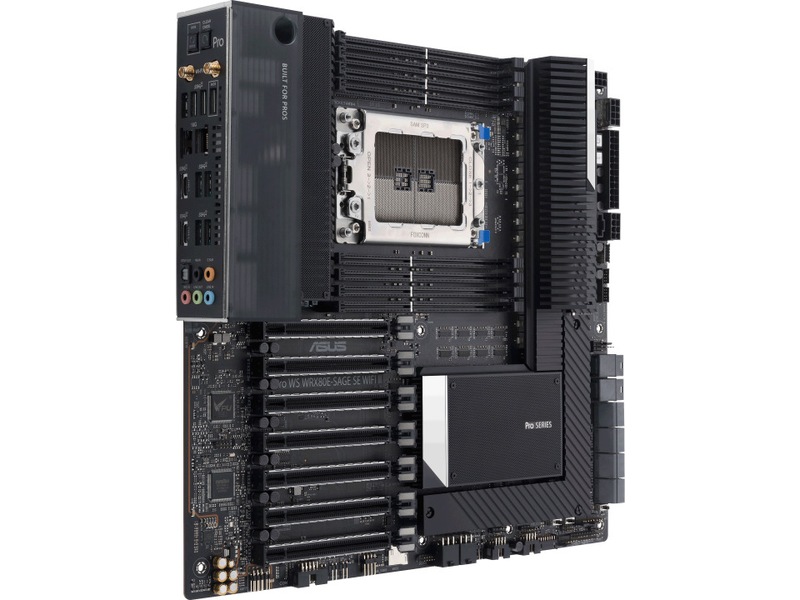

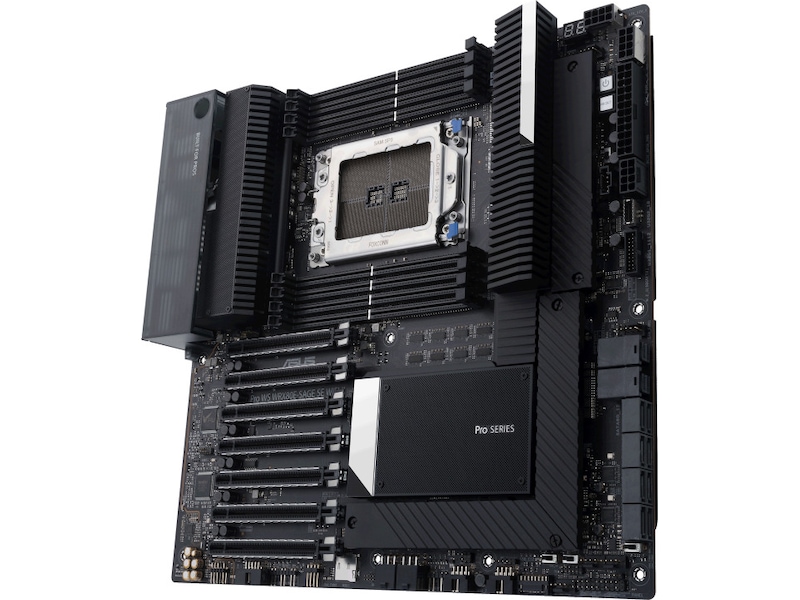

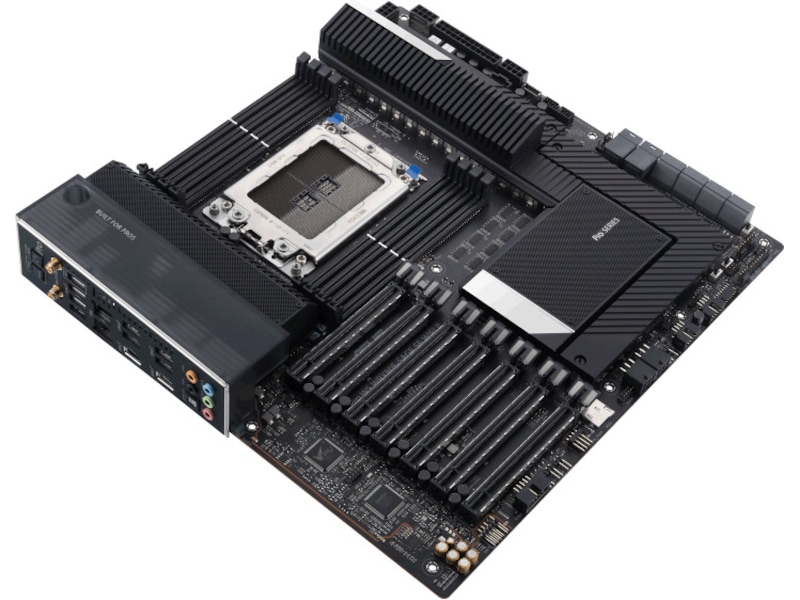

| Modell | Pro WS WRX80E-SAGE SE WIFI II |
|---|---|
| Produktserie | ASUS |
| Garanti (måneder) | 36 |
| EAN | 4711387020869 |
| Kompatible prosessorer | Ryzen ThreadRipper PRO |
|---|---|
| RAM-spor | 8 DIMM-spor |
| Produktformfaktor | Forlenget ATX / SSI EEB |
| Prosessorsokkel | Socket sWRX8 |
| Brikkesett type | AMD WRX80 |
| Støttet RAM-teknologi | DDR4 SDRAM |
| Støttet RAM (registrert eller bufret) | Ikke-bufret, Load-Reduced, Registrert |
| Støttet RAM-integritetskontroll | Ikke-ECC, ECC |
| Strømkontakter | 2 x 6-pins PCI Express-kontakter, 8-pinw PCI Express-strømkontakt, 2 x 8-pins ATX12 V-kontakter, 24-pin hovedstrømforsyningskontakt |
| BIOS Type | AMI |
|---|---|
| BIOS-egenskaper | BIOS FlashBack, UEFI BIOS, ASUS EZ Flash 3, IPMI-støtte, ASUS UEFI BIOS EZ Mode |
| Maskinvarefunksjoner | Q-Slot, BMC-fjernstyring, VRM-kjøle med vifte, DIY Friendly Design, 16 Phase Power Design, M.2-kjølelegeme, Aluminiumsbakplate, Preboot eXecution Environment (PXE), NVIDIA 4-way SLI Technology Support, BIOS FlashBack-knapp, Q-Code, ASMB9-iKVM, Q-DIMM, ASUS Q-Design, CrashFree BIOS 3, Overstrømsvern, M.2 brikkesettvifte, ASUS SafeSlot, NVIDIA 2-way SLI Technology Support, Q-LED, Turbo LAN, NVIDIA 3-way SLI Technology Support, Formontert I/O-skjerm, Windows 11-kompatibel, BIOS FlashBack LED, ASUS EZ DIY, ASUS ProCool II, Clear CMOS Button, ASUS Q-Connector |
| Sov/Våkne | Wake on LAN (WOL), Våkne ved PME |
| Lagerporter | 8 x SATA-600 (RAID), 3 x M.2, 2 x U.2 |
|---|---|
| USB / FireWire-portskonfigurasjon (headere) | 1 x USB-C 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 |
| USB / FireWire-portskonfigurasjon (aktiv) | 1 x USB-C 3.2 Gen 2x2 + 1 x USB-C 3.2 Gen 2 + 8 x USB 3.2 Gen 2 |
| USB / FireWire | USB-C 3.2 Gen2, USB-C 3.2 Gen 2x2, USB 3.2 Gen 2, USB 3.2 Gen 1 |
| Lager | U.2 port, Serial ATA-600 (RAID), M.2-sokkel |
| Egenskaper | 8-kanals minnearkitektur |
|---|
| Type | Ingen |
|---|
| Lyd | Høydefinisjonslyd (8-kanals) |
|---|---|
| Audio Codec | Realtek ALC4080 |
| Type | Lydkort |
| Tilpassede standarder | DTS:X Ultra, High Definition Audio |
| Nettverkskontroller | Intel X550-AT2 |
|---|---|
| Datakjedeprotokoll | IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11b, IEEE 802.11a, Bluetooth 5.3, IEEE 802.11g, 10 Gigabit Ethernet, IEEE 802.11n |
| Nettverk | Bluetooth 5.3, 2 x 10 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E) |
| Produkttype | Hovedkort |
|---|---|

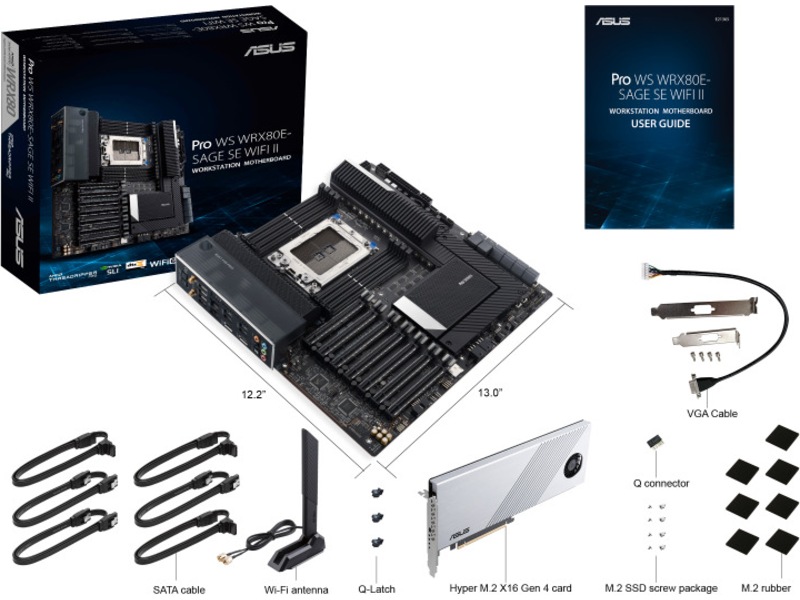

| Inkludert tilbehør | 7 x M.2-gummipakke, Q-Connector, 4 x M.2-skruer, 3 x M.2 Q-Latch, Hyper M.2 x16 Gen 4-kort, ASUS Wi-Fi bevegende antenne |
| Utvidelsesspor | 3 x M.2 socket (2242/2260/2280/22110 M.2 Key M spor), 7 x PCIe 4.0 x16, 1 x CPU, 8 x 288-pins DIMM |
|---|
| Lagergrensesnitt | SATA-600 -kontakter: 4 x 7-pin seriell ATA - RAID, SATA-600 / PCIe 4.0 -kontakter: 3 x M.2, SATA-600 / PCIe -kontakter: 2 x U.2, ASMedia ASM1061: SATA-600 -kontakter: 4 x 7-pin seriell ATA |
|---|

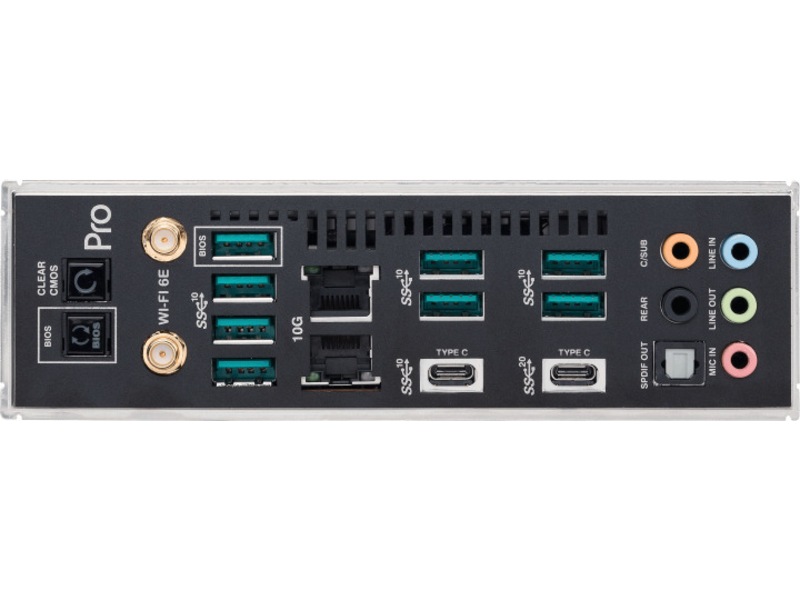

| Grensesnitt | 1 x lydutlinje - minijakk, 1 x SPDIF-utgang, 2 x LAN (10Gigabit Ethernet), 1 x USB-C 3.2 Gen2x2, 2 x antenne, 1 x USB-C 3.2 Gen 2, 1 x mikrofon - minijakk, 1 x lydutlinje (bakre) - minijakk, 1 x lydutlinje (senter/subbasshøyttaler) - minijakk, 8 x USB 3.2 Gen 2, 1 x lydinnlinje - minijakk |
|---|
| Interne overflater | 4 x USB 2.0 - header, 1 x VGA - header, 1 x USB-C 3.2 Gen 2 - header, 1 x SPI - header, 1 x seriell - header, 2 x USB 3.2 Gen 1 - header |
|---|
| Medfølgende kabler | 1 x VGA-kabel, 6 x Seriell ATA-kabel |
|---|
| Inkludert programvare | Drivers & Utilities, Norton AntiVirus (Trial), DAEMON Tools, Armoury Crate, ASUS CPU-Z, WinRAR, ASUS AI Charger |
|---|
Medlem i Komplett Club? Få 200 poeng for hver godkjent produktanmeldelse. Les mer
Only 7/8 Memory channels are usable. Everyone i have found with this board online has exact same problem. Still no bios fix released. I really want to give this board a 10 but i cant because now my compute throughput is reduced by 1/8th performance because Asus is lazy. Les mer
Opprinnelig publisert på https://www.asus.comPurchased the board with a 5995WX 64-core CPU, 256GB ECC, 2-4TB Samsung 990 NMVe, and an ASUS GeForce 4070TI. E-ATX board has plenty of room for cards. Easy to install and setup. I used Noctua fans and the temp at 70% is only 62 C. If I build another board I'll purchase this same board. Les mer
Opprinnelig publisert på https://www.asus.comA full-featured high-quality motherboard. I really like the ability to update firmware/bios out of band using a dedicated USB connector. The built-in VGA controller enables BIOS access independent of GPU presence. Lots of great documentation and reference build examples. Very easy to identify and purchase compatible custom-build components. Great choice for either workstation or head-less server scenarios. Solid Win11/Linux drivers and apps. Les mer
