| Produktserie | ASUS |
|---|---|
| Modell | ROG STRIX X870-I GAMING WIFI |
| Garanti (måneder) | 24 |
| EAN | 4711387740309 |
| Brikkesett type | AMD X870 |
|---|---|
| Merknader om kompatible prosessorer | Støtter Ryzen 7000/8000/9000-serien |
| Produktformfaktor | Mini-ITX |
| Støttet RAM (registrert eller bufret) | Ikke-bufret |
| RAM-spor | 2 DIMM-spor |
| Prosessorsokkel | Socket AM5 |
| Støttet RAM-teknologi | DDR5 SDRAM |
| Støttet RAM-hastighet | 4300 MHz (O.C.), 4200 MHz (O.C.), 4000 MHz (O.C.) |
| Støttet RAM-integritetskontroll | On-die ECC, Ikke-ECC, ECC |
| Strømkontakter | 24-pin hovedstrømforsyningskontakt, 8-pin ATX12V-kontakt |
| BIOS Type | AMI |
|---|---|
| Sov/Våkne | Wake on LAN (WOL), Våkne ved PME |
| Maskinvarefunksjoner | 10+2+1 Phase Power Design, Preboot eXecution Environment (PXE), M.2 Q-Latch, ASUS Enhanced Memory Profile (AEMP), ASUS Aura Sync, Q-DIMM, ASUS SafeSlot, ASUS Q-Design, AI Networking II, Q-Release Slim, Core Flex-teknologi, AI overklokking, PCIe Slot Q-Release, Q-Slot, ASUS ProCool II, Q-LED, AMD Precision Boost Overdrive (PBO), ASUS EZ DIY, ASUS SafeDIMM, AI Cooling II, Formontert I/O-skjerm, Clear CMOS Button, Q-Antenna, M.2-kjølelegeme, BIOS FlashBack LED, Aluminiumsbakplate, CrashFree BIOS 3, BIOS FlashBack-knapp |
| BIOS-egenskaper | ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode, UEFI BIOS |
| USB / FireWire-portskonfigurasjon (headere) | 1 x USB-C 3.2 Gen 2x2 + 1 x USB-C + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 |
|---|---|
| Lager | M.2-sokkel |
| USB / FireWire-portskonfigurasjon (aktiv) | 2 x USB4 + 2 x USB 3.2 Gen 2 + 3 x USB 3.2 Gen 1 + 4 x USB 2.0 |
| Lagerporter | 2 x M.2 |
| RAID-funksjoner | AMD RAID Xpert2 Technology |
| USB / FireWire | USB4, USB 3.2 Gen 2, USB-C 3.2 Gen2, USB 3.2 Gen 1 |
| Type | Grafikkadapter (CPU kreves) |
|---|
| Type | Lydkort |
|---|---|
| Lyd | Høydefinisjonslyd (8-kanals) |
| Audio Codec | ESS SABRE9260Q |
| Tilpassede standarder | High Definition Audio, Dolby Atmos |
| Tilpassede standarder | DisplayPort 1.4a |
|---|---|
| Produkttype | Hovedkort |
| Inkludert tilbehør | Kabelfestebånd, Panelkabel, M.2 Q-Latch, ROG FPS-kort, M.2-bakplategummipakke, ROG-nøkkelkjede, ROG Strix klistremerke, ROG STRIX HIVE II, ASUS Wi-Fi Q-antenna |
| Egenskaper | Dobbeltkanalsminnearkitektur, AMD EXPO-teknologi |
|---|
| Datakjedeprotokoll | IEEE 802.11g, Fast Ethernet, Ethernet, IEEE 802.11ac, IEEE 802.11be (Wi-Fi 7), IEEE 802.11n, IEEE 802.11a, IEEE 802.11b, 2.5 Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.4, Gigabit Ethernet |
|---|---|
| Nettverk | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4 |
| Utvidelsesspor | 1 x M.2 socket (2242/2260/2280 M.2 Key M-spor), 1 x M.2 socket (2280 M.2 Key M-spor), 1 x PCIe 5.0 x16, 2 x 288-pins DIMM, 1 x CPU |
|---|
| Lagergrensesnitt | PCIe 5.0 -kontakter: 1 x M.2 - RAID 0 / RAID 1 / RAID 10, PCIe 4.0 -kontakter: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 |
|---|

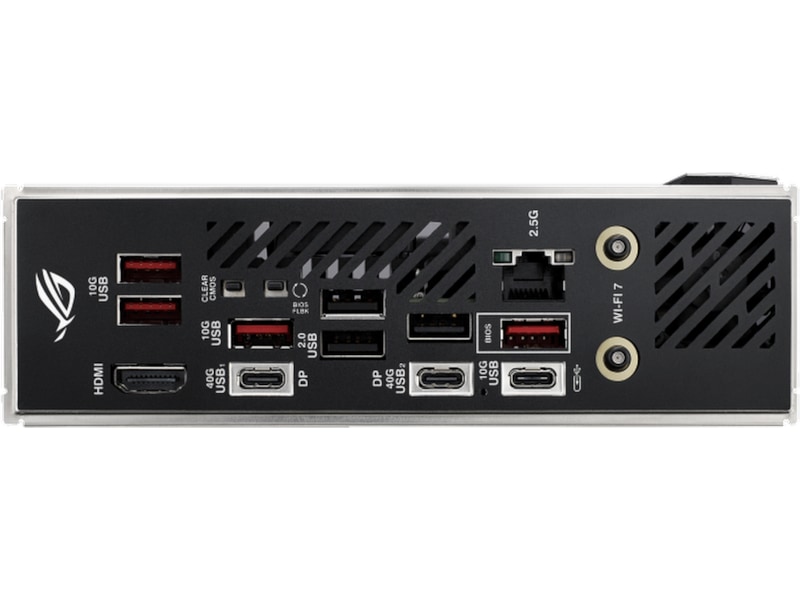

| Grensesnitt | 2 x Thunderbolt 4/DisplayPort/USB4, 1 x LAN (2.5Gigabit Ethernet), 4 x USB 3.2 Gen 2, 1 x USB-C 3.2 Gen 2, 1 x HDMI, 2 x antenne |
|---|
| Interne overflater | 2 x USB 3.2 Gen 1 - header, 1 x USB-C 3.2 Gen 2x2 - header |
|---|
| Medfølgende kabler | 1 x USB 2.0 splitterkabel, 2 x SATA ekspresskabel, 1 x USB-C til USB-C-kabel |
|---|
| Inkludert programvare | ROG GameFirst Utility, ASUS DriverHub, AIDA64 Extreme (60-dagersprøve), ASUS GlideX, WinRAR (40 days trial), ASUS AURA Creator, HWiNFO, Adobe Creative Cloud (gratis prøveversjon), ASUS Fan Xpert 4, ROG CPU-Z, Norton 360 for spillere (60 dagers prøveversjon) |
|---|
