Denne varen finnes ikke lenger i vårt sortiment, men kontakt oss gjerne på 33 00 55 00 eller kundeservice@komplett.no så hjelper vi deg finne et alternativt produkt til dette.
Varenummer: 1319121 / Produktnr.: MPE-A501-AFCAG-3EEU

Flere bilder av

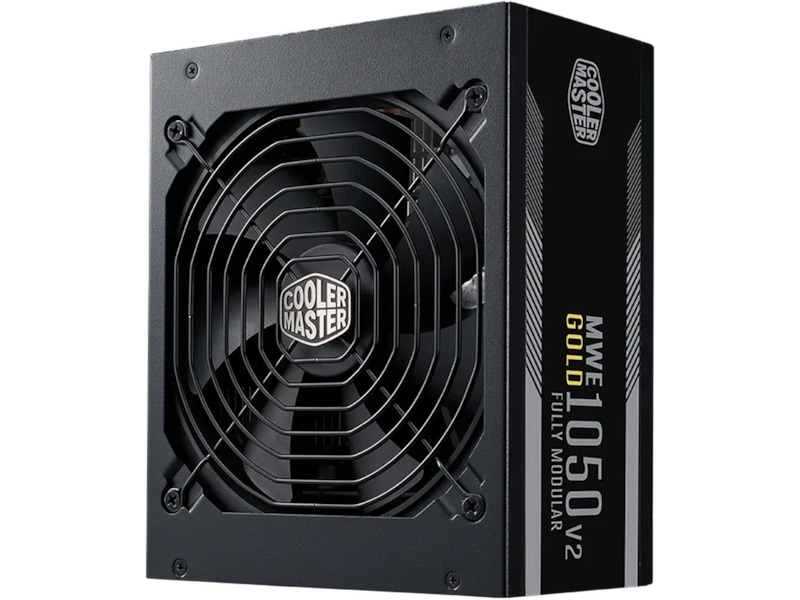

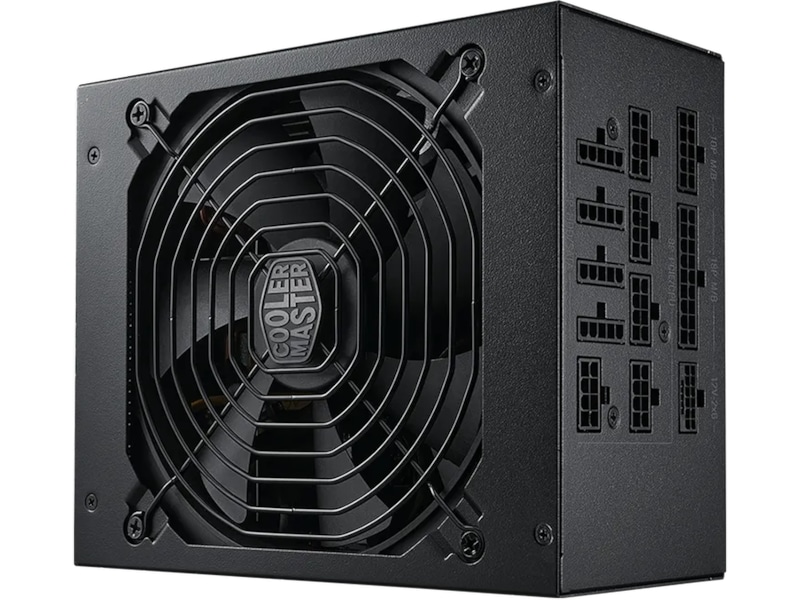

Cooler Master MWE Gold 1050W V2

Connect the Future, connect ATX 3.1

100% ATX 3.1 Compatible

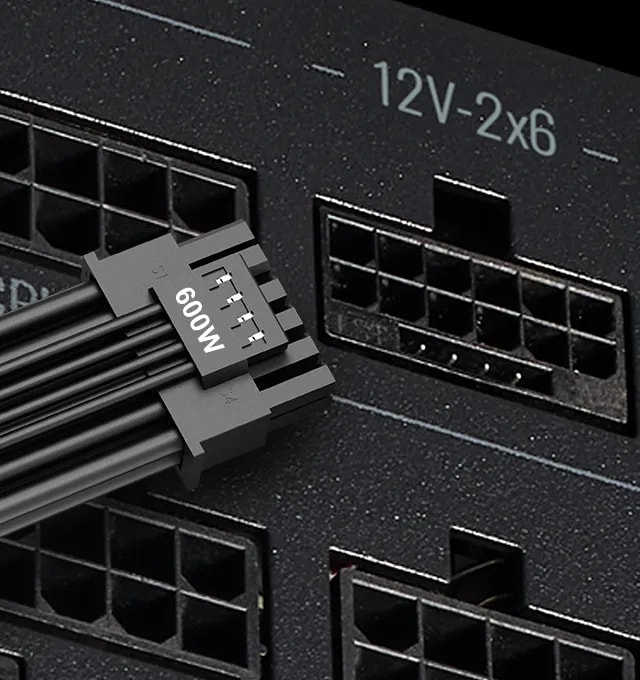

Cooler Master took the initiative and continuously developing our first ATX 3.1 Power Supply lineup. Compliant with ATX 3.1 standard and 12V-2x6 connectors, the MWE Gold 1050/1250 V2 ATX 3.1 can fully support the peak power drawn by the 40 series RTX graphic cards and whole system.

80 PLUS Gold Certified

Efficiency has always been one of the most important factors for users when choosing their power supply unit. While there are a range of efficiency options, 80 PLUS Gold has been the ideal choice for the last several years and continues to be seen as the standard for much of the world. The MWE Gold 1050/1250 V2 ATX 3.1 features 80 PLUS Gold certification, guaranteeing 90% efficiency at typical load.

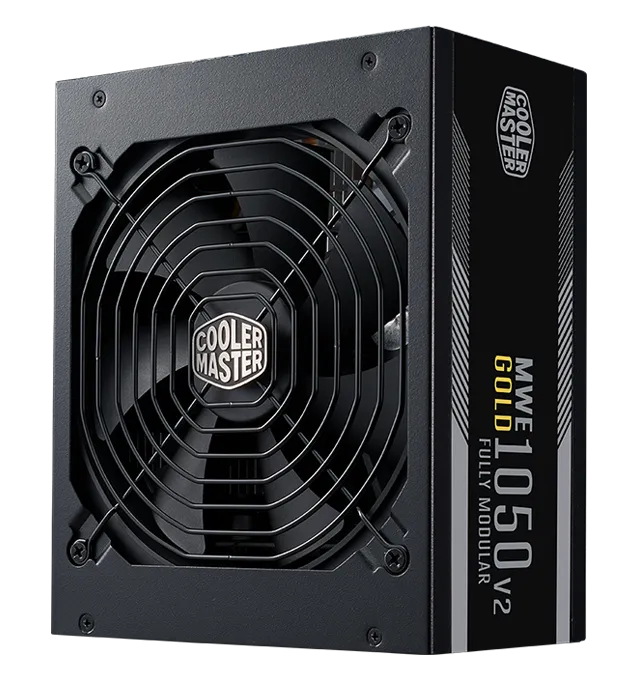

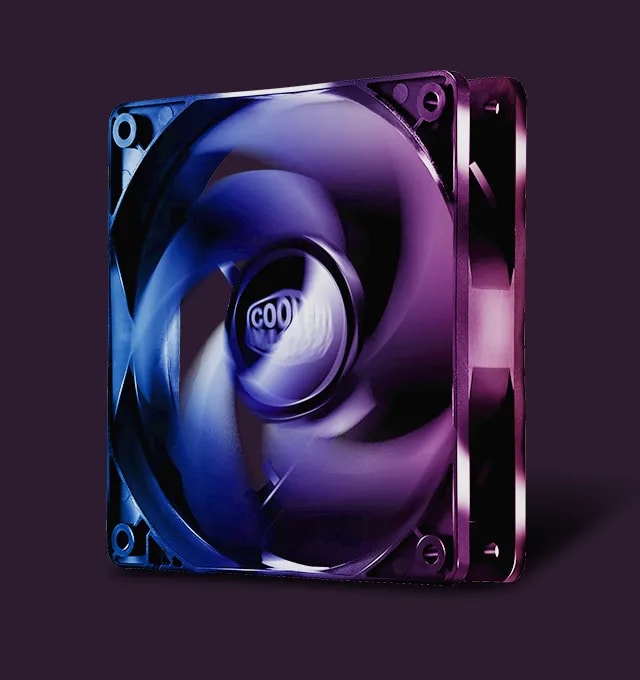

Quiet Cooling

The MWE Gold 1050/1250 V2 ATX 3.1 has been optimized with an 140mm fan along with an advanced fluid-dynamic bearing (FDB) delivers quiet and effective cooling with a long lifespan. With Smart Thermal Control System (STCM), the fan will not spin until at 40% of rated output power to reduce noise.

Industrial-grade Temperature Resilience

The MWE Gold 1050/1250 V2 ATX 3.1 has improved to operate safely at up to 50 degrees Celsius ambient for high-end computer, overclocking and other high intensity applications. Such a high threshold greatly enhances the performance of your PSU and your system.

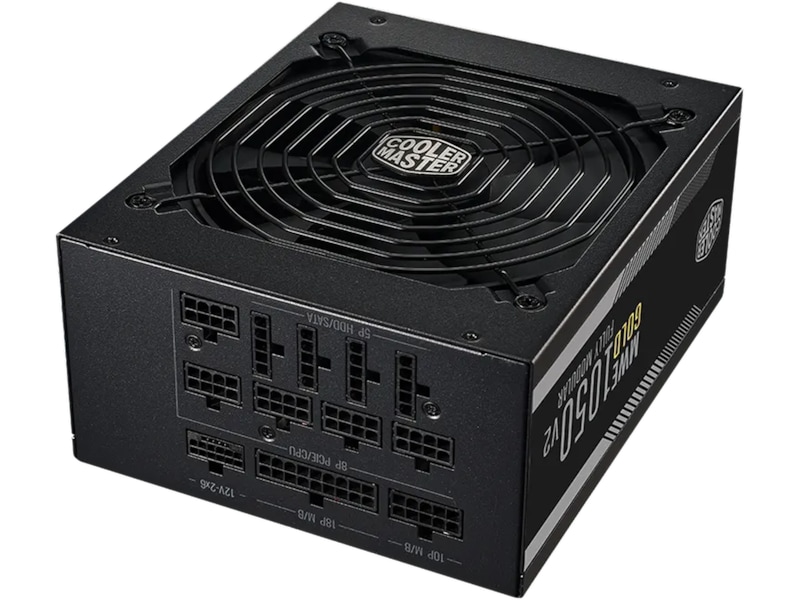

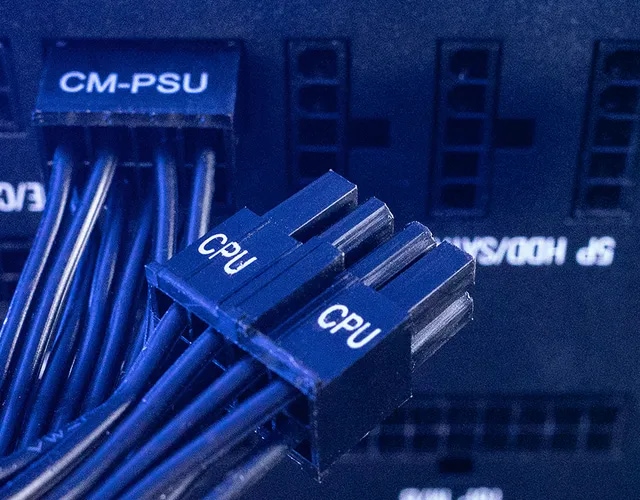

Fully Modular Cabling

The fully modular version of the MWE Gold 1050/1250 V2 ATX 3.1 comes with a set of flat black cables that can be customized to each user's individual needs. It's designed for easy cable management that each system only needs to include the cables required. This unused space within the chassis allows for reduced clutter, better airflow and aesthetic, thereby improving your system's overall cooling.

Generelt
Produktserie Cooler Master MWE Gold V2
Modell 1050
Produkttype Strømforsyning
Underkategori Strømforsyninger
Garanti (måneder) 120
EAN 4719512151013
Strømenhet
80 PLUS-sertifisering 80 PLUS Gold
Effektivitet 90%
Strømfaktorkorreksjon Aktiv Power Factor Correction (PFC)
Modulkabelstyring Ja
Spesifikasjonssamsvar ATX12V 3.1/ EPS12V
PSU-formfaktor ATX
Frekvens nødvendig 50 - 60 Hz
Formfaktor Intern
Strømforsyningskompatibilitet PC/Server
Effekt 1050 watt
Spenningstilførsel +3.3, +5, ±12 V
Påkrevd nettspenning AC 100-240 V
Kjølesystem 140 mm-vifte
Strømforsyningsenhetfunksjoner Overspenningsvern, Kjølevifte med dobbeltkulelager, Overopphetingsbeskyttelse, Kortslutningsbeskyttelse, Helt modulær, Overstrømbeskyttelse, Underspenningsbeskyttelse, Innløpsbeskyttelse, Overstrømsbeskyttelse
Diverse
MTBF 100,000 timer
Fargekategori Svart
Tilpassede standarder BIS, BSMI, EAC, UKCA, RCM, CCC, ErP 2014, cTUVus, TUV, FCC
Størrelser og vekt
Dybde 18 cm
Vekt 2.93 kg
Bredde 15 cm
Høyde 8.6 cm
Størrelser og vekt (forsendelse)
Frakthøyde 12.2 cm
Fraktvekt 3.36 kg
Fraktbredde 33.3 cm
Fraktdybde 19.7 cm
Miljøparametere
Maks. Driftstemperatur 50 °C
Min. driftstemperatur 0 °C
Kabeldetaljer
Medfølgende kabler Strøm 24-pins ATX-modulkabel 65 cm, 16-pinners 12VHPWR modulær strømkabel 65 cm, 3 x 8-pins PCI Express-strøm med avtakbar 2-pins delmodulkabel 55 cm, AC-strømkabel, 4-stifts modulær strømkabel 86 cm, Strøm 8-stifts EPS12V med avtakbar 4-stifts ATX12V seksjonsmodulær kabel 65 cm, 3 x 15 pins seriell ATA modulær strømkabel 86 cm, Modulkabel for 8-pins EPS12V strøm 65 cm
Utgangsstrøm

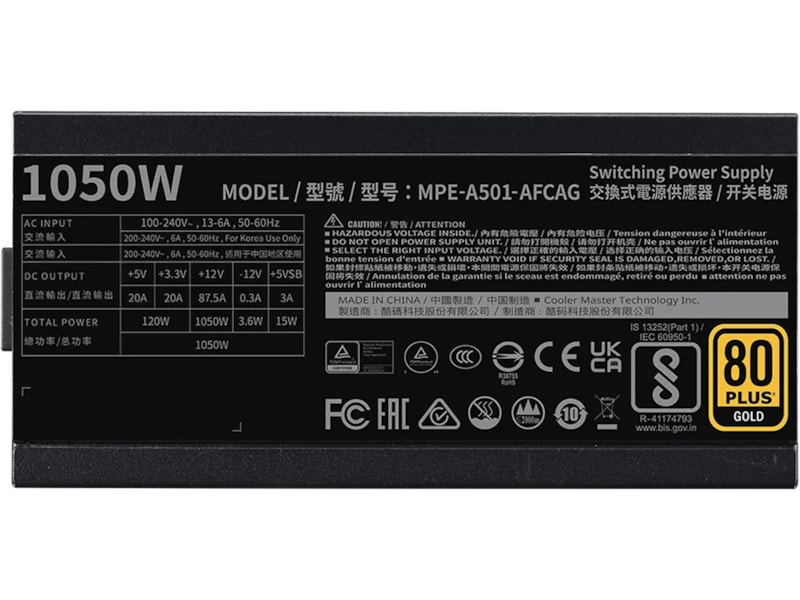

Utgangsstrøm +3.3V - 20 A, +5VSB - 3 A, -12V - 0.3 A, +5V - 20 A, +12V - 87.5 A
Detaljer om strømutgangskoblinger
Detaljer om strømutgangskoblinger 12 x 15-pins seriell ATA-strøm, 1 x 12VHPWR, 3 x 8-pins PCI Express-strøm med avtakbar 2-pins del, 4 x 4-pin intern strøm, 1 x strøm 8-pins EPS12V, 1 x strøm 24-pins ATX, 1 x strøm 8-pins EPS12V med avtakbar 4-pins ATX12V-del
