Varenummer: 1314138 / Produktnr.: Z790 S DDR4

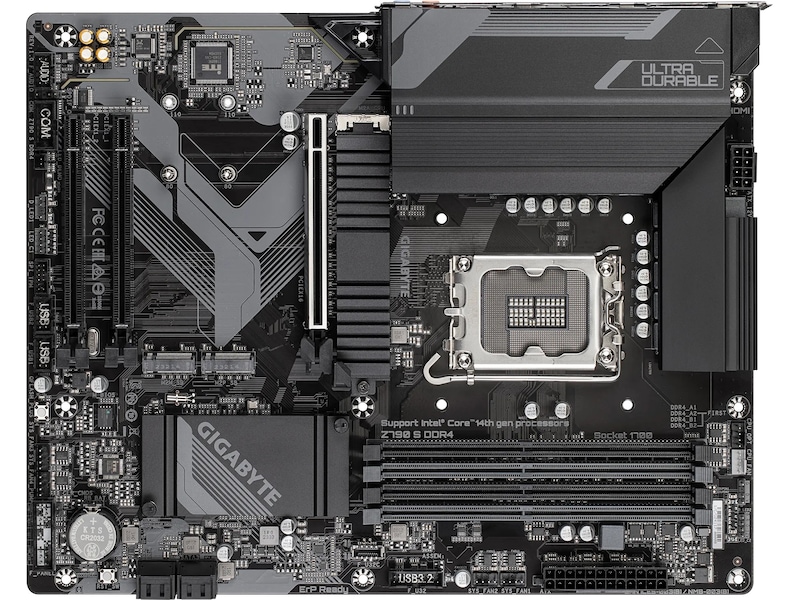

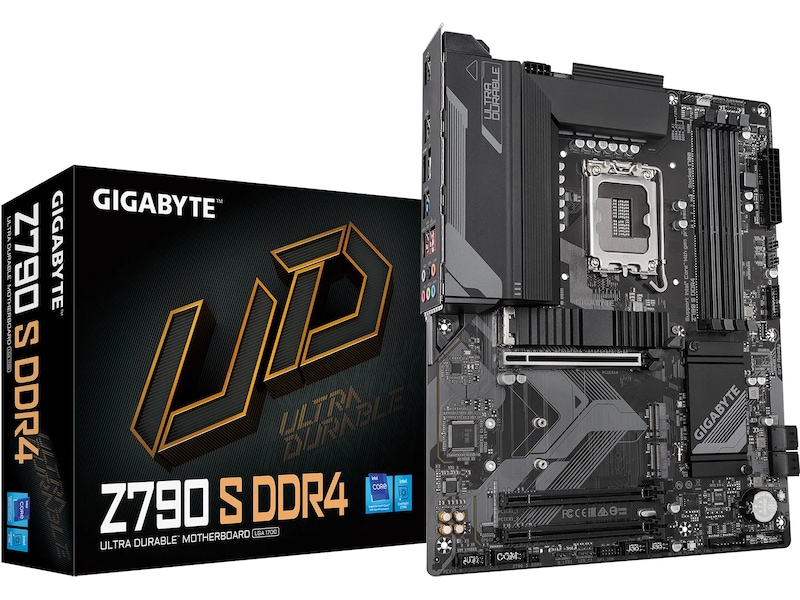

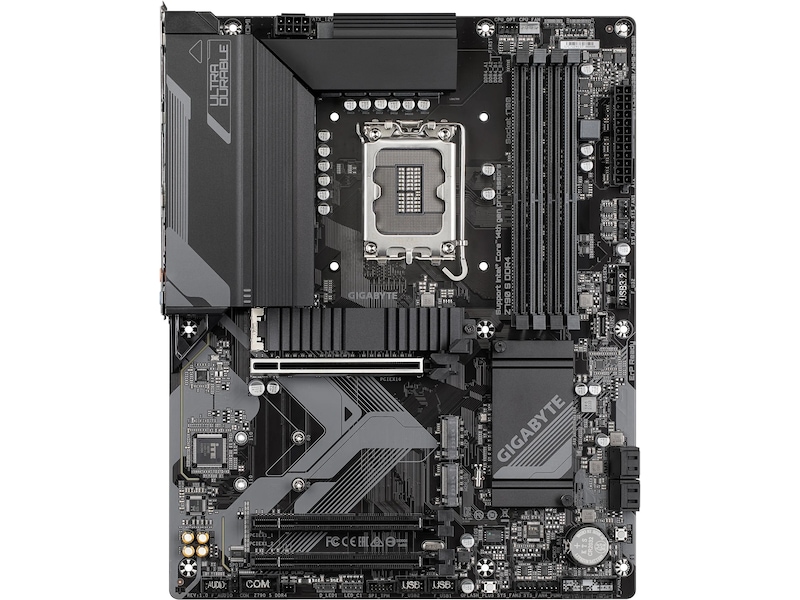

GIGABYTE Z790 S DDR4 Hovedkort

LGA 1700, ATX, DDR4, 1x PCIe 4.0, 2x PCie. 3.0, 3x M.2

Flere bilder av GIGABYTE Z790 S DDR4 Hovedkort

2 299,-
4 stk. på lager.

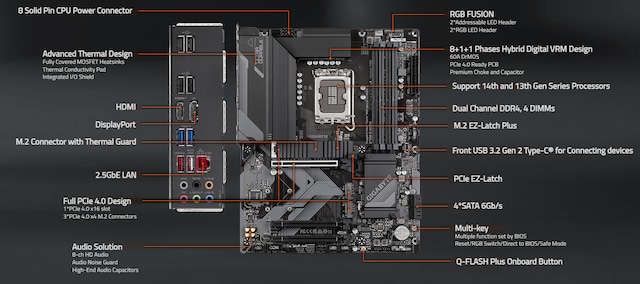

GIGABYTE Z790 S DDR4

  • Supports Intel® Core™ 14th/ 13th /12th processors
  • Unparalleled Performance:Hybrid 8+1+1 Phases Digital VRM Solution
  • Dual Channel DDR4:4*DIMMs XMP Memory Module Support
  • Next Generation Storage:3*PCIe 4.0 x4 M.2 Connectors
  • Advanced Thermal Design & M.2 Thermal Guard:To Ensure VRM Power Stability & M.2 SSD Performance
  • EZ-Latch:PCIe 4.0x16 Slot with Quick Release Design
  • Fast Networks:2.5GbE LAN
  • Extended Connectivity:Front USB-C® 10Gb/s, DP, HDMI
  • Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card

OVERVIEW

Durable Performance

GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform.

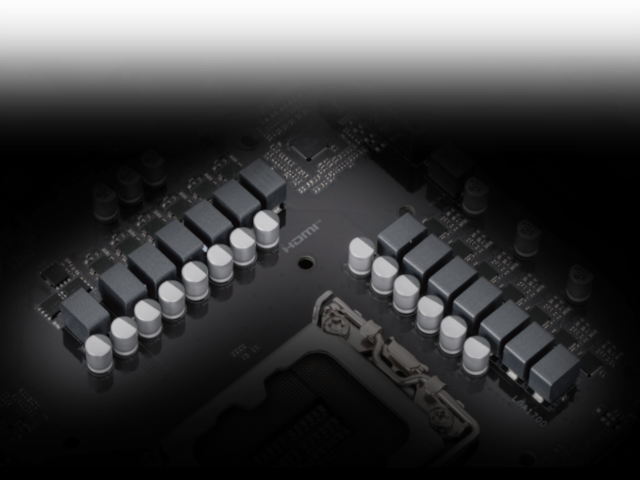

Digital VRM Design

The best VRM design ever built with the highest quality components.

  • 8+1+1 Phases digital PWM + Low RDS(on) MOSFETs
  • Support the latest CPUs, and deliver enhanced system performance and ultimate hardware scalability.

DDR4 XMP

Support for DDR4 XMP Up to 5333MHz and Beyond*
GIGABYTE is offering a tested and proven platform that ensures proper compatibility with profiles up to 5333MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their GIGABYTE otherboard.
* XMP Profile support may vary depending on memory module.
* Please see the complete validated memory support list. Product features may vary by model.

Shielded Memory Routing
All memory routing is under the PCB inner layer shielded by a large ground layer to protect from external interference.

Thermal

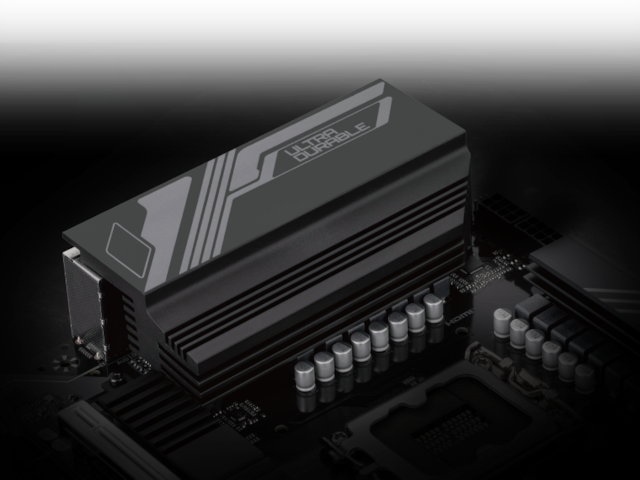

Fully Covered MOSFET Heatsink

Real One-piece Build
TMOS is a TRUE single piece heatsink. Its one-piece design and larger surface drastically improve the cooling performance against competitors' multi-piece design.

Multi-Cut Design
TMOS features several channels and inlets on the heatsink. This design allows for the air flow to go through which leads to a great improvement of the heat transfer performance.

Thermal

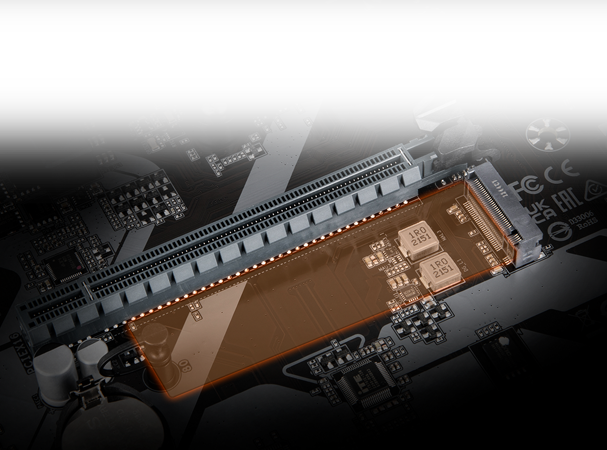

M.2 Thermal Guard
The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.

Future Connectivity

The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.

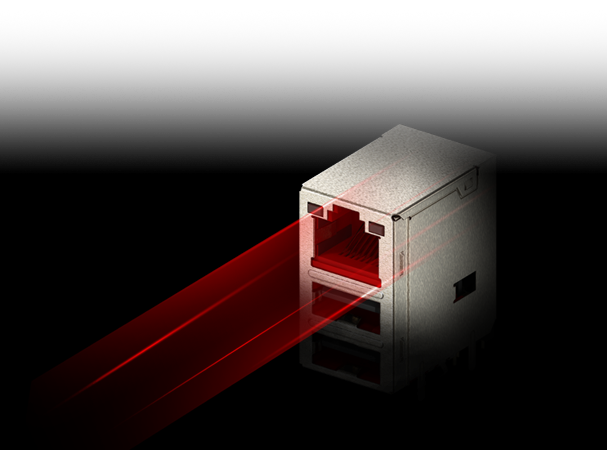

2.5GbE LAN

Supercharge your gaming with 2.5GbE LAN Achieve lightning-fast speeds, minimal lag, and unbeatable performance to elevate your gaming setup and dominate the competition.

PCIe 4.0 Hardware Design

Featuring one or multiple PCIe 4.0 x16 slot and PCIe 4.0 M.2 slot support, GIGABYTE Motherboards are ready to work with the PCIe 4.0 devices to provide the superior performance.

Hi-Fi Audio

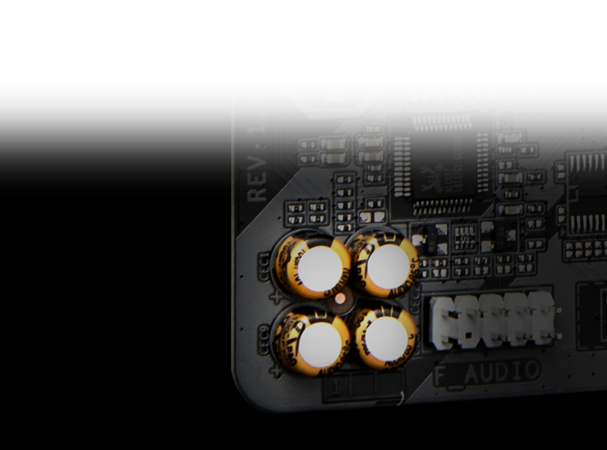

High-End Audio Capacitors
These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects.

Audio Noise Guard
Essentially separates the board's sensitive analog audio components from potential noise pollution at the PCB level.

Easy Friendly

Innovative and intuitive hardware, software, and BIOS interface design to create your personal style.

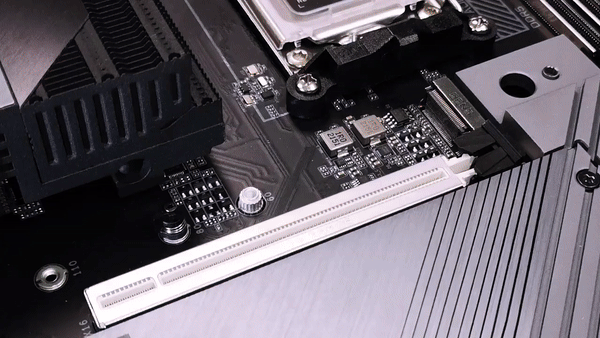

EZ-Latch

Unlock the latch of the PCIe slot easily when remove the graphics card in the PCIe slot.

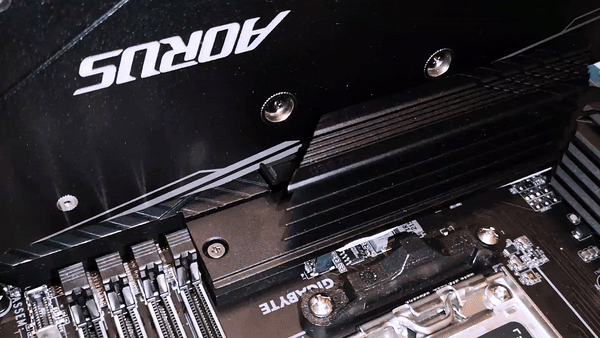

M.2 EZ-Latch Plus

Screwless installation for M.2 SSDs.

Smart Fan 6

ensures optimal cooling and quiet operation for your gaming PC, with support for PWM/DC fans and pumps, customizable settings, and intuitive temperature monitoring.

  • High Current Support: Each fan headers support PWM and DC fan and Water Cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection.
  • Precision Control: Multiple temperature/fan speed control points for precise fan curve.
  • Dual Curve Mode: Slope/Stair dual mode for different user scenario.
  • Fan Stop: Fan can stop completely below users' specified temperature point.

Smart Fan 6 BIOS UI

  • Enhance Fan Curve UI : Enhance fan curve control with an expanded number of control points, from 5 to 7, and a larger fan speed graph, enabling users to have more precise and effortless control over fan curve settings.
  • Slope/Stair Dual Graph Mode : Switch between Slope and Stair modes to adapt to various user scenarios. Slope mode provides a linear fan speed curve, while Stair mode maintains a constant fan speed within specified temperature intervals.
  • Manual Input : For advanced users, manual input of fan speeds is available for fine-tuning and precise control over the cooling system.
  • EZ Tuning : Simplify the process with EZ Tuning by setting 4 points on a rough temperature/fan speed scale. Smart Fan 6 will quickly generate a fan curve based on these points.
  • Fan Curve Profile : Save your customized fan curve profile in the BIOS ROM, ensuring it remains intact even after BIOS updates.

UC BIOS

Redesigned UI and UX
an intuitive operation interface with an aesthetically pleasing design.

Quick Access
9 customizable option slots for effortless access in Easy Mode.

PerfDrive
exclusive BIOS settings that optimize the performance based on the cooling configuration

Q-Flash Plus

Update the BIOS easily without installing the CPU, memory, and graphics card.

  1. Plug the 24-pin and 8-pin power supply cables into the motherboard.
  2. Download the motherboard BIOS file and rename it to "gigabyte.bin". Save it to a USB flash drive formatted in FAT32. Insert the USB flash drive into the Q-FLASH PLUS USB port.
  3. Press the Q-FLASH PLUS button, and the motherboard will start updating the BIOS automatically.
Generelt
Produktserie Gigabyte
Modell Z790 S DDR4
Garanti (måneder) 36
EAN 4719331861902
Hovedkort
Prosessorsokkel LGA1700-sokkel
Merknader om kompatible prosessorer Støtter 12./13. og 14. generasjon Intel Core / Pentium Gold / Celeron
Støttet RAM-teknologi DDR4 SDRAM
RAM-spor 4 DIMM-spor
Støttet RAM (registrert eller bufret) Ikke-bufret
Produktformfaktor ATX
Brikkesett type Intel Z790
Støttet RAM-hastighet 3000 MHz, 4500 MHz (O.C.), 4800 MHz (O.C.), 3866 MHz (O.C.), 4600 MHz (O.C.), 4266 MHz (O.C.), 4400 MHz (O.C.), 3733 MHz (O.C.), 4300 MHz (O.C.), 3466 MHz (O.C.), 3600 MHz (O.C.), 3333 MHz (O.C.), 2133 MHz, 4000 MHz (O.C.), 5000 MHz (O.C.), 4933 MHz (O.C.), 2933 MHz, 3200 MHz, 4133 MHz (O.C.), 3400 MHz (O.C.), 2666 MHz, 5333 MHz (O.C.), 3800 MHz (O.C.), 2400 MHz, 3666 MHz (O.C.), 5133 MHz (O.C.), 4700 MHz (O.C.)
Strømkontakter 8-pin ATX12V-kontakt, 24-pin hovedstrømforsyningskontakt
Støttet RAM-integritetskontroll ECC (drift i ikke-ECC-modus), Ikke-ECC
Hovedkortegenskaper
BIOS Type AMI
Overvåking av maskinvare Deteksjon av viftehastighet, Temperaturdeteksjon, Systemspenning, Viftefeilvarsel, Viftestyring, Flytrate for vannkjøling
Maskinvarefunksjoner Q-Flash, Ultra Durable, Formontert I/O-skjerm, MOSFET kjøleribbe, 8+1+1 Phase Power Design, M.2 Thermal Guard, M.2 EZ Latch, GIGABYTE Smart Fan 6, DIY Friendly Design, PCIe EZ Latch, MultiKey, Q-Flash Plus
BIOS-egenskaper ACPI 5.0-støtte, PnP 1.0a-støtte, DMI 2.7-støtte, WfM 2.0 støttet, SMBIOS 2.7-støtte, UEFI BIOS
Grensesnitt
Lagerporter 4 x SATA-600 (RAID), 3 x M.2
USB / FireWire-portskonfigurasjon (aktiv) 1 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 5 x USB 2.0
USB / FireWire-portskonfigurasjon (headere) 1 x USB-C 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0
Lager M.2-sokkel, Serial ATA-600 (RAID)
USB / FireWire USB 3.2 Gen 1, USB-C 3.2 Gen 1, USB-C 3.2 Gen2
Videoutgang
Type Grafikkadapter (CPU kreves)
Lydutgang
Tilpassede standarder High Definition Audio
Type Lydkort
Lyd High Definition Audio (7,1-kanals)
Nettverkstilknytning
Nettverk 2.5 Gigabit Ethernet
Datakjedeprotokoll Fast Ethernet, Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet
Kabeldetaljer
Medfølgende kabler 2 x Seriell ATA-kabel
Diverse
Tilpassede standarder HDCP 2.3
Produkttype Hovedkort
Inkludert tilbehør M.2 skruepakke
RAM
Egenskaper Dobbeltkanalsminnearkitektur, Støttede ECC-moduler kjører i ikke-ECC-modus, Intel Extreme Memory Profiles (XMP)
Utvidelsesspor
Utvidelsesspor 2 x PCIe 3.0 x16 (x1-modus), 3 x M.2 socket (2280/22 110 M.2 Key M spor), 4 x 288-pins DIMM, 1 x PCIe 4.0 x16, 1 x CPU
Lagergrensesnitt
Lagergrensesnitt SATA-600 -kontakter: 4 x 7-pin seriell ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5, PCIe 4.0 -kontakter: 3 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
Grensesnitt medfølger
Grensesnitt 1 x lydutlinje (bakre) - minijakk, 1 x LAN (2.5Gigabit Ethernet), 1 x lydinnlinje - minijakk, 1 x lydutlinje - minijakk, 2 x USB 3.2 Gen 1, 1 x HDMI, 1 x USB 3.2 Gen 2, 1 x lydutlinje (side-surround) - minijakk, 1 x DisplayPort, 1 x mikrofon - minijakk, 5 x USB 2.0
Interne overflater
Interne overflater 1 x SPDIF-utgang - header, 1 x USB-C 3.2 Gen 2, 4 x USB 2.0 - header, 2 x USB 3.2 Gen 1 - header, 1 x seriell - header, 1 x lyd - header, SPI - header
Programvare
Inkludert programvare LAN-administrator, GIGABYTE Control Center, Norton Internet Security (OEM Version)
