Denne varen finnes ikke lenger i vårt sortiment, men kontakt oss gjerne på 33 00 55 00 eller kundeservice@komplett.no så hjelper vi deg finne et alternativt produkt til dette.

Varenummer: 1220016 / Produktnr.: 911-7E06-003

1 / 5

Document

Business Elegance

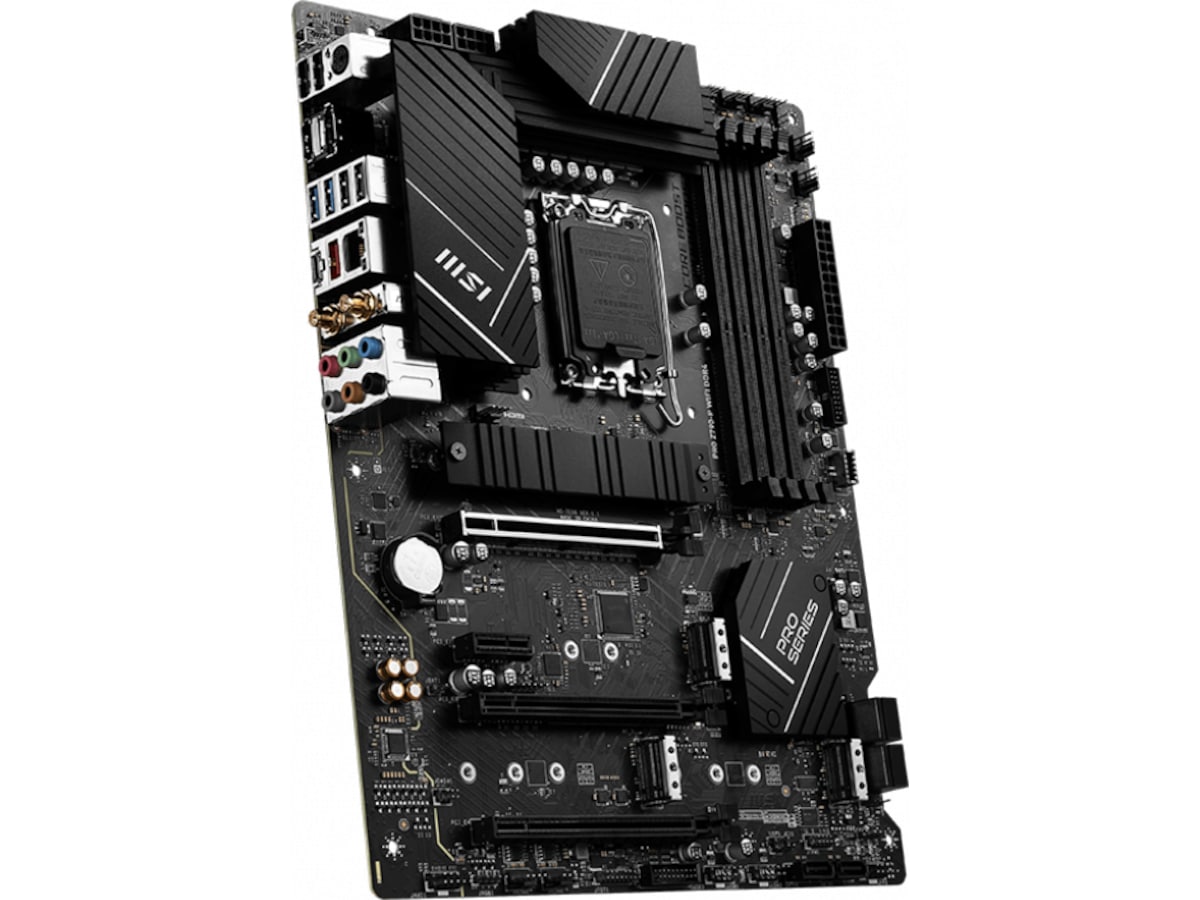

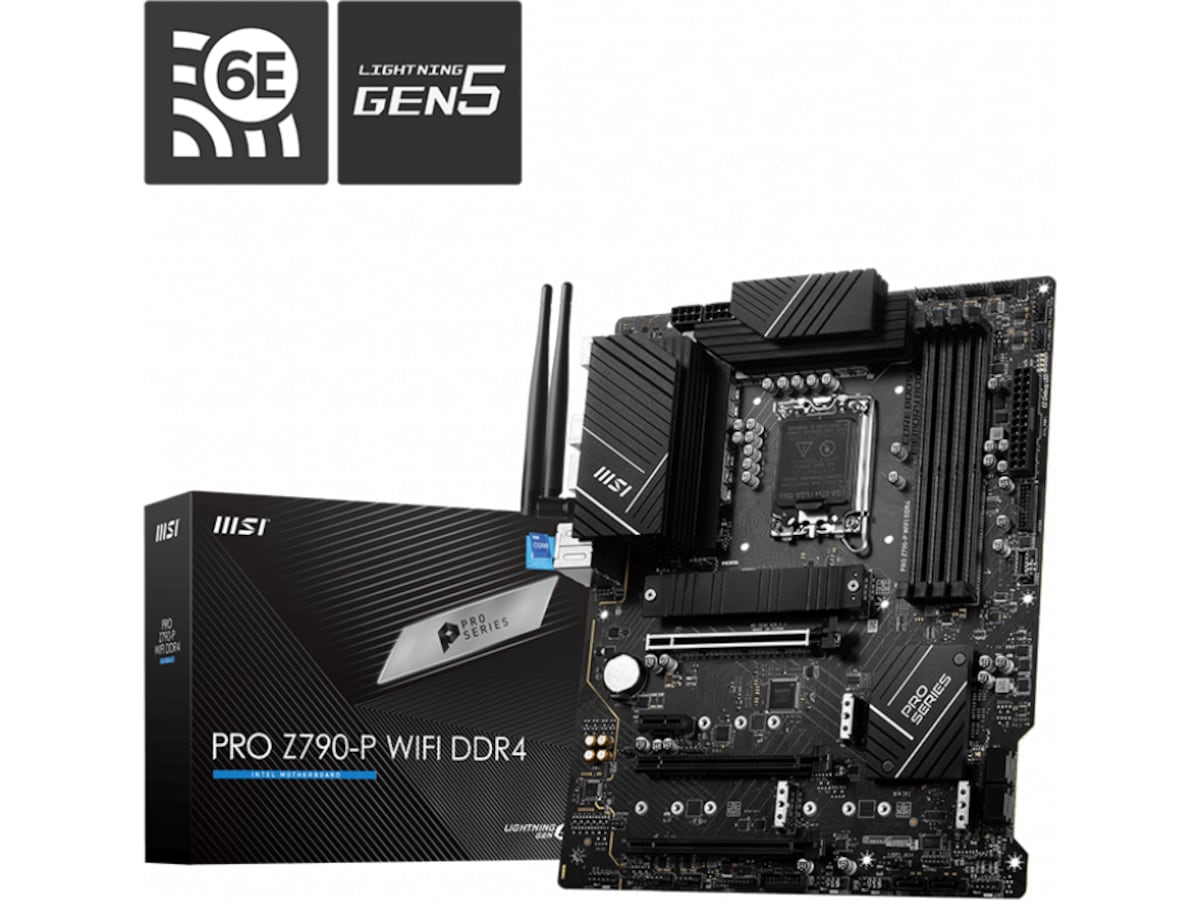

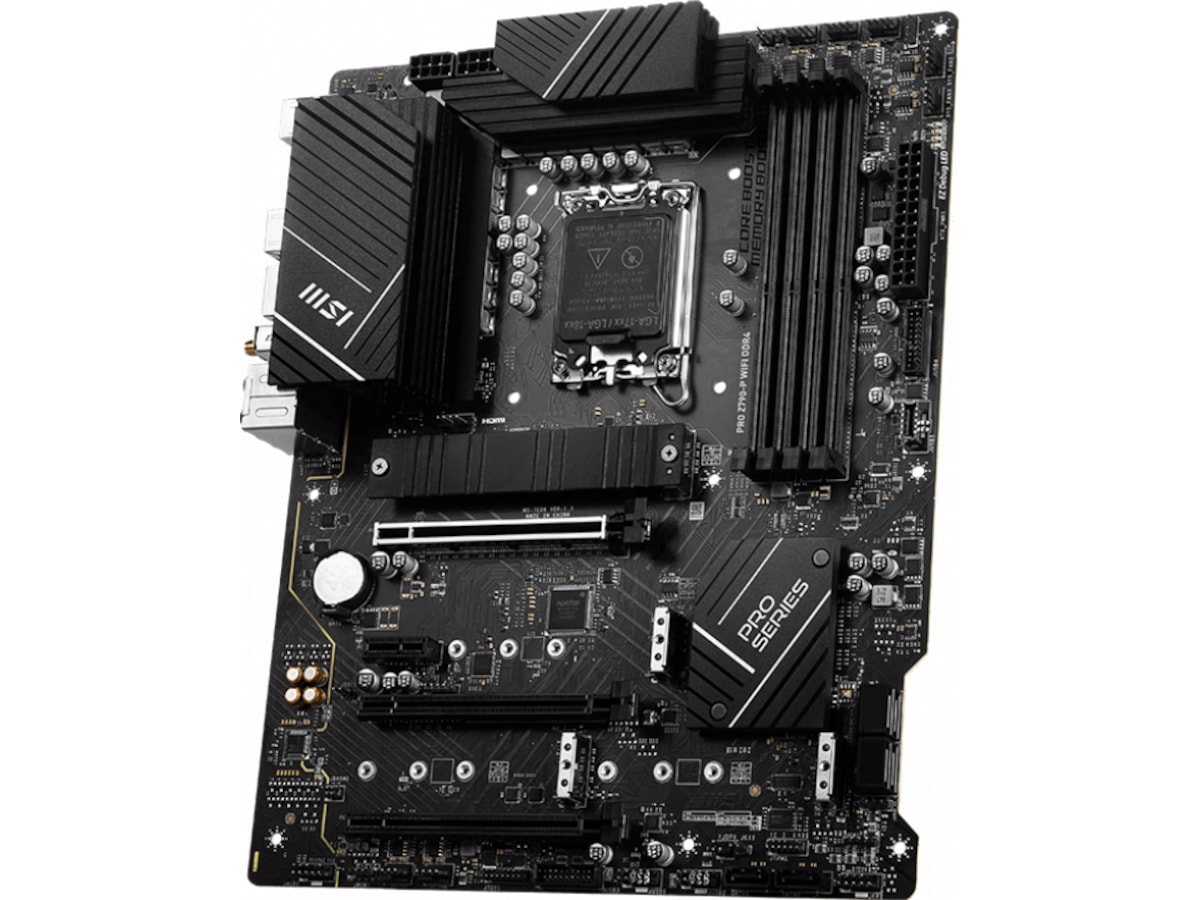

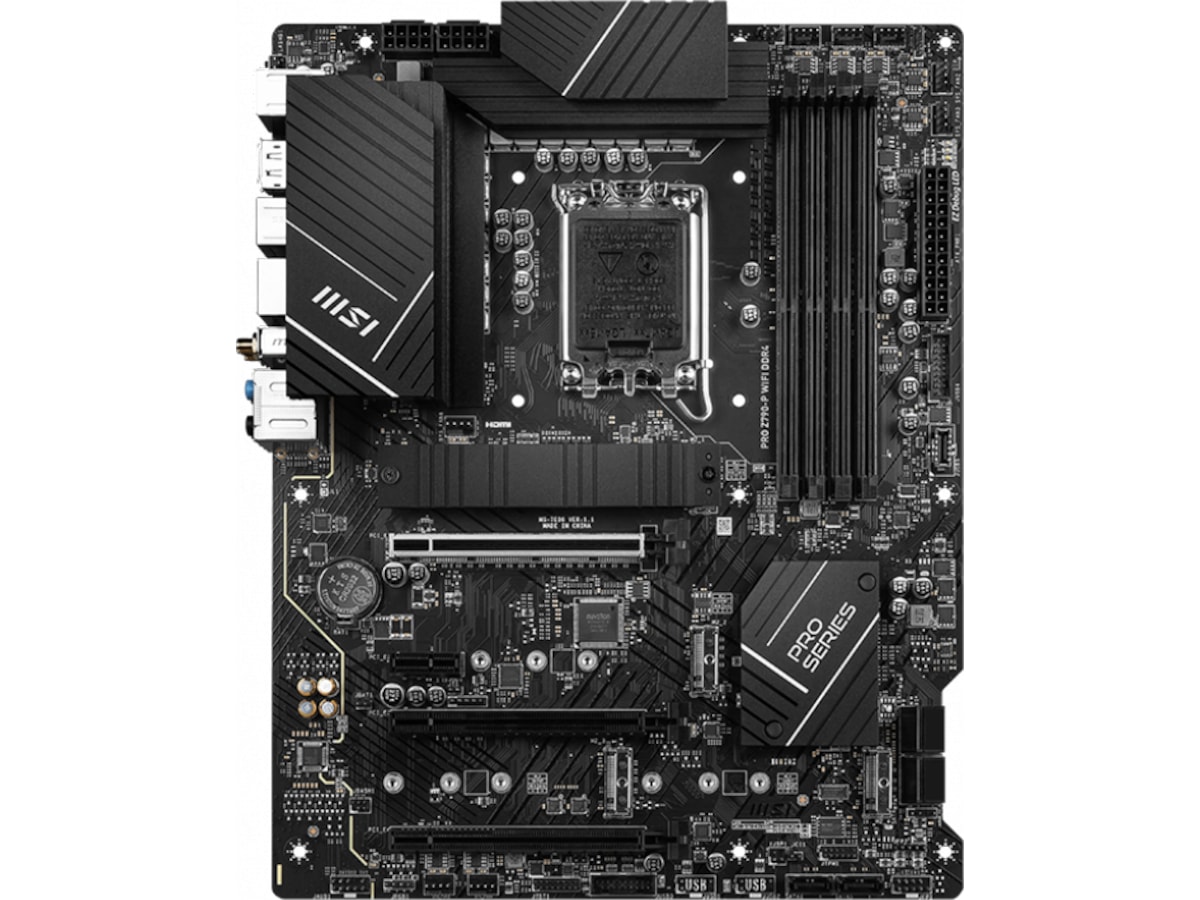

Name: MSi PRO Z790-P WIFI DDR4 Hovedkort
Brand: MSI
SKU: 1220016
Availability: Discontinued

For creative professionals looking forward to increasing productivity and improving efficiency, the MSI PRO Z790-P WIFI DDR4 offers a quality platform with the capacity to support a broad spectrum of both cutting-edge and innovative hardware.

Supports Intel Core 12th & 13th Gen Processors

The PRO Z790-P WIFI DDR4 motherboard supports 12th & 13th Gen Intel Core, Pentium Gold, and Celeron processors.

Form Factor: ATX

Socket Type: LGA 1700

Chipset: Intel Z790

14 Duet Rail Power System with 55A DrMOS

With its dual 8-pin power connectors and exclusive Core Boost technology, the PRO Z790-P WIFI DDR4 is able to sustain heavy CPU power loads to support system-demanding settings:

1. Digital PWM IC

2. 14 Duet Rail Power System with 55A DrMOS

3. 1-Phase GT Power

4. 1-Phase AUX Power

Integrated Cooling Features

VRM Cooling: Features an Extended Heatsink design and 7W/mK MOSFET thermal pads for improved thermal dissipation.

PCB Cooling: An 6-layer server-grade printed circuit design with 2 oz. thickened copper improves heat dissipation & performance.

SSD Cooling: M.2 Shield Frozr prevents thermal throttling.

System Cooling: Connect and synchronize cooling with strategically placed pin-headers - including a dedicated pump-fan header.

Fortified PCI-e 5.0 x16 Slot

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference:

1 x PCI-e 5.0/4.0/3.0 x16 slot (with Steel Armor**)

1 x PCI-e 4.0/3.0 x16 slot*

*Supports x4

**MSI Surface Mount Technology (SMT) solder welding improves signal clarity.

Lightning Gen4 M.2 Connectors

The PRO Z790-P WIFI DDR4 motherboard features MSI's latest M.2 slots:

4 x Gen4 x4 64Gb/s slots

M.2 Shield Frozr

Even the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures.

M.2 Shield Frozr: MSI's most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.

4 x DDR4 Dual Channel (5333 MHz OC)

Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.

XMP profiles in MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.

*1DPC 1R Max. overclocking frequency 5333+ MHz, supports Intel XMP.

Wi-Fi 6E & Bluetooth 5.2

2.5G LAN: A 2.5Gbps LAN controller delivers a premium network gaming experience.

Wi-Fi 6E: Features the latest Wi-Fi 6E module (ultra-low latency, high-bandwidth) & Bluetooth 5.2 technology.

USB 3.2 Gen 2x2 Type-C: Connect to devices and transfer files at high bandwidth rates: 20Gb/s.

HD Audio: 7.1-Channel High Definition Audio with Audio Boost.

Generelt
Modell	PRO Z790-P WIFI DDR4
Produktserie	MSI
Garanti (måneder)	36
EAN	4711377011426

Hovedkort
RAM-spor	4 DIMM-spor
Brikkesett type	Intel Z790
Merknader om kompatible prosessorer	Støtter 12.- og 13.-generasjons Intel Core / Pentium Gold / Celeron
Støttet RAM-integritetskontroll	Ikke-ECC
Prosessorsokkel	LGA1700-sokkel
Støttet RAM (registrert eller bufret)	Ikke-bufret
Støttet RAM-teknologi	DDR4 SDRAM
Produktformfaktor	ATX
Støttet RAM-hastighet	4800 MHz (O.C.), 4533 MHz (O.C.), 3000 MHz, 3866 MHz (O.C.), 3600 MHz (O.C.), 3733 MHz (O.C.), 5066 MHz (O.C.), 4266 MHz (O.C.), 5200 MHz (O.C.), 2400 MHz, 3333 MHz (O.C.), 2933 MHz, 4000 MHz (O.C.), 2133 MHz, 3200 MHz, 5000 MHz (O.C.), 2666 MHz, 3466 MHz (O.C.), 5333 MHz (O.C.), 4600 MHz (O.C.), 2800 MHz, 4400 MHz (O.C.)
Strømkontakter	2 x 8-pins ATX12 V-kontakter, 24-pin hovedstrømforsyningskontakt

Hovedkortegenskaper
BIOS-egenskaper	MSI ClickBIOS 5
Maskinvarefunksjoner	Digital PWM, MSI Mystic Light, Surface Mount Technology (SMT), MSI Core Boost, MSI Steel Armor, Extended Heatsink Design, Water Pump Header, MSI Memory Boost, 2oz Copper PCB, M.2 Shield FROZR, 14+1+1 Phase Power Design, 6 Layer PCB, MSI Audio Boost

Grensesnitt
USB / FireWire-portskonfigurasjon (aktiv)	1 x USB-C 3.2 Gen 2x2 + 1 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0
USB / FireWire-portskonfigurasjon (headere)	1 x USB-C 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0
Lagerporter	6 x SATA-600 (RAID), 4 x M.2
USB / FireWire	USB 3.2 Gen 2, USB-C 3.2 Gen 2x2, USB 3.2 Gen 1, USB-C 3.2 Gen2
Lager	M.2-sokkel, Serial ATA-600 (RAID)

Videoutgang
Type	Grafikkadapter (CPU kreves)

Lydutgang
Lyd	Høydefinisjonslyd (8-kanals)
Tilpassede standarder	High Definition Audio
Audio Codec	Realtek ALC897
Type	Lydkort

Kabeldetaljer
Medfølgende kabler	2 x Seriell ATA-kabel

Diverse
Produkttype	Hovedkort
Inkludert tilbehør	3 x M.2 klips, Wi-Fi-antenne, I/O-bakplate
Tilpassede standarder	FIPS, JIS C 0950, FCC Part 15 Class B, DisplayPort 1.4, FISMA, WEEE

RAM
Egenskaper	Dobbeltkanalsminnearkitektur, Intel Extreme Memory Profiles (XMP)

Nettverkstilknytning
Nettverk	2.5 Gigabit Ethernet, Bluetooth 5.3, 802.11a/b/g/n/ac/ax (Wi-Fi 6E)
Datakjedeprotokoll	IEEE 802.11ac, IEEE 802.11b, IEEE 802.11a, IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11g, Bluetooth 5.3, IEEE 802.11n, 2.5 Gigabit Ethernet

Utvidelsesspor
Utvidelsesspor	1 x M.2 socket (Key E), 1 x PCIe 3.0 x16 (x1-modus), 1 x CPU, 1 x PCIe 4.0 x16 (x4-modus), 4 x 288-pins DIMM, 1 x M.2 socket (2242/2260/2280/22110 M.2 Key M spor), 3 x M.2 socket (2242/2260/2280 M.2 Key M-spor), 1 x PCIe 5.0 x16, 1 x PCIe 3.0 x1

Lagergrensesnitt
Lagergrensesnitt	SATA-600 / PCIe 4.0 -kontakter: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5, SATA-600 -kontakter: 6 x 7-pin seriell ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5, PCIe 4.0 -kontakter: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5

Grensesnitt medfølger

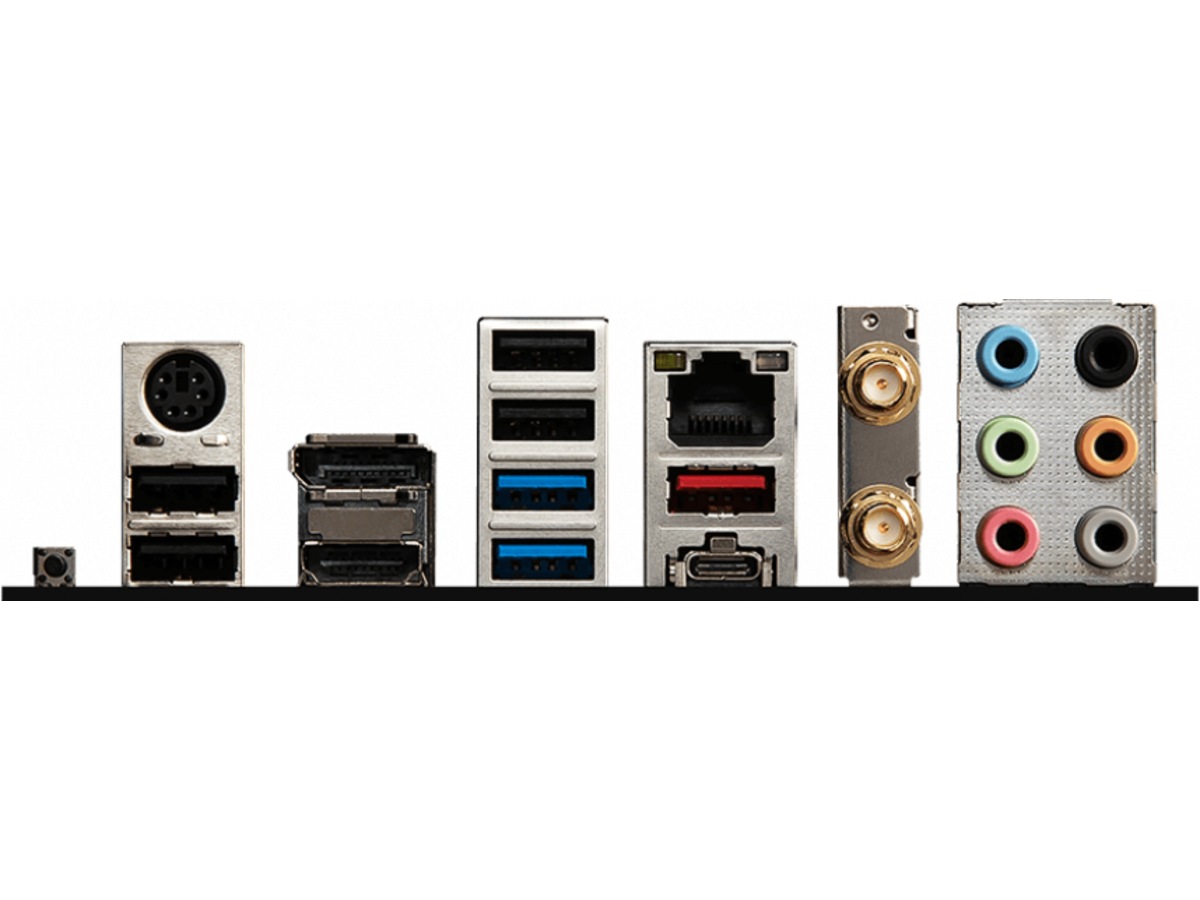

Grensesnitt	1 x lydinnlinje - minijakk, 1 x lydutlinje (side-surround) - minijakk, 1 x lydutlinje (bakre) - minijakk, 1 x lydutlinje (senter/subbasshøyttaler) - minijakk, 4 x USB 2.0, 1 x PS/2-tastatur / -mus, 1 x DisplayPort, 2 x antenne, 1 x lydutlinje - minijakk, 1 x mikrofon - minijakk, 1 x USB 3.2 Gen 2, 1 x USB-C 3.2 Gen2x2, 1 x LAN (2.5Gigabit Ethernet), 1 x HDMI, 2 x USB 3.2 Gen 1

Interne overflater
Interne overflater	1 x lyd - header, 4 x USB 3.2 Gen 1 - header, 1 x USB-C 3.2 Gen 2 - header, 1 x Thunderbolt - header, 1 x SPI - header, 4 x USB 2.0 - header

Programvare
Inkludert programvare	AIDA64 Extreme (60-dagersprøve), Norton 360 Deluxe (60 dagers prøveversjon), MSI Center, Drivers & Utilities
