Denne varen finnes ikke lenger i vårt sortiment, men kontakt oss gjerne på 33 00 55 00 eller kundeservice@komplett.no så hjelper vi deg finne et alternativt produkt til dette.
Varenummer: 1206892 / Produktnr.: 4710483936517

Flere bilder av

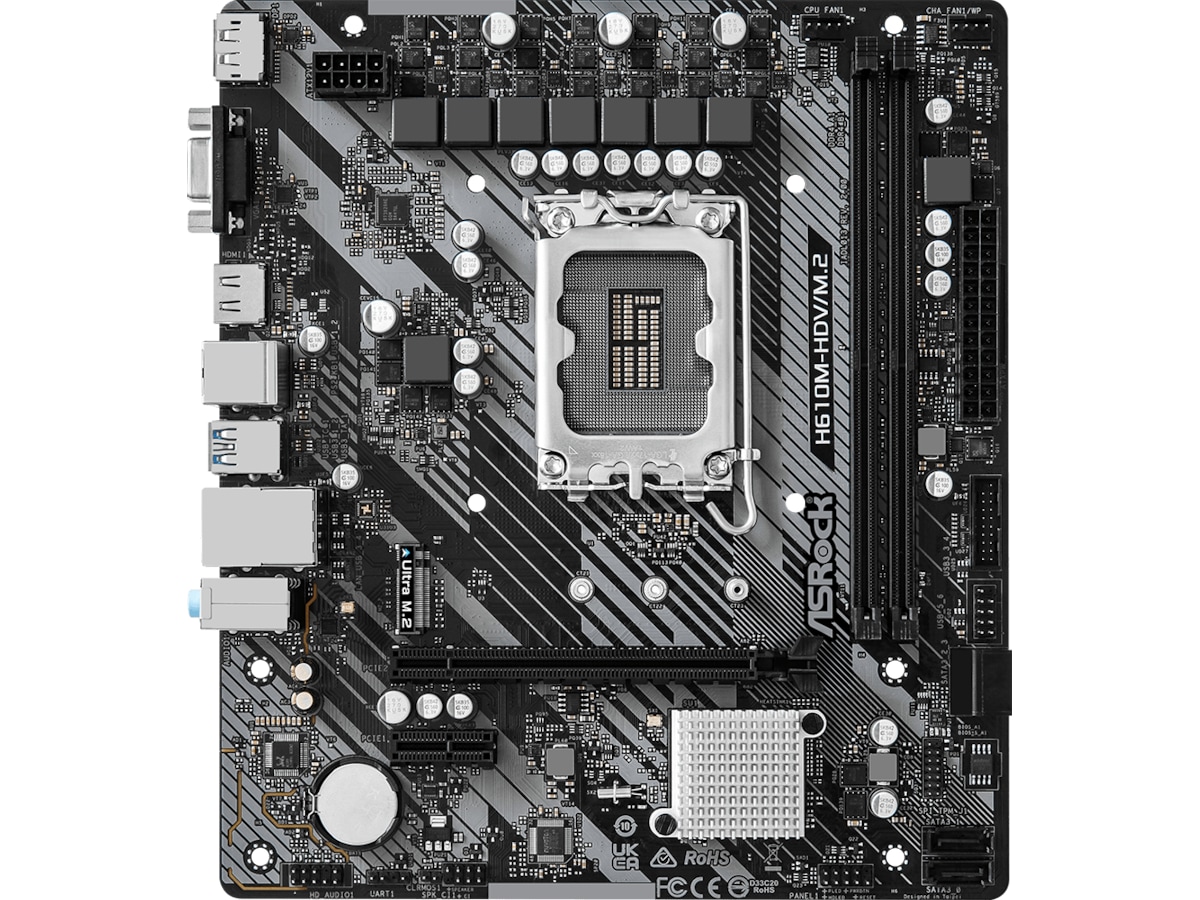

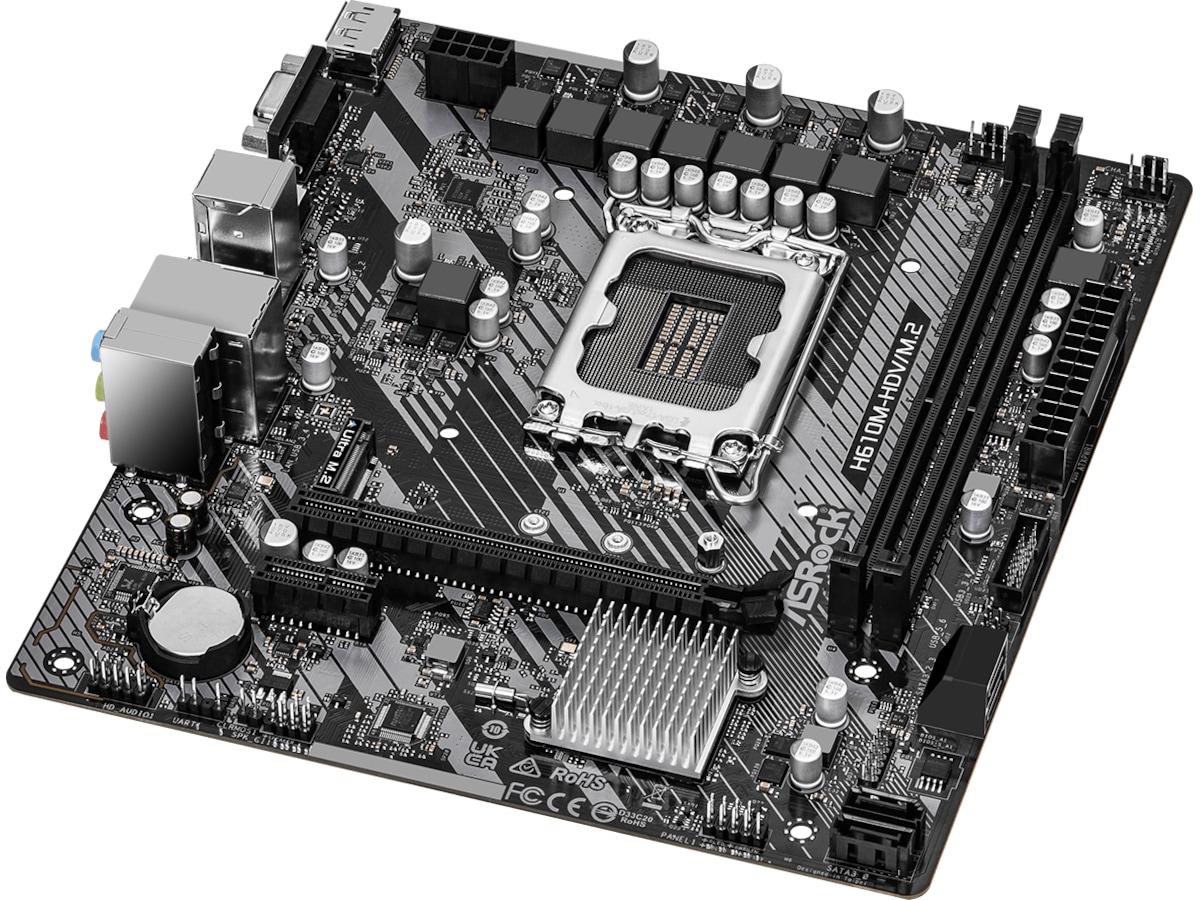

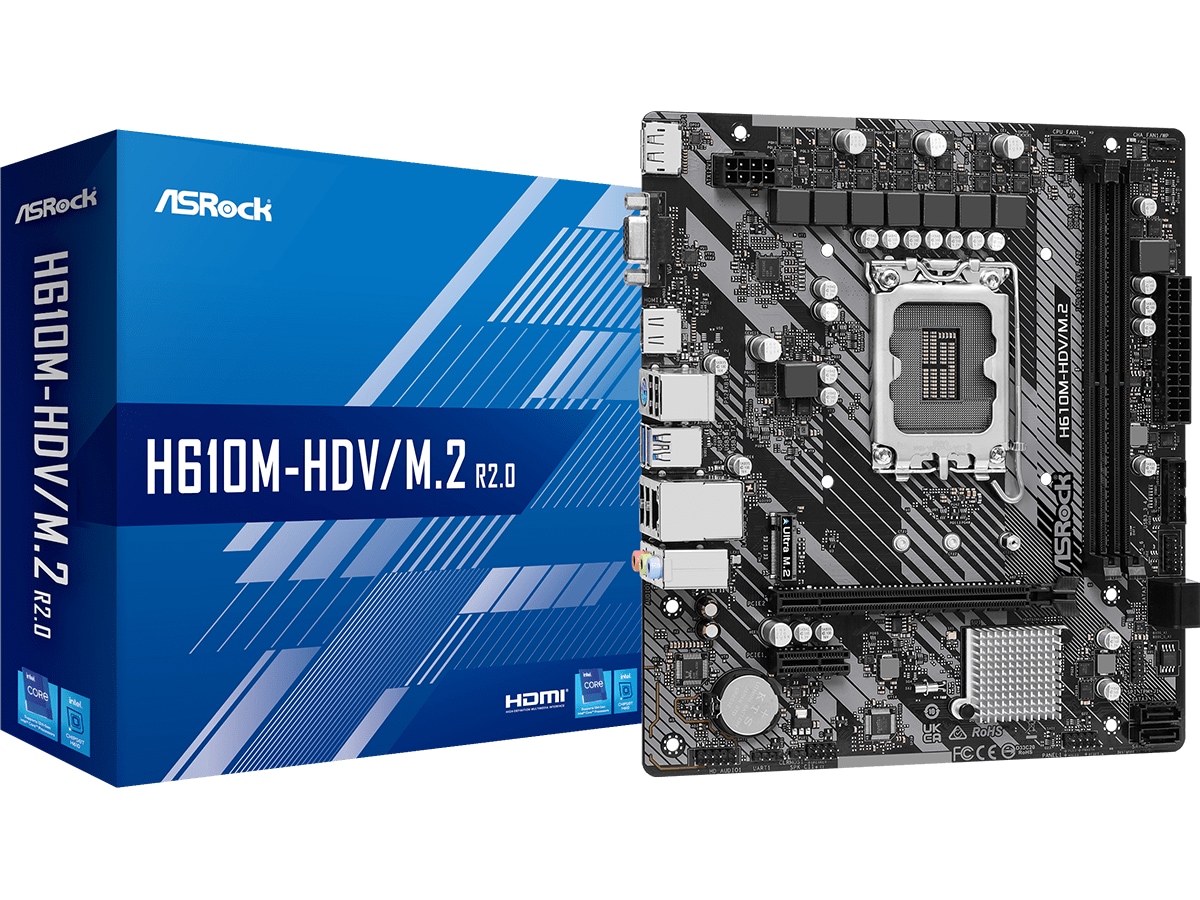

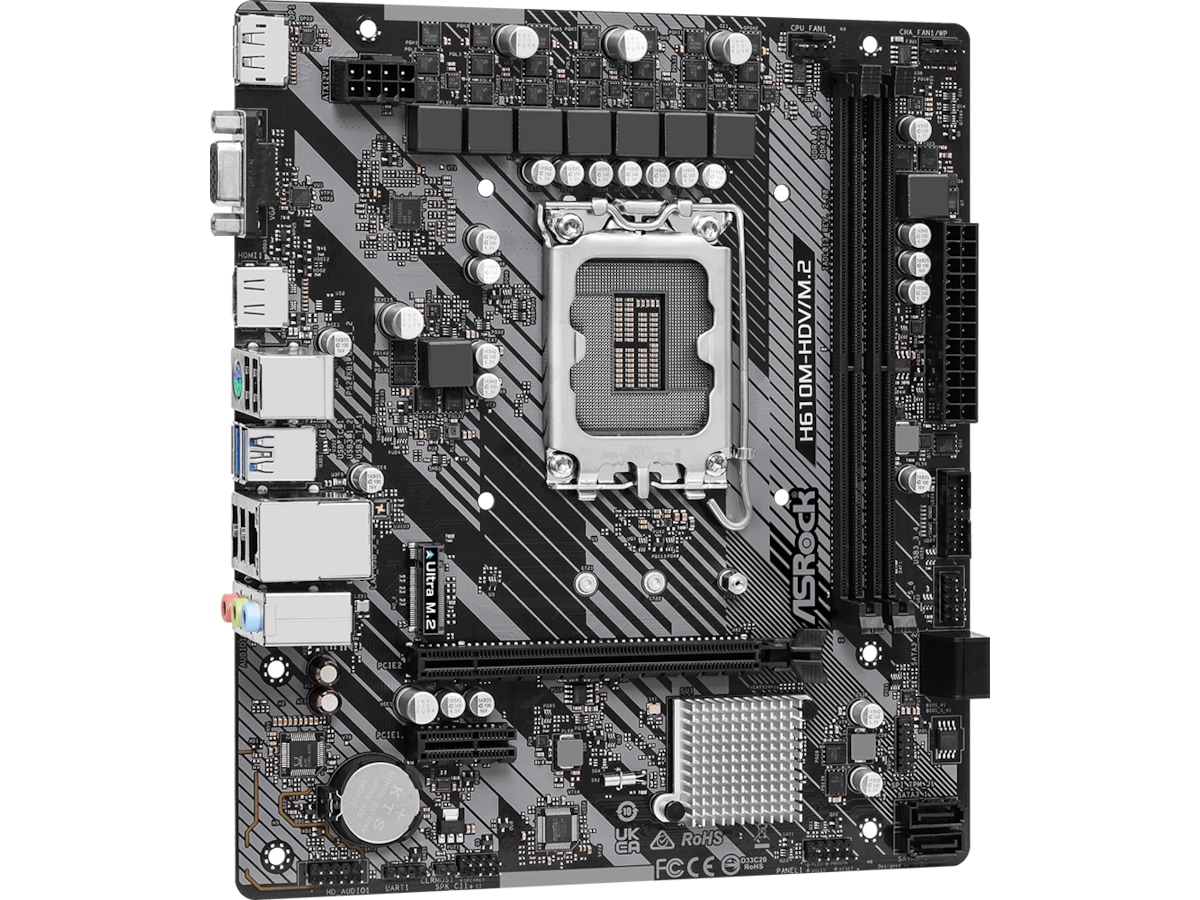

ASRock H610M-HDV/M.2 R2.0 Hovedkort

ASRock LGA1700 H610M-HDV/M.2 Hovedkort

Digi Power

Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.

Ultra M.2 32Gb/s (PCIe Gen3 x4 & SATA3)

The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules.

Intel® Gigabit LAN

Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!

M.2 (KEY E) For WiFi

Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.

3 Graphics Outputs

Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo.

Super Alloy Motherboard

Premium Power Choke

Compared to traditional chokes, ASRock’s premium power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

Sapphire Black PCB

Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.

High Density Glass Fabric PCB

High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

Full Spike Protection

Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

Generelt
Modell H610M-HDV/M.2
Produktserie ASRock
Garanti (måneder) 24
EAN 4710483939860
Hovedkort
Brikkesett type Intel H610
Støttet RAM-teknologi DDR4 SDRAM
Prosessorsokkel LGA1700-sokkel
Merknader om kompatible prosessorer Støtter 12./13. og 14. generasjon Intel Core / Pentium Gold / Celeron
Produktformfaktor Micro ATX
Støttet RAM-hastighet 3200 MHz
RAM-spor 2 DIMM-spor
Støttet RAM (registrert eller bufret) Ikke-bufret
Strømkontakter 8-pin ATX12V-kontakt, 24-pin hovedstrømforsyningskontakt
Støttet RAM-integritetskontroll Ikke-ECC, ECC (drift i ikke-ECC-modus)
Hovedkortegenskaper
BIOS Type AMI
Sov/Våkne Wake on LAN (WOL)
Overvåking av maskinvare Viftehastighet for CPU, Deteksjon av viftehastighet, Systemspenning, åpingsdeteksjon, Viftestyring
BIOS-egenskaper ACPI 6,0 støtte, SMBIOS 2.7-støtte, UEFI BIOS, Flerispråklig BIOS
Maskinvarefunksjoner Preboot eXecution Environment (PXE), Sapphire Black PCB, ESD Protection, Digi Power Design, High Density Glass Fabric PCB, 6+1+1 Phase Power Design, Premium Power Choke, ASRock Instant Flash, ASRock Full HD UEFI, ASRock Full Spike Protection, ASRock Super Alloy, ASRock APP Shop, ASRock Live Update, Energy Efficient Ethernet 802.3az, Intel Hybrid Technology, Intel Turbo Boost Max Technology 3.0, ASRock My Favorites in UEFI, ASRock EZ Mode
Grensesnitt
USB / FireWire USB 3.2 Gen 1
USB / FireWire-portskonfigurasjon (headere) 2 x USB 3.1 Gen 1 + 2 x USB 2.0
USB / FireWire-portskonfigurasjon (aktiv) 2 x USB 3.2 Gen 1 + 4 x USB 2.0
Lagerporter 4 x SATA-600, 1 x Ultra M.2
Lager Serial ATA-600, Ultra M.2 socket
Videoutgang
Type Grafikkadapter (CPU kreves)
Lydutgang
Tilpassede standarder High Definition Audio
Lyd Høydefinisjonslyd (8-kanals)
Type Lydkort
Audio Codec Realtek ALC897
Nettverkstilknytning
Nettverk Gigabit Ethernet
Nettverkskontroller Realtek RTL8111HN
Datakjedeprotokoll Gigabit Ethernet, Fast Ethernet, Ethernet
Kabeldetaljer
Medfølgende kabler 2 x Seriell ATA-kabel
Diverse
Produkttype Hovedkort
Tilpassede standarder FCC, ErP Ready, EuP Ready
Inkludert tilbehør IO-skjerm, 1 x M.2 skrue
RAM
Egenskaper Intel Extreme Memory Profiles (XMP) 2.0, Dobbeltkanalsminnearkitektur
Utvidelsesspor
Utvidelsesspor 1 x Ultra M.2 (2242/2260/2280 M.2 Key M-spor), 2 x 288-pins DIMM, 1 x PCIe 3.0 x1, 1 x CPU, 1 x PCIe 4.0 x16
Lagergrensesnitt
Lagergrensesnitt SATA-600 -kontakter: 4 x 7-pin seriell ATA, PCIe 3.0 -kontakter: 1 x Ultra M.2
Grensesnitt medfølger

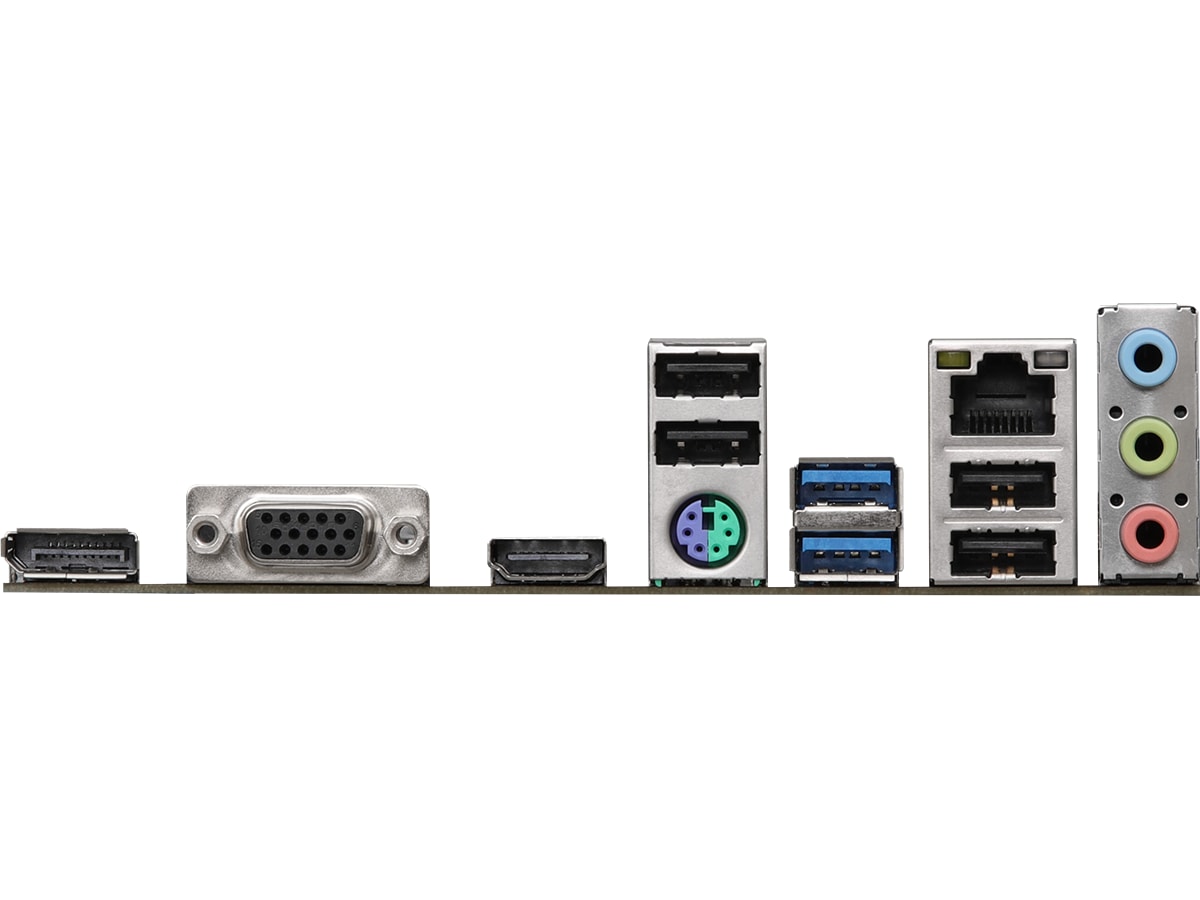

Grensesnitt 1 x lydinnlinje - minijakk, 1 x mikrofon - minijakk, 1 x lydutlinje - minijakk, 4 x USB 2.0, 1 x PS/2-tastatur / -mus, 2 x USB 3.2 Gen 1, 1 x DisplayPort, 1 x HDMI, 1 x LAN (Gigabit Ethernet), 1 x VGA
Interne overflater
Interne overflater 1 x lyd - header, 1 x SPI - header, 2 x USB 2.0 - header, 2 x USB 3.2 Gen 1 - header
Programvare
Inkludert programvare ASRock XFast LAN, ASRock A-Tuning, Antivirus (prøveversjon), Drivers & Utilities
