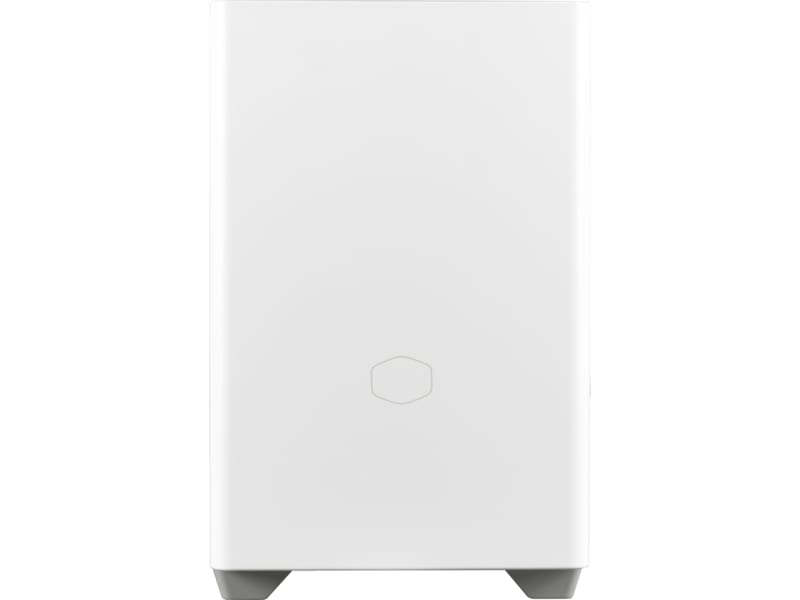

Cooler Master MasterBox NR200P Mini ITX (hvit)

Vifter: 1x 120 mm, 1x 92 mm, mITX, Mesh, Tempered Glass

Varenummer: 1167591 / Produktnr.: MCB-NR200P-WGNN-S00

Flere bilder av Cooler Master MasterBox NR200P Mini ITX (hvit)

Fri frakt
50+ stk. på lager.
bit-tech exceptional, testlogo


Big Features - Small Size

Style Without Sacrifice

The MasterBox NR200P uses features normally found in stylish, high-end ATX cases and cleverly utilizes space-saving measures to create a chassis taking up less than half the volume. Every feature is thoughtfully laid out in an 18-liter space to maximize component compatibility, thermal efficiency, and ease of assembly.

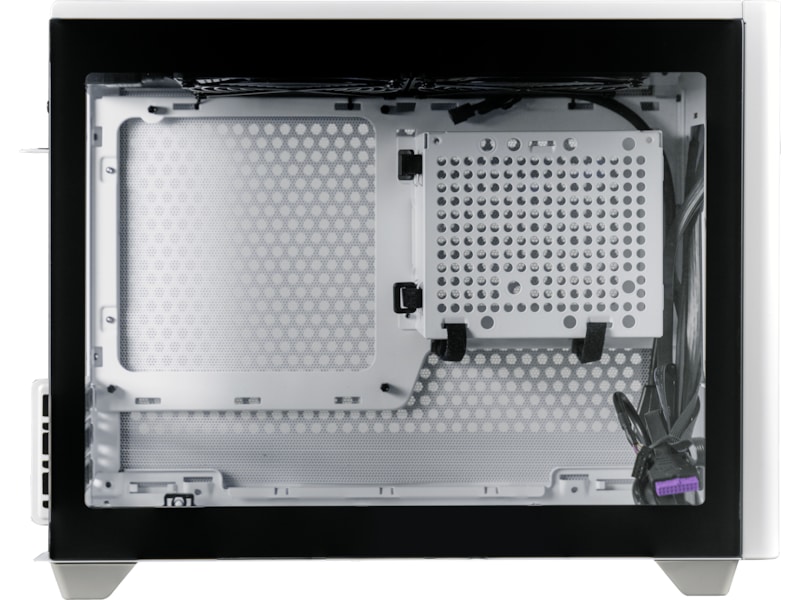

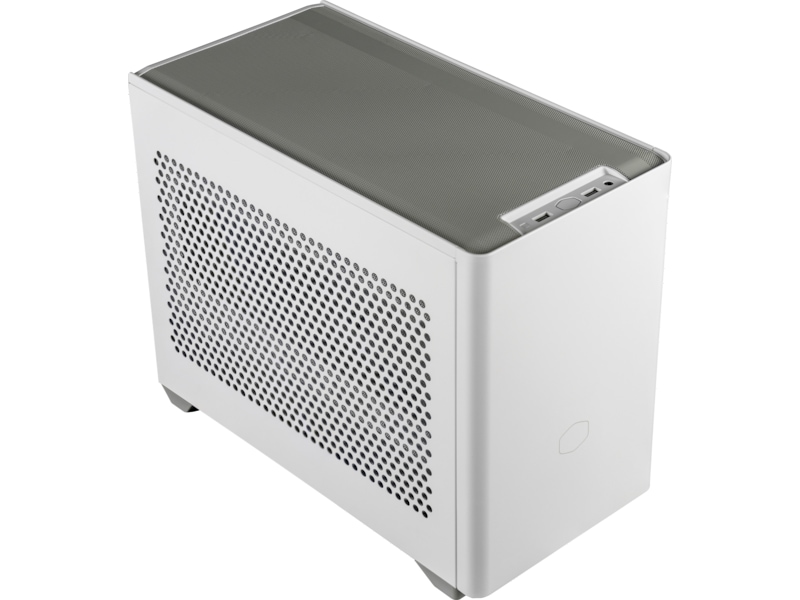

Keep cool with a highly vented side panel, or look cooler with a crystal-clear tempered glass panel; both are included to satisfy performance and style preferences. Fit large graphics cards in the 3-slot capable NR200P, or utilize the two vertical cards slots with the included PCI riser to turn graphics cards and heads by making the GPU the centerpiece of the PC. Seven possible fan mounts, ample ventilation, and generous liquid and air-cooler clearances keep even the most powerful systems running at their optimum temperatures and speeds. The chassis frame is wrapped in a sleek and tasteful powder-coated steel chassis that makes a statement on a desk.

Limited Size, Unlimited Options

The NR200P includes many features found in larger ATX chassis while retaining a space-efficient form factor. The NR200P comes with the choice of a vented steel side panel for unrestricted airflow, or a crystal-clear tempered glass side panel to reveal the beauty of a computing beast. A PCI Riser is included for vertical GPU installation to better showcase it against the glass, or to feed it fresh air from the side with the vented panel.

Unrestricted Cooling Potential

The NR200P can house up to 7 fans in total for every cooling configuration imaginable. Two 120mm Sickleflow fan are included. The compact structure can efficiently house CPU coolers up to 155mm in height and radiators up to 280mm in length, so even the hottest running hardware can’t be held back.

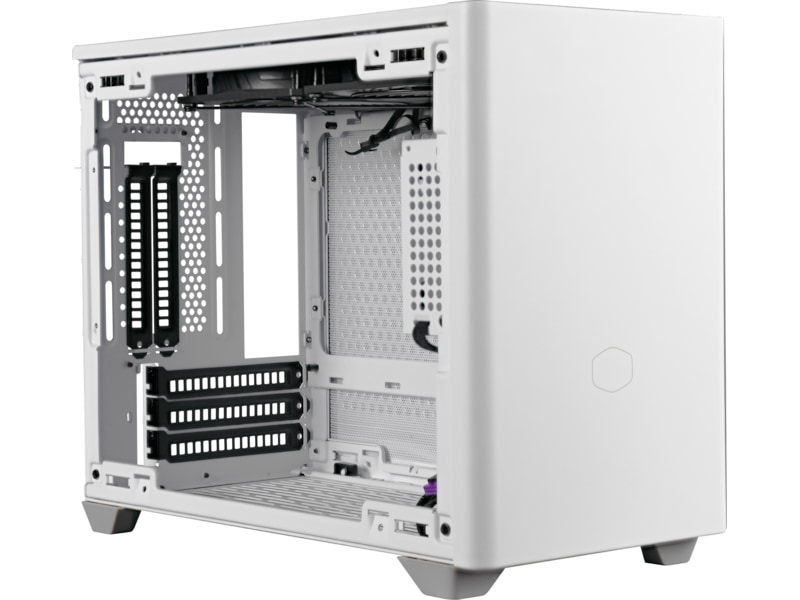

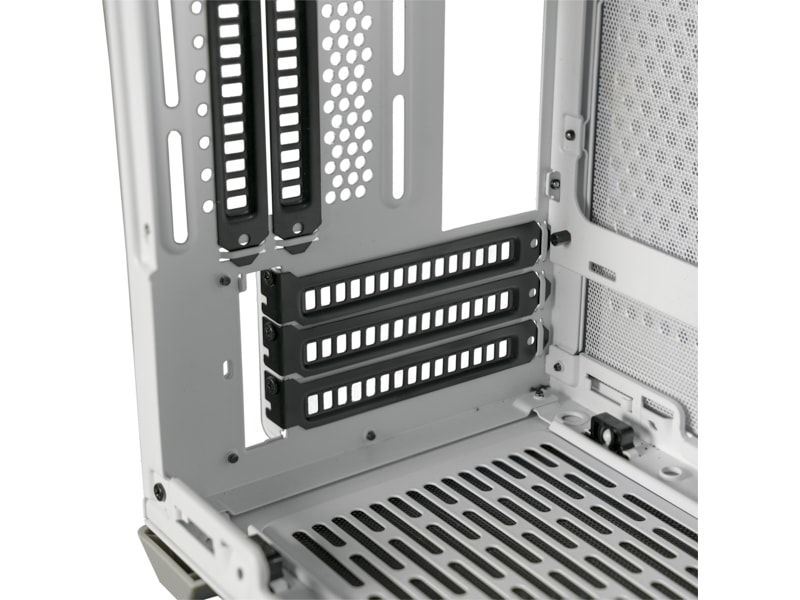

Triple-Slot GPU Support And Included Vertical Riser Cable

Triple slot GPUs are supported with a maximum length of 330mm and maximum width of 156mm allowing the fitment of large high-end graphics cards. A custom-sized riser cable is included to mount a graphics card vertically to showcase it, or allow radiator mounting at the bottom of the chassis to keep the system running as cool as it looks.

Easy Tool-Free Access

All external panels, including the tempered glass and top mounted fans are secured with pins for easy removal, facilitating quick access to the internals without the use of tools.

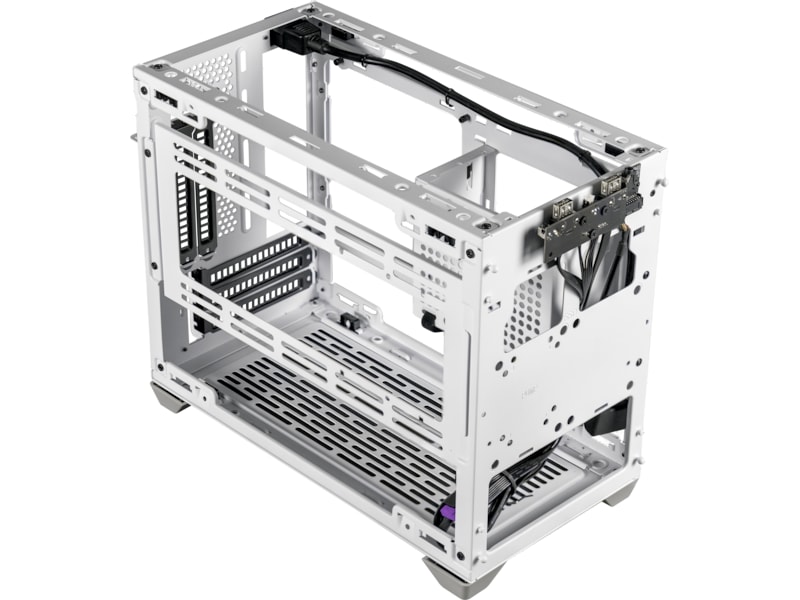

360 Degree Accessibility

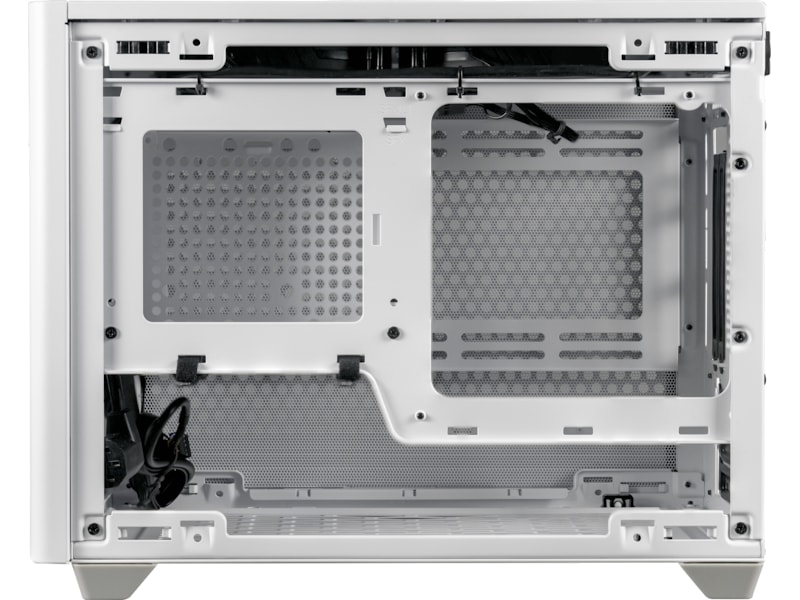

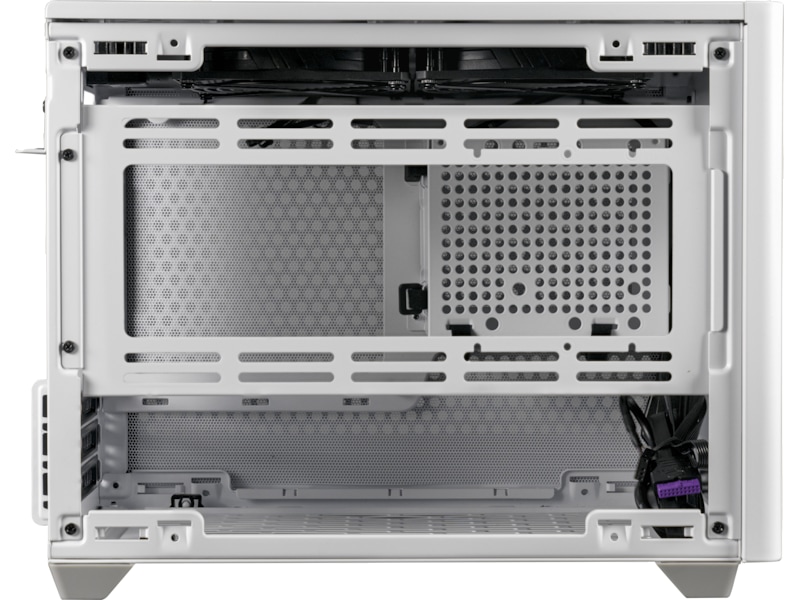

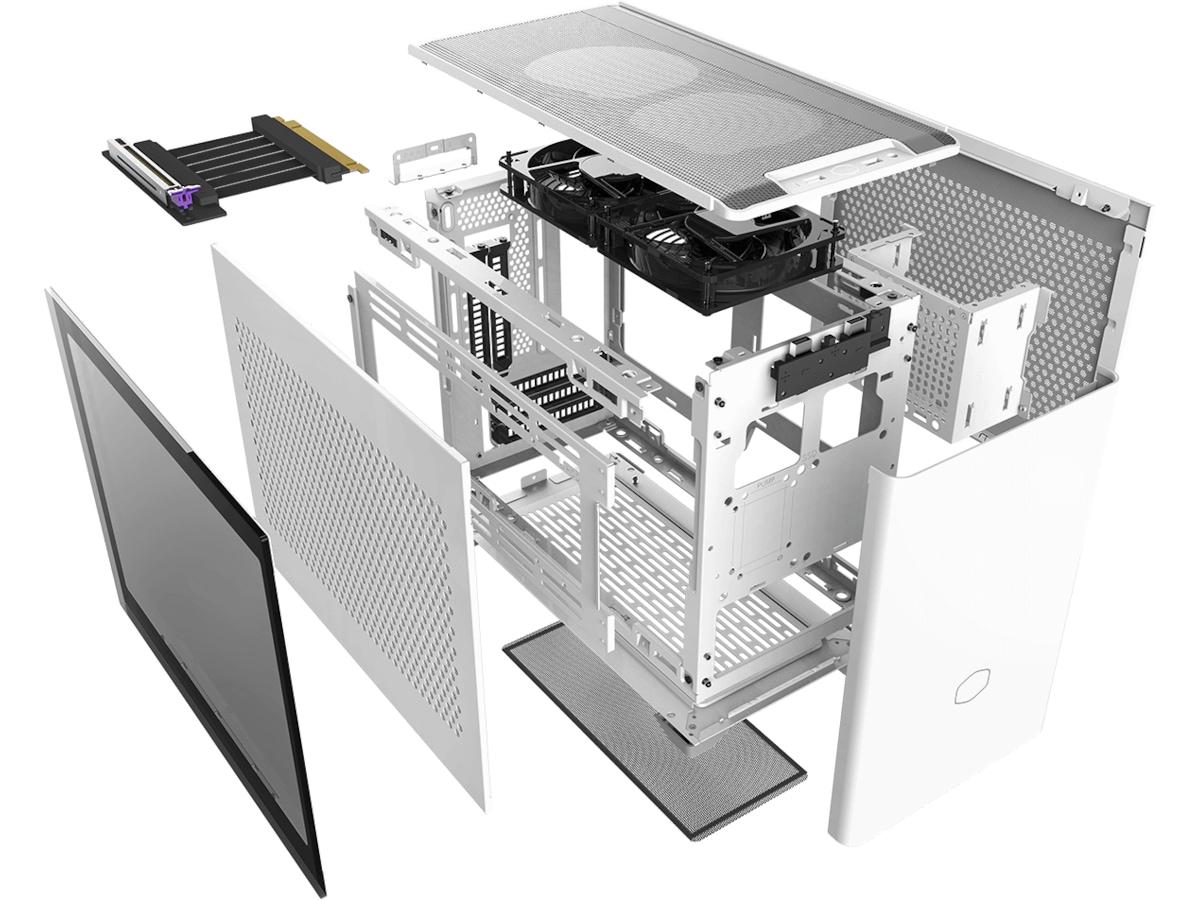

Every panel and frame part of the NR200P can be dismantled. Screws are used to secure the frame parts to allow advanced disassembly and multiple angles to easily work inside of the chassis.

High Quality Materials

Thick, powder coated SGCC steel keeps the fit and finish of the chassis clean and durable even with harsh traveling conditions

Out-Of-The-Box Custom Cooling Support

Two liquid cooling pump locations alongside side and bottom radiator mounting locations allow for powerful, custom water-cooled builds inside a compact enclosure.

Multiple Motherboard Support Options

Compatible with Mini-ITX and Mini DTX. The PSU can be front-mounted for extra motherboard clearance with a maximum space of 244 x 226 mm.

Garanti (måneder) 24
Produktformfaktor Tower
Maks hovedkortsstørrelse Mini-ITX
Støttede hovedbrett Mini-ITX, Mini-DTX
Antall interne brønner 6
Produktmateriale ABS-plast, herdet glass, maske, SGCC
Farge Grå, hvit
Kjølesystem Topp: 120 mm vifte x 2 / 650 - 1800 opm / Støtte for pulsbreddemodulering (PWM)
Venstre side: 120/140 mm viftemontering x 2
Bak: 92 mm viftemontering x 1
Bunn: 120 mm viftemontering x 2
Maks. CPU-kjølerhøyde 155 mm
Maks. videokortlengde 330 mm
Maks. strømforsyningslengde 130 mm
Systemkabinettfunksjoner Toppanelsstøvfilter, bunnstøvfilter, støtter 120/240 mm radiator i bunnen, masket sidepanel, støtter 120/140/240/280 mm-radiator i sidepanel, 2 x sidepanelstøvfiltre, støtter 92 mm-radiator bak
EAN 4719512106778
Ekspansjon / Tilkoplinger
Ekspansjonsbrønner 2 (total) / 2 (ledig) x intern - 3.5"
3 (total) / 3 (ledig) x intern - 2.5"
1 (total) / 1 (ledig) x intern - 2,5" / 3,5" delt
Utvidelsesspor 3
Grensesnitt 2 x USB 3.2 Gen 1
1 x hodetelefon/mikrofon - minijakk
Tilleggsutstyr inkludert PCI-riserkort
Strømenhet Ingen strømforsyning
Spesifikasjonssamsvar SFX12V/SFX-L12V
Størrelser og vekt
Bredde 18.5 cm
Dybde 37.6 cm
Høyde 29.2 cm
Vekt 5.1 kg
