ZYXEL GS1920-48HPV2 Switch

44x RJ45, 6x SFP, Smart Switch, PoE+, 375W, Nebula Cloud

Varenummer: 1141558 / Produktnr.: GS192048HPV2-EU0101F

Flere bilder av ZYXEL GS1920-48HPV2 Switch

Antall porter:
48HPV2
5 790,-
Fri frakt
eller
med ditt lagrede kort
med gebyrfri faktura Se fakturavilkår
Bestillingsvare. Bestilles ved ordre. Leveringstid 2-3 uker.
60 dagers åpent kjøp og gratis retur
Fri frakt over 1 000,-
Retningslinjer for produktanmeldelser

Zyxel 48-port GbE Smart Managed Switch

A new-look smart managed switch with a refreshed design inside and out!

The GS1920v2 series extends the success of the best-selling GS1920 series with a stylish new look and enables cloud manageability with Zyxel NebulaFlexTM technology.

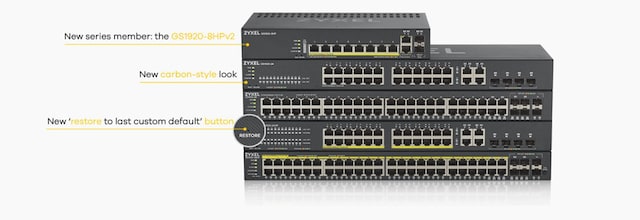

What’s new?

The GS1920v2 series comes with a fresh, modern look, a more intuitive user experience, and a new member—the 8HP model.

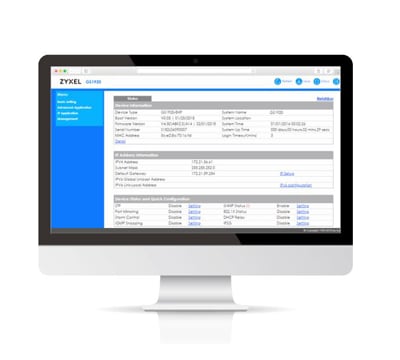

Manage it your way!

The GS1920v2 series introduces Zyxel NebulaFlexTM, which allows you to easily switch between standalone mode and our license-free Nebula cloud management platform anytime with just a few simple clicks.

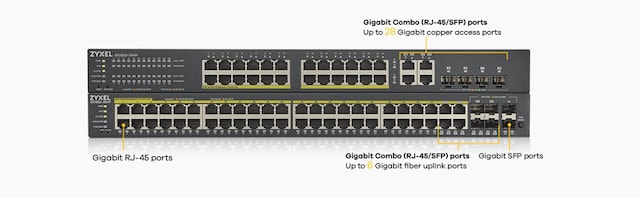

Maximum flexibility for your Gig

The GS1920v2 series is ideal for SMB deployment in multiple scenarios, with its unique port combinations futureproofing your network to ensure easy growth down the road.

Whisper-quiet operation

Smart fan and fanless designs for silent operation in your workplace.

User-friendly LED indicators

View real-time status instantly with cloud and PoE power-usage LED indicators.

Power more devices more easily

  • Provides 30W per port and a wide range of power budget options from 130W to 375W—ideal for denser PoE deployments.
  • Default consumption mode boosts efficiency by delivering the actual power required.

Zyxel ONE Network

Use the complimentary ZON Utility to configure and discover switches, WLANs, and gateways in your network with one click.

Designed for the long haul

A web smart managed switch with an enterprise-grade hardware design. Built-in state-of-the-art hardware technology brings high quality and robustness to SMB networks.

Generelt
Garanti (måneder) 60
Enhetstype Switch - 48 porter - smart
Utførelse Rackmonterbar 1U
Undertype Gigabit Ethernet
Porter 48 x 10/100/1000 (PoE+) + 4 x kombo-Gigabit SFP + 2 x Gigabit SFP
Strøm via Ethernet (PoE) PoE+
PoE-budsjett 375 W
Ytelse Koblingskapasitet: 100 Gbps
Fremsendingsrate: 74 Mpps
Kapasitet QoS-maskinvarekøer per port: 8
Mac Adress Tabellstørrelse 16K-oppføringer
Rutingprotokoll IGMPv2, IGMP, IGMPv3
Protokoll for fjernstyrt administrasjon SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c
Krypteringsalgoritme SSL
Autentifikasjons Metode RADIUS, TACACS+
Egenskaper Flytkontroll, VLAN støttet, IGMP-snusing, Syslog-støtte, portspeiling, DiffServ-støtte, MAC-adressefiltrering, Broadcast Storm Control, IPv6-støtte, IP-adressefiltrering, Multicast Storm Control, Unicast Storm Control, oppgraderbar fastvare, Weighted Fair Queuing (WFQ), ZyXEL iStacking Technology, Spanning Tree Protocol (STP)-støtte, Rapid Spanning Tree Protocol (RSTP)-støtte, Multiple Spanning Tree Protocol (MSTP)-støtte, DHCP-snusing, Quality of Service (QoS), RADIUS-støtte, MLD-snusing, DHCP-overføring, Port Security, SNMP-felle, DHCP-klient, Management Information Base (MIB), Multicast VLAN Registration (MVR), Dynamic VLAN Support (GVRP), fastvare dobbeltbilder, Strict Priority Queuing (SPQ), Neighbor Discovery Protocol (NDP), portisolering, Class of Service (CoS), IGMP-proksy, 802.1x-verifisering, Duplicated Address Detection, skystyring, støtte for DiffServ Code Point (DSCP), 1,5 MB-pakkebuffer, ErrDisable Recovery, IGMP-filtrering, IGMP-struping, Protokollbasert VLAN-støtte, CPU-beskyttelse, IP-kildebeskytter, ARP-kontroll, Internet Control Message Protocol (ICMP), VLAN-filtrering, Loop Guard, Voice VLAN, Private VLAN, Guest VLAN, Weighted Round Robin (WRR), MAC based VLAN, VLAN Tagging, portbasert VLAN, Unknown Storm Control, MRSTP, MAC-frys
Tilpassede standarder IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
RAM 256 MB
Flash-minne 32 MB
Ekspansjon / Tilkoplinger
Grensesnitt 48 x 1000Base-T RJ-45 PoE+ - 30 W
4 x 1000Base-X SFP
2 x 1000Base-X SFP
Strømforsyning
Strømenhet Intern strømforsyning
Påkrevd nettspenning AC 120/230 V (50/60 Hz)
Strømforbruk ved drift 474.3 watt
Diverse
Rack-monteringssett Inkludert
MTBF 502,509 timer
Tilpassede standarder BSMI, RoHS, FCC Part 15 A, LVD, EMC Class A
Mål og vekt
Bredde 44.1 cm
Dybde 27 cm
Høyde 4.4 cm
Vekt 4.1 kg
Størrelser og vekt (forsendelse)
Fraktbredde 61.6 cm
Fraktdybde 35.5 cm
Frakthøyde 10.7 cm
Fraktvekt 5.25 kg
Miljøparametere
Min. driftstemperatur 0 °C
Maks. Driftstemperatur 50 °C
Driftsfuktighet 10 - 95% (ikke-kondenserende)
Min. oppbevaringstemperatur -40 °C
Maks. oppbevaringstemperatur 70 °C
Fuktighetsområde under oppbevaring 10 - 95% (ikke-kondenserende)
