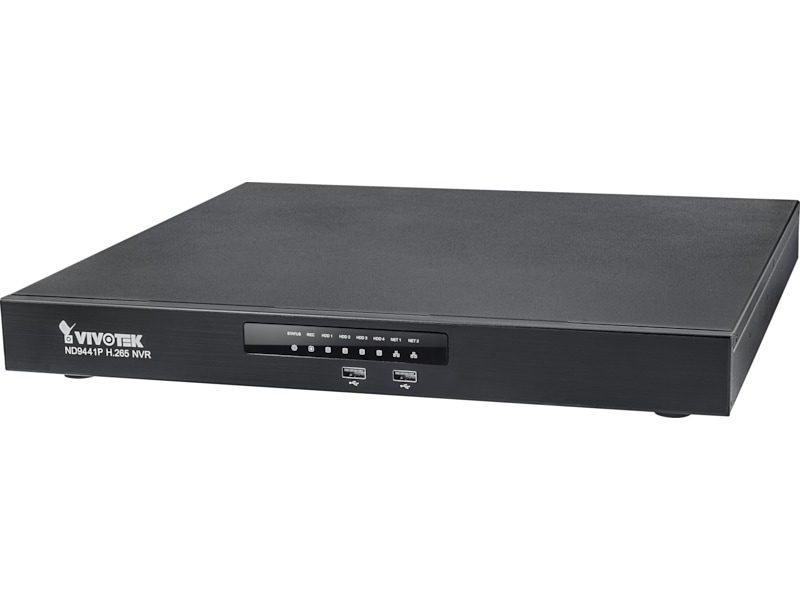

VIVOTEK ND9441P NVR

16 CH, HDMI/VGA, 4xSATA, 16xPoE

Varenummer: 1138952 / Produktnr.: ND9441P

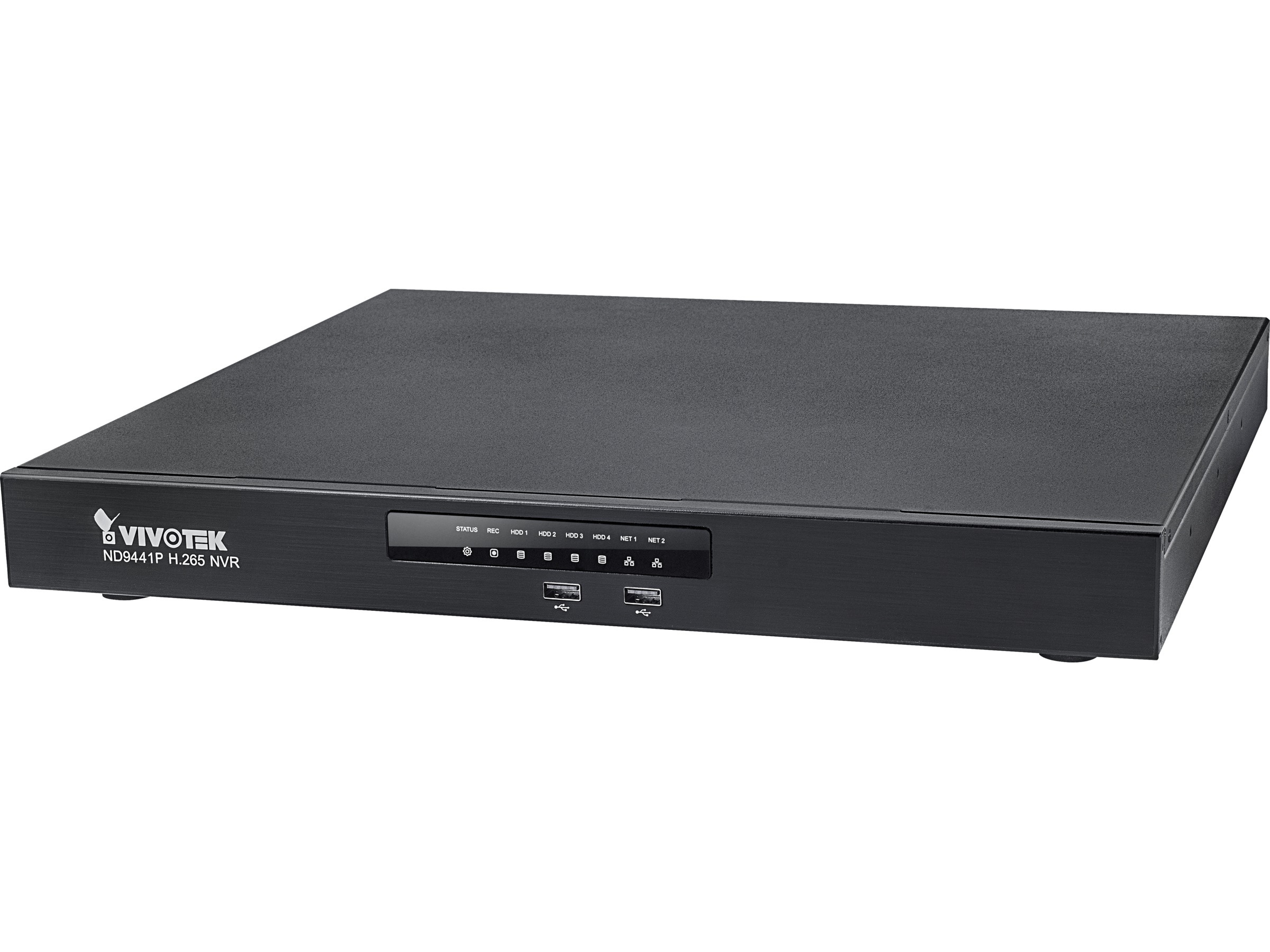

Flere bilder av VIVOTEK ND9441P NVR

7 490,-
Fri frakt
eller
med ditt lagrede kort
med gebyrfri faktura Se fakturavilkår
Bestillingsvare. Bestilles ved ordre. Leveringstid 1-2 uker.
Betal med
Fri frakt over 1000 kr
Retningslinjer for produktanmeldelser

ND9441P

VIVOTEK’s ND9441P and ND9541P are H.265 Linux-based standalone NVRs with embedded PoE. Equipped for up to 16-CH/32-CH network cameras, the NVRs both support 16x 802.3 at/af PoE ports which feature PoE Management function to help users troubleshoot the physical layer structure. Both also display the PoE power information, providing for a more convenient and smarter installation.

The ND9441P/ND9541P also supports remote and mobile access via VIVOCloud and iViewer apps for both iOS and Android handheld devices. The VIVOCloud app provides instant push notification and direct video playback functions when triggered by an alarm notification, providing users with a flexible and intelligent NVR for seamless use in small to medium sized video surveillance applications.

With H.265 compression technology and embedded with 4 HDD’s providing up to 32TB, the ND9441P/ND9541P offers greater than 30% more recording capacity than H.264 systems. This advancement provides users with more storage space for longer durations of video recording. In addition, the RAID 0/1/5 configurations provide further data security in the rare event of a hard drive failure.

For high-quality and detailed images, the ND9441P/ND9541P supports a maximum network camera resolution of 12 Megapixels. To intelligently manage bandwidth while maintaining this high-quality, the “Auto Adaptive Stream” function will adjust the display resolution automatically for each different layout type.
Furthermore, the NVR supports VIVOTEK’s fisheye network camera “Fisheye Dewarp” function, which provides multiple de-warping modes in live view and playback, ensuring the correct angle of video view and detailed information for flexible usage. Lastly, to quickly and intuitively find any target event, the ND9441P/ND9541P is equipped with the “Story-Board Search” function, which provides a glimpse of past recordings over an intuitive timeline.

The ND9441P/ND9541P supports HDMI and VGA local video output, so users can control the GUI OSD interface via mouse & keyboard, eliminating the need for a separate PC to search video or playback from the NVR. Additionally, the intuitive and friendly VIVOTEK GUI design gives users a smoother control experience than ever before.

PoE Management

Allow users to easily troubleshoot problems, control power budget for better operation, and set port priority settings to ensure the most important cameras are always on. When system power is overloaded, the PoE ports will auto-reboot for power supply recovery.

VIVOCloud

VIVOCloud provides cloud service for easy and smart 24/7 surveillance on-the-go.

Fisheye Dewarp

Allow users to monitor any angle, or to enjoy precise detailed images for a total surveillance experience. (1O, 1P, 1R, 1O3R, 1O8R)

Storyboard Event Search

To quickly and intuitively find any target event, allow users to direct playback and archive their video within a few seconds.

Generelt
Garanti (måneder) 24
Enhetstype NVR
Videokanaler 16
IP-kamerastøtte 16
Lydkanaler 1
Bildeoppløsning 1280x720, 1920x1080, 2560x1920
Komprimeringsformat MJPEG, G.711, G.726, H.264, H.265
Pakkeinnhold DVR, ekstern strømadapter, mus, 8 HDD-bøyler, 32 HDD-skruer
Medfølgende kabler SATA-kabel - 4 stk.
OS Medfølger Linux
Tilpassede standarder UL, VCCI, FCC, LVD
Garanti 2 år
Sikkerhets-DVR
Bildehastighet (opptak) 480 fps
Oppløsning ved videoopptak 1920x1080, 1280x720, 2560x1920
Fremvisningsmoduser Full skjerm, 8 skjermdelinger, 16 delskjermer, 4 spalteskjermer
Avspillingssøking Hendelse, tid
Opptakshendelser Programmert, hendelse, manuelt, kontinuerlig
Med nettverk Ja
Funksjoner Panorerings/Tippe/Zoom-støtte, smartphone-støtte
Harddisk
Antall støttet 4
Grensesnitt Serial ATA
Støttet maks totalkapasitet 24 TB
Videoserver
RAM 2 GB
Flashminne 256 MB
Nettverkstilknytning
DDNS-støtte Ja
Nettverksgrensesnitt Ethernet 10Base-T/100Base-TX/1000Base-T
Støttede protokoller DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, RTSP, RTP, HTTPS, UPnP, IPv4, RTCP
Egenskaper Strøm via Ethernet (PoE)
Systemkrav
Operativsystemer Windows Vista, Windows XP, Windows 7, Windows Server 2008, Windows 8, Windows Server 2012
Nettleser Internet Explorer 10 eller nyere
CPU Intel Celeron
Min. RAM-størrelse 2 GB
Koblinger
Videoutgangsporter HDMI x 1, VGA x 1
Lydinngangsporter Minijakk 3,5 mm x 1
Lydutgangsporter Minijakk 3,5 mm x 1
Alarmporter Alarmutgang x 4, alarminngang x 8
Kamerakontrollgrensesnitt (PTZ) RS-485
Nettverksport 10/100Base-TX x 16 (PoE/PoE+) / 1000Base-T x 2
Andre porter USB 2.0 x 2, USB 3.0 x 1
Størrelser og vekt
Bredde 43 cm
Dybde 40 cm
Høyde 4.45 cm
Vekt 4.5 kg
Miljøparametere
Min. driftstemperatur 0 °C
Maks. Driftstemperatur 40 °C
Driftsfuktighet 0 - 95%
