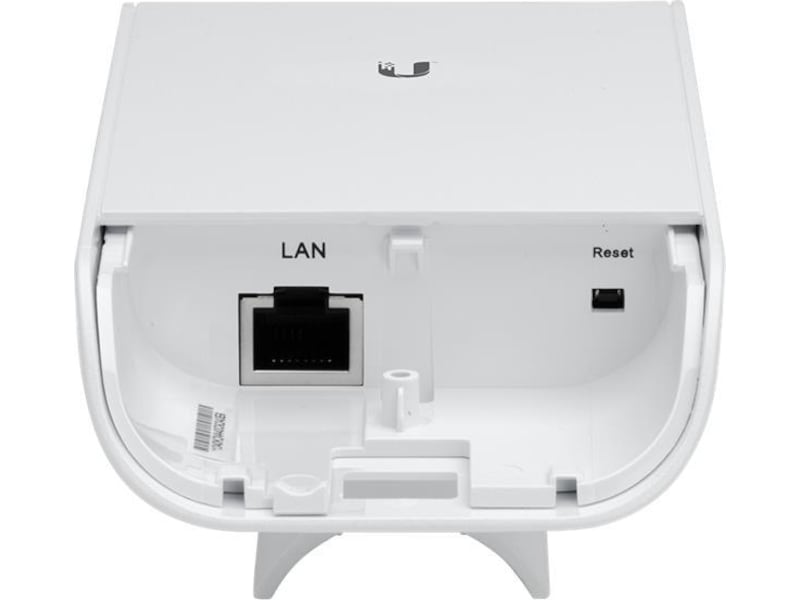

Ubiquiti NanoStation Loco M5 antenne
10/100/150 Mbit/s, MIMO, PoE
Produktinfo
Ubiquiti NanoStation Loco M5
Featuring a panel antenna and dual-polarity performance, the NanoStation®M is ideal for Point-to-MultiPoint (PtMP) applications requiring high-performance CPE devices with a sleek form factor.
Compact CPE Design
The NanoStation®M features the CPE design that expanded the global Wireless ISP industry.

Versatile Application Use
The NanoStation®M can be deployed for Point-to-Point (PtP) bridging, wireless connectivity to a video surveillance system, or use as an airMAX®CPE.


Dual Ethernet Connectivity
With software-enabled PoE output, the secondary Ethernet port can power an external device, such as a PoE security camera, for seamless IP video integration.

Window/Wall Mounting Kit
Use the NanoStation® Mount to quickly mount the NanoStationM on a window or wall. 180° vertical or horizontal adjustment allows for custom positioning.
Powerful airOS®Features
Ubiquiti’s versatile airOS®firmware technology enables high-performance, outdoor multi-point networking. airOS provides features such as wireless settings, bridge or routing configuration and system management services.

Advanced Software Technology
Ubiquiti’s airMAX®technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.
Spesifikasjoner
Garanti (måneder) | 24 |
---|---|
Enhetstype | Trådløst tilgangspunkt |
Bredde | 8 cm |
Dybde | 3.1 cm |
Høyde | 16.3 cm |
Vekt | 180 g |
Installerte prosessorer | 1 x Atheros MIPS 24KC 400 MHz |
---|---|
Maks. antall som støttes | 1 |
RAM | 32 MB SDRAM |
Flash-minne | 8 MB |
Produktformfaktor | Ekstern |
---|---|
Overføringsteknologi | Trådløs |
Datakjedeprotokoll | AirMax |
Frekvensbånd | 5 GHz |
Egenskaper | Quality of Service (QoS), stangmonterbar |
Tilpassede standarder | IEEE 802.3af |
Antenne | Intern |
---|---|
Stigningsnivå | 13 dBi |
Grensesnitt | 1 x 100Base-TX (PoE) - RJ-45 |
---|
Tilleggsutstyr inkludert | PoE-injektor, stangmontering |
---|---|
Tilpassede standarder | FCC Part 15.247, RSS-210, IC, RoHS |
Power Over Ethernet (PoE)-støtte | PoE |
---|---|
Strømforbruk ved drift | 5.5 watt |
OS Medfølger | AirOS |
---|
Min. driftstemperatur | -30 °C |
---|---|
Maks. Driftstemperatur | 75 °C |
Driftsfuktighet | 5 - 95% |
