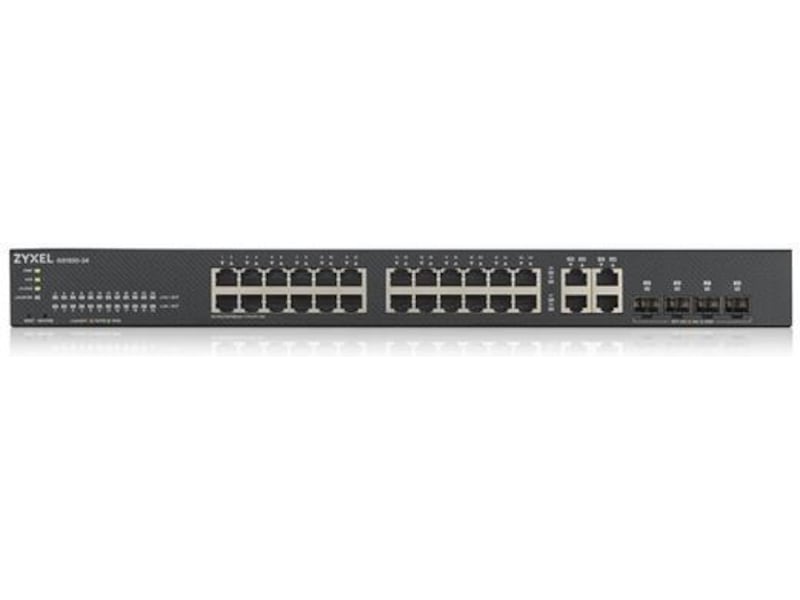

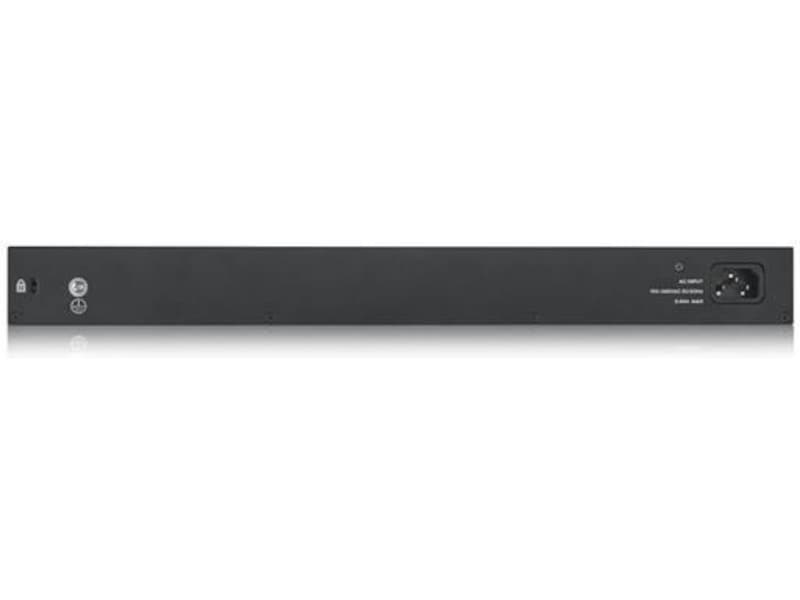

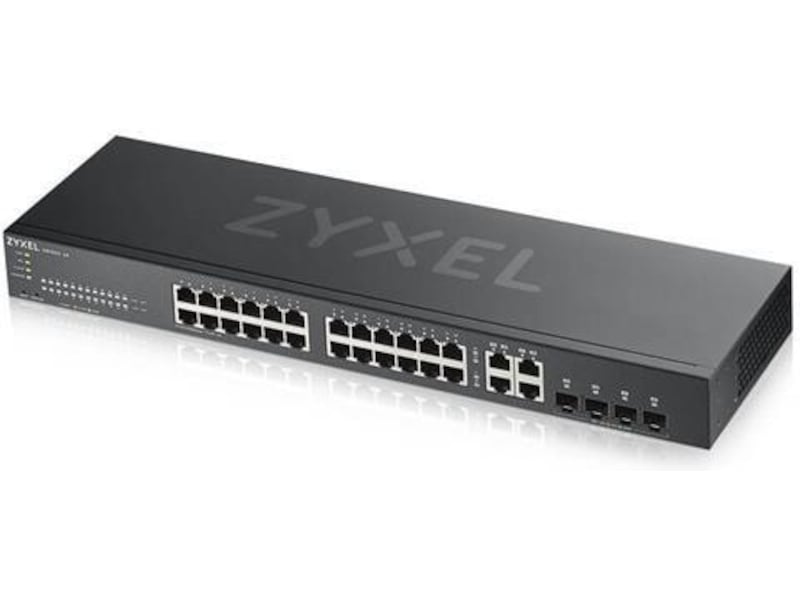

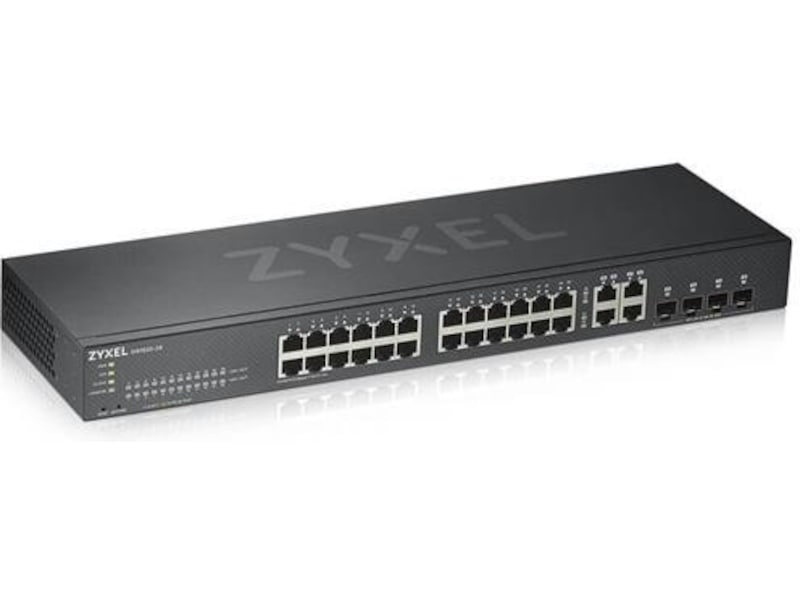

ZYXEL GS1920-24V2 Switch
24x RJ45, 4x SFP, Smart Managed
Av
ZYXEL
Varenummer:
1104039
/ Produktnr.:
GS1920-24V2-EU0101
Ikke på lager. 6 stk. Ubekreftet 24.apr.2019
Produktinfo
ZYXEL GS1920-24V2, Smart Managed
A new-look smart managed switch with a refreshed design inside and out!
The GS1920v2 series extends the success of the best-selling GS1920 series with a stylish new look and enables cloud manageability with Zyxel NebulaFlexTMtechnology.
The GS1920v2 series comes with a fresh, modern look, a more intuitive user experience, and a new member—the 8HP model.
Manage it your way!
The GS1920v2 series introduces Zyxel NebulaFlexTM, which allows you to easily switch between standalone mode and our license-free Nebula cloud management platform anytime with just a few simple clicks.
Maximum flexibility for your Gig
The GS1920v2 series is ideal for SMB deployment in multiple scenarios, with its unique port combinations futureproofing your network to ensure easy growth down the road.
Whisper-quiet operation
Smart fan and fanless designs for silent operation in your workplace.
User-friendly LED indicators
View real-time status instantly with cloud and PoE power-usage LED indicators.
Power more devices more easily
- Provides 30W per port and a wide range of power budget options from 130W to 375W—ideal for denser PoE deployments.
- Default consumption mode boosts efficiency by delivering the actual power required.
Spesifikasjoner
| Garanti (måneder) | 60 |
|---|---|
| Enhetstype | Switch - 24 porter - smart |
| Utførelse | Rackmonterbar 1U |
| Undertype | Gigabit Ethernet |
| Porter | 24 x 10/100/1000 + 4 x kombo-Gigabit SFP |
| Ytelse | Koblingskapasitet: 56 Gbps Fremsendingsrate: 42 Mpps |
| Kapasitet | QoS-maskinvarekøer per port: 8 |
| Mac Adress Tabellstørrelse | 16K-oppføringer |
| Rutingprotokoll | IGMPv2, IGMP, IGMPv3 |
| Protokoll for fjernstyrt administrasjon | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c |
| Krypteringsalgoritme | SSL |
| Autentifikasjons Metode | RADIUS, TACACS+ |
| Egenskaper | Flytkontroll, VLAN støttet, IGMP-snusing, Syslog-støtte, portspeiling, DiffServ-støtte, MAC-adressefiltrering, Broadcast Storm Control, IPv6-støtte, IP-adressefiltrering, Multicast Storm Control, Unicast Storm Control, oppgraderbar fastvare, Weighted Fair Queuing (WFQ), ZyXEL iStacking Technology, Spanning Tree Protocol (STP)-støtte, Rapid Spanning Tree Protocol (RSTP)-støtte, Multiple Spanning Tree Protocol (MSTP)-støtte, DHCP-snusing, Quality of Service (QoS), RADIUS-støtte, MLD-snusing, uten vifte, DHCP-overføring, Port Security, SNMP-felle, DHCP-klient, Management Information Base (MIB), Multicast VLAN Registration (MVR), Dynamic VLAN Support (GVRP), fastvare dobbeltbilder, Strict Priority Queuing (SPQ), Neighbor Discovery Protocol (NDP), portisolering, Class of Service (CoS), IGMP-proksy, 802.1x-verifisering, Duplicated Address Detection, skystyring, støtte for DiffServ Code Point (DSCP), 1,5 MB-pakkebuffer, ErrDisable Recovery, IGMP-filtrering, IGMP-struping, Protokollbasert VLAN-støtte, CPU-beskyttelse, IP-kildebeskytter, ARP-kontroll, Internet Control Message Protocol (ICMP), VLAN-filtrering, Loop Guard, Voice VLAN, Private VLAN, Guest VLAN, Weighted Round Robin (WRR), MAC based VLAN, VLAN Tagging, portbasert VLAN, Unknown Storm Control, MRSTP, MAC-frys |
| Tilpassede standarder | IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3az |
| RAM | 256 MB |
| Flash-minne | 32 MB |
| Grensesnitt | 28 x 1000Base-T RJ-45 4 x 1000Base-X SFP |
|---|
| Strømenhet | Intern strømforsyning |
|---|---|
| Påkrevd nettspenning | AC 120/230 V (50/60 Hz) |
| Strømforbruk ved drift | 22.5 watt |
| Rack-monteringssett | Inkludert |
|---|---|
| MTBF | 911,301 timer |
| Tilpassede standarder | BSMI, RoHS, FCC Part 15 A, LVD, EMC Class A |
| Bredde | 44.1 cm |
|---|---|
| Dybde | 13.1 cm |
| Høyde | 4.4 cm |
| Vekt | 2.1 kg |
| Fraktbredde | 55.8 cm |
|---|---|
| Fraktdybde | 21.4 cm |
| Frakthøyde | 7.9 cm |
| Fraktvekt | 2.91 kg |
| Min. driftstemperatur | 0 °C |
|---|---|
| Maks. Driftstemperatur | 50 °C |
| Driftsfuktighet | 10 - 95% (ikke-kondenserende) |
| Min. oppbevaringstemperatur | -40 °C |
| Maks. oppbevaringstemperatur | 70 °C |
| Fuktighetsområde under oppbevaring | 10 - 95% (ikke-kondenserende) |
