Prismatch*Prismatch*
Denne varen finnes ikke lenger i vårt sortiment, men kontakt oss gjerne på 33 00 55 00 eller kundeservice@komplett.no så hjelper vi deg finne et alternativt produkt til dette.
Varenummer: 1101032 / Produktnr.: SMT1000IC

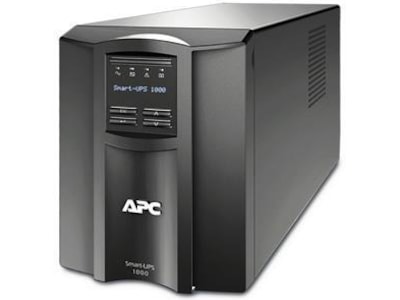

APC Smart-UPS 1000VA LCD 230V

Flere bilder av

PC Smart-UPS 1000VA LCD 230V with SmartConnect

SMT1000IC Features

APC Smart-UPS 1000VA LCD 230V with SmartConnect

  • Cold-start capable
    Provides temporary battery power when the utility power is out.
  • Energy meter
    Provides actual kilowatt hours of usage for energy conscious users.
  • Green mode
    Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
  • High online efficiency
    Reduces utlility costs, generates less heat.
  • Intuitive LCD interface
    Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
  • Predictive replace battery date
    Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
  • Pure sine wave output on battery
    Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
  • Single switched outlet group
    Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
  • SmartConnect
    Innovative, easy to use remote monitoring feature that provides automatic notifications, firmware updates, and advanced support services.
  • SmartSlot
    Customize UPS capabilities with management cards.
  • Temperature-compensated battery charging
    Prolongs battery life by regulating the charge voltage according to battery temperature.
Manageability
  • Disconnected battery notification
    Warns when a battery is not available to provide backup power.
  • Network manageable
    Provides remote power management of the UPS over the network.
  • LED status indicators
    Quickly understand unit and power status with visual indicators.
  • Audible alarms
    Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition.
  • USB connectivity
    Provides management of the UPS via a USB port (not available on all models).
  • Serial connectivity
    Provides management of the UPS via a serial port.
Availability
  • Automatic restart of loads after UPS shutdown

    Automatically starts up the connected equipment upon the return of utility power.

  • Temperature-compensated battery charging

    Prolongs battery life by regulating the charge voltage according to battery temperature.

  • Power conditioning

    Protects connected loads from surges, spikes, lightning, and other power disturbances.

  • Intelligent battery management

    Maximizes battery performance, life, and reliability through intelligent, precision charging.

  • Boost and Trim Automatic Voltage Regulation (AVR)

    Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).

  • Automatic self-test

    Periodic battery self-test ensures early detection of a battery that needs to be replaced.

  • Disconnected battery notification

    Warns when a battery is not available to provide backup power.

Serviceability

  • User-replaceable batteries

    Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)

  • Predictive failure notification

    Provides early-warning fault analysis ensuring proactive component replacement.

  • Hot-swappable batteries

    Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

  • Resettable circuit breakers

    Enables a quick recovery from overload events.

  • Battery failure notification

    Provides early-warning fault analysis on batteries enabling timely preventive maintenance

Marketing Features

  • Avoids costly power problems by keeping your IT equipment and data safe and available

    Network grade power conditioning protects from damaging surges and disruptive noise. Solid state automatic voltage regulation boosts low input voltage up to 30% and trims high voltage up to 12% without battery operation. Reliable battery back-up capacity to power through outages or gracefully shutdown systems

  • Low operating and maintenance costs with high efficiency, proven reliability and intelligent battery management

    Patented green operating mode achieves efficiencies over 97%. Smart-ups was the first network UPS to be Energy Star certified. Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Dynamic battery replacement date indicator and automatic self tests insure battery reliability and warn in advance of needing replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down. Designed and manufactured by APC for over 23 years, Smart-UPS is the world’s most trusted network UPS with over 25 million units sold.

  • Peace of mind that comes with full equipment compatibility and reliability of a leader

    Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards.

  • Save time with easy and convenient remote accessibility

    Network manageable via serial, USB or optional ethernet. Includes Powerchute® Business Edition Software for convenient monitoring and control, safe operating system shutdown and innovative energy management capabilities.

  • Smarter productivity  with ability to tailor to your specific application needs

    Intuitive LCD interface provides clear information with the ability to configure the UPS locally with easy to use navigation keys. Over 15 different programmable settings including switched outlet group control allow for application specific settings, thresholds and notifications.

Adaptability

  • Adjustable voltage-transfer points
    Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
  • Adjustable voltage sensitivity
    Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.

Safety

  • Safety-agency approved

    Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Generelt
Modell SMT1000IC
Produktserie APC Smart-UPS
Produkttype UPS
Underkategori UPS
Garanti (måneder) 36
EAN 731304332978
Utvidelsesspor
Utvidelsesspor 1 (total) / 1 (ledig) x SmartSlot
Programvare
Type APC PowerChute Business Edition
Strømenhet
Inngangsspenningsverdiområde (justerbart) AC 151 - 302 V
Støtenergiklasse 459 joule
Kretsbeskyttelse Automatisk kretsbryter
Frekvens nødvendig 50/60 Hz
Effekt 700 watt
UPS utgangssvingningsform (UPS:u-avbrytbar strømtilførsel) Sinusbølge
Formfaktor Ekstern
Frekvens medfølger 50/60 Hz
Spenningstilførselsmarging ± 5%
Overføringstid 6 ms
Spenningstilførsel AC 230 V
Inngangkontakttype Strøm IEC 60320 C14
Påkrevd nettspenning AC 220/230/240 V
Inngangsspenningsverdiområde AC 160 - 286 V
Antall utgangskontakter 8
Antall inngangskontakter 1
UPS Teknologi Interaktivlinje
Transientundertrykking Ja
Effektkapasitet (VA) 1000 VA
Frekvens nødvendig margin ± 3Hz, ± 3Hz
Strømforsyningsenhetfunksjoner Automatisk selvtest, LCD display, Melding om forutsett svikt, Driftsutskiftbare batterier, Nødavslåing, Kaldstartsfunksjon, Automatisk spenningsregulering (AVR), Energimåler, Hørbar alarm
Type utgangskontakt Power IEC 60320 C13, IEC-bro
Batteri
Levetid (inntil) 5.8 min
Oppladingstid 3 timer
Type last Ved full belastning
Blysyrebatteri - egenskaper Lekkasjesikker, Forseglet, Vedlikeholdsfri
UPS
Antall batterier 1
Batteriteknologi Blysyre
Diverse
Farge Svart
Fargekategori Svart
Tilpassede standarder CSA, IEC 62040-2, EN 62040-1, UL 1778, IEC 62040-1, VDE, EAC, RCM, EN 62040-2
Størrelser og vekt
Vekt 18.86 kg
Bredde 17.1 cm
Dybde 43.9 cm
Høyde 21.9 cm
Størrelser og vekt (forsendelse)
Fraktdybde 59.5 cm
Fraktbredde 32.8 cm
Fraktvekt 22.77 kg
Frakthøyde 37.6 cm
Miljøparametere
Lydutslipp 41 dBA
Min. driftstemperatur 0 °C
Maks. Driftstemperatur 40 °C
Driftsfuktighet 0 - 95%
Nettverkstilknytning
Fjernstyringsgrensesnitt RS-232, USB
Grensesnitt medfølger
Grensesnitt 1 x USB, 1 x forvaltning (RS-232), 1 x EPO (emergency power off)
Kabeldetaljer
Medfølgende kabler Nettverkskabel - ekstern, USB-kabel - ekstern
Detaljer om strømutgangskoblinger
Detaljer om strømutgangskoblinger 2 x IEC-bro, 8 x power IEC 60320 C13
Kjøretidsdetaljer
Kjøretid (inntil) 45.2 minutter ved 200 watt, 24.7 minutter ved 300 watt, 15 minutter ved 400 watt, 19.1 minutter ved halvlast, 5.8 minutter ved 700 Watts, 7.1 minutter ved 600 watt, 5.8 minutter ved full last, 183 minutter ved 50 watt, 100 minutter ved 100 watt, 9.8 minutter ved 500 watt
