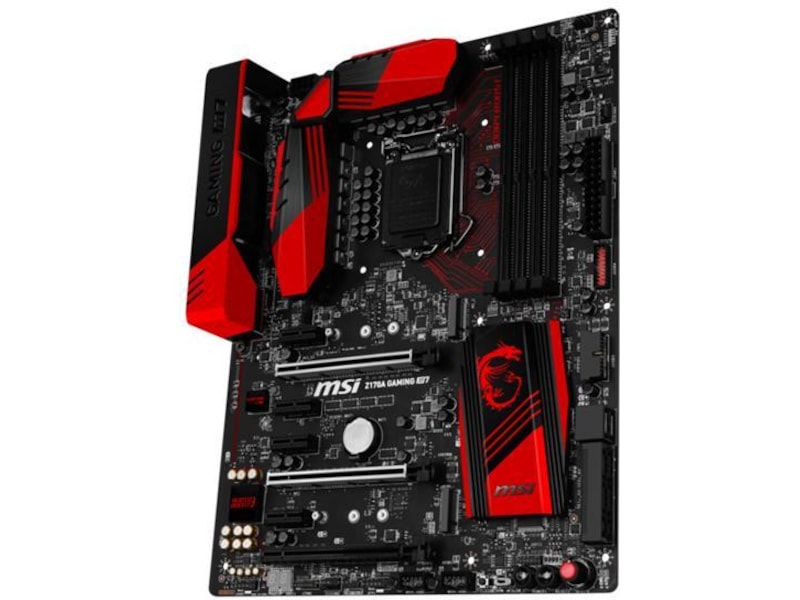

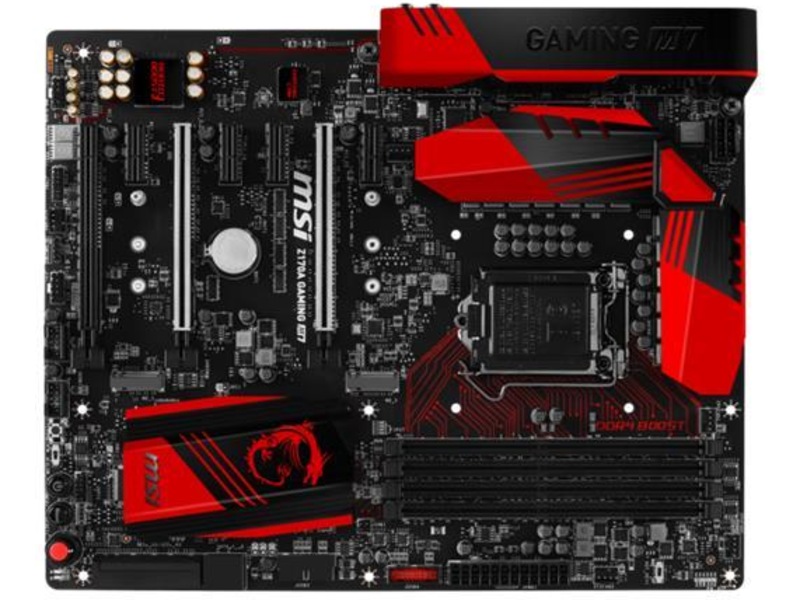

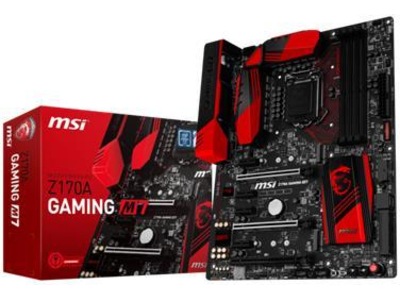

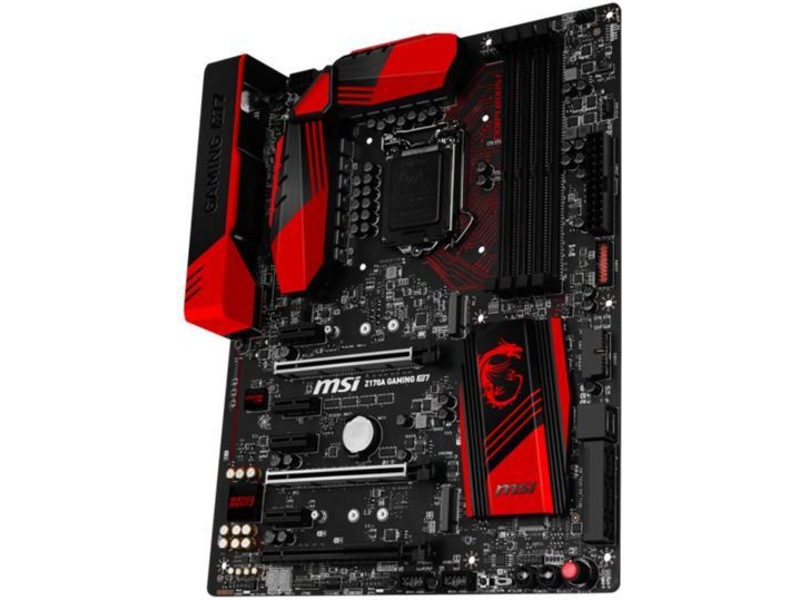

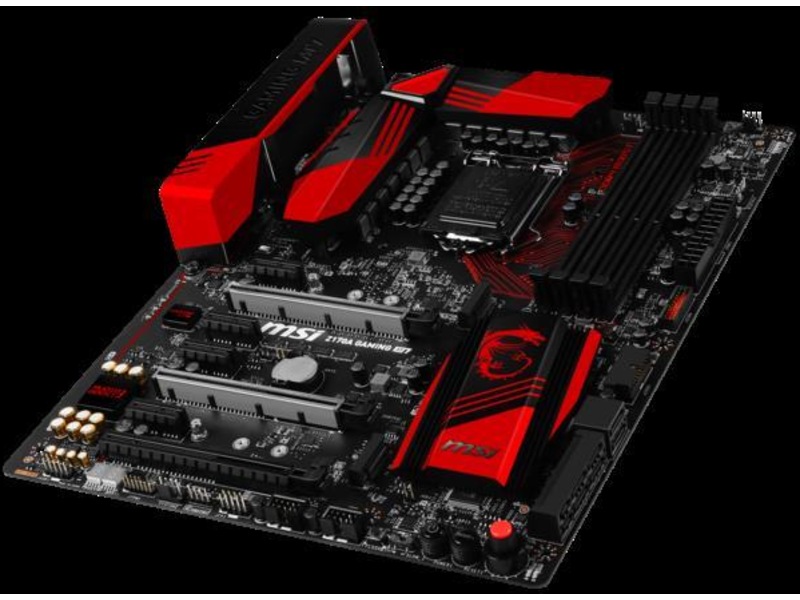

MSI Z170A GAMING M7, Socket-1151

Varenummer: 850575 / Produktnr.: Z170A GAMING M7

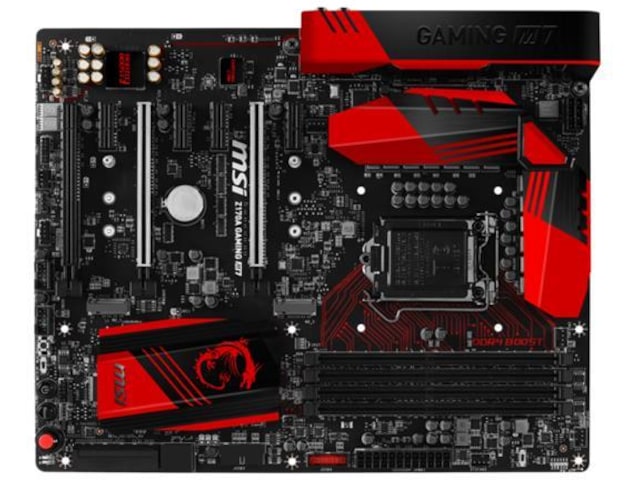

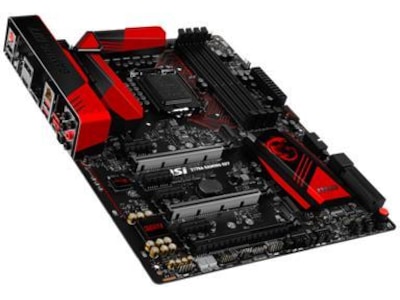

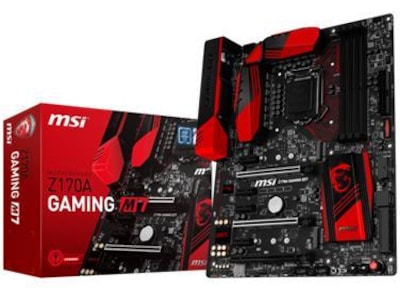

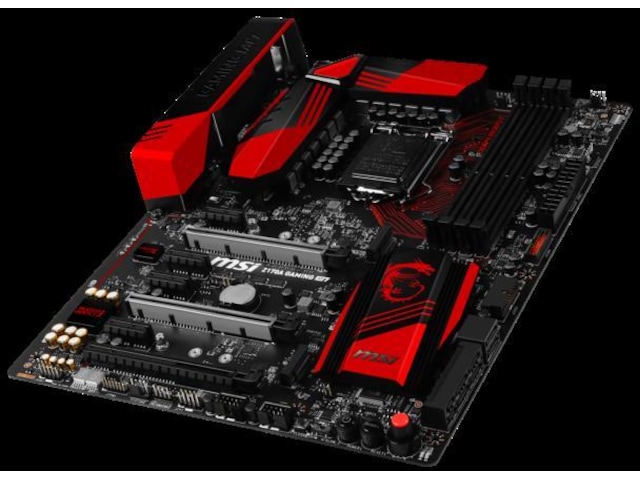

Flere bilder av


Z170A GAMING M7

NO. 1 In Gaming

The MSI® Z 170 A GAMING M 7 motherboard is designed to provide gamers the best gaming experience through genuine GAMING design, best - in - class gaming features and the latest technology . T he Z 170 A GAMING M 7 motherboard is an engineering masterpiece tailored to gaming perfection

DDR4 BOOST & XMP LED

By fully isolating the memory circuitry from other components, DDR4 Boost ensures the memory signal to stay pure for maximum performance and stability.

GAME BOOST

Generate more FPS in games! Use the Game Boost dial with automated overclocking settings that goes up to eleven and reach for 5GHz.

AUDIO BOOST 3 & NAHIMIC

The ultimate audio solution for gamers, powered by Nahimic Audio Enhancer. With dual OPA1652 AMPs and metal EMI Shielding you get breathtaking sound quality.

MSI GAMING LAN POWERED BY KILLER™

MSI GAMING LAN is powered by the Killer TM LAN E2400 Network Controller featuring intelligent AES 2.0 to automatically prioritize games above other applications. GAMING LAN uses LAN Protect with 15KV anti - surge protection for safety, highlighted with a red LED in the LA N port.

Generelt
Garanti (måneder) 36
Produkttype Hovedkort - ATX
Brikkesett type Intel Z170
Prosessorsokkel LGA1151 Socket
Maks antall prosessorer 1
Kompatible prosessorer Pentium, Celeron, Core i5, Core i3, Core i7
Støttet RAM
Maks størrelse 64 GB
Teknologi DDR4
Bussklokke 2400 MHz, 2133 MHz, 2800 MHz (O.C.), 2600 MHz (O.C.), 3000 MHz (O.C.), 3200 MHz (O.C.), 3600 MHz (O.C.)
Støttet RAM-integritetskontroll Ikke-ECC
Registrert eller bufret Ikke-bufret
Egenskaper Dobbeltkanalsminnearkitektur, Intel Extreme Memory Profiles (XMP)
Lyd
Type HD-lyd (8-kanalers)
Audio Codec Realtek ALC1150
Tilpassede standarder High Definition Audio
LAN
Nettverkskontroller Killer Gaming E2400
Nettverksgrensesnitt Gigabit Ethernet
Ekspansjon / Tilkoplinger
Utvidelsesspor 1 x CPU
4 x 288-pins DIMM
3 x PCIe 3.0 x16 (dobbel: x8-modus; trippel: x8, x8, x4 eller x8, x8, x2-modus; enkelt kort: x16-modus)
4 x PCIe 3.0 x1
Lagergrensesnitt SATA-600 / PCIe 3.0 -kontakter: 6 x 7pin SATA, 2 x SATA Express port - RAID 0 / RAID 1 / RAID 10 / RAID 5
SATA-600 / PCIe 3.0 -kontakter: 2 x M.2 - RAID 0 / RAID 1
RAID-funksjoner Intel Smart Response Technology
Grensesnitt 1 x LAN (Gigabit Ethernet)
3 x USB 2.0
2 x HDMI
1 x USB 3.1 Gen 2
1 x DisplayPort
1 x lydutlinje - minijakk
1 x lydinnlinje - minijakk
1 x mikrofon - minijakk
1 x lydutlinje (bakre) - minijakk
1 x lydutlinje (senter/subbasshøyttaler) - minijakk
1 x PS/2-tastatur / -mus
2 x USB 3.1 Gen 1
1 x USB-C Gen2
1 x TOSLINK
Interne overflater 4 x USB 2.0 - header
4 x USB 3.1 Gen 1 - header
1 x lyd - header
Strømkontakter 24-pin hovedstrømforsyningskontakt, 8-pin ATX12V-kontakt
Egenskaper
BIOS-egenskaper DMI-støtte, UEFI BIOS, BIOS FlashBack+, MSI ClickBIOS 5
Maskinvarefunksjoner Intel Extreme Memory Profile (XMP)-støtte, NVIDIA 2-way SLI Technology Support, Hi-c CAP, Super Charger, Fanless Design Heatsink, AMD 3-veis CrossFireX-teknologistøtte, Easy Button 3, Clear CMOS Button, MSI Gaming Device Port, MSI Guard-Pro, Debug LED, Nahimic Audio Enhacer, MSI Steel Armor, MSI Audio Boost 3, Game Boost, MSI Military Class V, LAN Protect, Double ESD Protection, OC Engine 2, OC Essentials, V-Check Points 2 Lite, SteelSeries Certified (SSC)
Diverse
Tilleggsutstyr inkludert "Do-Not-Disturb"-dørskilt, merkeskilt, kabeletiketter, I/O-bakcover
Inkludert programvare RAMdisk, MSI Gaming App, MSI Gaming Hotkey
Tilpassede standarder Plug and Play
Bredde 30.5 cm
Dybde 24.4 cm
