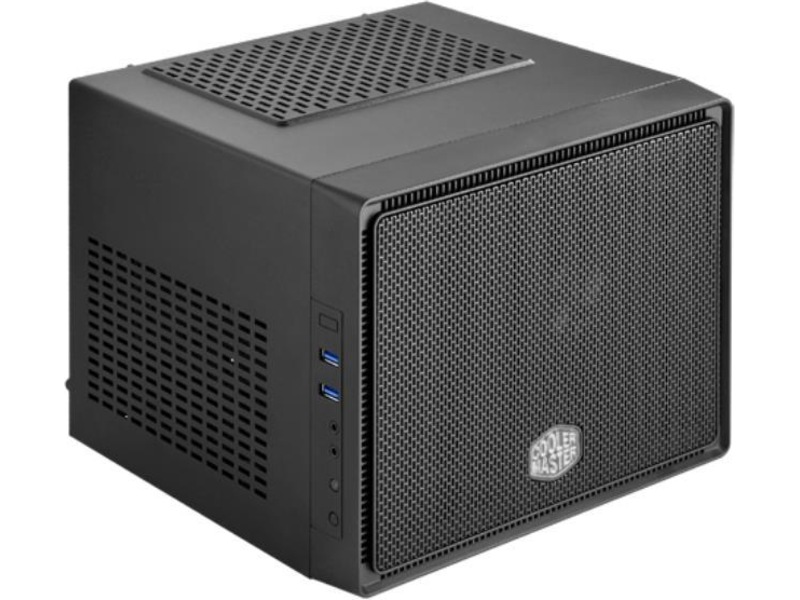

Cooler Master Elite 110 Mini-ITX Sort

Varenummer: 813857 / Produktnr.: RC-110-KKN2

Flere bilder av

Product test container description

Cooler Master Elite 110 Sort Mini ITX Kabinett

Cube Compact Chassis

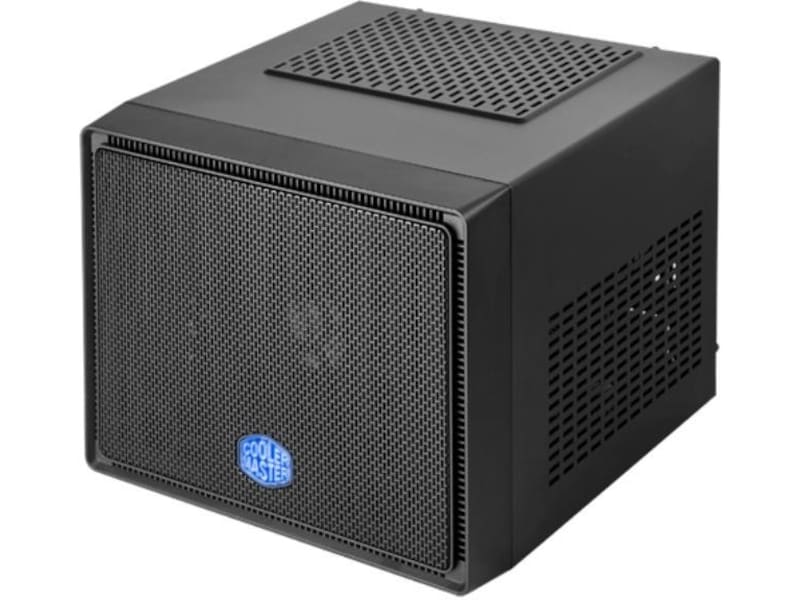

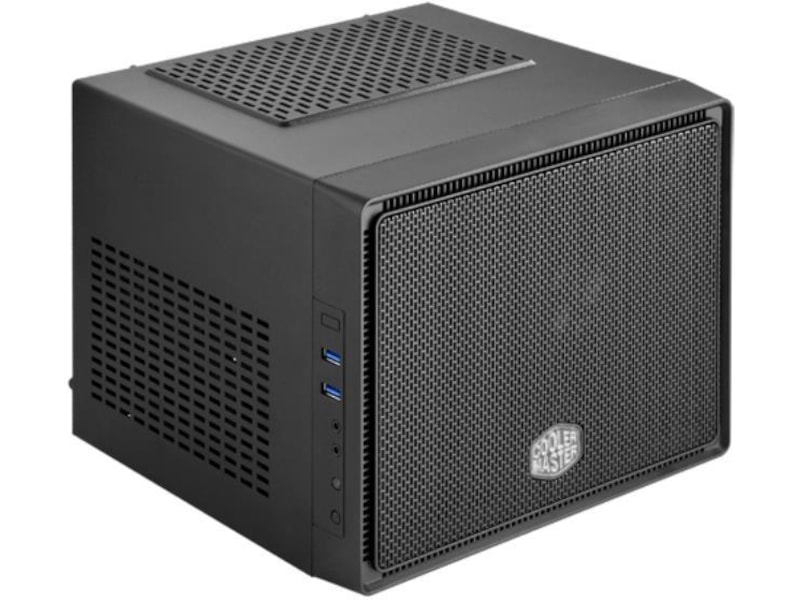

Mini-ITX case with front mesh panel and vents on the top and side panels for better airflow. Supports a 120mm radiator in the front and standard length ATX PSU up to 180mm.

The most compact fully featured Mini-ITX chassis

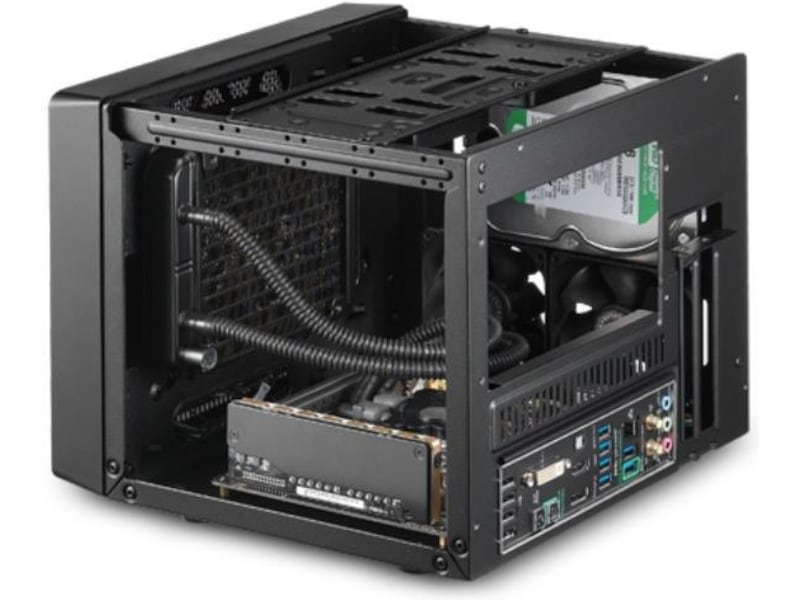

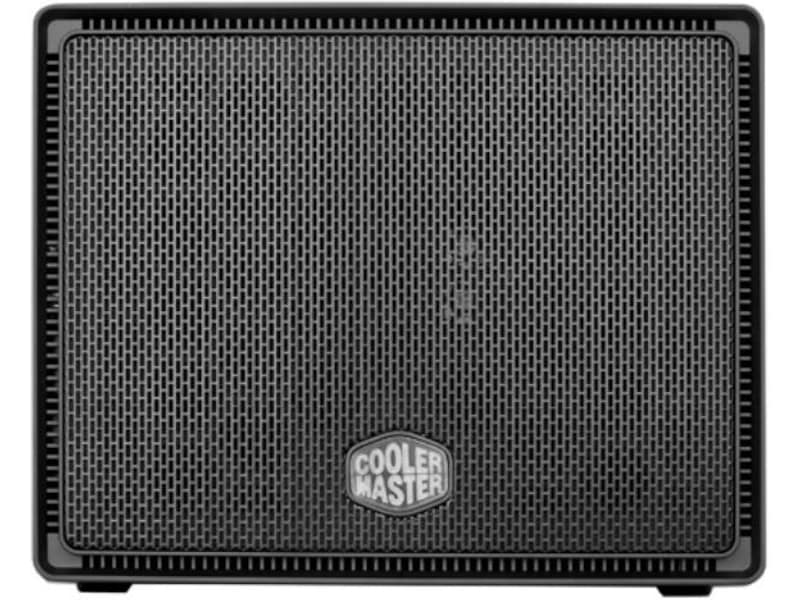

Elite 110 is the most compact fully featured Mini-ITX chassis. A full breathable mesh front panel holds space beneath it for a powerful 120mm All-in-One watercooling radiator. Elite 110 Mini Cube is engineered to fit in the minutest spaces while maintaining support for premium hardware. A pleasing, conservative design helps Elite 110 blend into any home environmt.

Offering no compromises

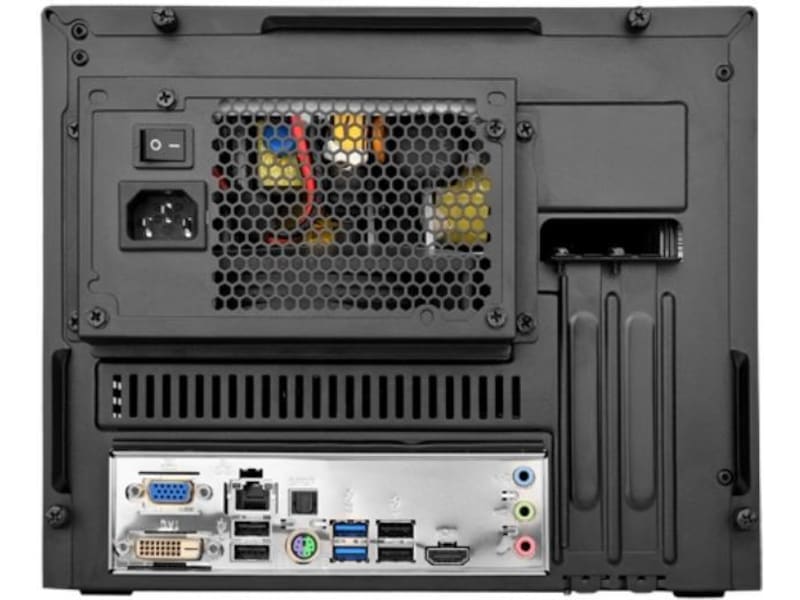

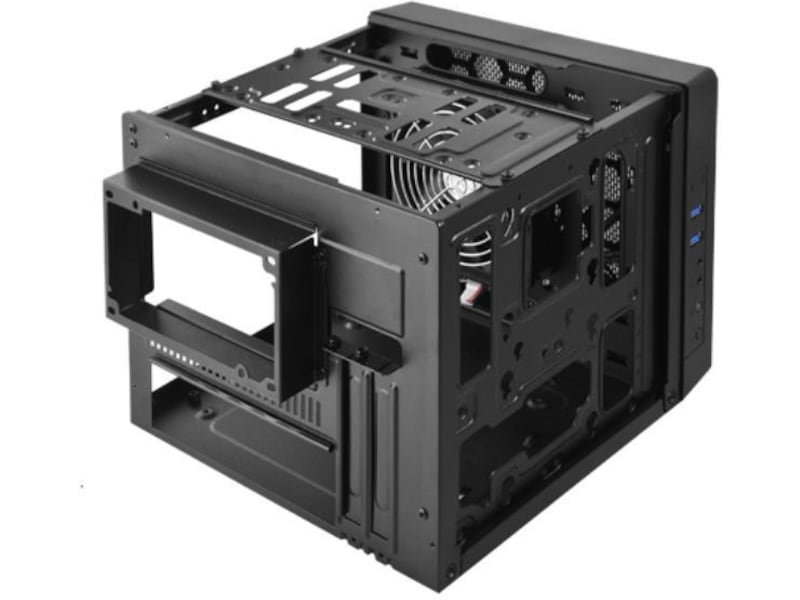

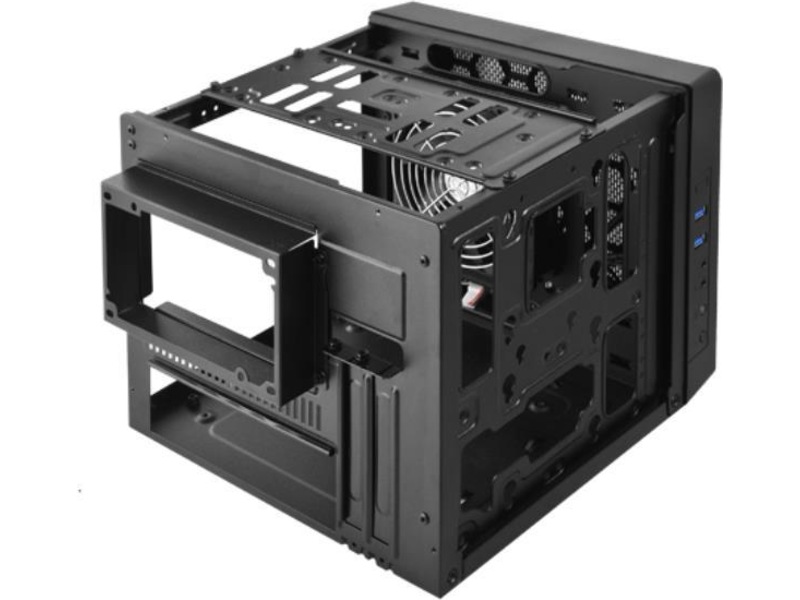

Offering no compromises, Elite 110 is built with an intelligent use of internal space. Mid to high-end graphics cards up to 210mm long can be accommodated easily. A simple, yet effective rear PSU bracket allows Elite 110 owners to easily install long power supplies up to 180mm long. Despite its miniature size, Elite 110 can support a full three hard drives or four SSDs. Elite 110 Mini Cube features full force cooling with its included 120mm front intake fan (compatible with 140mm fans), and 2 x 80mm optional side fans. Users needing quick access to ports will find a rich front.

Features

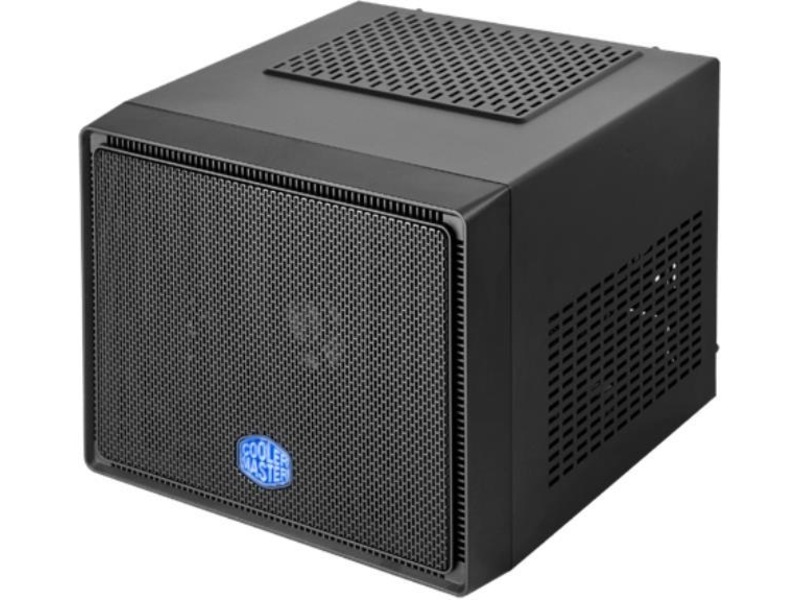

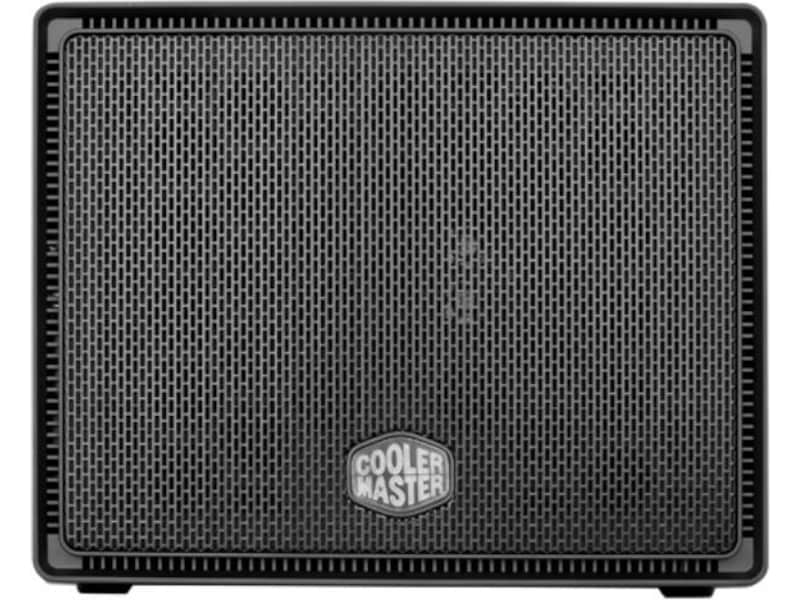

  • The mini-ITX case with front mesh panel and vents on the top and side panels for better airflow
  • One 120mm fan in the front (included) and Two 80mm fan on the side (optional)
  • Supports a 120mm radiator in the front
  • Supports standard length ATX PSU up to 180mm
  • Supports graphic card length up to 210mm
  • Storage - up to 3 HDDs / 4 SSDs

Cooling system

  • Front: 120mm fan x 1 (installed, converted to 140mm fan x 1)
  • Side: 80x25mm fan x 2 (optional)
  • CPU cooler height: 76mm

Water cooling compatibility

  • Front: 240mm radiator x 1 (optional)
  • Top: 240mm radiator x 1 (optional)
  • Rear: 120mm radiator x 1 (optional)

Specifications

  • Mother Board Support: Mini-ITX
  • Power Supply Type: ATX PS2
  • Power length: 180mm (w/ less cable management), 142mm (w/ full cable management)
  • VGA Card Support: 210mm
  • Size (LxWxH)260 x 208 x 280 mm
Generelt
Garanti (måneder) 24
Produktformfaktor Ultraliten formfaktor
Maks hovedkortsstørrelse Mini-ITX
Støttede hovedbrett Mini-ITX
Spesifikasjonssamsvar ATX / PS/2
Antall interne brønner 3
Farge Midnatts sort
Kjølesystem Foran: 120 mm vifte x 1 / 1 x 140 mm-vifte støttes
Side: 80 x 80 x 25 mm viftemontering x 1
Maks. CPU-kjølerhøyde 76 mm
Maks. videokortlengde 210 mm
Systemkabinettfunksjoner Maskefrontpanel, blå-LED
Ekspansjon / Tilkoplinger
Ekspansjonsbrønner 3 (total) / 3 (ledig) x intern - 3.5" x 1/3H
Utvidelsesspor 2

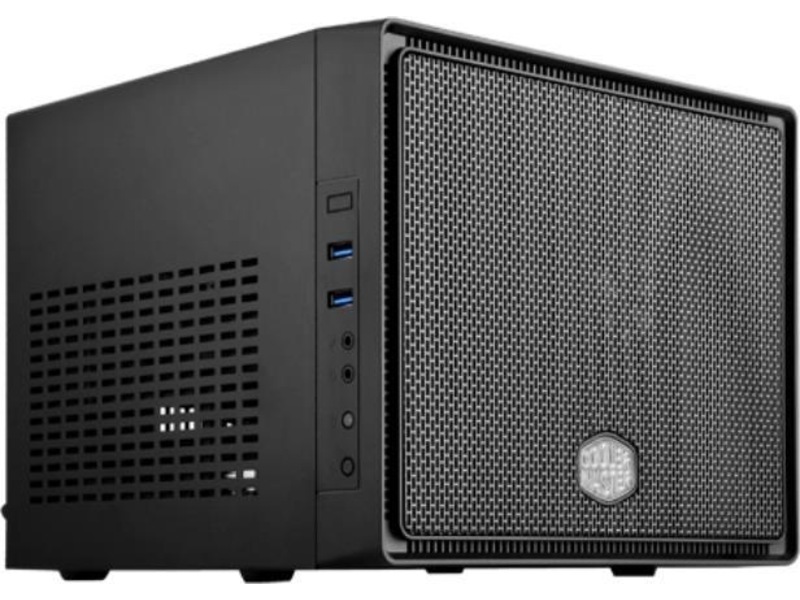

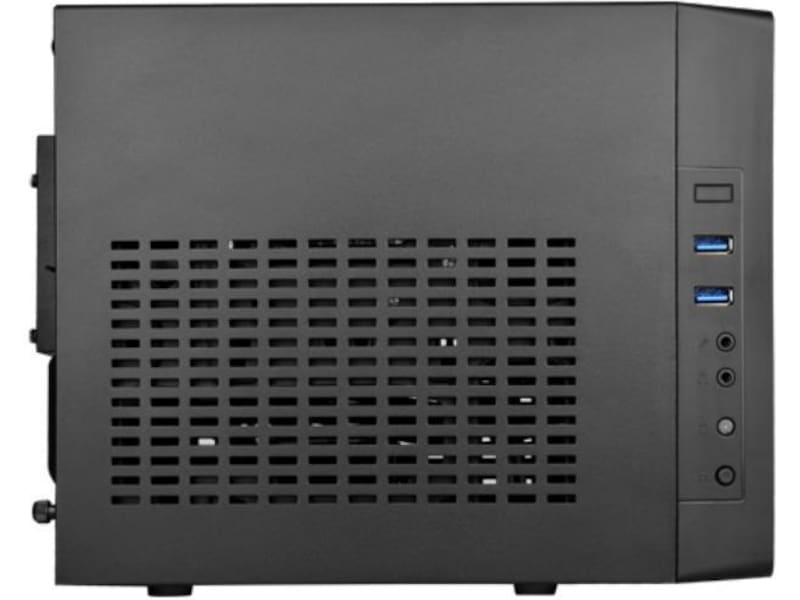

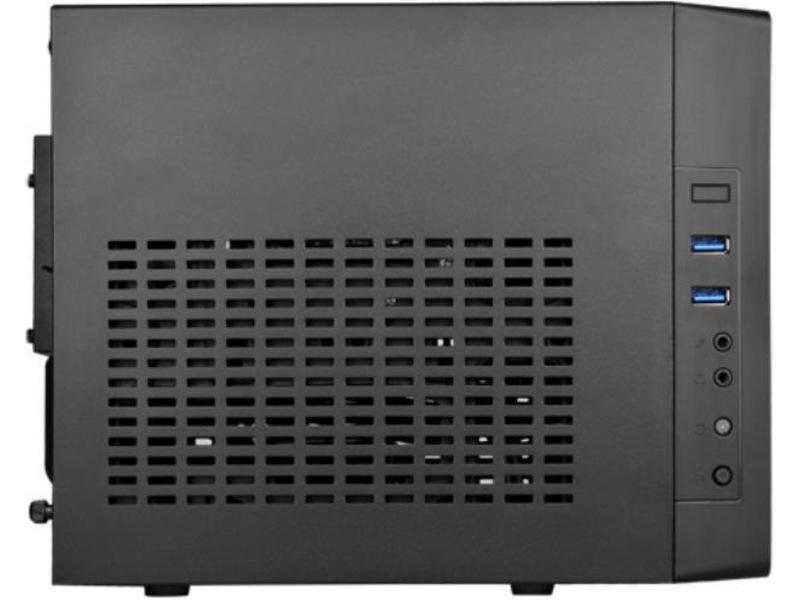

Grensesnitt 2 x USB 3.0
1 x mikrofon - mini-jack
1 x audioutgang - mini-jack
Strømforsyning
Max støttet Ant 1
Størrelser og vekt
Bredde 26 cm
Dybde 28 cm
Høyde 20.8 cm
Vekt 2.65 kg
