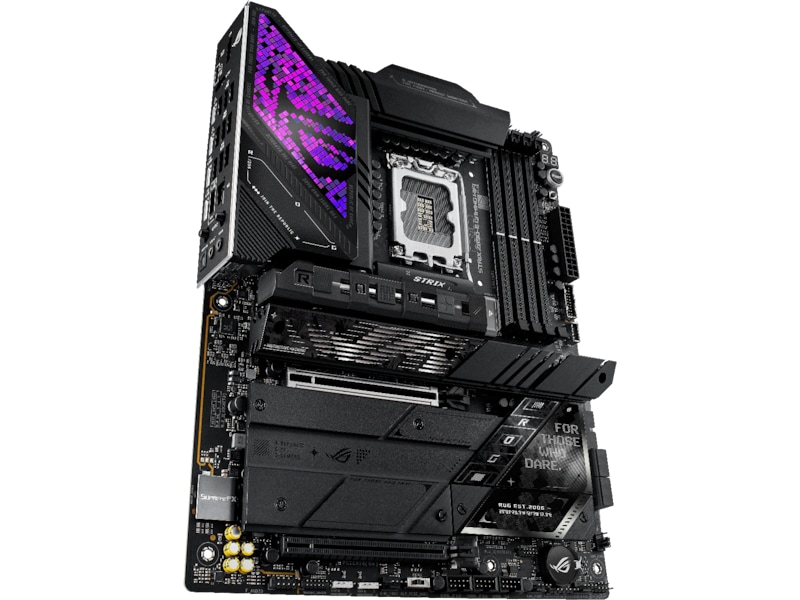

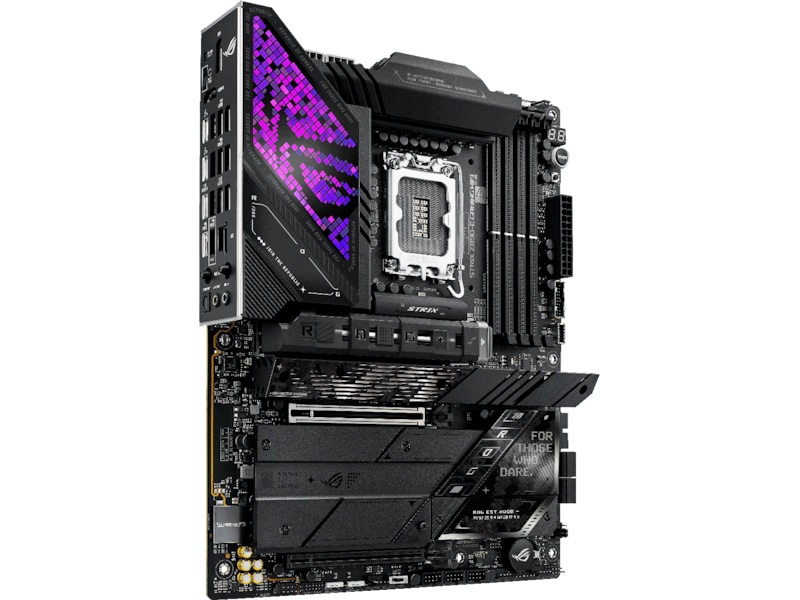

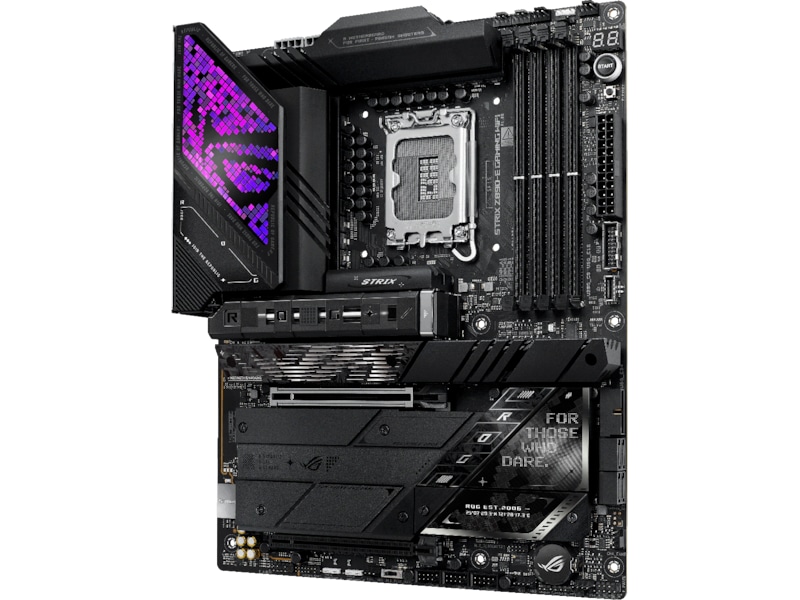

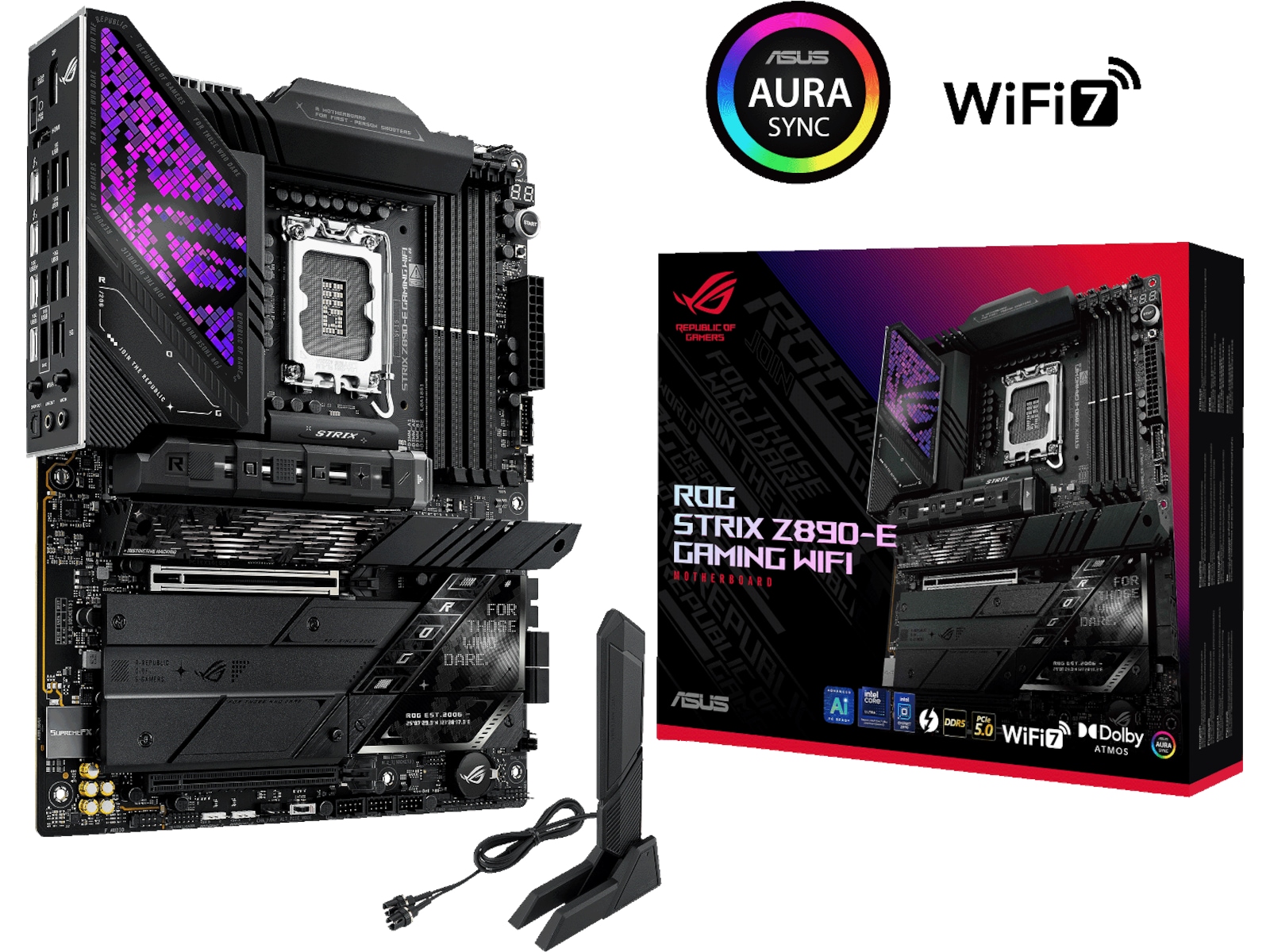

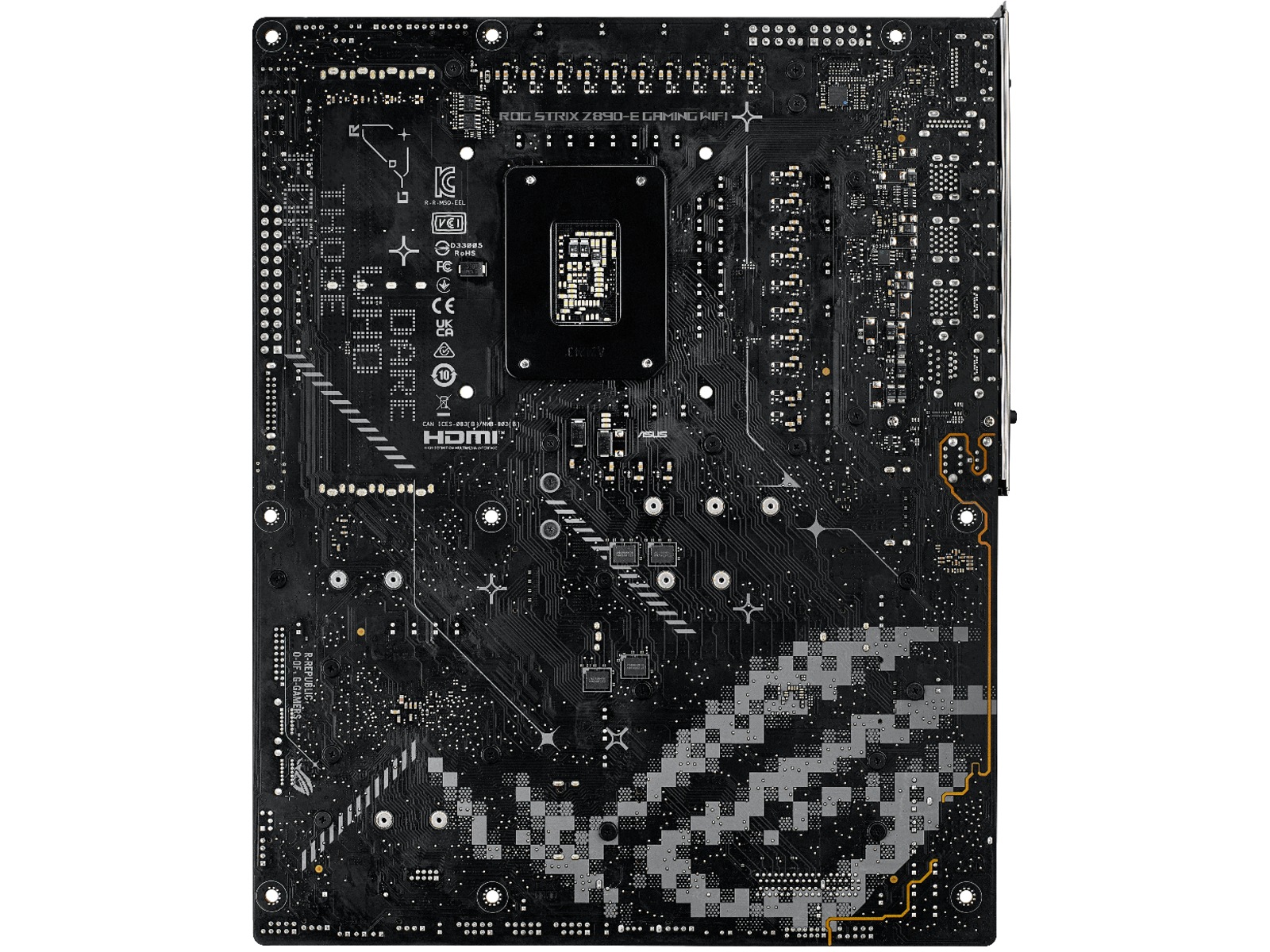

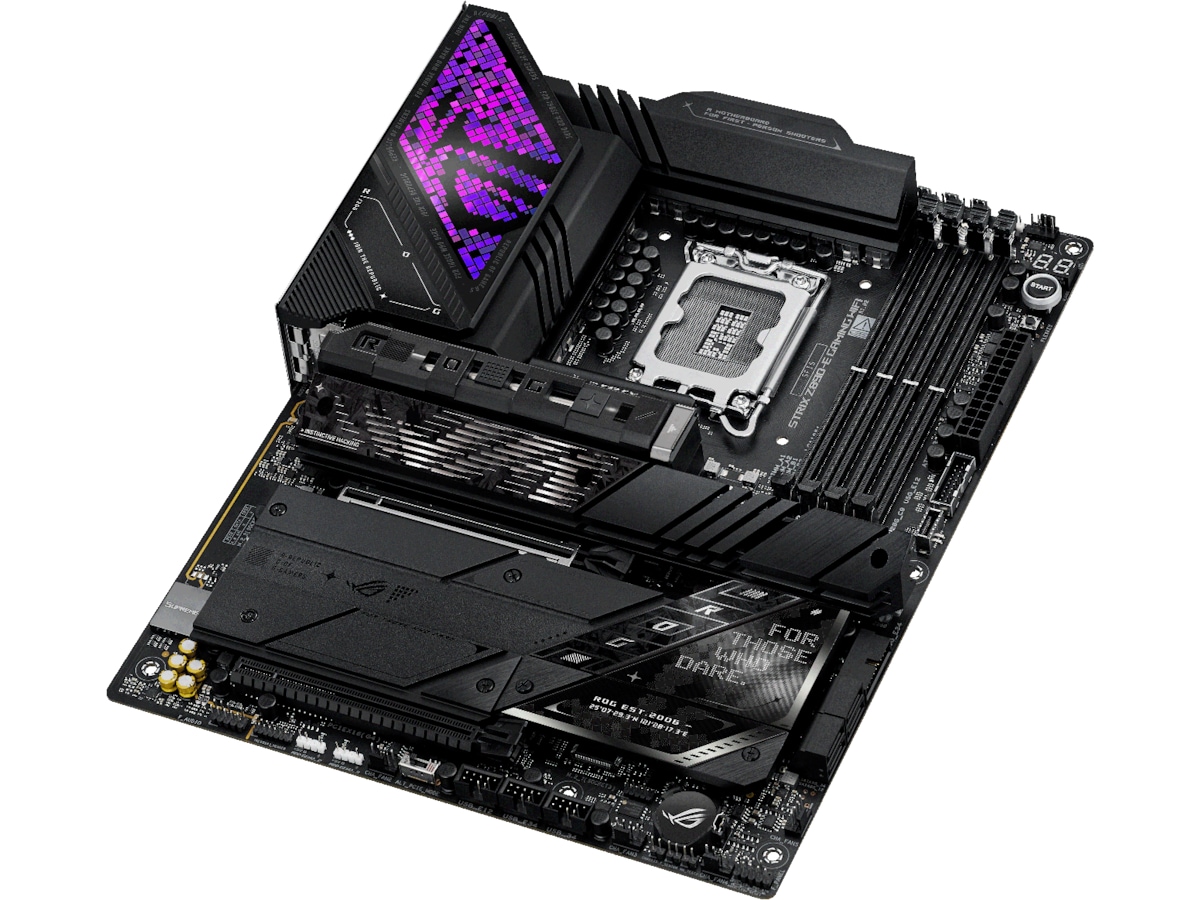

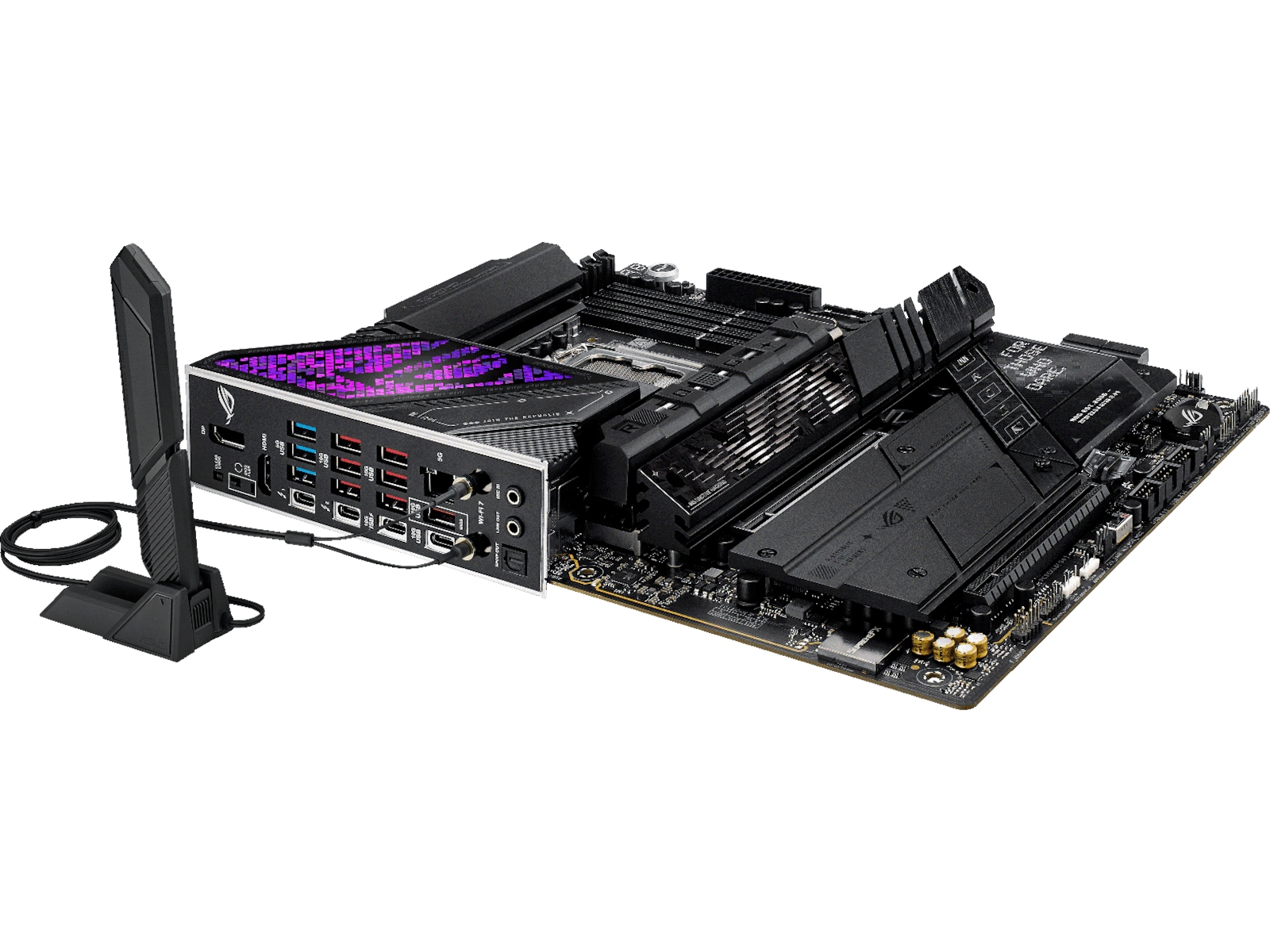

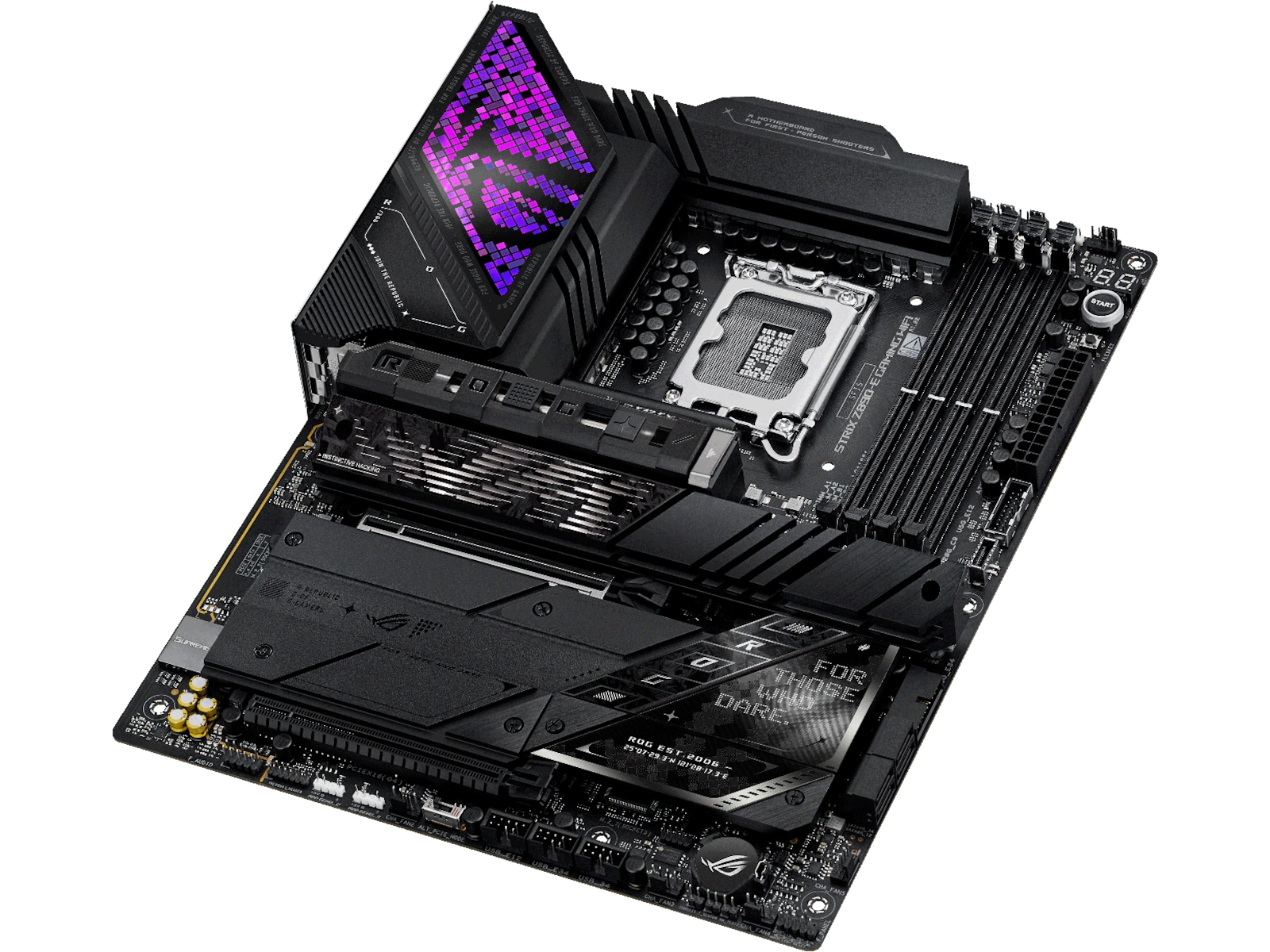

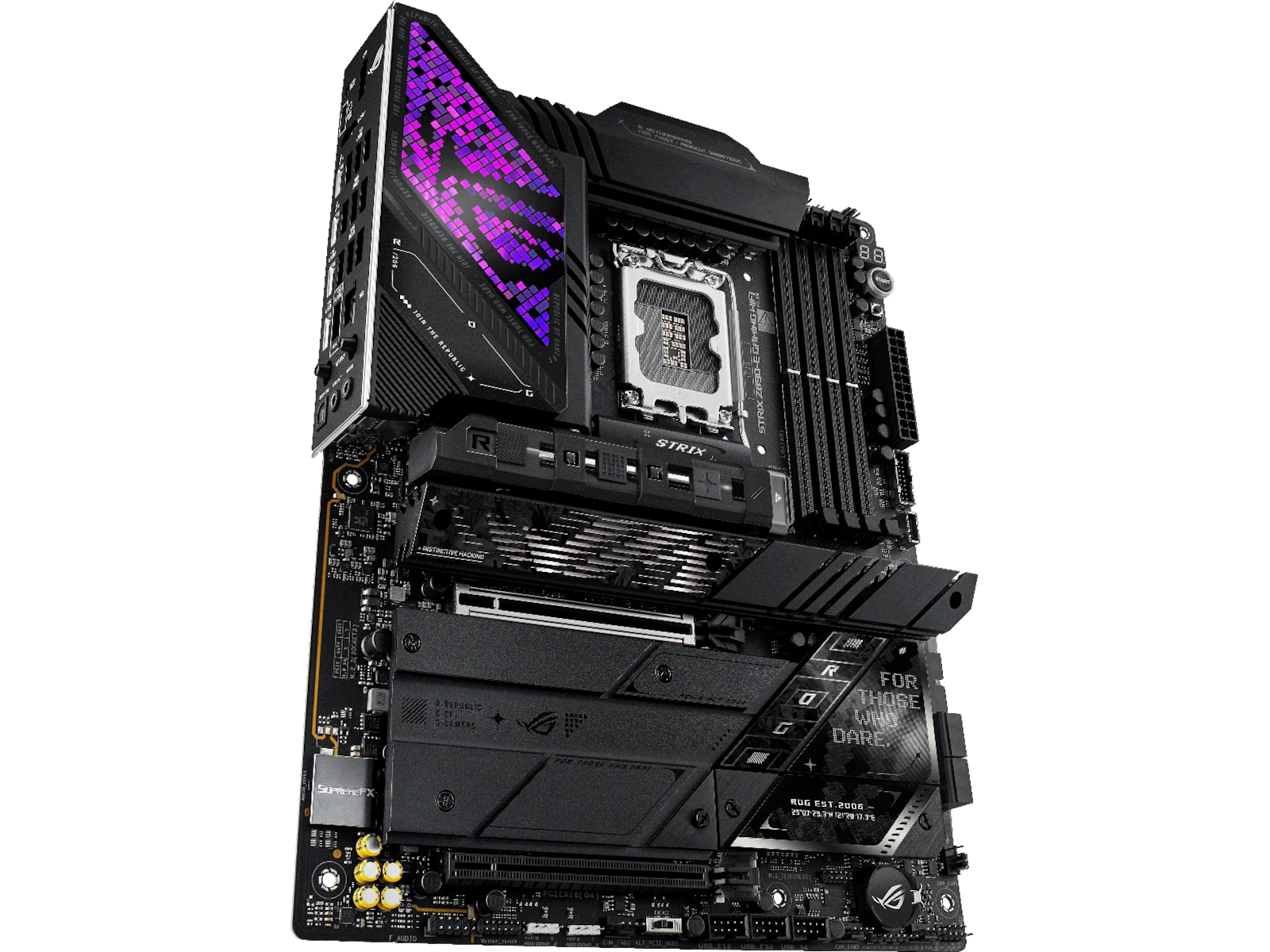

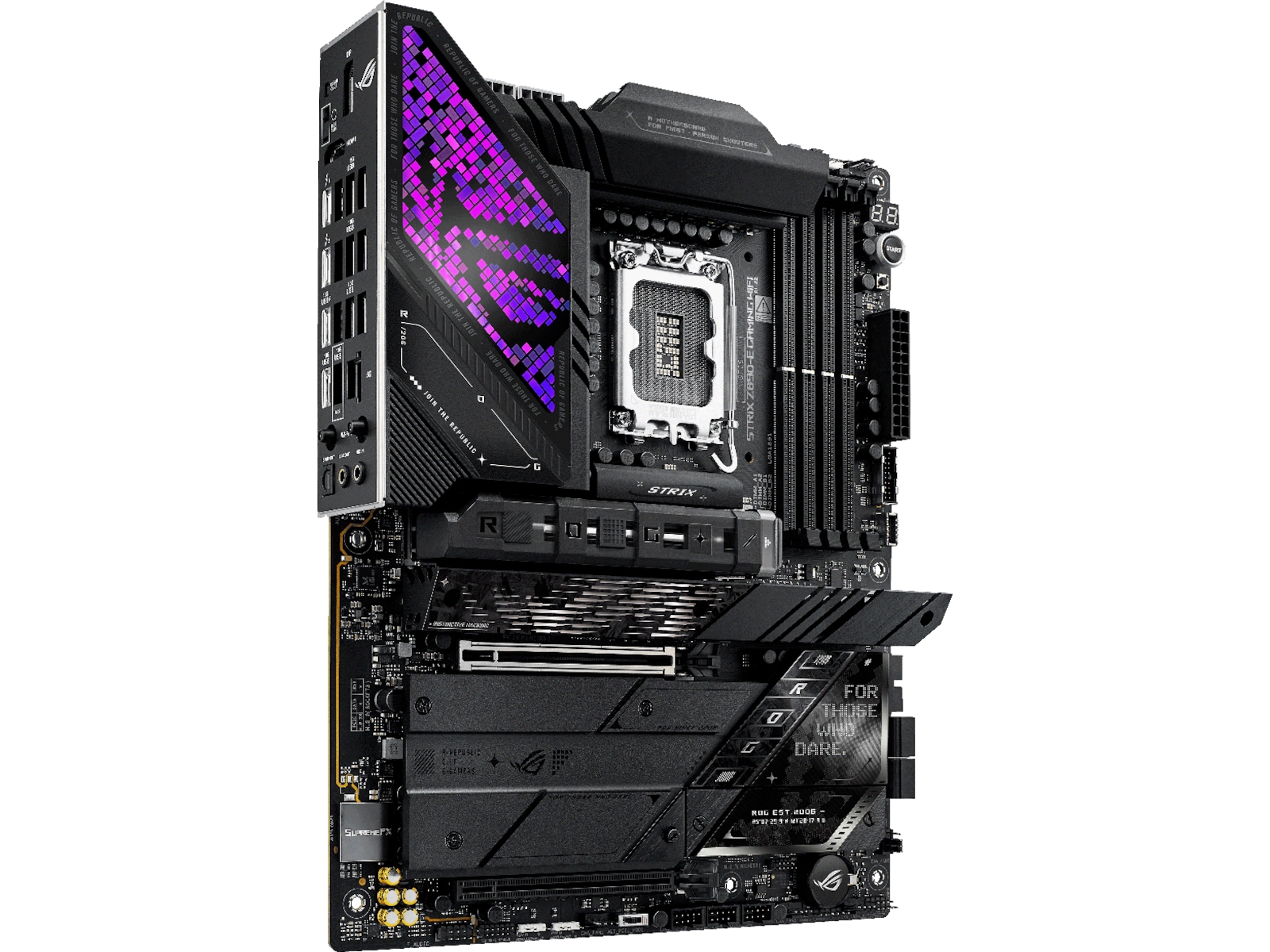

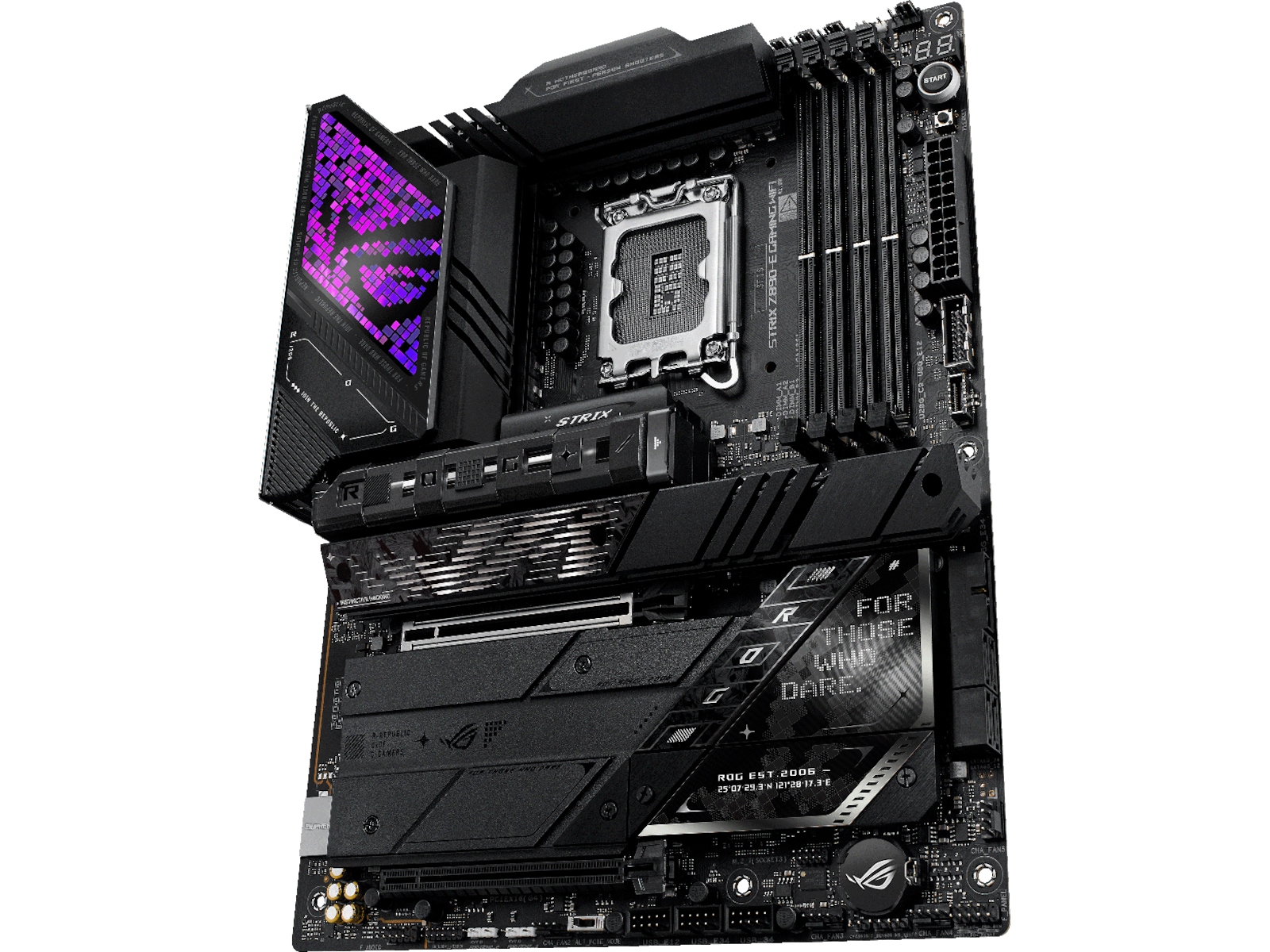

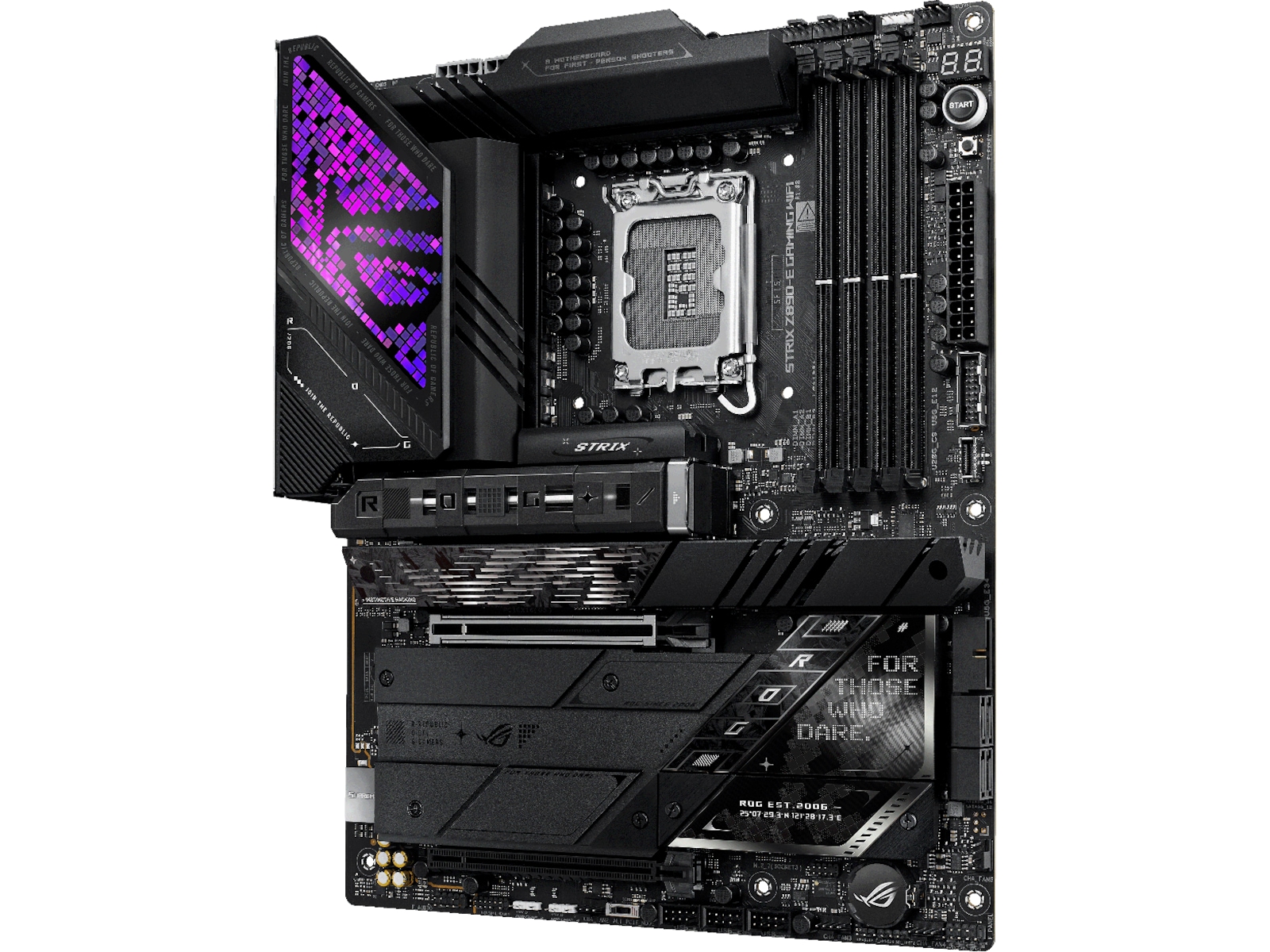

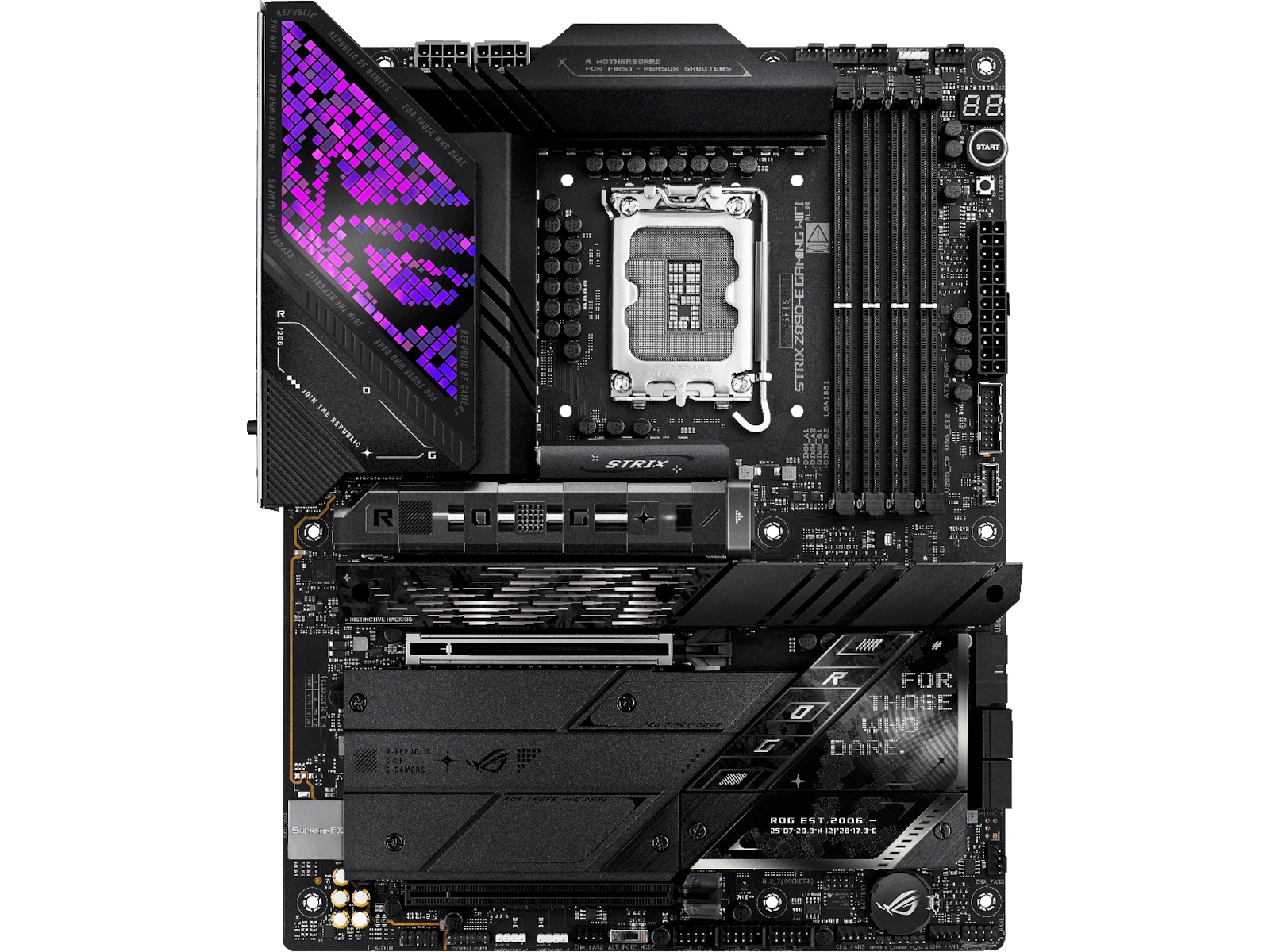

| Modell | ROG STRIX Z890-E GAMING WIFI |
|---|---|
| Produktserie | ASUS |
| Garanti (måneder) | 24 |
| EAN | 4711387756133 |
| Støttet RAM (registrert eller bufret) | Ikke-bufret |
|---|---|
| Prosessorsokkel | LGA1851-sokkel |
| Produktformfaktor | ATX |
| Støttet RAM-teknologi | DDR5 SDRAM |
| Merknader om kompatible prosessorer | Støtter Intel Core Ultra prosessorer (Serie 2) |
| Brikkesett type | Intel Z890 |
| RAM-spor | 4 DIMM-spor |
| Støttet RAM-hastighet | 4400 MHz (O.C.), 4600 MHz (O.C.) |
| Strømkontakter | 24-pin hovedstrømforsyningskontakt, 2 x 8-pins ATX12 V-kontakter |
| Støttet RAM-integritetskontroll | Ikke-ECC, On-die ECC |
| BIOS Type | AMI |
|---|---|
| Maskinvarefunksjoner | M.2 Q-frigivelse, LANGuard, BIOS FlashBack-knapp, ASUS Enhanced Memory Profile (AEMP) III, ASUS Extreme Engine Digi+, ASUS Aura Sync, Q-Dashboard, VRM-kjøledesign, CUDIMM-støtte, ASUS ProCool II, Q-Slot, Preboot eXecution Environment (PXE), M.2 Q-Latch, 8 Layer PCB, AI Cooling II, CrashFree BIOS 3, Q-Code, Formontert I/O-skjerm, Clear CMOS Button, Intel Turbo Boost Technology 2.0, Q-LED, Intel Turbo Boost Max Technology 3.0, NPU Boost, ASUS EZ DIY, Polymo Lighting, ASUS SafeDIMM, ASUS SafeSlot, 5K Black Metallic Capacitors, M.2 kjølebakplate, BIOS FlashBack LED, Q-Antenna, M.2 Q-Slide, AI overklokking, PCIe Slot Q-Release, M.2-kjølelegeme, 18+1+2+2 fase strømdesign, DIY Friendly Design, AI Networking II, ASUS Q-Design |
| BIOS-egenskaper | UEFI BIOS, ASUS EZ Flash, ASUS UEFI BIOS EZ Mode |
| Sov/Våkne | Våkne ved PME, Wake on LAN (WOL) |
| USB / FireWire-portskonfigurasjon (headere) | 1 x USB-C 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + 6 x USB 2.0 |
|---|---|
| Lagerporter | 4 x SATA-600 (RAID), 7 x M.2 |
| USB / FireWire-portskonfigurasjon (aktiv) | 2 x USB4 + 2 x USB-C 3.2 Gen 2 + 7 x USB 3.2 Gen 2 + 3 x USB 3.2 Gen 1 |
| Lager | Serial ATA-600 (RAID), M.2-sokkel |
| USB / FireWire | USB-C 3.2 Gen2, USB-C 3.2 Gen 2x2, USB 3.2 Gen 1, USB 3.2 Gen 2, USB4 |
| Type | Grafikkadapter (CPU kreves) |
|---|
| Lyd | Høydefinisjonslyd (8-kanals) |
|---|---|
| Type | Lydkort |
| Audio Codec | SupremeFX (ALC4080) |
| Tilpassede standarder | High Definition Audio, Dolby Atmos |
| Medfølgende kabler | 2 x SATA ekspresskabel |
|---|
| Produkttype | Hovedkort |
|---|---|
| Tilpassede standarder | DisplayPort 1.4 |
| Inkludert tilbehør | 7 x M.2 gummier, ROG Strix klistremerke, ROG-nøkkelkjede, ASUS Wi-Fi Q-antenna, 2 x M.2 Q-Slides, Kabelfestebånd, M.2 Q-Latch, Termopute for M.2 SSD |
| Egenskaper | NitroPath-teknologi, Dobbeltkanalsminnearkitektur, Intel Extreme Memory Profiles (XMP) |
|---|
| Datakjedeprotokoll | IEEE 802.11be (Wi-Fi 7), IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11a, IEEE 802.11g, IEEE 802.11ac, Fast Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, IEEE 802.11b, Gigabit Ethernet, IEEE 802.11n, Bluetooth 5.4, Ethernet |
|---|---|
| Nettverk | 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), 5 Gigabit Ethernet, Bluetooth 5.4 |
| Utvidelsesspor | 4 x 288-pins DIMM, 1 x M.2 socket (2242/2260/2280/22110 M.2 Key M spor), 1 x PCIe 5.0 x16, 1 x CPU, 3 x M.2 socket (2242/2260/2280 M.2 Key M-spor), 3 x M.2 socket (2280 M.2 spor), 1 x PCIe 4.0 x16 (x4-modus) |
|---|
| Lagergrensesnitt | PCIe 4.0 -kontakter: 1 x M.2 - RAID 0 / RAID 1 / RAID 5, SATA-600 / PCIe 4.0 -kontakter: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5, PCIe 4.0 -kontakter: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5, SATA-600 -kontakter: 4 x 7-pin seriell ATA, PCIe 5.0 -kontakter: 3 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
|---|

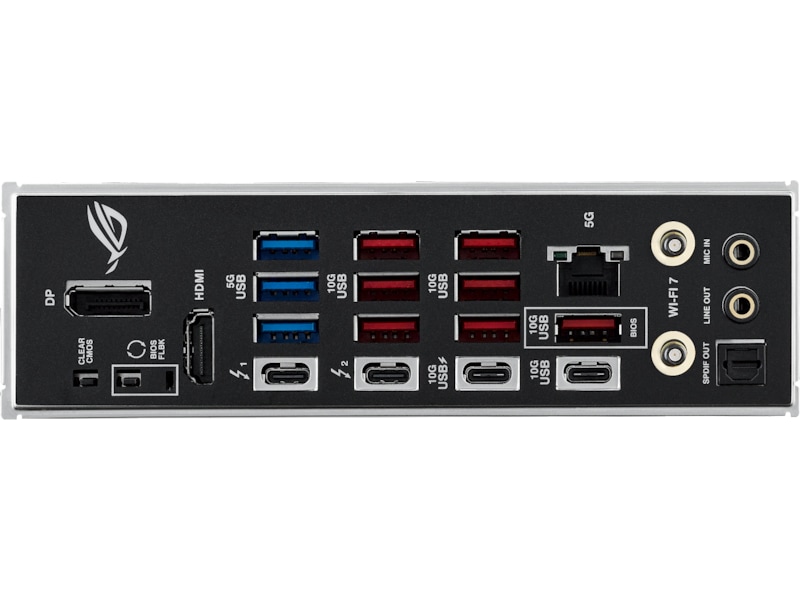

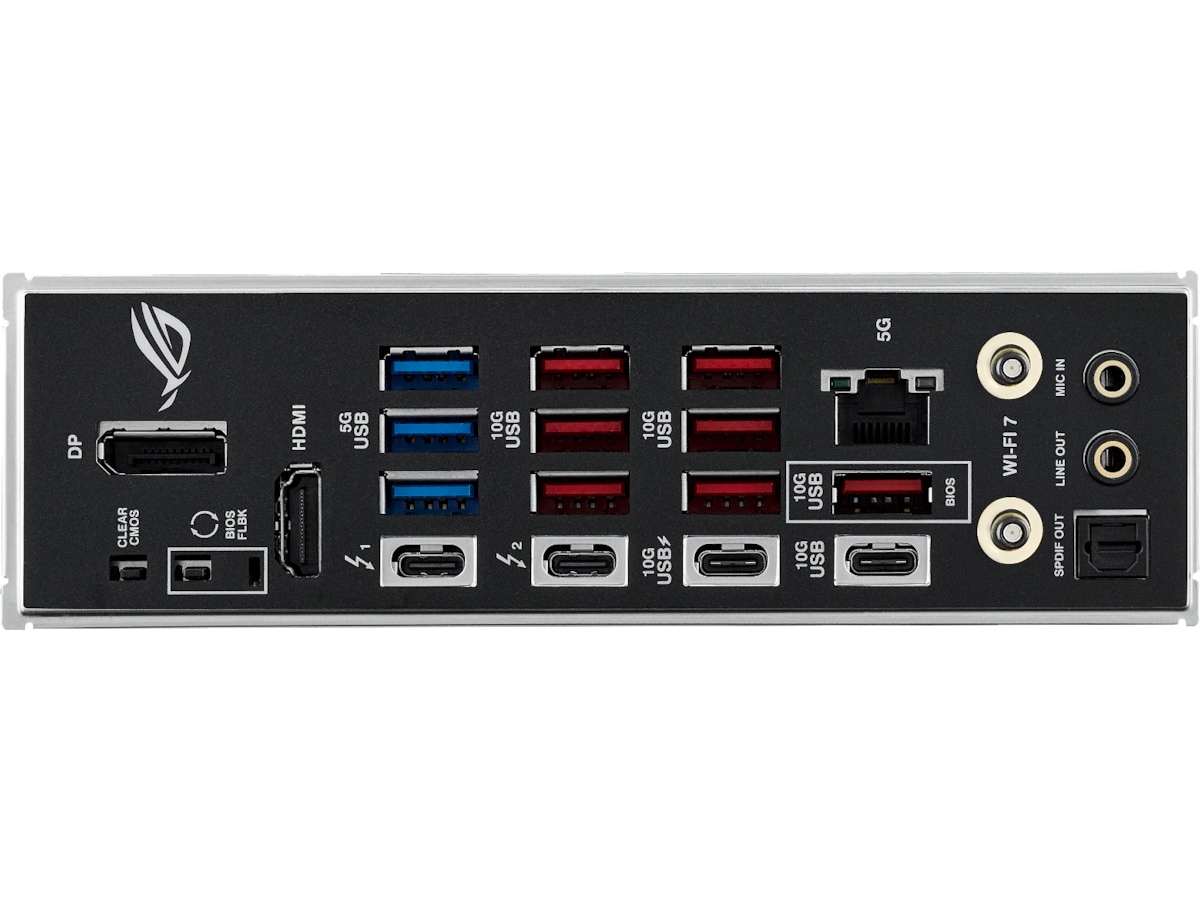

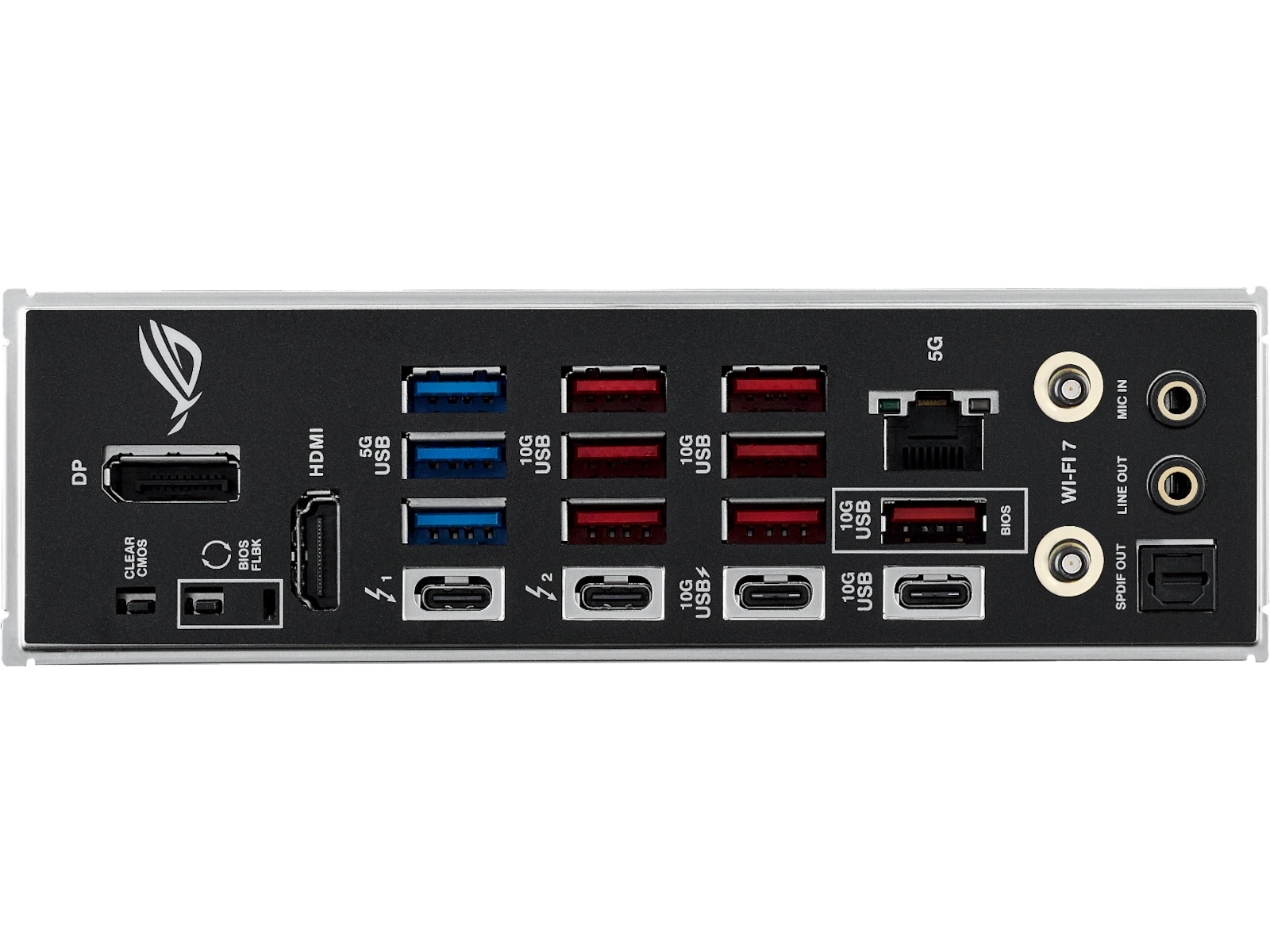

| Grensesnitt | 1 x DisplayPort, 2 x Thunderbolt 4/DisplayPort/USB4, 7 x USB 3.2 Gen 2, 2 x antenne, 1 x HDMI, 1 x lydutlinje - minijakk, 1 x SPDIF-utgang, 1 x LAN (5Gigabit Ethernet), 1 x mikrofon - minijakk, 2 x USB-C 3.2 Gen 2, 3 x USB 3.2 Gen 1 |
|---|
| Interne overflater | 6 x USB 2.0 - header, 1 x lyd - header, 4 x USB 3.2 Gen 1 - header, 1 x USB-C 3.2 Gen 2x2 - header, 1 x Thunderbolt 4 - header |
|---|
| Inkludert programvare | ASUS GlideX, ROG CPU-Z, ASUS DriverHub, WinRAR (40 days trial), TurboV Core, ASUS AURA Creator, Armoury Crate, ROG GameFirst Utility, HWiNFO, AIDA64 Extreme (60-dagersprøve), ASUS Fan Xpert 4, Norton 360 for spillere (60 dagers prøveversjon), USB Wattage Watcher, Adobe Creative Cloud (gratis prøveversjon) |
|---|
Medlem i Komplett Club? Få 200 poeng for hver godkjent produktanmeldelse. Les mer
I have been using Asus products since 2004, My first pre-built PC was an Hp Pavilion with a Asus motherboard with an SIS-Intel chipset. I did my research on Asus and found nothing but good things about their products. All the PC's I personally built for myself after that had Asus motherboards. I have had a Asus P5B, a Asus X58 Sabertooth, a Asus ROG Rampage III, a Asus P6T, a Asus P6X58D, a Asus X99-A a Asus ROG STRIX Z590-E and now a Asus ROG STRIX Z890-E. As you can see I have had multiple Asus boards and I have built many PC's for customers that used Asus motherboards. I will use them until I can;t use a PC anymore. I love their quality and features. Les mer
Opprinnelig publisert på https://www.asus.comMotherboard does everything you could ever need. My 3rd one, Z590, Z790, Z890. Top quality, extensive consistent bios. Les mer
Opprinnelig publisert på https://www.asus.comVery easy install and setup. (Update BIOS immediately) Running very stable with Intel Ultra 9 Processor 285, 96gb 6800 ram (XMP II) and ASUS TUF 4090. Les mer
