Varenummer: 1200328 / Produktnr.: MPG Z690 CARBON WIFI

1 / 6

MSI MPG Z690 Reseller page CARBON WIFI

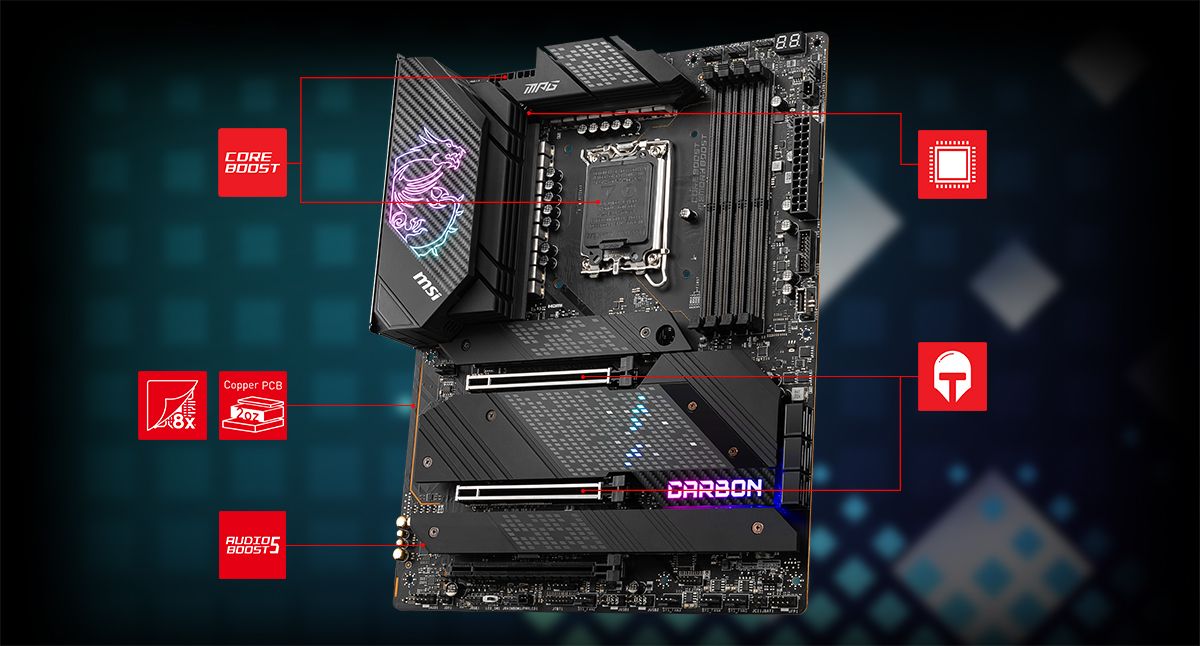

MPG Z690 CARBON WIFI

Exclusive feature

Core Boost Technology

Combining 2x 8 pin power connectors and premium layout design, that is ready for unleashing the maximum performance.

Premium PCB Material

8 layer PCB with the use of server grade material and 2oz thickened copper provides higher performance and long-lasting system stability without any compromise.

Audio Boost 5

Isolated audio with a high quality audio processor & amp for the most immersive gaming experience.

Direct 18+1+1 Power Design with Digital PWM

An aggressive digital VRM power design with digital PWM IC and direct 18 phases power system with 75A Smart Power Stage, make sure your system runs smoothly under the most extreme conditions.

PCIe Steel Armor

Protecting VGA cards against bending and EMI for better performance, stability and strength.

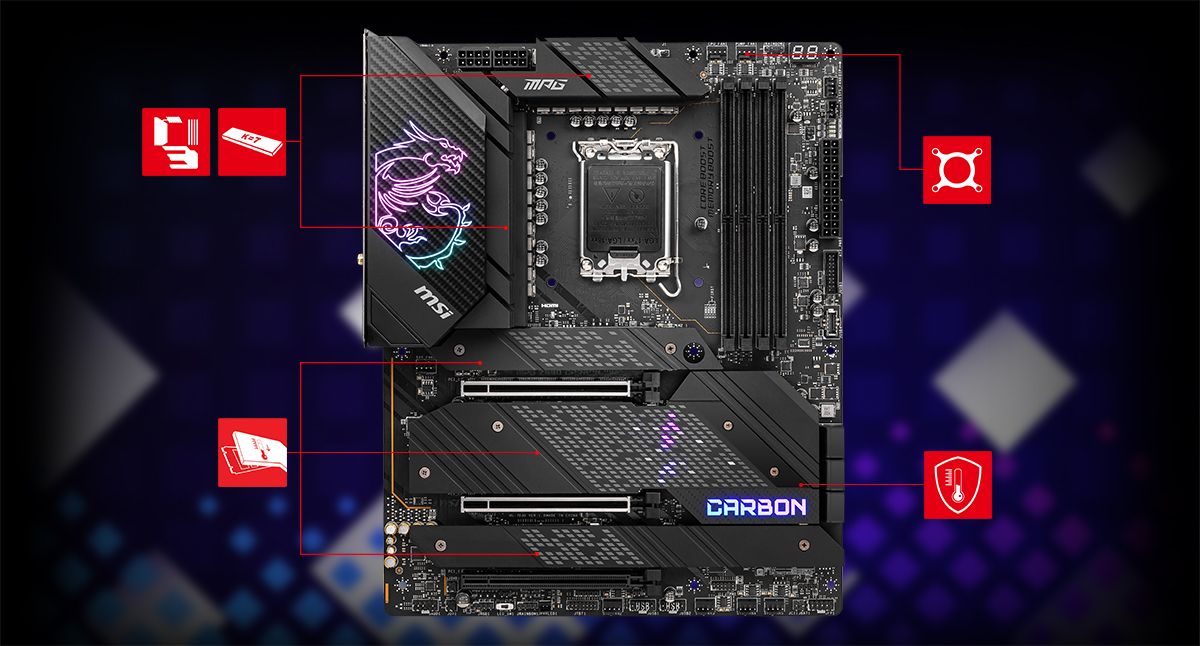

MPG Z690 CARBON WIFI

premium thermal solution

Premium Thermal Design

Heavy plated MOSFET heatsink with heat-pipe, high quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performcance.

M.2 Shield Frozr

Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.

Pump Fan Support

Control watercooling pump speeds for best flow and noise control.

Enlarged Chipset Heatsink

Larger heatsink for chipset ensures better heat dissipation and cooling effects.

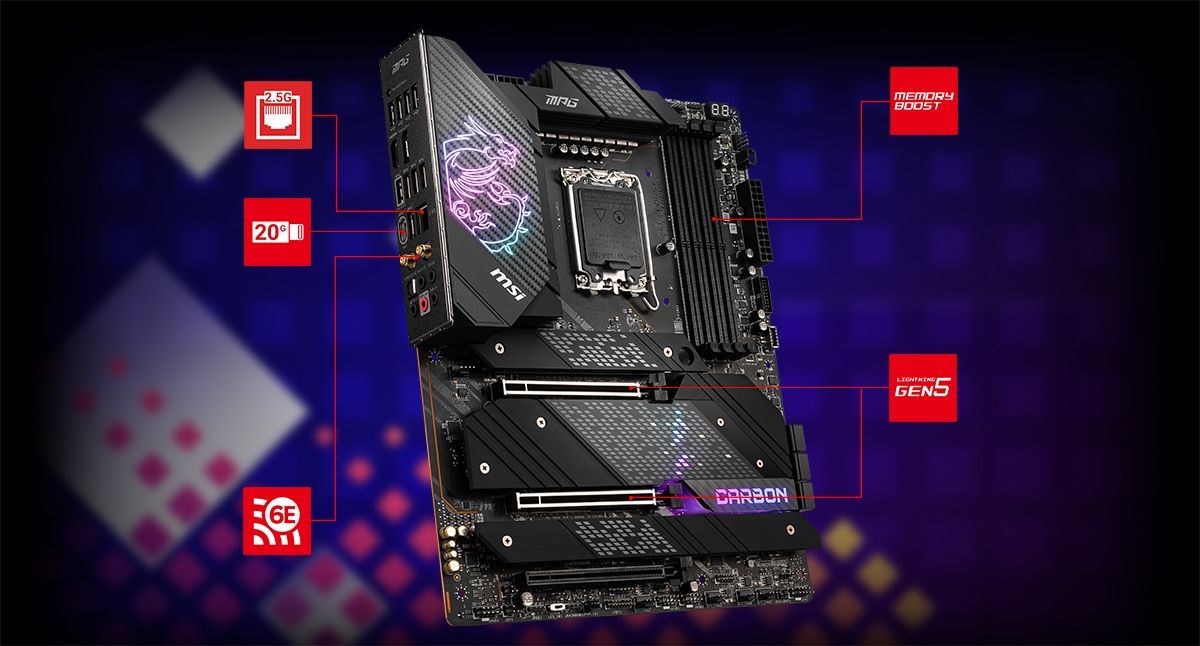

MPG Z690 CARBON WIFI

HIGH-SPEED TRANSMISSION

2.5G Network Solution

Featuring premium 2.5G LAN with LAN manager delivers better network experience.

Lightning USB 20G

Built-in USB 3.2 Gen 2x2 port, offers the 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1.

Intel Wi-Fi 6E

The latest wireless solution supports 6GHz spectrum, MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.

Memory Boost

The fully isolated DDR circuit to deliver pure data signals for the best gaming and overclocking performance.

Lightning Gen 5 Solution

The latest Gen 5 PCI-E slots with up to 128GB/s bandwidth for maximum transfer speed.

MSI MPG Z690 CARBON WIFI & MPG VELOX 100R AIRFLOW & MPG CORELIQUID K360 & MPG A750GF

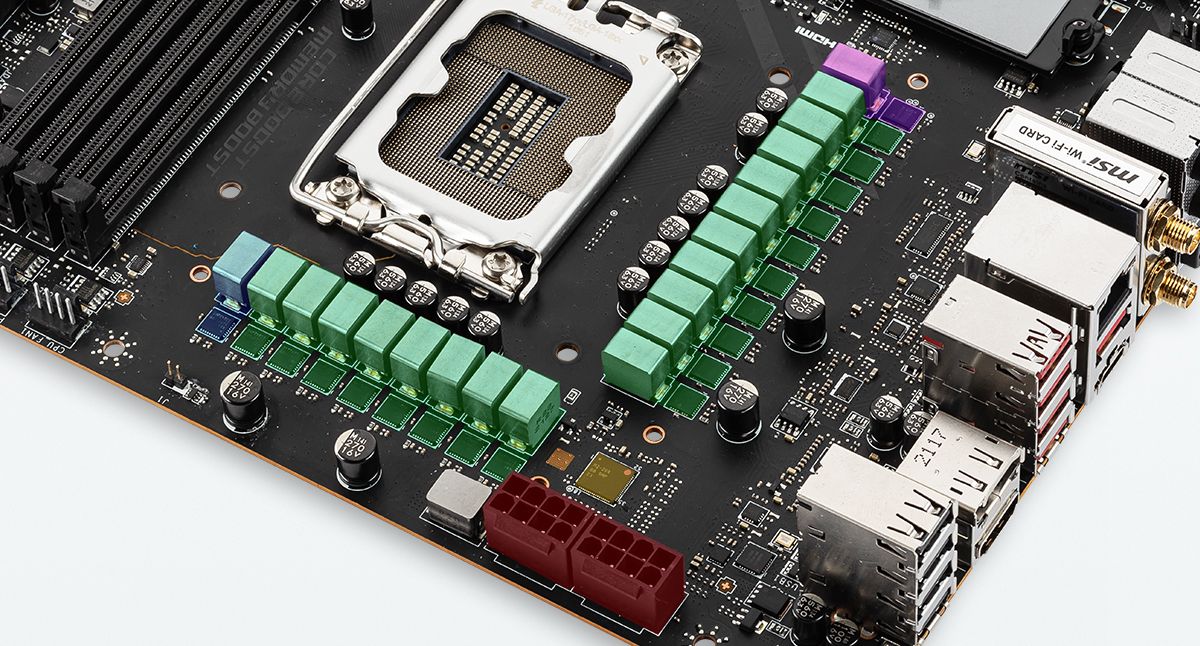

DIRECT 18 + 1 +1 PHASES POWER DESIGN

Unleash and sustain maximum performance with an aggressive VRM design built with a total of direct 18 +1+1 power phases. Combining 2x 8-pin power connectors and exclusive Core Boost technology, MPG series motherboard is ready to sustain heavy daily work.

2x 8Pin CPU Power connectors
18 Direct Power Phases / 75A Smart Power Stage
1 phase GT Power
1 phase AUX Power
Digital PWM IC

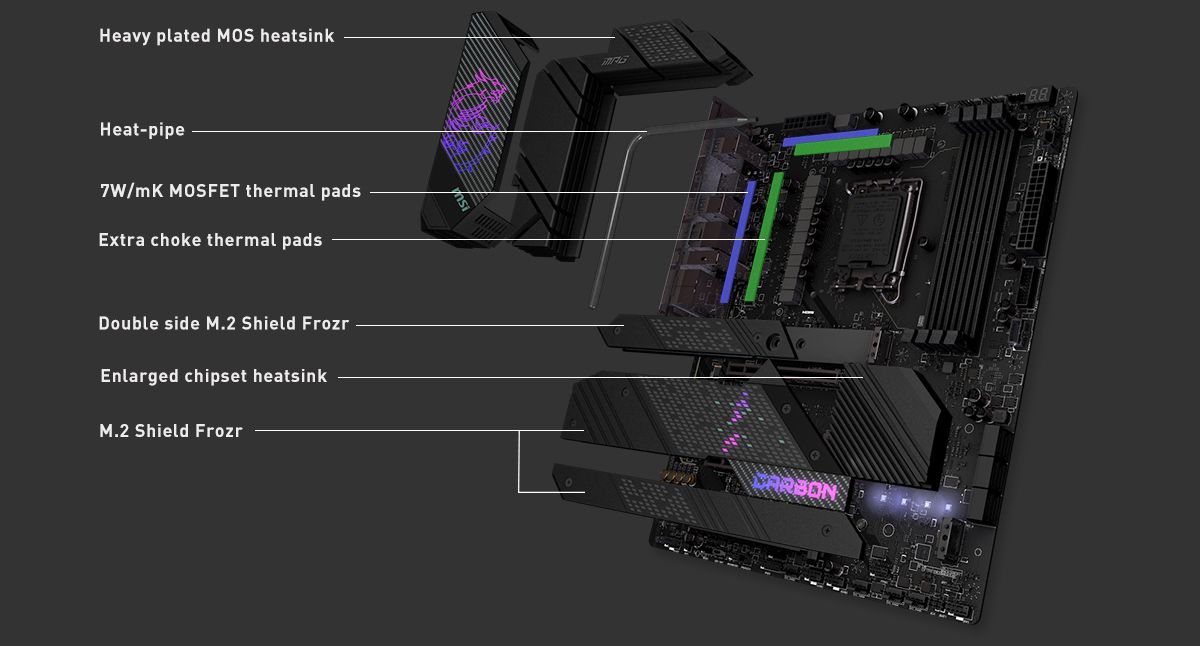

PREMIUM THERMAL SOLUTION FOR HIGHER PERFORMANCE

MPG Z690 CARBON WIFI features heavy plated VRM heatsink, Heat-pipe, 7W/mK MOSFET thermal pads, M.2 Shield Frozr to ensure the extreme performance with low temperature.

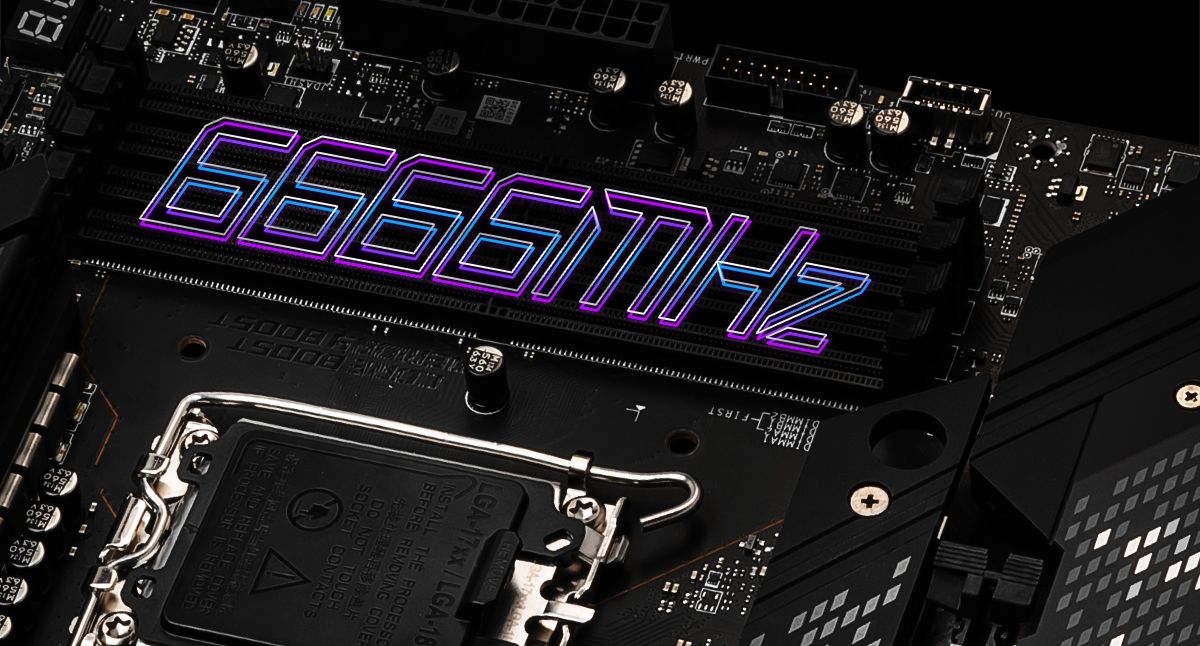

LATEST DDR5 MEMORY

A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MPG Z690 CARBON WIFI is ready to deliver the world class memory performance.

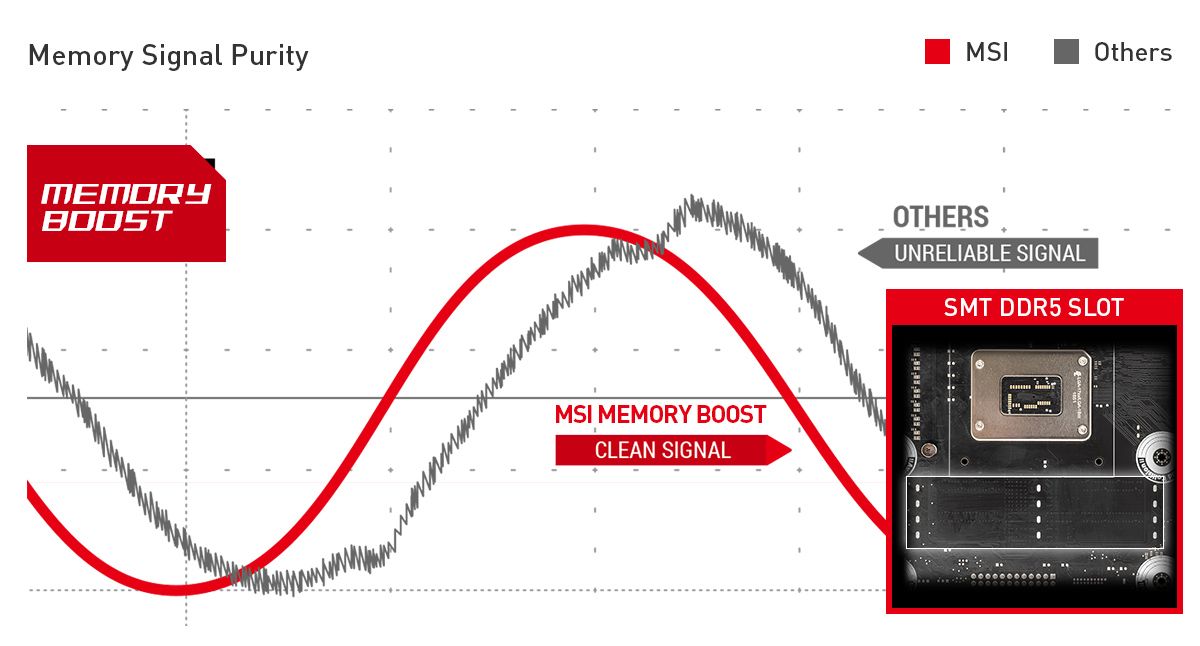

UNMATCHED MEMORY PERFORMANCE

MSI motherboards are crammed with features to fuel your systemâ€™s memory with more speed, higher overclockability and increased stability. Optimized traces and a fully isolated memory circuitry ensures perfect stability and performance, so you never have to worry about your system crashing.

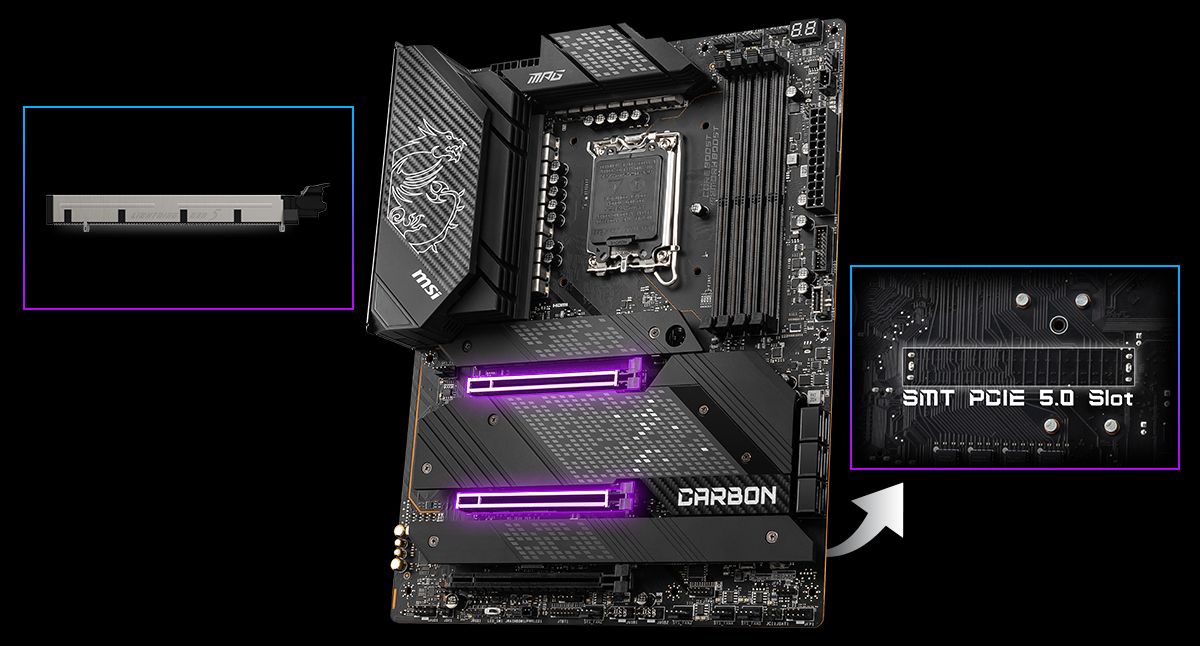

LIGHTNING GEN 5 PCI-E

MSI Lightning Gen 5 PCI-E represents the bandwidth of a x16 interface to 128GB/s, which is double of the speed of the previous generation. The advanced SMT(Surface Mount Technology) PCI-E slot diminishes the interference and electrical noise, fully supporting higher bandwidth and faster transfer speeds of PCI-E 5.0 signal.

WI-FI 6E & BLUETOOTH

Use your LAN port for online gaming while using Wi-Fi for other online applications. The Wi-Fi 6E adopts latest OFDMA, two-way MU-MIMO technologies and 6GHz band, delivering wireless transmission speeds up to 2.4Gbps.

MAXIMIUM DATA TRANSFER WITH 2.5G LAN

MPG Z690 CARBON WIFI features high-bandwidth and low-latency Ethernet networks for demanding gamers and power users. Onboard 2.5Gbps connectivity provides incredible data transfer speed faster than ever before. MSI LAN Manager automatically classifies and prioritizes the latency-sensitive for your applications, giving you the best online experience with low latency.

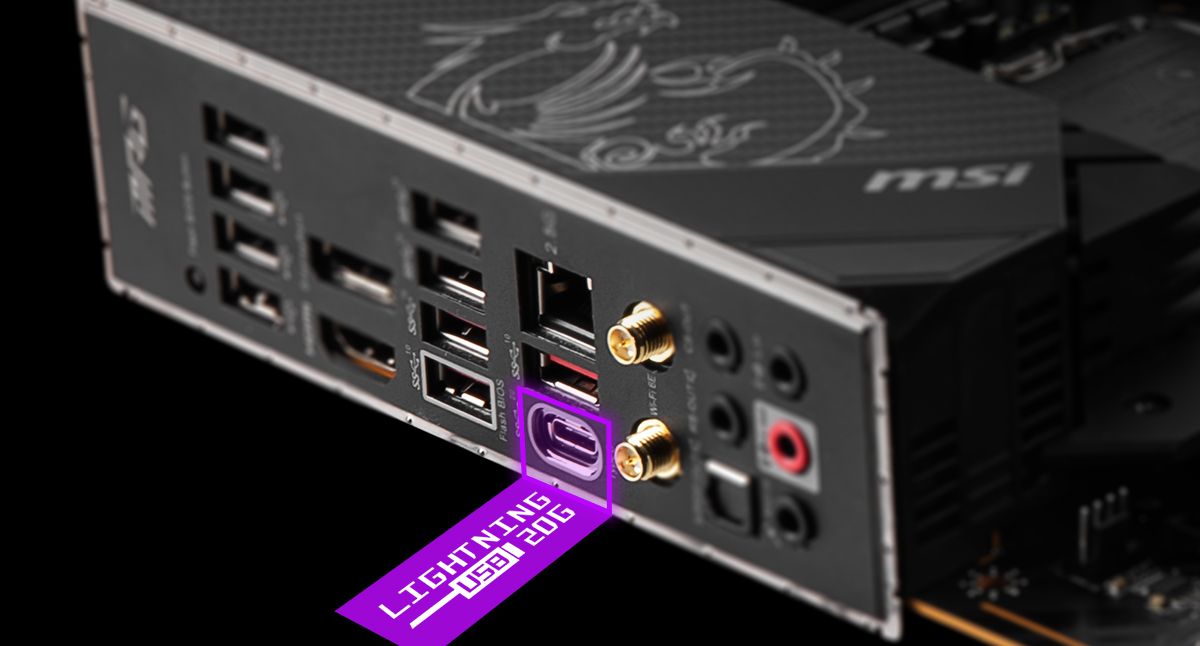

DOUBLE BANDWIDTH WITH LIGHTNING USB 3.2 GEN 2X2 20G

Using USB 3.2 devices has never been faster! Featuring the USB 3.2 Gen2x2 controller, MSI motherboards offer never before seen USB speeds up to 20Gb/s when connecting the Rear USB Type-C. The Lightning USB 20G connectors are covered with gold to ensure a better signal and performance.

AMPLIFY YOUR EXPERIENCE WITH AUDIO BOOST 5

Like a dedicated sound card, Audio Boost 5 offers a HD audio processor, dedicated amplifier and high quality audio capacitors all physically isolated from the rest of the motherboard circuitry to ensure the purest audio signal to locate enemies with pin-point accuracy. Powered by ALC 4080 audio processor, this motherboards supports 120dB SNR, 32-bit/384kHz and DSD Super Audio CD playback & recording.

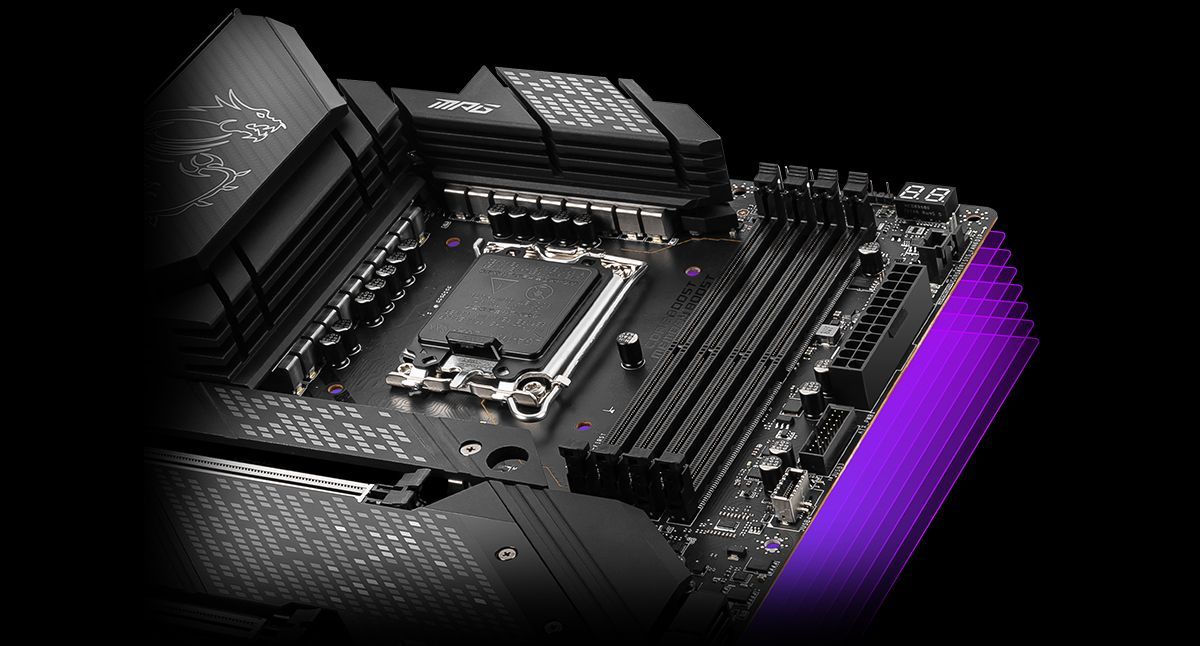

PCB Design

The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.

8 PCB layers
IT-170 Server-grade PCB material
2oz Thickened Copper

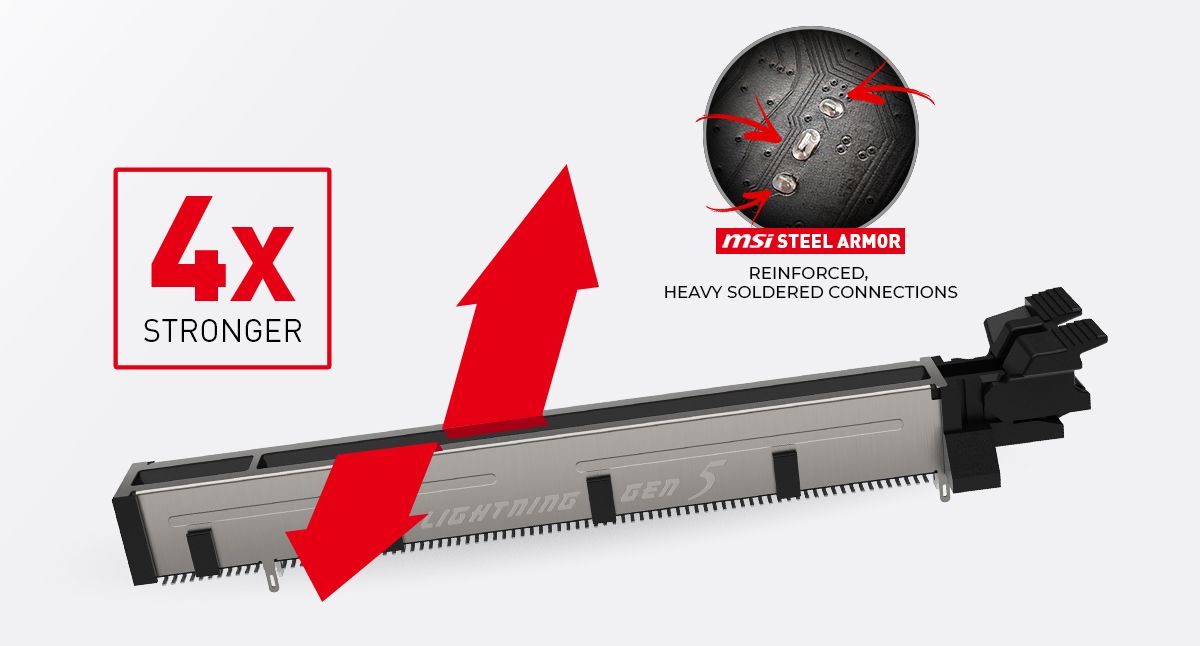

FORTIFY YOUR SYSTEM WITH PCI-E STEEL ARMOR

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.

Generelt
Modell	MPG Z690 CARBON WIFI
Produktserie	MSI
Garanti (måneder)	36
EAN	4719072886530

Hovedkort
Prosessorsokkel	LGA1700-sokkel
Merknader om kompatible prosessorer	Støtter 12.-generasjons Intel Core / Pentium Gold / Celeron
Brikkesett type	Intel Z690
Støttet RAM-teknologi	DDR5 SDRAM
Støttet RAM-integritetskontroll	Ikke-ECC
Støttet RAM (registrert eller bufret)	Ikke-bufret
RAM-spor	4 DIMM-spor
Produktformfaktor	ATX
Strømkontakter	24-pin hovedstrømforsyningskontakt, 2 x 8-pins ATX12 V-kontakter
Støttet RAM-hastighet	5000 MHz (O.C.), 6000 MHz (O.C.), 6133 MHz (O.C.), 4800 MHz, 6600 MHz (O.C.), 5333 MHz (O.C.), 6666 MHz (O.C.), 5600 MHz (O.C.), 6200 MHz (O.C.), 6400 MHz (O.C.), 5800 MHz (O.C.), 5400 MHz (O.C.), 5066 MHz (O.C.), 5200 MHz (O.C.)

Hovedkortegenskaper
BIOS-egenskaper	MSI ClickBIOS 5
Maskinvarefunksjoner	Intel Optane Memory Ready, MSI Core Boost, Debug LED, MSI Mystic Light, MSI Steel Armor, MSI Audio Boost 5, Anti-pop-funksjon, MSI Mystic Light Sync, Formontert I/O-skjerm, 18+1+1 Phase Power Design, AMD CrossFireX-teknologistøtte, M.2 Shield FROZR

Grensesnitt
USB / FireWire-portskonfigurasjon (aktiv)	1 x USB-C Gen 2x2 + 5 x USB 3.2 Gen 2 + 4 x USB 2.0
USB / FireWire-portskonfigurasjon (headere)	1 x USB-C Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0
RAID-funksjoner	Intel Smart Response Technology
Lagerporter	4 x SATA-600 (RAID), 2 x SATA-600, 5 x M.2
USB / FireWire	USB-C Gen 2x2, USB-C Gen2, USB 3.2 Gen 2, USB 3.2 Gen 1
Lager	Serial ATA-600, M.2-sokkel, Serial ATA-600 (RAID)

Videoutgang
Type	Grafikkadapter (CPU kreves)

Lydutgang
Audio Codec	Realtek ALC4080
Type	Lydkort
Lyd	Høydefinisjonslyd (8-kanals)
Tilpassede standarder	High Definition Audio

Nettverkstilknytning
Nettverkskontroller	Intel I225-V
Datakjedeprotokoll	2.5 Gigabit Ethernet, IEEE 802.11a, IEEE 802.11n, IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11b, Bluetooth 5.2, IEEE 802.11ac, IEEE 802.11g
Nettverk	802.11a/b/g/n/ac/ax, 2.5 Gigabit Ethernet, Bluetooth 5.2

Kabeldetaljer
Medfølgende kabler	2 x Seriell ATA-kabel

Diverse
Produkttype	Hovedkort
Inkludert tilbehør	1 til 2 RGB LED Y-skjøteledning, Rainbow RGB LED-forlengelseskabel, CORSAIR RGB LED-skjøteledning, Wi-Fi-antenne, 2 x M.2 klips, Rensebørste, USB-stasjon, Merkeskilt, Skrutrekker, MPG-klebeetiketter, Kabeletiketter
Tilpassede standarder	FISMA, DisplayPort 1.4, FIPS

RAM
Egenskaper	Dobbeltkanalsminnearkitektur, Intel Extreme Memory Profiles (XMP) 3.0

Utvidelsesspor
Utvidelsesspor	4 x 288-pins DIMM, 1 x PCIe 3.0 x16 (x4-modus), 2 x PCIe 5.0 x16 (x16/x0, x8/x8 modes), 1 x CPU

Lagergrensesnitt
Lagergrensesnitt	SATA-600 -kontakter: 4 x 7-pin seriell ATA - RAID 0 / RAID 1 / RAID 10, ASMedia ASM1061: SATA-600 -kontakter: 2 x 7-pin seriell ATA, SATA-600 / PCIe 3.0 -kontakter: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5, SATA-600 / PCIe 4.0 -kontakter: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5, PCIe 4.0 -kontakter: 3 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5

Grensesnitt medfølger
Grensesnitt	5 x USB 3.2 Gen 2, 1 x DisplayPort, 1 x USB-C Gen2x2, 1 x TOSLINK, 1 x LAN (2.5Gigabit Ethernet), 4 x USB 2.0, 1 x mikrofon - minijakk, 1 x HDMI, 1 x lydutlinje - minijakk, 1 x lydinnlinje - minijakk, 1 x lydutlinje (bakre) - minijakk, 1 x lydutlinje (senter/subbasshøyttaler) - minijakk

Interne overflater
Interne overflater	2 x USB 3.2 Gen 1 - header, 1 x USB-C Gen2 - header, 4 x USB 2.0 - header, 1 x lyd - header
