ASUS Prime X299-A, Socket-2066

Varenummer: 926077 / Produktnr.: PRIME X299-A

Flere bilder av

hexus approved testlogo Product test Product test

ASUS Prime X299-A, Socket-2066 motherboard

Intel LGA 2066 ATX motherboard with M.2 Heatsink, DDR4 4133MHz, Dual M.2, Intel VROC support, SATA 6Gb/s, Front-panel USB 3.1 Gen 2 connector

  • 5-Way Optimization: One-click, system-wide tuning, delivering optimized overclocks and intelligent cooling for CPU or GPU-intensive tasks.
  • Industry-leading cooling options: Comprehensive controls for fans and water pumps, via Fan Xpert 4 software or the acclaimed ASUS UEFI.
  • M.2 heatsink: Ultra-efficient heatsink reduces M.2 SSD temperatures by up to 20°C for unthrottled SSD storage speeds and enhanced reliability.
  • Aura Sync: Controllable onboard RGB lighting that’s easily synced with an ever-growing portfolio of Aura-capable hardware.




ASUS Prime X299-A is the ATX motherboard that's been expertly engineered for professional content creators and power users who work hard by day and play harder by night. This powerful, innovative board puts a friendly face on advanced enthusiast controls, enabling you to maximize performance, cooling and personalization with ease. So, if you live to create, to explore, to enjoy and to push the boundaries, look no further than Prime X299-A.


OC design- ASUS PRO Clock II technology

 A dedicated base-clock generator that extends CPU and memory overclocking margins.

This custom solution works in tandem with the TPU to enhance voltage and base-clock overclocking control,

providing the flexibility to extract every ounce of performance from Intel® Core™ X-series processors.

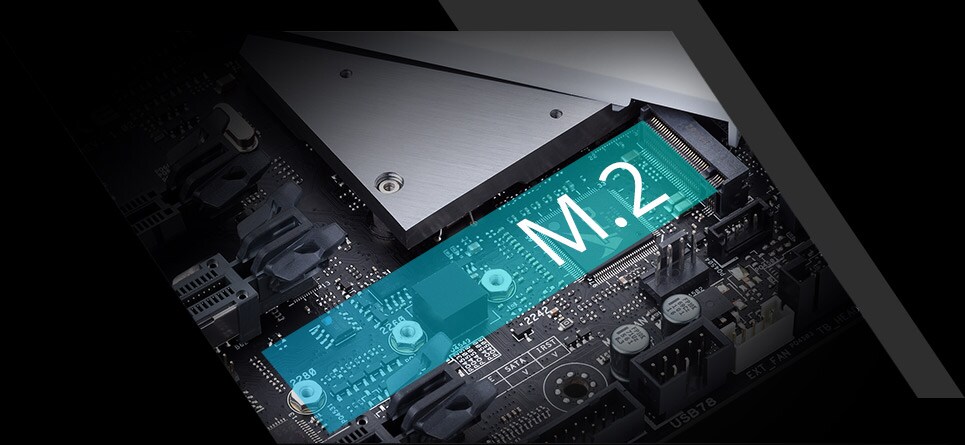

M.2

Speed up with onboard M.2 up to 32Gbps

With x4 PCI Express 3.0/2.0 bandwidth, M.2 supports up to 32Gbps data-transfer speeds. It is the perfect choice for an operating system or application drive, providing fast access to data.

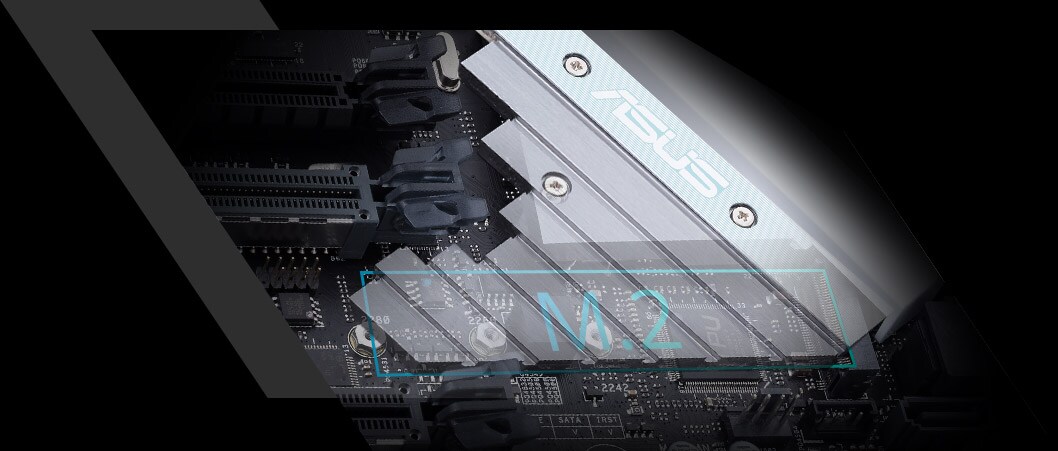

M.2 heatsink

Keep your SSD cooler

Prime X299-A has an ultra-efficient heatsink to reduce M.2 SSD temperatures by up to 20°C — and that means optimal storage performance and improved SSD longevity.

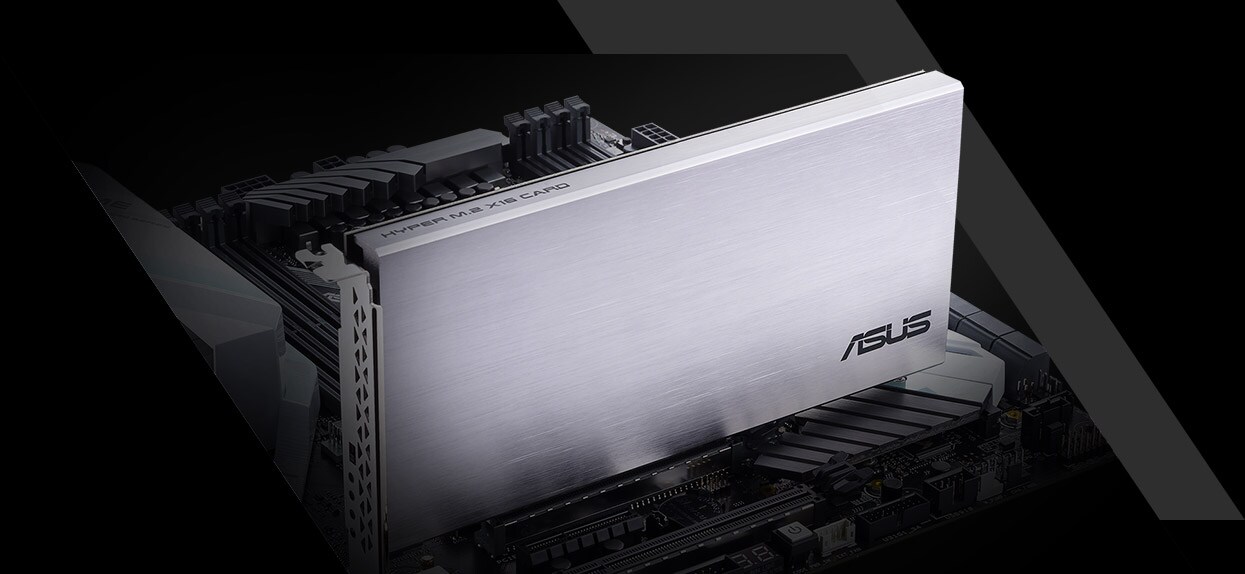

VROC

Upgrade your RAID

Unleash the Prime X299-A Virtual RAID on CPU (VROC) feature with the addition of an ASUS Hyper M.2 X16 Card*, which allows you to attach up to four PCIe® 3.0 x16 M.2 drives — for a total bandwidth of up to 128Gbps. With VROC, you can utilize CPU PCIe lanes to configure a bootable RAID array, eliminating traditional DMI bottlenecks, so that storage transfers aren't held back by other traffic.



*ASUS Hyper M.2 X16 Card available separately for purchase.

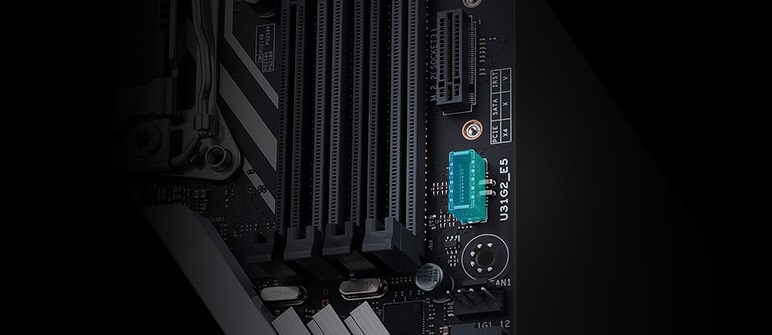

USB 3.1 Gen 2 front-panel connector

Future-proof connectivity

Running at PCIe 3.0 x 2 speeds the Prime X299-A's front panel USB 3.1 connector is ready for next-gen PC cases and devices.

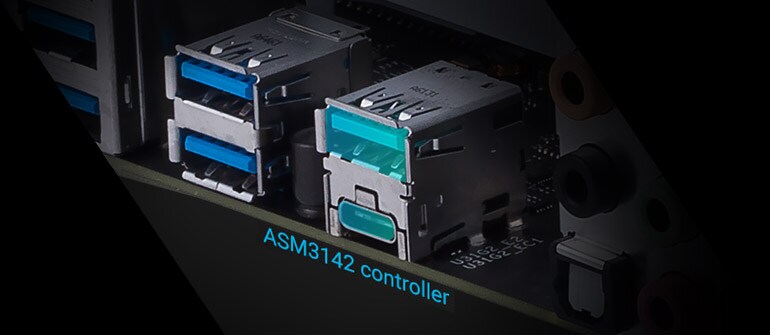

USB 3.1 Gen 2 Type-A & Type-C

Ultimate-speed 10Gbps with USB 3.1 onboard

With backward-compatible USB 3.1 Gen 2 Type-A™ and reversible USB 3.1 Gen 2 Type-C™ ports, you'll experience ultimate connection flexibility and blazing data-transfer speeds of up to 10Gbps.

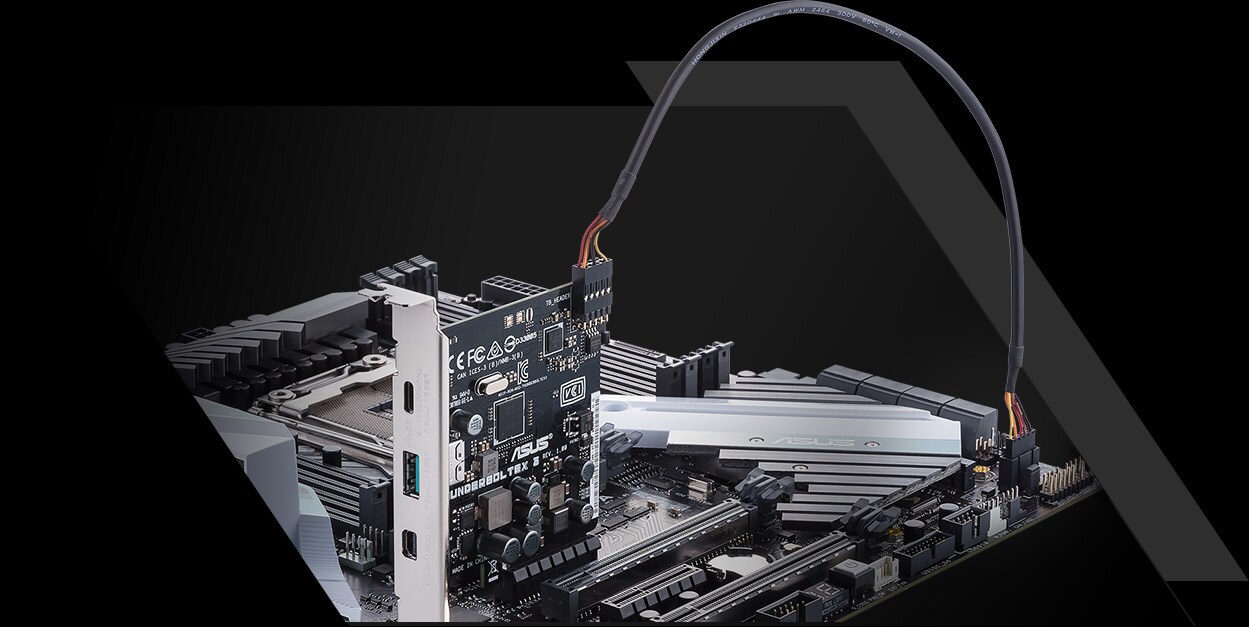

ThunderboltEX 3 Card

Experience blistering ThunderboltTM 3 speeds and any-way-up connectivity

Prime X299-A offers support for ThunderboltEX 3 card, an Intel-certified Thunderbolt™ 3 add-on card enables breathtaking bi-directional speeds of up to 40Gbps through a single cable — up to 4X faster than other PC data-transfer protocols. Beyond sheer bandwidth, Thunderbolt 3 supports daisy-chaining up to six devices; utilizes a Type-C reversible connector for compatibility with the latest USB 3.1 Gen 2 Type-C devices; and supports the USB Power Delivery specification for fast, high-power charging of up to 36W.

*ThunderboltEX 3 Card available separately for purchase.




Intel Ethernet

More throughput, less CPU usage and great gaming experiences

Prime X299-A features the latest Intel Ethernet. Intel's LAN has the advantage of reducing CPU overhead and offering exceptionally high TCP and UDP throughput for faster, smoother data transfer.


INtel core x-series logoIntel® Core™ X-series processors for LGA 2066 socket

Intel Core X-series processors (6-core and above): 4-channel (8-DIMM), 44/28 PCI Express 3.0/2.0 lanes.
Intel Core X-series processors (4 core): 2-channel (4-DIMM), 16 PCI Express 3.0/2.0 lanes.

Intel chipset x299 logoIntel X299 chipset

The Intel X299 chipset supports LGA 2066-socket Intel Core X-series processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, X299 provides a maximum 10 USB 3.1 Gen 1 ports, 8 SATA 6Gbps ports and 32Gbps M.2 support for faster data retrieval.

Generelt
Garanti (måneder) 36
Produkttype Hovedkort - ATX
Brikkesett type Intel X299 Express
Prosessorsokkel LGA2066 Socket
Maks antall prosessorer 1
Kompatible prosessorer Core X
Støttet RAM
Maks størrelse 128 GB
Teknologi DDR4
Bussklokke 2400 MHz, 2133 MHz, 2666 MHz, 3600 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.)
Støttet RAM-integritetskontroll Ikke-ECC
Registrert eller bufret Ikke-bufret
Lyd
Type HD-lyd (8-kanalers)
Audio Codec Realtek ALCS1220A
Tilpassede standarder DTS Connect, High Definition Audio, DTS Headphone:X
LAN
Nettverkskontroller Intel I219V
Nettverksgrensesnitt Gigabit Ethernet
Ekspansjon / Tilkoplinger
Utvidelsesspor 1 x CPU
8 x 288-pins DIMM
3 x PCIe 3.0 x16 (44-bane CPU (x16, x16/x16, x16/x16/x8 modus), 28-bane CPU (x16, x16/x8, x16/x8/x1 modus), 16-bare CPU (x16, x8/x8, x8/x8/x1 modus))
2 x PCIe 3.0 x4
1 x PCIe 3.0 x1
Lagergrensesnitt SATA-600 -kontakter: 8 x 7-pin seriell ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
SATA-600 / PCIe 3.0 -kontakter: 1 x M.2
PCIe 3.0 -kontakter: 1 x M.2
RAID-funksjoner Intel Smart Response Technology
Grensesnitt 1 x LAN (Gigabit Ethernet)
4 x USB 3.1 Gen 1
2 x USB 2.0
1 x TOSLINK
1 x USB 3.1 Gen 2
1 x lydutlinje - mini-jack
1 x mikrofon - mini-jack
1 x lydutlinje (senter/subbasshøyttaler) - mini-jack
1 x lydutlinje (bakre) - mini-jack
1 x lydinnlinje - mini-jack
1 x USB-C Gen2
Interne overflater 2 x USB 2.0 - header
4 x USB 3.1 Gen 1 - header
1 x USB 3.1 Gen 2 - header
1 x Thunderbolt - header
Strømkontakter 4-pin ATX12V-kontakt, 24-pin hovedstrømforsyningskontakt, 8-pin ATX12V-kontakt
Egenskaper
BIOS Type AMI
BIOS-egenskaper WfM 2.0 støttet, flerispråklig BIOS, USB BIOS Flashback, UEFI BIOS, ASUS EZ Flash 3, DMI 3,0 støttet, SMBIOS 3,0 støtte, ACPI 6,0 støtte
Sov/Våkne Wake on LAN (WOL), våkne ved PME
Maskinvarefunksjoner Jakk-retasking, MemOK!, ASUS Q-Design, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, ASUS Q-Connector, lydjakkpåvisningsteknologi, ASUS EPU (Energy Processing Unit), ASUS Q-Shield, NVIDIA 3-way SLI Technology Support, NVIDIA Quad SLI Technology Support, NVIDIA 2-way SLI Technology Support, ASUS TPU (TurboV Processing Unit), ASUS DIGI+ VRM, Intel Smart Response Technology, Q-Code, AMD CrossFireX-teknologistøtte, AMD Quad CrossFireX-teknologistøtte, AMD 3-veis CrossFireX-teknologistøtte, Onboard Button, Preboot eXecution Environment (PXE), anti-pop-funksjon, Turbo LAN, Dual Intelligent Processors 5, LANGuard, ASUS Crystal Sound 3, ASUS PRO Clock Technology, AURA RGB Lighting Control, ASUS Fan Xpert 4, Intel Turbo Boost Technology 3.0, 3D-skrivervennlig, Intel Optane Memory Ready, ASUS 5X Protection III, Intel VROC support, M.2-kjølelegeme
Diverse
Tilleggsutstyr inkludert I/O-bakplate, 1 x M.2 skrue, loddrett M.2-brakettsett
Medfølgende kabler 4 x Seriell ATA-kabel
1 x SLI-bro
Inkludert programvare Drivers & Utilities, ASUS AI Charger, ASUS AI Suite III, ASUS EZ Update, Antivirus (OEM-versjon), ASUS Turbo Core App
Bredde 30.5 cm
Dybde 24.4 cm
