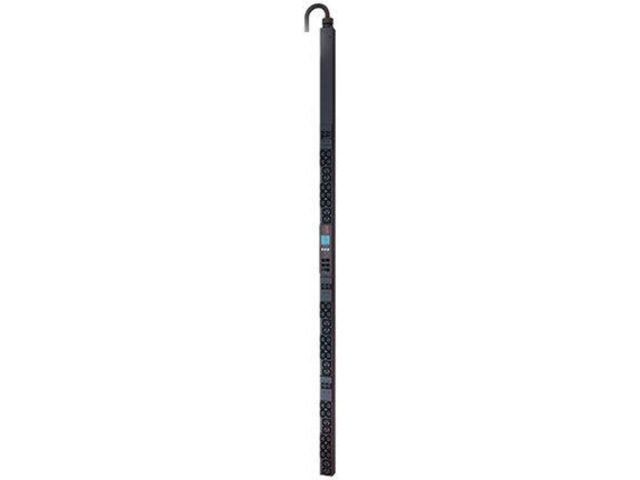

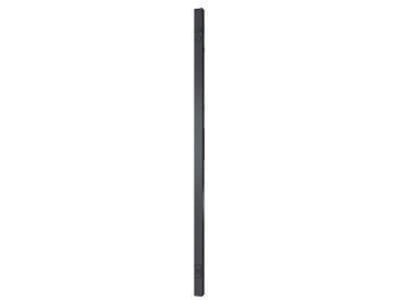

APC Metered Rack PDU AP8886

ZeroU, 22.0kW(32A) 17.3kW(24A), 230V, (30) C13 & (12) C19

Varenummer: 804530 / Produktnr.: AP8886

Flere bilder av APC Metered Rack PDU AP8886

19 990,-
Fri frakt
eller
med ditt lagrede kort
med gebyrfri faktura Se fakturavilkår
Bestillingsvare. Bestilles ved ordre. Leveringstid 2-3 uker.
Nyhet! Nå kan du betale med
Fri frakt over 1 000,-
Retningslinjer for produktanmeldelser

APC Metered Rack PDU AP8886

Availability

Remote Management Capabilities

Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.

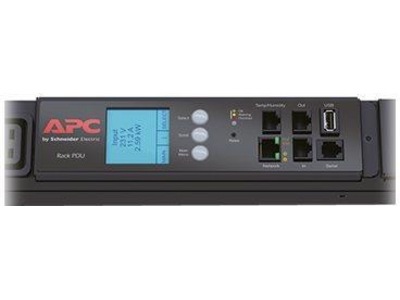

Local Current Monitoring Display

The aggregate current draw per rack PDU is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip. (Available on designated SKUs only)

Alarm Thresholds

Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems. (Note: Only available on units with the current monitoring capabilities. Please see SKU specifications for availability)

Load indicator LED

Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits.

Integrates with StruxureWare Data Center Expert

An IT-ready, scalable access monitoring system that collects, organizes, and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network

Flash Upgradeable

Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. (Note: Networked units only)

Generelt
Garanti (måneder) 12
Enhetstype Strømfordelerenhet - kan monteres i rack
Høyde (Stativenheter) 0U
Farge Svart
Strømenhet
Inngangsspenning AC 400 V
Inngangskabling 3-faset
Frekvens nødvendig 50/60 Hz
Inngangskontakter 1 x strøm IEC 60309 32A
Detaljer om strømutgangskoblinger 30 x strøm IEC 60320 C13
12 x strøm IEC 60320 C19
Utgangsspenning 230 V
Maks elektrisk strøm 32 A
Kretsbeskyttelse Automatisk kretsbryter
Nettverkstilknytning
Fjernstyringsgrensesnitt Ethernet, RS-232, USB
Protokoll for fjernstyrt administrasjon SNMP, Telnet, HTTP, SSH
Ekspansjon / Tilkoplinger
Grensesnitt 1 x forvaltning (Ethernet) - RJ-45
1 x seriell
1 x USB
Diverse
Medfølgende kabler Strømkabel 1.8 m
Seriell kabel - ekstern
Rack-monteringssett Inkludert
Egenskaper LCD display, strømmåler, overstrømbeskyttelse, overbelastningsbeskyttelse
Tilpassede standarder EN 61000-3-2, ICES-003, VDE, VCCI klasse A ITE, EN 61000-3-3, EN55024, EN55022 Class A, RoHS, FCC Part 15 A, REACH
Miljøparametere
Min. driftstemperatur 0 °C
Maks. Driftstemperatur 50 °C
Driftsfuktighet 5 - 95%
Størrelser og vekt
Bredde 5.6 cm
Dybde 5.1 cm
Høyde 182.9 cm
Vekt 8.72 kg
Størrelser og vekt (forsendelse)
Fraktbredde 17 cm
Fraktdybde 12 cm
Frakthøyde 205 cm
Fraktvekt 11.6 kg
Informasjon om kompatibilitet
Designet for P/N: AP5607, AP7950B, AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR3100G, AR3100TAA, AR3100W, AR3100X609, AR3100X610, AR3100X617, AR3103SP, AR3105, AR3105SP, AR3105W, AR3106SP, AR3107G, AR3107SP, AR3107X609, AR3107X610, AR3107X617, AR3130, AR3140G, AR3140W, AR3150SP, AR3150W, AR3150X609, AR3150X610, AR3150X617, AR3155, AR3155SP, AR3155W, AR3157SP, AR3157X609, AR3157X610, AR3157X617, AR3180G, AR3300G, AR3300SP, AR3300W, AR3300X609, AR3300X610, AR3300X617, AR3305, AR3305SP, AR3305W, AR3307SP, AR3307W, AR3307X609, AR3307X610, AR3307X617, AR3340, AR3340G, AR3340W, AR3347, AR3350SP, AR3350W, AR3350X609, AR3350X610, AR3350X617, AR3355, AR3355SP, AR3355W, AR3357SP, AR3357X609, AR3357X610, AR3357X617, AR3357X674, NBES0302, NBPD0160A, NBPD0171, NBPD0172, NBPD0180, NBWL0355A, NBWL0356A, SMC1000, SMC1000-2U, SMC1000-BR, SMC1000I, SMC1000I-2U, SMC1000I-2UC, SMC1000I-BR, SMC1000IC, SMC1500, SMC15002U-BR, SMC1500-BR, SMC1500I, SMC1500I-2U, SMC1500I2U-BR, SMC1500I-2UC, SMC1500I-BR, SMC1500IC, SMC2000I-2U, SMC3000RMI2U, SMT1500RM1U, SMT1500RM2U, SMT1500RMI1U, SMT2200RM2UC, SMT3000I2U-BR, SMT3000RM2UC, SMT3000RMT2U, SMX1000US, SMX1500RMNCUS, SMX1500RMUS, SMX2000LV, SMX2000LVNC, SMX2000LVNCUS, SMX2000LVUS, SMX2200HV, SMX2200HVNC, SMX2200R2HVNC, SMX2200RMHV2U, SMX2200RMLVUS, SMX3000HV, SMX3000HV-BR, SMX3000HVNC, SMX3000HVT, SMX3000HVTUS, SMX3000LV, SMX3000LV2U-BR, SMX3000LVNC, SMX3000LVNCUS, SMX3000LVUS, SMX3000RMHV2U, SMX3000RMHV2UNC, SMX3000RMLVUS, SMX3KRMLVNCUS, SMX750-NMC, SMX750US, SRT1000RMXLA, SRT1000RMXLA-NC, SRT1000RMXLI, SRT1000RMXLI-NC, SRT10KRMXLI, SRT10RMXLIX806, SRT1500RMXLA, SRT1500RMXLA-NC, SRT5KRMXLT, SRT5KRMXLT-IEC, SRT5KRMXLTUS, SRT5KRMXLW-HW, SRT5KRMXLW-TW, SRT6KRMXLI, SRT6KRMXLT, SRT6KRMXLT-IEC, SRT8KRMXLI, SRT8KRMXLT, SRT8KRMXLT-IEC, SUA3000RMXL3U-BR, SURT3000XLI-ET, SURT5000XLIX438, SYA12K16RMICH, SYA16K16RMICH, SYA8K16RMICH, SYAF16KRMICH
