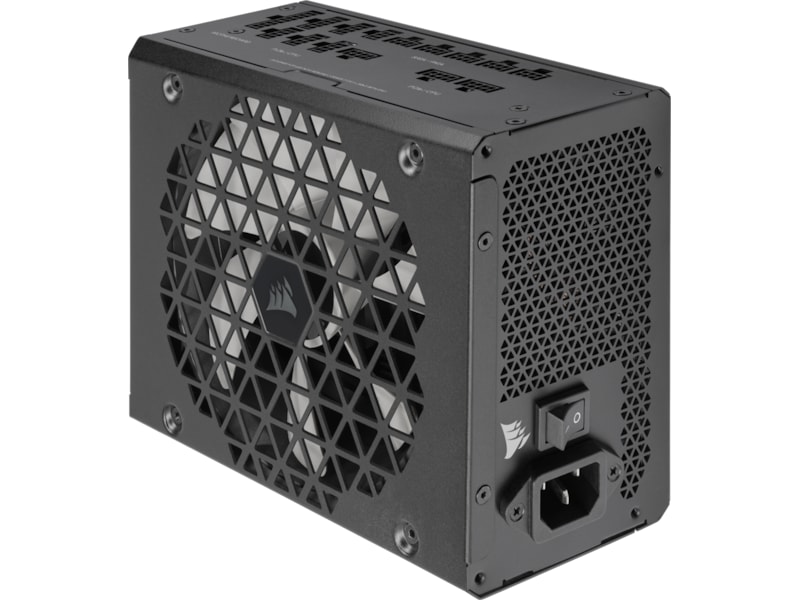

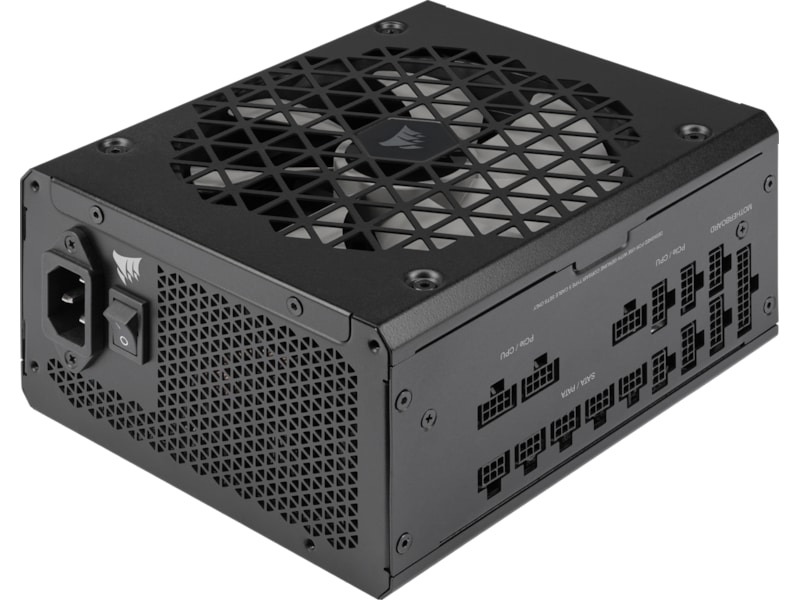

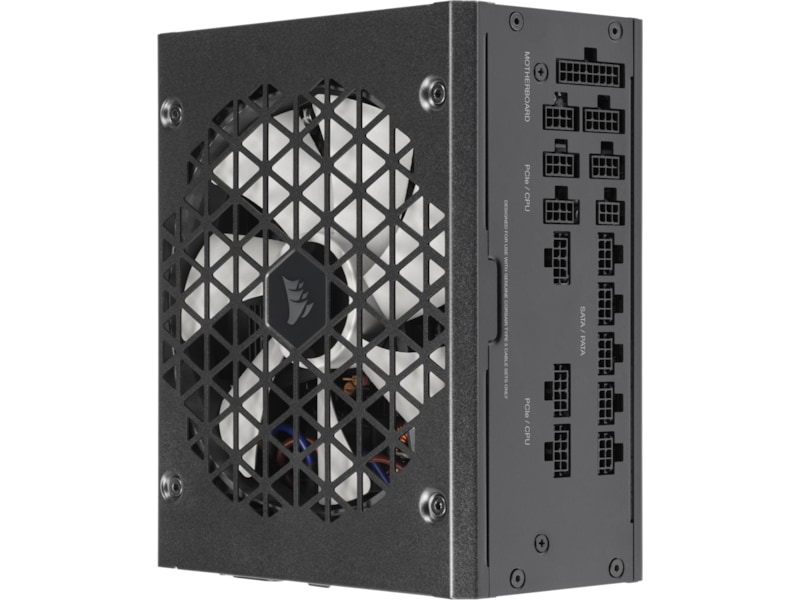

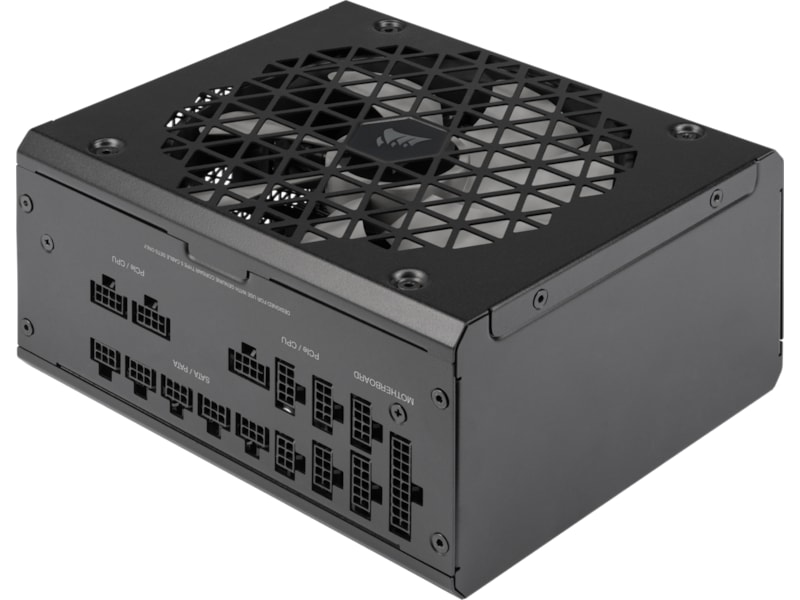

Corsair RM1000x Shift 1000W PSU

ATX 12V 2.53, 80 PLUS Gold, Modular

Varenummer: 1223224 / Produktnr.: CP-9020253-EU

Flere bilder av Corsair RM1000x Shift 1000W PSU

2 699,-
Fri frakt
Delbetal fra 205,- i mnd se priser
50+ stk. på lager.

Corsair RM850x Shift 850W PSU

Side connector interface for easier building

A PSU that's on your side
YouTube Video -

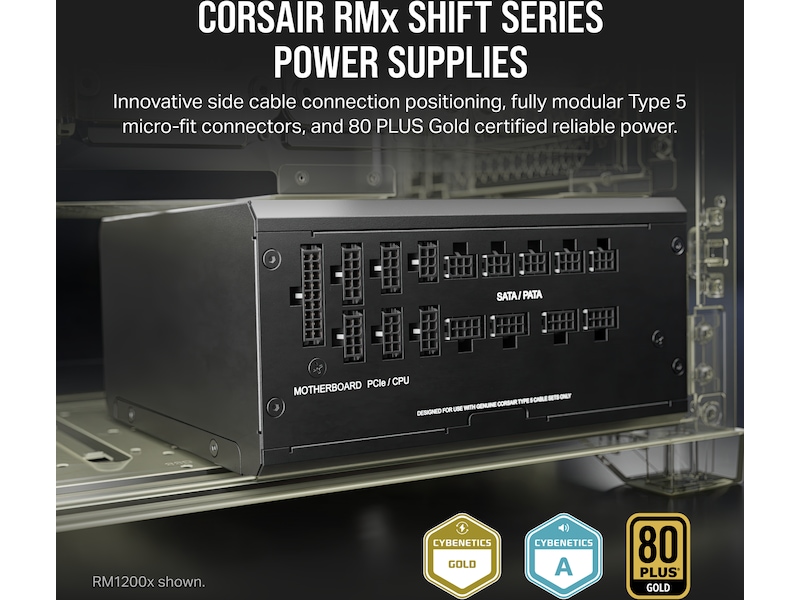

An innovative patent-pending side PSU panel with modular connections lets you comfortably plug cables into the side face of the PSU, making it easier to connect and manage your cables than ever before.


The ATX 3.0 standard demands a high level of reliability and power efficiency. While many CORSAIR PSUs meet these requirements, RMx SHIFT Series PSUs are formally certified for ATX 3.0 compliance.

PCIe 5.0 12VHPWR GPU cables included for use with modern graphics cards such as the NVIDIA® GeForce RTX™ 40 Series.

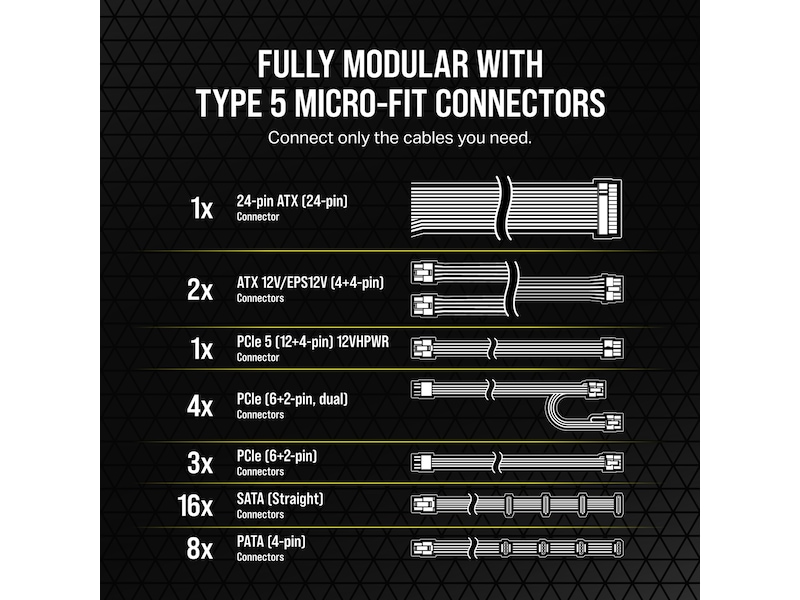

Fully modular, CORSAIR Type 5 Gen 1 micro-fit PSU cables, so you only connect the cables your system needs while taking up less space.

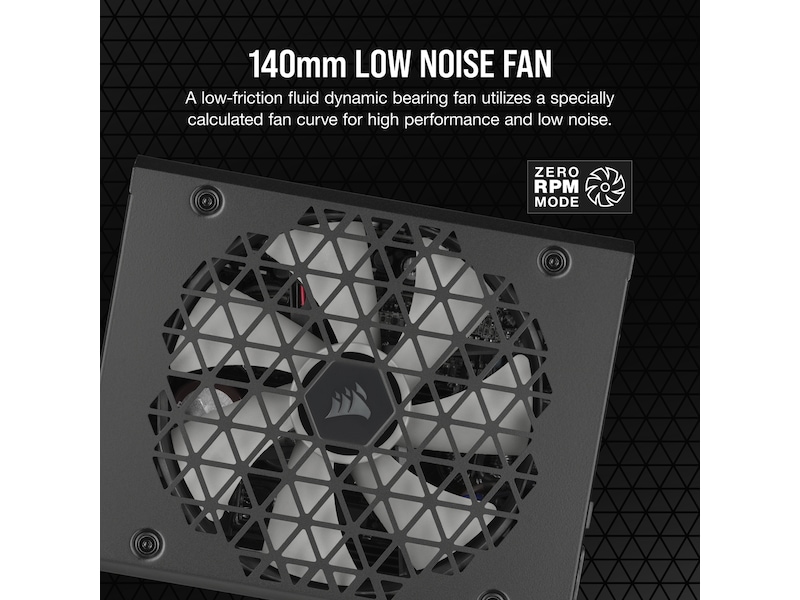

A low-friction, fluid dynamic bearing 140mm fan with Zero RPM mode support ensures your PSU runs cool while staying virtually silent when not under high load.

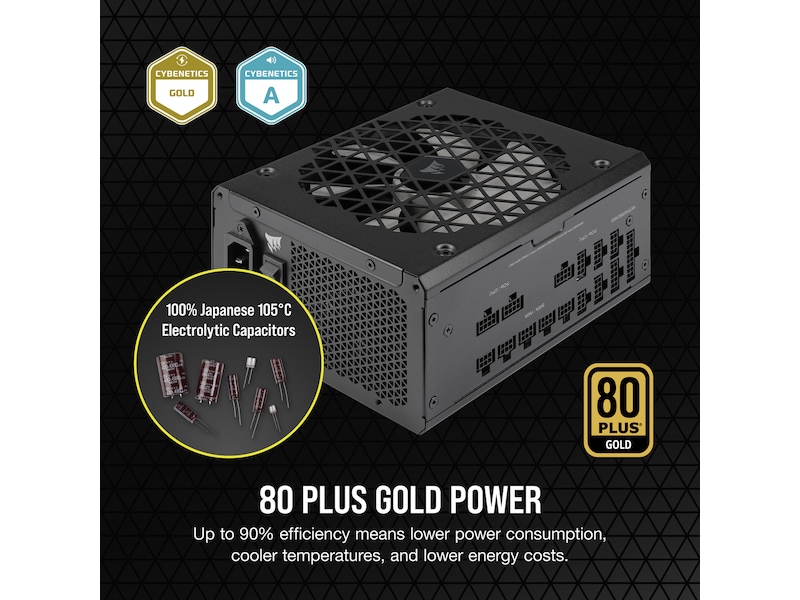

80 PLUS Gold certified

Steady power output at up to 90% efficiency, and Cybenetics-certified for lower power consumption, less noise, and cooler temperatures.


Built with 100% Industrial-grade, 105°C-rated Japanese electrolytic capacitors for unwavering power and reliability.


The PSU and cables will fit in any PC case that supports ATX PSU format and is at least 210mm (8.3") wide. The PSU must also be accessible from the side when mounted in the case.

Garanti (måneder) 120
Enhetstype Strømforsyning - intern
Spesifikasjonssamsvar ATX12V 3.0/ EPS12V 2.92
PSU-formfaktor ATX
EAN 840006653899
Inngangsspenning AC 100-240 V
Frekvens nødvendig 47 - 63 Hz
Detaljer om strømutgangskoblinger 1 x strøm 24-pins ATX med avtakbar 4-pinsdel
2 x strøm 8-pins EPS12V med avtakbar 4-pins ATX12V-del
1 x 12VHPWR
2 x 2 x 8-stifts PCI Express-strøm med avtakbar 2-stifts del
3 x 8-pins PCI Express-strøm med avtakbar 2-pins del
16 x 15-pins seriell ATA-strøm
8 x 4-pin intern strøm
Utgangsspenning +3.3, +5, +12 V
Effektkapasitet 1000 watt
Utgangsstrøm +3.3V - 20 A
+5V - 20 A
+12V - 83.3 A
+5VSB - 3 A
Effektivitet 90%
Modulkabelstyring Ja
80 PLUS-sertifisering 80 PLUS Gold
Tilleggsutstyr inkludert Kabelfestebånd, monteringsskrue
Medfølgende kabler AC-inngangskabel
Strøm 24-pins ATX-modulkabel 61 cm
16-stifts 12VHPWR strømkabel 65 cm
2 x 2x 8-stifts PCI Express-strøm med avtakbar 2-stifts delmodulkabel 75 cm
3 x 8-pins PCI Express-strøm med avtakbar 2-pins delmodulkabel 65 cm
2 x strøm 8-stifts EPS12V med avtakbar 4-stifts ATX12V seksjonsmodulær kabel 65 cm
4 x strøm 15-stifts SATA-kabel 80 cm
2 x 4-pins intern strømkabel 75 cm
MTBF 100,000 timer
Kjølesystem 140 mm-vifte
Egenskaper Overopphetingsbeskyttelse, overstrømbeskyttelse, overspenningsvern, overstrømsbeskyttelse, kortslutningsbeskyttelse, DC-DC-teknologi, Null RPM viftemodus, kjølevifte med væskedynamisk lager, helt modulær, LLC resonant omformerteknologi, Modern Standby-kompatibel, sidekoblinger
Tilpassede standarder EMC, RoHS, LVD, EN/IEC 63000:2018, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN IEC 62368-1:2020+A11:2020, EN IEC 61000-3-2:2019+A1:2021
Størrelser og vekt
Bredde 15 cm
Dybde 18 cm
Høyde 8.6 cm
Vekt 1.9 kg
Størrelser og vekt (forsendelse)
Fraktbredde 21.4 cm
Fraktdybde 30.2 cm
Frakthøyde 12.9 cm
Fraktvekt 3.8 kg
