ASUS ROG MAXIMUS Z690 EXTREME Hovedkort

LGA 1700, EATX, DDR5, 2 x PCIe 5.0 x16, 5x m.2, 9xUSB 3.2, WIFI 6E, Bluetooth

Varenummer: 1198175 / Produktnr.: ROG MAXIMUS Z690 EXTREME

Flere bilder av ASUS ROG MAXIMUS Z690 EXTREME Hovedkort

13 390,-
Fri frakt
Delbetal fra 572,- i mnd se priser
Ikke på lager. 4 stk. forventes sendingsklare 1.jun..2022 (usikker dato)

Medlem i Komplett Club? Få 200 poeng for hver godkjent produktanmeldelse. Les mer

Retningslinjer for produktanmeldelser
Recommended Toms Hardware Editors Choice

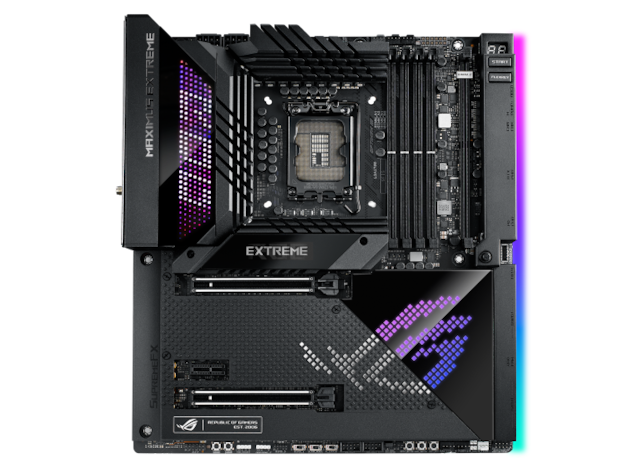

ASUS ROG MAXIMUS Z690 EXTREME, LGA1700 motherboard


ROG Maximus Z690Extreme
ROG Maximus Z690 Extreme represents the ultimate in enthusiast motherboard design for those who want the best possible option that excels at both air and liquid cooling for 12th Gen Intel® Core™ CPUs. And this platform is packed with the most features that you will find on a ROG Z690 motherboard, including heavy-duty 24+1 power stages, ASUS Enhanced Memory Profiles for top-notch DDR5 speeds, multiple PCIe 5.0 slots, and the exclusive AniMe Matrix™ LED Display.

INTELLIGENT MOTHERBOARD - Intelligent software solutions help ensure that your system performs at its best. The latest ASUS AI-powered enhancements span four pillars of performance, including overclocking, cooling, networking, and onboard audio, making advanced tweaks and optimization accessible to new recruits and savvy PC DIY veterans alike.

PERFORMANCE - ROG Maximus Z690 Extreme is the kind of motherboard that uses stock clock speeds merely as a reference point. With its piles of teamed power stages working alongside high-grade capacitors and chokes, you get performance that can take high-powered processors like a 12th Gen Intel Alder Lake CPU and leave all competition in the dust.

COOLING - ROG Maximus Z690 Extreme features unparalleled flexibility for either air or liquid cooling, thanks to a diverse array of heavyweight heat dissipation that keeps power delivery, M.2 drives and onboard components running cool under load, regardless of the available airflow.

CONNECTIVITY - ROG Maximus Z690 Extreme features the latest and greatest in connectivity, including the fastest GPU and storage device transfer speeds with PCIe® 5.0, the smoothest online gameplay with WiFi 6E and 10 Gb Ethernet, a host of rapid-fire file transfers with Thunderbolt™ 4.

OPTIMIZATION - ROG Maximus Z690 Extreme features best-in-class automatic and interactive performance optimization, including the TurboV Processing Unit, digitally controlled voltage regulators, Fan Xpert 4 and core-specific application assignment.

PERSONALIZATION - In addition to Aura Sync RGB customization, the ROG Maximus Z690 Extreme’s VRMs and I/O cover are graced with a new ASUS-exclusive design known as the AniMe Matrix Display, while a 2-inch OLED LiveDash can show live system information or user-customizable graphics.

• Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
• Intelligent Control: ASUS-exclusive tools including AI Overclocking, AI Cooling, AI Networking and Two-Way AI Noise-Cancelation for easy configuration
• Robust Power Solution: 24+1 teamed power stages rated for 105 A, ProCool II power connectors, MicroFine alloy chokes and premium metallic capacitors
• Optimized Thermal Design: Cold forged heatsink, enlarged VRM heatsinks plus integrated aluminum I/O cover, high-conductivity thermal pad, penta M.2 heatsinks and dual with embedded backplates and ROG Water-Cooling Zone
• High Performance Networking: Onboard Wi-Fi 6E, Marvell® AQtion 10Gb, Intel® 2.5Gb Ethernet, and ASUS LANGuard
• Fastest Gaming Connectivity: PCIe® 5.0, Gen 5 M.2 slots, USB 3.2 Gen 2x2 front-panel connector with Thunderbolt™ 4 support, rear triple USB Type-C® ports
• Industry Leading Immersive Audio: ROG SupremeFX ALC4082 codec with ESS® ES9018Q2C DAC for high-fidelity audio
• Unmatched Personalization: AniMe Matrix™ LED display, 2” LiveDash OLED, ASUS-exclusive Aura Sync RGB lighting, including one RGB header and three addressable Gen 2 RGB headers
• DIY Friendly Design: Pre-mounted I/O shield, PCIe slot Q-release, V-Latch switch, BIOS FlashBack™, Q-Code, FlexKey, Q-Connector, M.2 Q-Latch, SafeSlot, ROG Glavis and ROG graphics card holder
• Renowned Software: Bundled 1-year AIDA64 Extreme subscription and intuitive UEFI BIOS dashboard with integrated MemTest86

Generelt
Garanti (måneder) 36
Produkttype Hovedkort - utvidet ATX (E-ATX)
Brikkesett type Intel Z690
Prosessorsokkel LGA1700-sokkel
Maks antall prosessorer 1
Kompatible prosessorer (støtter 12.-generasjons Intel Core / Pentium Gold / Celeron)
EAN 4711081462743
Støttet RAM
Maks størrelse 128 GB
Teknologi DDR5
Bussklokke 5000 MHz (O.C.), 5200 MHz (O.C.), 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.)
Støttet RAM-integritetskontroll Ikke-ECC
Registrert eller bufret Ikke-bufret
Egenskaper Dobbeltkanalsminnearkitektur
Lyd
Type HD-lyd (8-kanalers)
Audio Codec SupremeFX (ALC4082)
Tilpassede standarder High Definition Audio, DTS Sound Unbound
LAN
Nettverksgrensesnitt 10 Gigabit Ethernet, 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2
Ekspansjon / Tilkoplinger
Utvidelsesspor 1 x CPU
4 x 288-pins DIMM
2 x PCIe 5.0 x16 (dobbelt x8-modus; enkeltkort: x16-modus)
1 x PCIe 3.0 x1
Lagergrensesnitt SATA-600 -kontakter: 4 x 7-pin seriell ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
PCIe 4.0 -kontakter: 3 x M.2 - RAID 0 / RAID 1 / RAID 5
SATA-600 / PCIe 4.0 -kontakter: 1 x M.2 - RAID 0 / RAID 1 / RAID 5
SATA-600 -kontakter: 2 x 7-pin seriell ATA
PCIe 5.0 -kontakter: 1 x M.2 - RAID 0 / RAID 1 / RAID 5
RAID-funksjoner Intel Rapid Storage Technology
Grensesnitt 1 x Thunderbolt 4/USB4
1 x HDMI
7 x USB 3.2 Gen 2
1 x USB-C Gen2
1 x lydinnlinje - minijakk
1 x lydutlinje (senter/subbasshøyttaler) - minijakk
1 x lydutlinje (bakre) - minijakk
1 x lydutlinje - minijakk
1 x mikrofon - minijakk
1 x TOSLINK
1 x LAN (10Gigabit Ethernet)
1 x USB-C Gen2x2
1 x LAN (2.5Gigabit Ethernet)
Interne overflater 4 x USB 2.0 - header
1 x USB-C Gen 2x2 - header
4 x USB 3.2 Gen 1 - header
1 x Thunderbolt 4 - header
1 x lyd - header
Strømkontakter 24-pin hovedstrømforsyningskontakt, 6-pins ATX12V-kontakt, 2 x 8-pins ATX12 V-kontakter
Egenskaper
BIOS Type AMI
BIOS-egenskaper BIOS FlashBack, UEFI BIOS, Dual BIOS, ASUS EZ Flash 3, MemTest86
Sov/Våkne Wake on LAN (WOL), våkne ved PME
Maskinvarefunksjoner Jakk-retasking, ASUS Q-Design, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, ASUS Extreme Engine Digi+, CrashFree BIOS 3, ASUS Q-Connector, lydjakkpåvisningsteknologi, ASUS EPU (Energy Processing Unit), Intel Turbo Boost Technology 2.0, ASUS TPU (TurboV Processing Unit), ASUS DIGI+ VRM, Q-Code, ASUS DIGI+ Power Control, Preboot eXecution Environment (PXE), Clear CMOS Button, LANGuard, ASUS Fan Xpert 4, ASUS SafeSlot, Sonic Radar III, Sonic Studio III, M.2-kjølelegeme, formontert I/O-skjerm, Intel Turbo Boost Max Technology 3.0, ASUS Aura Sync, Armoury Crate, ASUS OptiMem III, DIY Friendly Design, FlexKey-knapp, ASUS ProCool II, GameFirst VI, ASUS HYDRANODE, M.2 Q-Latch, SafeDIMM, ESS SABRE9018Q2C DAC/AMP, ReTry-knapp, Startknapp, PCIe Slot Q-Release, CPU Socket-hevarmbeskytter, Quick Charge 4+, ASUS 2" LiveDash OLED, Sikker fot-knapp, AniMe Matrix LED-display, 24+1 strømtrinn
Diverse
Tilleggsutstyr inkludert 1 x M.2 skrue, ROG viftemerker, forlengelseskabel for RGB (RGBW) LED-stripe, ROG VGA-holder, ROG-takkekort, ROG DIMM.2-ekspansjonskort med kjøle, skrutrekker, termopute for M.2 SSD, Q-Connector, ROG-nøkkelkjede, ASUS Wi-Fi bevegende antenne, 1 til 3 ARGB LED-splitterkabel, ROG Fan Controller, ROG CLAVIS DAC, 1 til 2 ARGB LED-splitterkabel, 2 x 1 til 4 viftesplitterkabel, Pakke med 3 i 1 termistorkabler, ROG True Voltician
Medfølgende kabler 7 x Seriell ATA-kabel
Inkludert programvare Drivers & Utilities, ROG CPU-Z, ASUS AI Suite III, ASUS Turbo App, WinRAR, Sonic Studio Virtual Mixer, BullGuard Internet Security (1-årslisens), ROG GameFirst VI, ASUS AURA Creator, AIDA64 Extreme (1-års lisens), Sonic Suite Companion, MyAsus, ROG True Voltician
Bredde 30.5 cm
Dybde 27.7 cm
