ICY BOX PCIe extension card

for 2x M.2 SSDs incl. heat sinks

Varenummer: 1133800 / Produktnr.: IB-PCI215M2-HSL

Flere bilder av ICY BOX PCIe extension card

447,-
+ frakt fra 39,-
eller
med ditt lagrede kort
med gebyrfri faktura Se fakturavilkår
Ikke på lager. 23 stk. forventes sendingsklare 4.okt..2020 (usikker dato)
Betal med
Fri frakt over 1000 kr
Retningslinjer for produktanmeldelser

ICY BOX
IB-PCI215M2-HSL

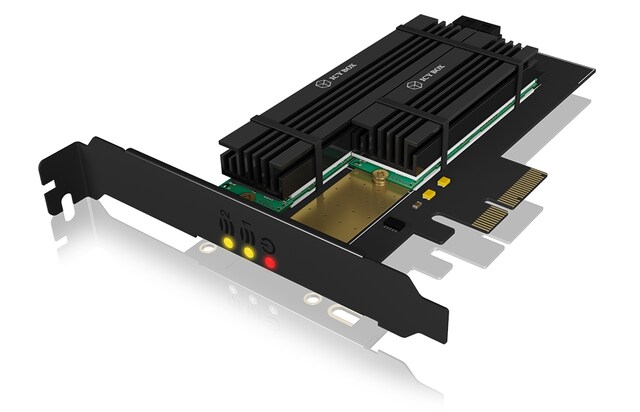

PCIe extension card for 2x M.2 SSDs incl. heat sinks


Features

  • 1x M.2 B-Key for M.2 SATA (AHCI) SSD with B-Key or B+M-Key
  • SATA III data transfer rate up to 6 Gbit/s
  • 1x M.2 M-Key for M.2 PCIe (NVMe) SSD
  • PCIe 3.0 x4 data transfer rate up to 32 Gbit/s
  • Optional profile bracket sizes 80 and 120 mm
  • Supports M.2 SSD sizes of 22x30/42/60/80/110 mm
  • Including heat sinks for each one 2280 and 22110 M.2 SSD

Storage extension à la carte

The PCIe expansion card offer the possibility to easily add all possible types of M.2 SSDs. Whether via SATA or PCIe, AHCI or NVMe. With a free PCIe slot there are no more limits.

M.2 in all shapes and colours

The IB-PCI215M2-HSL allows you to upgrade your system with up to two SSDs of your choice. Whether particularly large or particularly powerful, every M.2 SSD gets a place here and is used in the best possible way.

Many possibilities thanks to high flexibility

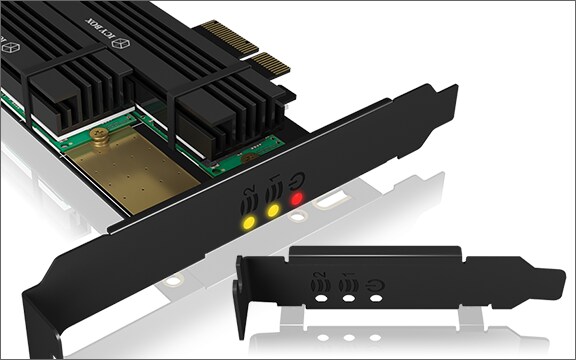

You want to integrate one or two M.2 SSDs into your system, but you have unusual requirements? No problem! Thanks to the modular slot brackets in half and full profile, the IB-PCI215M2-HSL can be used everywhere. Small and large systems can only benefit here.

Keeps a cool head at all times

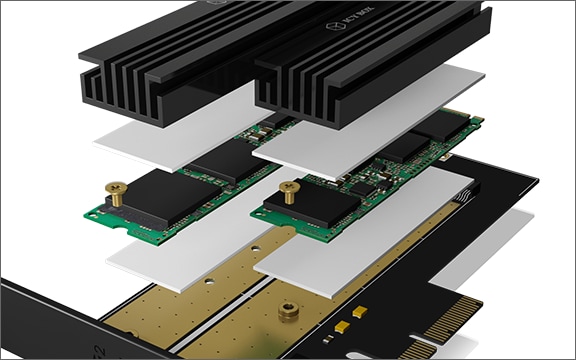

We have also thought about cooling. Thanks to the passive heat sinks supplied, even the fastest memory cards keep a cool head. One heat sink each for 80 mm and one for 110 mm long, as well as adaptable heat conduction pads for single-sided and double-sided memory modules are included in our package.

Generelt
Garanti (måneder) 24
Enhetstype Grensesnittsadapter - plugginnkort
Harddiskformfaktorkompatibilitet M.2
Vertsbuss PCIe 3.0 x4
Produktmateriale Plastikk, metall
Farge Svart, antrasitt
Diskkontroller
Grensesnitt M.2 Card
Dataoverføringshastighet 32 Gbit
Støttede enheter Faststoffstasjon
Maks. antall lagringsenheter 2
Ekspansjon / Tilkoplinger
Grensesnitt 1 x M.2 Card - M.2 B+M Key (intern)
1 x M.2 Card - M.2 B Key (intern)
Koblinger 1 x PCIe 3.0 x4
Diverse
Tilleggsutstyr inkludert Skruer, halvhøydebøyle, helprofils brakett, kjøleelement, 3 x heat conducting pads (70 mm), 3 x heat conducting pads (100 mm), 4 x silicone rings
Egenskaper LED-indikator, passiv kjøling
Størrelser og vekt
Bredde 28 cm
Dybde 6.8 cm
Høyde 0.5 cm
Vekt 32 g
Størrelser og vekt (forsendelse)
Fraktbredde 15.5 cm
Fraktdybde 20.5 cm
Frakthøyde 2.8 cm
Fraktvekt 253 g
