LG 98" 4K Public Display 98UH5E-B

Varenummer: 1129799 / Produktnr.: 98UH5E-B

Flere bilder av


UH5E Series

Key Features

  • Brightness(Typ.) : 500 cd/m²
  • Bezel : 14.9 mm (Even, Off-Bezel)
  • Depth : 69.4 mm (without Handle)
  • Interface : HDMI(3)/DP/DVI-D/USB 2.0(2)/ RS232C/ RJ45/ Audio/ IR/ External Speaker Out

Vibrant Colors and Powerful Performance Bring Content

With superb picture quality and cutting-edge intelligence, the UH5E series enlivens colors without the aid of peripherals. Its quality and brightness are enough to capture the attention of passersby. Moreover, its convenient advanced usability allows users to effortlessly control and manage the display.

Superior Picture Quality

True Color, Immersive View

The UH5E series is large enough to display content and get undivided attention from various viewers. LG IPS panel features a wide range of angle to deliver clear content regardless of the position of viewers. Each pixel in the IPS panel reproduces image colors true-to-life, without distortion.

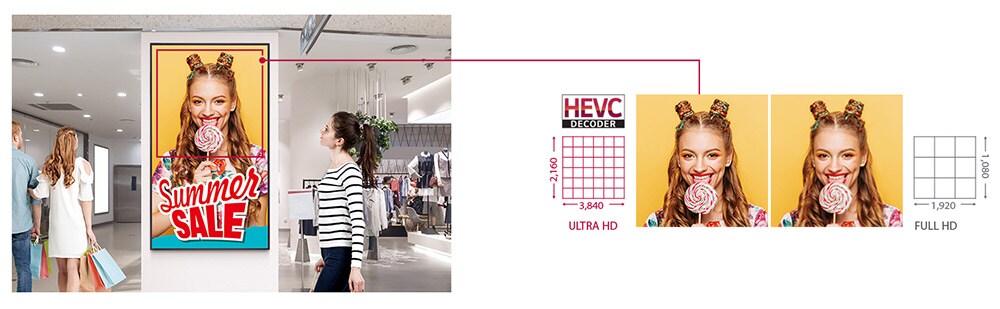

Vivid Color Details with Ultra HD

The UHD resolution allows users to view details even when zooming in on the display, with four times higher definition than FHD. The UH5E ensures stable UHD video playback with HEVC(High Efficiency Video Coding).

Powerful webOS Smart Signage Platform

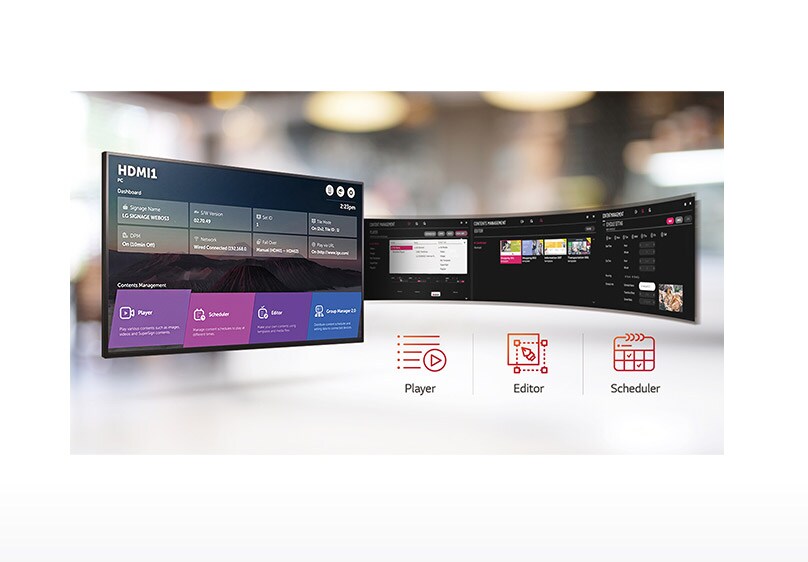

Easy Content Management

The embedded CMS(Content Management System)allows you to create and edit content using internal/external sources as well as set playlists to play at the desired schedule without the need for a separate PC. Thanks to the intuitive GUI and a menu structure based on usage scenarios, content management has been made much easier

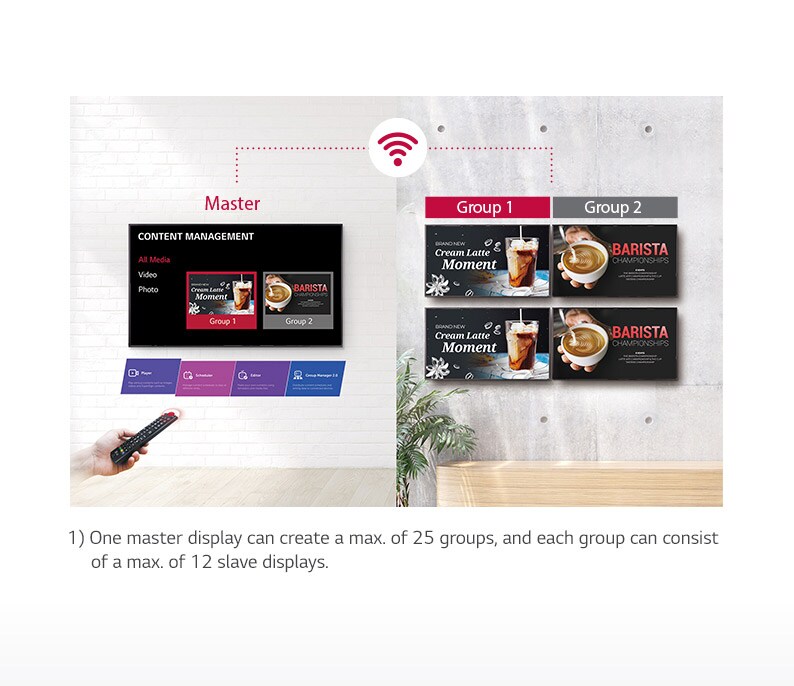

Simple Group Management

The embedded Group Manager makes a master display work as a server and manage other displays1)connected on the same network. This way you can group and control multiple displays in your place of business and distribute playlists to them all at once, using input devices such as a remote control.

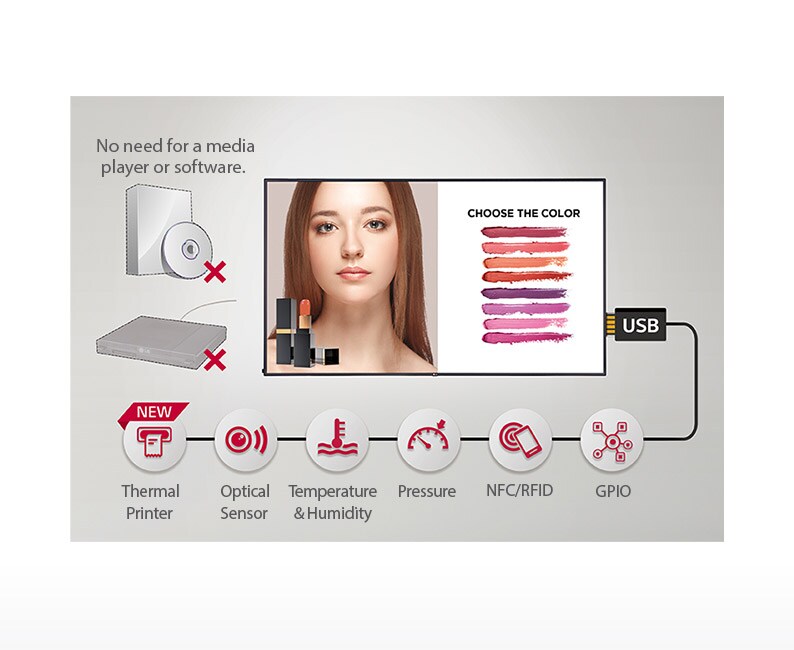

Various Sensor Applications

LG webOS smart signage platform easily supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc. via USB plug-in. The overall cost of ownership is reduced as there’s no need to purchase additional software or media players for creating value-added solutions.

  • Multi Screen Mode
  • Real-Time Monitoring & Control
  • Real-time Care Service
  • Wireless Solution( Content Sharing and Real-time Promotion)
  • Wireless Access Point
  • Compatibility with AV Control System
  • Compatibility with Video Conference System
  • Slim and Tidy in Appearance
  • Detachable Logo & Built-in Speaker
Garanti (måneder) 36
Produkttype Flat skjerm med LED-bakgrunnsbelysning
Strømforbruk ved drift 560 watt
Diagonalklasse 98"
Kommersiell bruk Ja - digital signering
Serier UH5E Series
Plattform webOS
TV-kanalvelger Ingen kanalvelger
TV-kanalvelgerforekomst Nei
Sensorer Lyssensor, Infrared (IR)
Videogrensesnitt HDMI
HDMI-portantall 3 porter
PC-grensesnitt DVI, DisplayPort
Moduser Portrettmodus, landskapsmodus
Design Space-efficient Design
Fysiske mål Panel
Bredde 219.18 cm
Dybde 6.94 cm
Høyde 124.68 cm
Vekt 88 kg
LCD-skjermteknologi IPS
Oppløsning 3840 x 2160
Skjermformat 4K UHD (2160p)
Bildets sideforhold 16:9
LCD-bakgrunnsbelysningsteknologi LED-bakgrunnsbelysning
Lysstyrke 500 cd/m²
Kommersielle funksjoner Avtakbar logo, Crestron Connected Certified, kompatibel med SuperSign CMS, kompatibel med SuperSign Control+, Embedded Content Management, SuperSign Control compatible, Embedded Group Management
Egenskaper BEACON technology, bilde i bilde (ingen kanalvelger), bilde etter bilde (ingen kanalvelger), trådløst tilgangspunkt
Stativer og monteringer
Feste for flatpanel (VESA) 800 x 400 mm
USB-port Ja
USB-portantall 2
Type Standard fjernkontroll
Andre egenskaper Innebygd høyttaler
Nettverk & internettmultimediaer
Funksjonalitet Internettvideoavspilling
Konnektivitet Wi-Fi, LAN
Koble og dele ConnectShare
Kontakttype 3 x HDMI-inngang
2 x USB 2.0
Infrarød inngang
Internet of Things (IoT)
Kompatibel med Internet of Things (IoT) Ja
Plattform Crestron
Kommunikasjonsteknologi Bluetooth Low Energy (LE)
Medfølgende kabler DisplayPort-kabel - 1.8 m
Seriell adapter
Tilpassede standarder FCC Klasse A godkjent, UL 60950-1, IEC 60950-1, EN 60950-1, KC, CE/EMC
Strømenhet Strømforsyning
Nominell spenning AC 120/230 V (50/60 Hz)
Funksjoner Smart energisparing
Størrelser og vekt (forsendelse)
Bredde (forsendelse) 234.2 cm
Dybde (forsendelse) 40.2 cm
Høyde (forsendelse) 138.6 cm
Vekt (forsendelse) 123 kg
Min. driftstemperatur 0 °C
Maks. Driftstemperatur 40 °C
Driftsfuktighet 10 - 80%
