Gigabyte B450 I AORUS PRO WIFI, Socket-A

Hovedkort, mITX, B450, DDR4, 1xPCIe-x16, M.2, USB 3.1

Varenummer: 1093044 / Produktnr.: B450 I AORUS PRO WIFI

Flere bilder av Gigabyte B450 I AORUS PRO WIFI, Socket-A

1 469,-
Fri frakt
60 dagers åpent kjøp og gratis retur
Fri frakt over 1 000,-
9 stk. på lager. (1-2 dager leveringstid)
Retningslinjer for produktanmeldelser

Gigabyte B450 I AORUS PRO WIFI

AMD B450 AORUS Motherboard with 4+2 Phase IR Digital PWM, Intel® Dual Band 802.11ac Wave2 WIFI, M.2 with Thermal Guard, ALC1220-VB Audio, Intel® GbE LAN with cFosSpeed, CEC 2019 ready

  • Supports AMD 2nd Generation Ryzen™/ Ryzen™ with Radeon™ Vega Graphics/ 1st Generation Ryzen™ Processors
  • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs
  • Intel® Dual Band 802.11ac Wave2 WIFI & BT 5
  • DisplayPort, HDMI*2 Ports for Multiple Display
  • Ultra-Fast NVMe PCIe Gen3 x4 M.2 with Thermal Guard
  • ALC1220-VB Enhance 114dB(Rear)/ 110dB(Front) SNR in Microphone with High-end Audio Capacitors
  • RGB FUSION with Multi-Zone LED Light Show Design, Supports Digital LED & RGB LED Strips
  • Intel®GbE LAN with cFosSpeed Internet Accelerator Software
  • Smart Fan 5 Features 5 Temperature Sensors and 2 Hybrid Fan Headers with FAN STOP
  • APP Center Including EasyTune™ and Cloud Station™ Utilities
  • CEC 2019 Ready, Save Power with a Single Click

AMD Ryzen Desktop 2000 Ready

AMD introduces the latest Ryzen™ 2000 series processors to provide the computing power for gaming need. GIGABYTE's 400-series motherboards perfectly fit the latest AMD Ryzen™ 2000 series processors' computing performance with more features and more control. Users can enjoy the benefits brought by AMD Ryzen™ 2000 series processors.

AMD StoreMI technology

GIGABYTE 400-series maximize your PC's potential with AMD StoreMI technology. StoreMI accelerates traditional storage devices to reduce boot times and enhance the overall user experience. This easy-to-use utility combines the speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of the device to match that of SSDs, bolsters data performance for incredible value, and transforms the everyday PC to a performance driven system.

AORUS M.2 Thermal Guard

GIGABYTE Ultra-Efficient M.2 Thermal Guard

With durability in mind, GIGABYTE provides a thermal solution for M.2 drives. The M.2 Thermal Guard prevents throttling and bottlenecks from M.2 devices as it helps to reduce and dissipate heat before it becomes an issue.

Native USB 3.1 Gen2

AMD 400-series chipset provides native USB 3.1 Gen2 ports with speeds up to 10Gbps. Available over the USB Type-A connector, the USB3.1 Gen2 is much improved with twice the bandwidth compared to its previous generation as well as backwards compatibility with USB2.0 and USB3.1 Gen1.

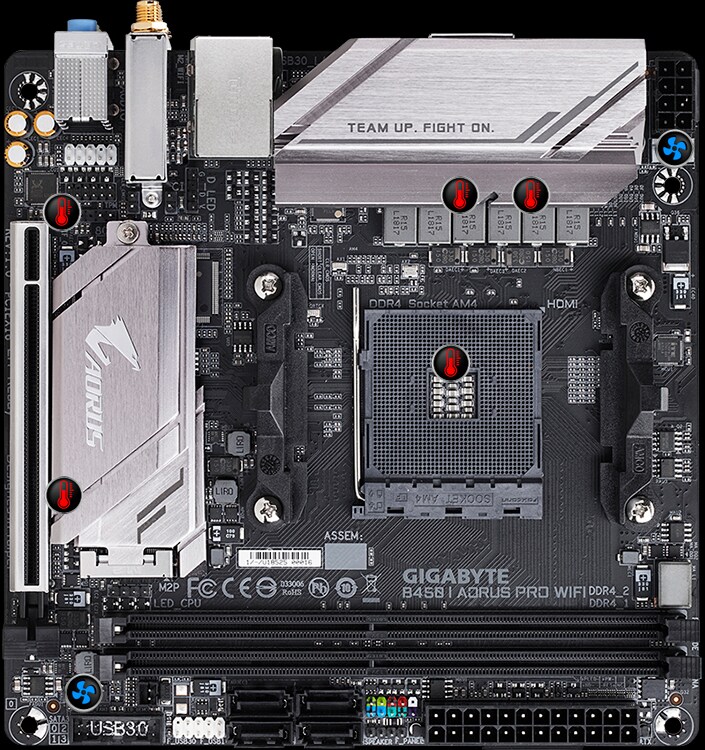

Smart Fan 5

With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

  • 2 Fan Pin Headers
  • 5 Temperature Sensors
  • All Fan Pin Headers Upgraded to Hybrid Fan Headers
  • Supports High Current Fans up to 24W(2AX12V) with Over-Current Protection
  • Intuitive UI for Fan Control
Garanti (måneder) 36
Produkttype Hovedkort - mini-ITX
Brikkesett type AMD B450
Prosessorsokkel Socket AM4
Maks antall prosessorer 1
Kompatible prosessorer Ryzen (støtter 1.- og 2.-generasjons Ryzen / Ryzen med Radeon Vega Graphics)
Støttet RAM
Maks størrelse 32 GB
Teknologi DDR4
Bussklokke 2400 MHz, 2133 MHz, 2667 MHz, 2933 MHz, 3200 MHz (O.C.)
Støttet RAM-integritetskontroll Ikke-ECC, ECC
Registrert eller bufret Ikke-bufret
Egenskaper Dobbeltkanalsminnearkitektur, Intel Extreme Memory Profiles (XMP)
Type HD-lyd (8-kanalers)
Audio Codec Realtek ALC1220-VB
Tilpassede standarder High Definition Audio
Nettverksgrensesnitt Bluetooth, Gigabit Ethernet, 802.11a/b/g/n/ac Wave 2
Ekspansjon / Tilkoplinger
Utvidelsesspor 1 x CPU
2 x 288-pins DIMM
1 x PCIe 3.0 x16
1 x M.2 socket
Lagergrensesnitt SATA-600 -kontakter: 4 x 7-pin seriell ATA - RAID 0 / RAID 1 / RAID 10
SATA-600 / PCIe 3.0 -kontakter: 1 x M.2
Grensesnitt 1 x LAN (Gigabit Ethernet)
1 x lydinnlinje - mini-jack
1 x lydutlinje - mini-jack
1 x mikrofon - mini-jack
1 x DisplayPort
2 x HDMI
4 x USB 3.1 Gen 1
2 x USB 3.1 Gen 2
Interne overflater 2 x USB 2.0 - header
2 x USB 3.1 Gen 1 - header
1 x lyd - header
1 x SPDIF-utgang - header
1 x høyttaler - header
Strømkontakter 24-pin hovedstrømforsyningskontakt, 8-pin ATX12V-kontakt
BIOS-egenskaper WfM 2.0 støttet, UEFI BIOS, SMBIOS 2.7-støtte, DMI 2.7-støtte, ACPI 5.0-støtte
Overvåking av maskinvare CPU-kjernetemperatur, chassis-temperatur, viftehastighet for CPU, viftehastighet for chassis, systemspenning, CPU overopphetingsbeskyttelse, Kjernespenning CPU
Maskinvarefunksjoner Q-Flash, AutoGreen, On/Off Charge, 4+2 Phase Power Design, GIGABYTE Double Locking Bracket, RGB FUSION, Ultra Durable PCIe Armor, støtte for RGBW LED-striper, M.2 Thermal Guard, CEC 2019 Ready, AMD StoreMI technology, Solid Pin Power Connectors
Inkludert programvare Norton Internet Security, @BIOS, EasyTune, Cloud Station, Xpress Install, GIGABYTE USB Blocker, GIGABYTE App Center, cFosSpeed, Smart TimeLock, GIGABYTE Fast Boot, GIGABYTE V-Tuner, GIGABYTE Smart Keyboard, GIGABYTE Smart Backup, GIGABYTE Smart Fan 5, GIGABYTE 3D OSD, GIGABYTE Smart HUD, GIGABYTE Smart Survey
Bredde 17 cm
Dybde 17 cm
